TECHNICAL DATA
规格参数
General specifications
| Device type | Type 2 acc. to EN 61643-11 Class II acc. to IEC 61643-11 |
|---|---|

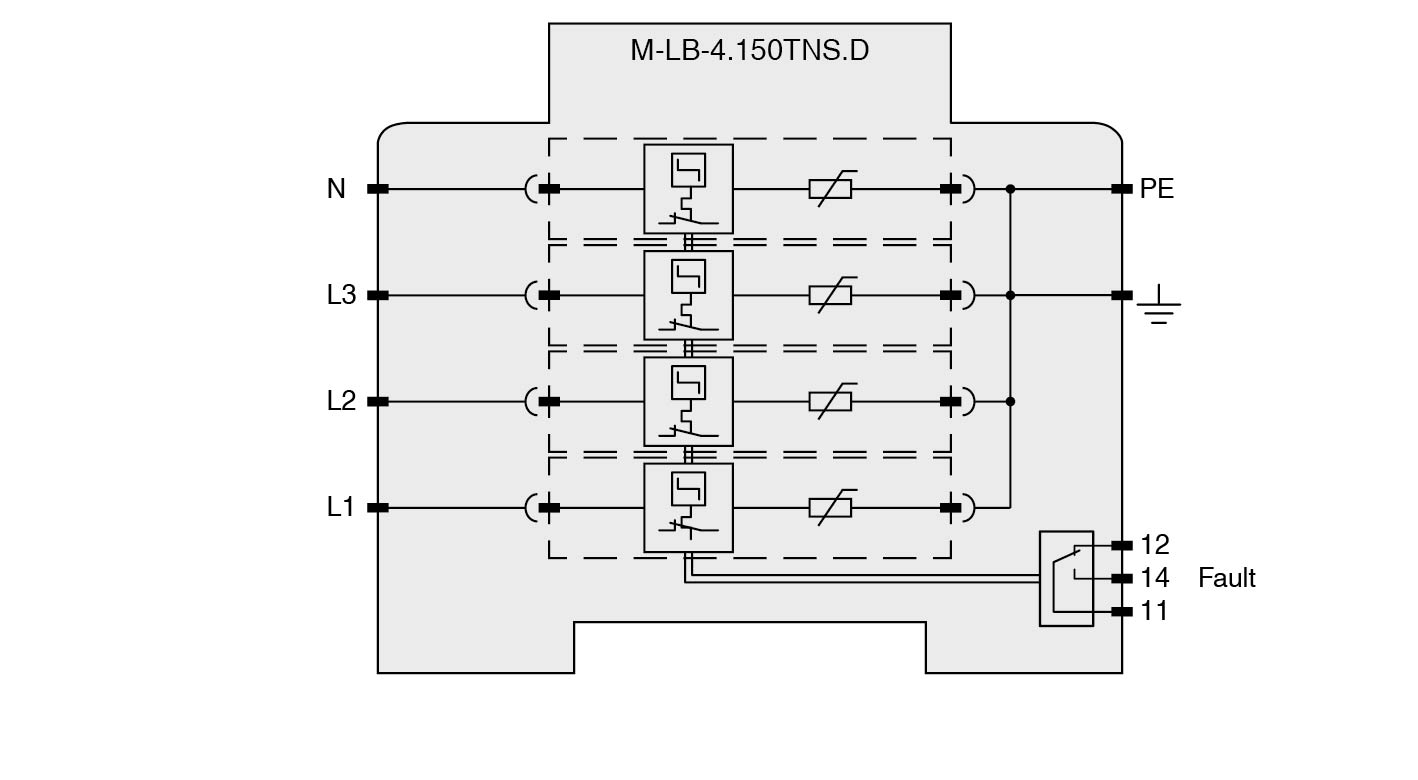

| Number of protected supply lines | 4 |

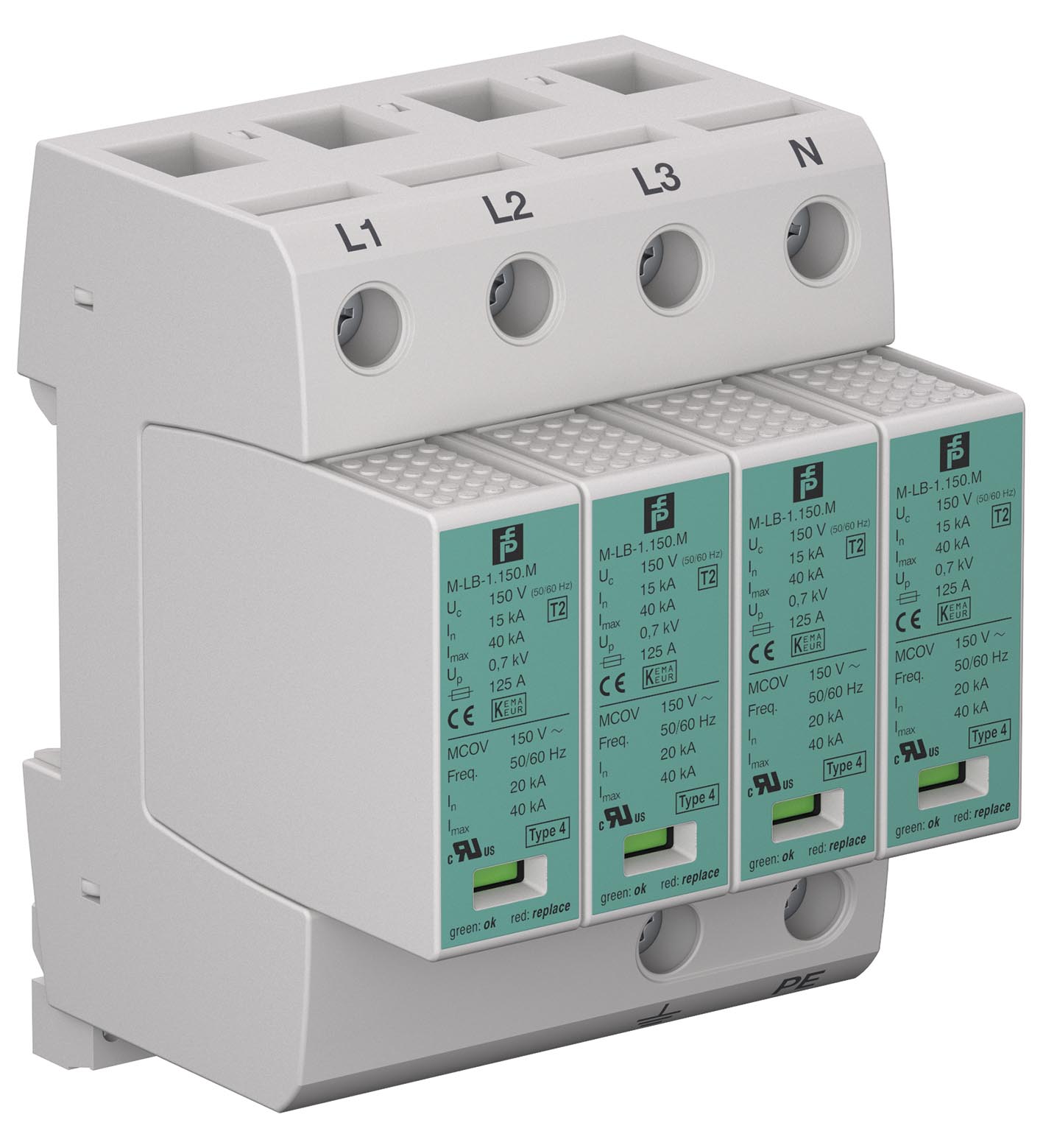

| Suitable components | protection module M-LB-1.150.M |
| Nominal voltage | 120 V AC, 50 ... 60 Hz 240 V AC, 50 ... 60 Hz |
| Maximum continuous operating voltage | 150 V AC, 50 ... 60 Hz |
| Temporary over-voltage | 175 V / 5 s (TOV withstand) |
| Nominal discharge current (8/20 µs) | 15 kA |
| Max. surge current (8/20 µs) | 40 kA |
| Voltage protection level | max. 0.7 kV max. 0.55 kV at 5 kA |
| Reaction time | max. 25 ns |
| Short-circuit-proof | 50 kA eff |
| Connection | terminals 11, 12, 14 |
| Output | volt-free change-over contact |
| Switch power | AC: 250 V / 0.5 A DC: 250 V/0.1 A; 125 V/0.2 A; 75 V/0.5 A; 24 V/0.5 A |
| Display elements | status display operating state (green)fault indication (red) |
| Low voltage | Low voltage |
| Directive 2014/35/EUEN 61643-11:2012 | Directive 2014/35/EUEN 61643-11:2012 |
| Directive 2014/35/EU | EN 61643-11:2012 |
| Degree of protection | IEC 60529 |
| Shock resistance | EN 60068-2 |
| Vibration resistance | EN 60068-2 |
| Ambient temperature | -40 ... 80 °C (-40 ... 176 °F) |
| Relative humidity | 5 ... 95 % |
| Degree of protection | IP20 |
| Core cross section | - min. 1.5 mm2 solid/flexible- max. 35 mm2 stranded/25 mm2 flexible- max. 1.5 mm2 solid/flexible (for remote signalling contact) |
| Material | Material |
| Housingthermoplastic, color grey , UL 94 V-0 | Housingthermoplastic, color grey , UL 94 V-0 |
| Mass | approx. 480 g |

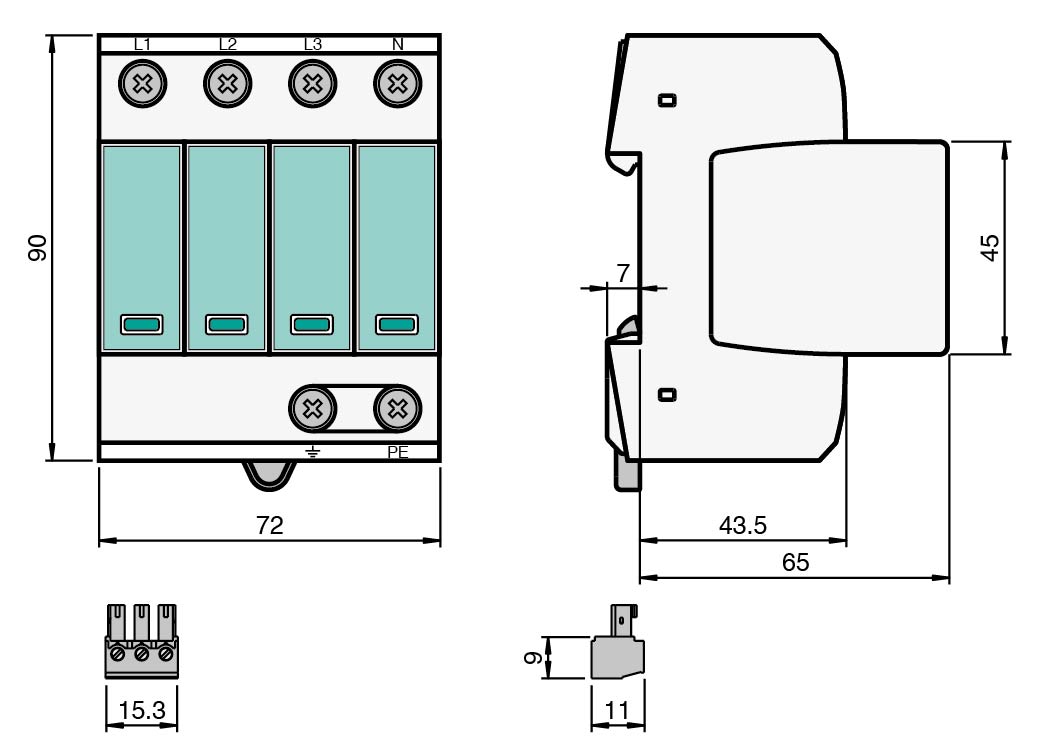

| Dimensions | 72 x 90 x 72 mm (2.8 x 3.6 x 2.8 inch) (W x H x D) , 4 TE acc. to DIN 43880 |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 |
| Housing | thermoplastic, color grey , UL 94 V-0 |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
