M-LBAS-IA1.DE

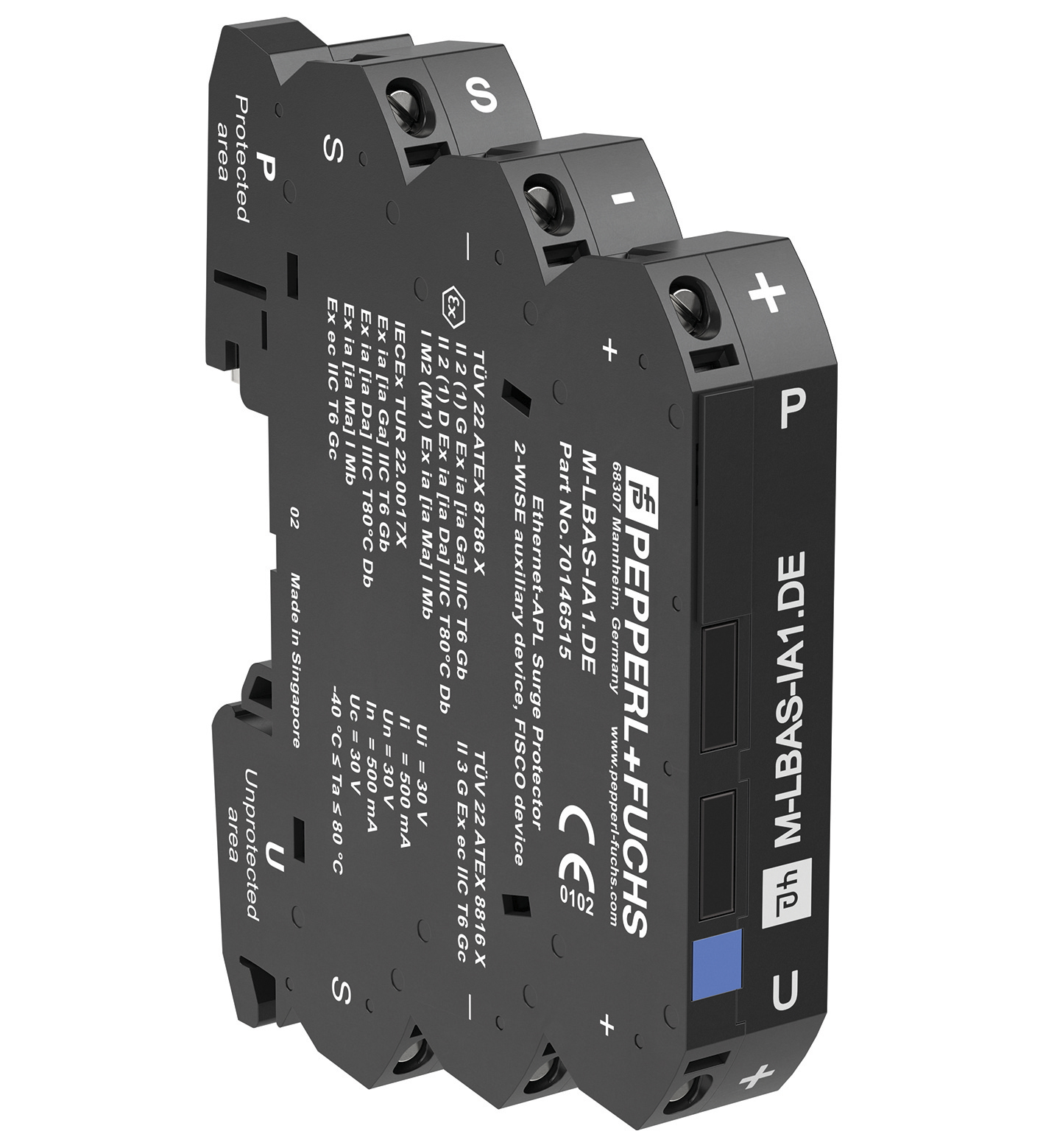

M-LBAS-IA1.DE Surge ProtectorFieldConnex®

订货号: 70146515
产品分类: 附件

Surge protector, Ethernet-APL, control cabinet installation, Ex ia, Ex ec, direct shield grounding

查看规格参数资料与附件

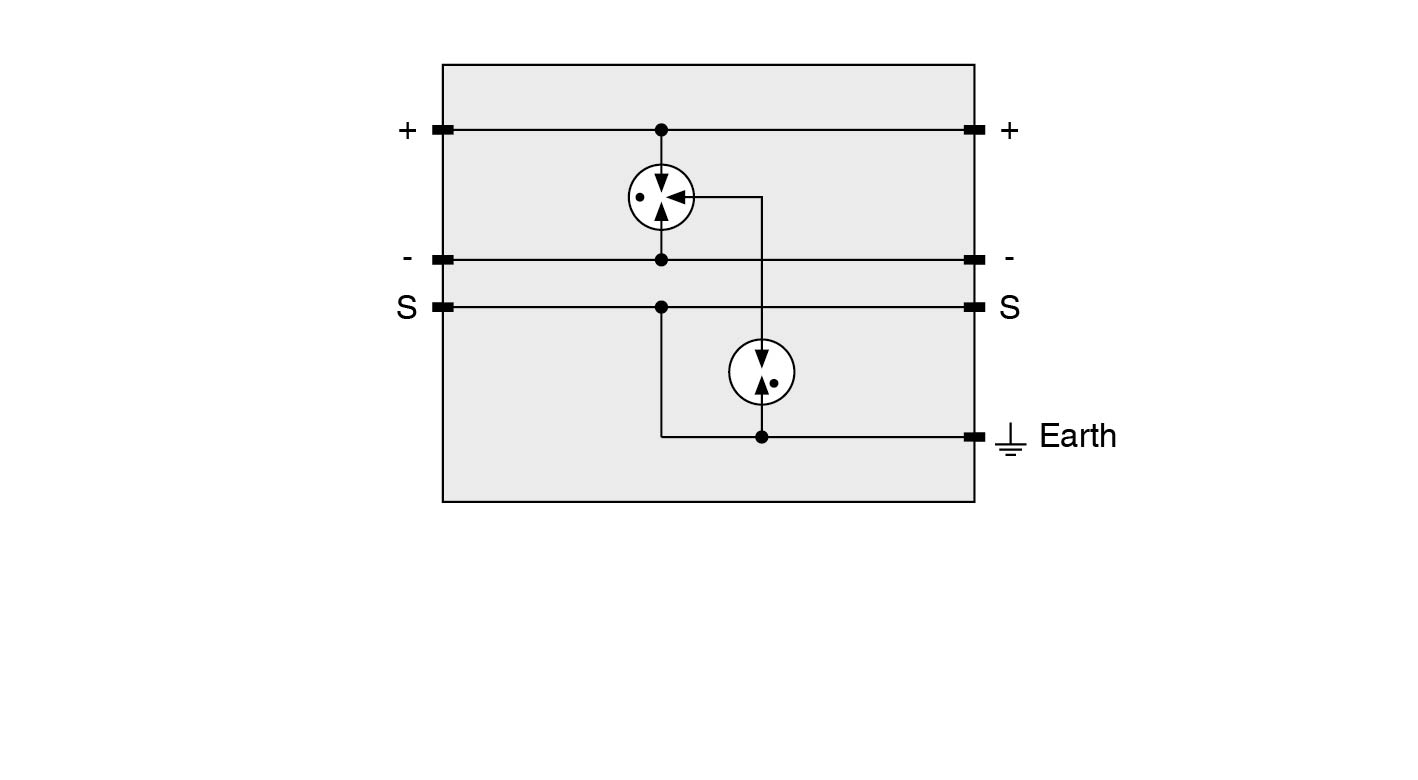

TECHNICAL DATA

规格参数

General specifications

Design / Mounting	Cabinet installation
Installation in hazardous area	Zone 1
Interface type	Ethernet-APL auxiliary device
Rated voltage	30 V
Rated current	500 mA
Impulse rating	2 kV/1 kA (category C1) per line 10 kV/5 kA (category C2) per line 1 kA (category D1) per line
Impulse discharge current (10/350 µs)	0.5 kA per line
Nominal discharge current (8/20 µs)	In
per line5 kAtotal10 kAShield10 kA	per line5 kAtotal10 kAShield10 kA
Max. surge current (8/20 µs)	10 kA overstressed fault mode 3 acc. to IEC 61643-21
Voltage protection level	Up
Line/Earthmax. 1500 V C1 , 1 kA per linemax. 2100 V C2 , 5 kA per linemax. 50 V C3 , 50 A per linemax. 1300 V B2 , 50 A per line	Line/Earthmax. 1500 V C1 , 1 kA per linemax. 2100 V C2 , 5 kA per linemax. 50 V C3 , 50 A per linemax. 1300 V B2 , 50 A per line
per line	5 kA
total	10 kA
Shield	10 kA
Line/Earth	max. 1500 V C1 , 1 kA per linemax. 2100 V C2 , 5 kA per linemax. 50 V C3 , 50 A per linemax. 1300 V B2 , 50 A per line
Degree of protection	IEC/EN 60529
Climatic conditions	IEC 60721
Shock resistance	EN 60068-2-27
Vibration resistance	EN 60068-2-6
Surge protection	IEC 61643-21
Ethernet	Ethernet-APL ,IEEE 802.3 for 10BASE-T1L
Ambient temperature	-40 ... 80 °C (-40 ... 176 °F)
Storage temperature	-50 ... 90 °C (-58 ... 194 °F)
Relative humidity	≤ 95 % non-condensing
Shock resistance	15 g 11 ms
Vibration resistance	1 g , 10 ... 150 Hz
Connection type	screw terminals
Core cross section	solid wire 0.5 ... 2.5 mm2 ,stranded wire 0.5 ... 1.5 mm2
Housing material	Polyamide PA 6.6
Degree of protection	IP20
Mass	32 g
Mounting	DIN mounting rail
EU-type examination certificate	TÜV 22 ATEX 8786 X , TÜV 22 ATEX 8816 X
Marking2-WISE auxiliary device , FISCOMarking ll 3 G Ex ec llC T6 Gc ,[exsign] ll 2 (1) G Ex ia [ia Ga] IIC T6 Gb ,[exsign] ll 2 (1) D Ex ia [ia Da] lIIC T80°C Db ,[exsign] l M2 (M1) Ex ia [ia Ma] l MbVoltageUi30 VCurrentIi500 mAInternal capacitanceCinegligible 0 nFInternal inductanceLi negligible 0 µH	Marking2-WISE auxiliary device , FISCOMarking ll 3 G Ex ec llC T6 Gc ,[exsign] ll 2 (1) G Ex ia [ia Ga] IIC T6 Gb ,[exsign] ll 2 (1) D Ex ia [ia Da] lIIC T80°C Db ,[exsign] l M2 (M1) Ex ia [ia Ma] l MbVoltageUi30 VCurrentIi500 mAInternal capacitanceCinegligible 0 nFInternal inductanceLi negligible 0 µH
Directive conformity	Directive conformity
Directive 2014/34/EUEN 60079-0:2018 ,EN 60079-11:2012 ,IEC TS 60079-47:2021	Directive 2014/34/EUEN 60079-0:2018 ,EN 60079-11:2012 ,IEC TS 60079-47:2021
Supplementary information	Supplementary information
Marking	2-WISE auxiliary device , FISCO
Marking	ll 3 G Ex ec llC T6 Gc ,[exsign] ll 2 (1) G Ex ia [ia Ga] IIC T6 Gb ,[exsign] ll 2 (1) D Ex ia [ia Da] lIIC T80°C Db ,[exsign] l M2 (M1) Ex ia [ia Ma] l Mb
Voltage	30 V
Current	500 mA
Internal capacitance	negligible 0 nF
Internal inductance	negligible 0 µH
Directive 2014/34/EU	EN 60079-0:2018 ,EN 60079-11:2012 ,IEC TS 60079-47:2021
IECEx approval	IECEx TUR 22.0017X
Approved forEx ec llC T6 Gc ,Ex ia [ia Ga] IIC T6 Gb ,Ex ia [ia Da] lIIC T80°C Db ,Ex ia [ia Ma] l Mb	Approved forEx ec llC T6 Gc ,Ex ia [ia Ga] IIC T6 Gb ,Ex ia [ia Da] lIIC T80°C Db ,Ex ia [ia Ma] l Mb
Approved for	Ex ec llC T6 Gc ,Ex ia [ia Ga] IIC T6 Gb ,Ex ia [ia Da] lIIC T80°C Db ,Ex ia [ia Ma] l Mb
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
