产品数据表
Datasheet
可下载打开资料
TECHNICAL DATA
规格参数
General specifications
| Function | Alternating, direct and permanent fields |
|---|---|
| Power supply | 2x LR03 according to IEC (type approved) |
| Ambient temperature | -20 ... 50 °C (-4 ... 122 °F) |
| Storage temperature | -40 ... 60 °C (-40 ... 140 °F) |
| Degree of protection | IP54 |
| Mass | approx. 60 g with Batteries |
| Dimensions | 150 mm x 18 mm |
| ATEX approval | ATEX approval |
| ATEX certificatePTB 01 ATEX 2018ATEX marking II 2G Ex ia IIC T4 Gb | ATEX certificatePTB 01 ATEX 2018ATEX marking II 2G Ex ia IIC T4 Gb |
| ATEX certificate | PTB 01 ATEX 2018 |
| ATEX marking | II 2G Ex ia IIC T4 Gb |

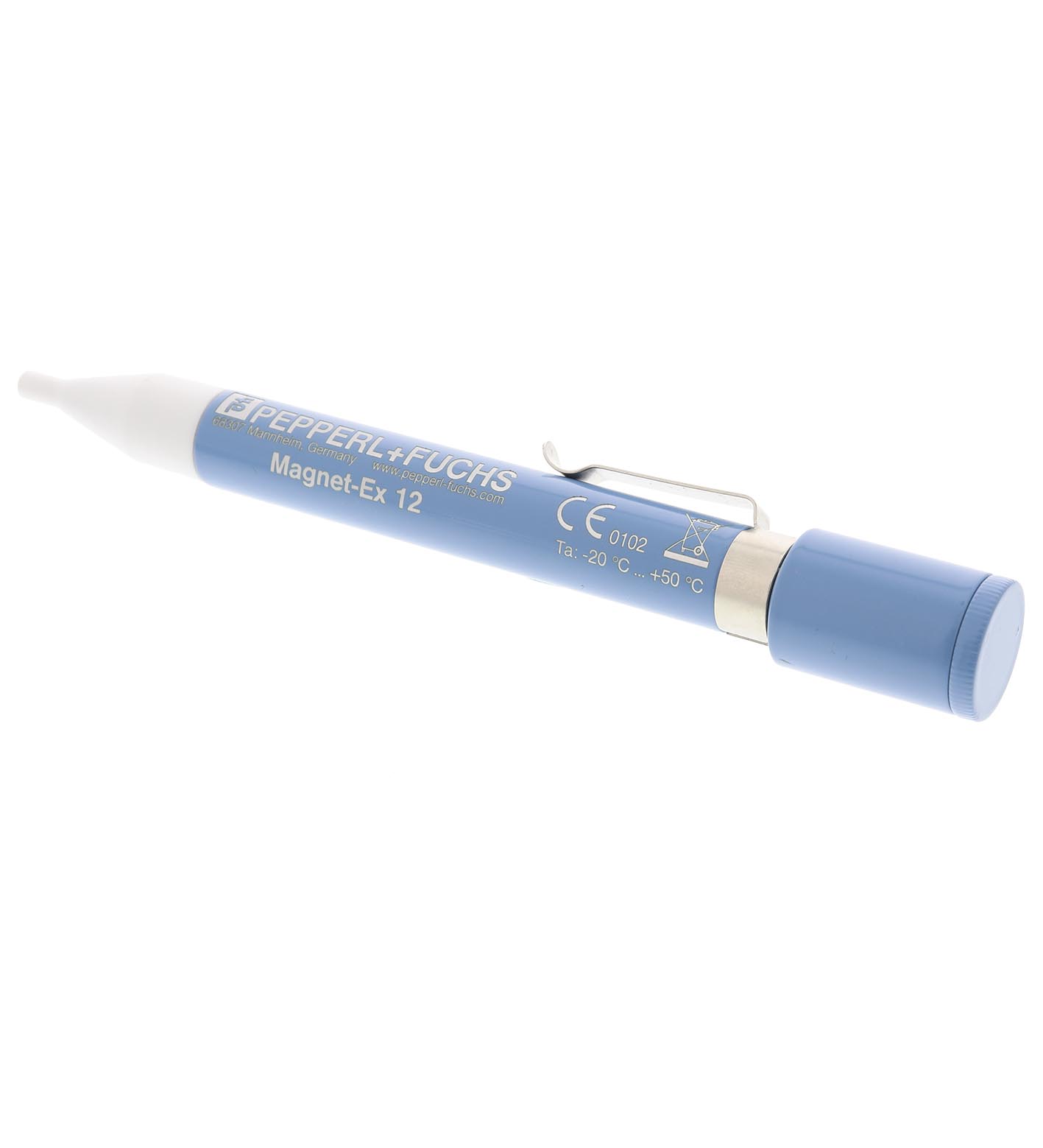

| Scope of delivery | Magnet-Ex 12 Batteries Documentation |
DOCUMENTS & DOWNLOADS
资料与附件
暂无 STP 图纸。
