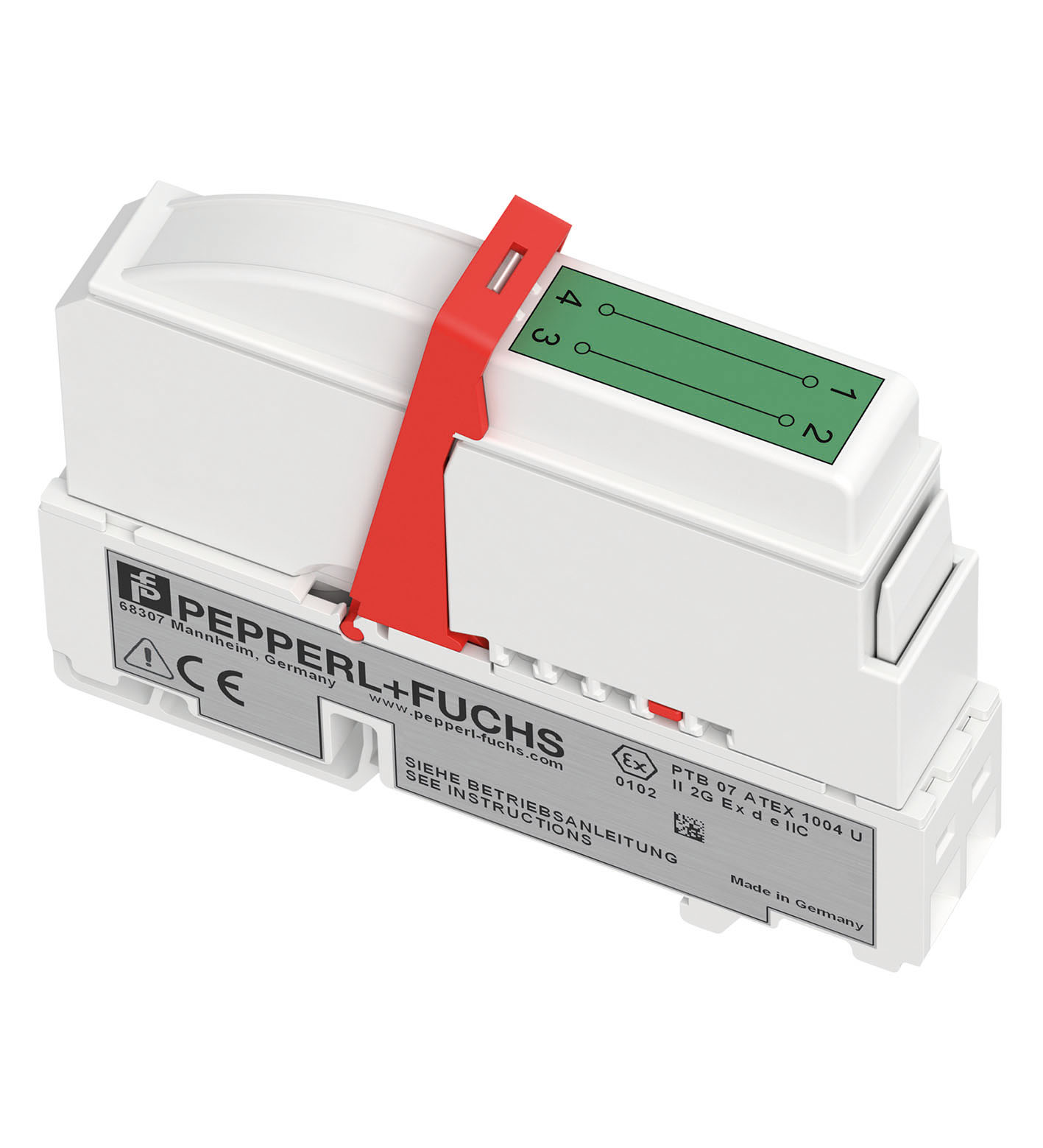

MFT-* Multifunction Terminal

订货号: T40921
产品分类: FB系列

Multifunction terminal, allows maintenance work to be carried out in hazardous areas without a hot work permit

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Function	The specific device function can be found in the ordering information section.
Safety Integrity Level (SIL)	SIL 3
Resistor	1 x 1 Ω ... 22 MΩ, 0.5 W 2 x 1 Ω ... 22 MΩ, 0.5 W
Diode	1 x I max. 1 A 2 x I max. 0.5 A
Fuse	0.032 ... 1.5 A 1.5 ... 6.3 A Pre-arcing time/current characteristic: time-lag T
Nominal voltagemax. 250 V AC max. 30 V DC	Nominal voltagemax. 250 V AC max. 30 V DC
Relay	Relay
Control24 V , approx. 5 ... 8.5 mAContact loadingAC max. 250 V , max. 1 A DC max. 30 V , max. 1 AContact resistance0.1 Ω at 6 V, 1 ASwitching operations NO contact3 x 104Switching operations NC contact1 x 104	Control24 V , approx. 5 ... 8.5 mAContact loadingAC max. 250 V , max. 1 A DC max. 30 V , max. 1 AContact resistance0.1 Ω at 6 V, 1 ASwitching operations NO contact3 x 104Switching operations NC contact1 x 104
Nominal voltage	max. 250 V AC max. 30 V DC
Control	24 V , approx. 5 ... 8.5 mA
Contact loading	AC max. 250 V , max. 1 A DC max. 30 V , max. 1 A
Contact resistance	0.1 Ω at 6 V, 1 A
Switching operations NO contact	3 x 104
Switching operations NC contact	1 x 104
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Degree of protection	IEC 60529:2001
Ambient temperature	-55 ... 55 °C (-67 ... 131 °F) (Im = 1.5 ... 6.3 A) -55 ... 70 °C (-67 ... 158 °F) (Im = 0.032 ... 1.5 A) The specific ambient temperature can be found in the ordering information section.
Core cross section	0.5 ... 2.5 mm2
Degree of protection	IP20 , IP30 when plug-in module is plugged in
Mass	approx. 115 g , depending on model
Dimensions	93 x 17.5 x 79 mm (l x w x h)
Height79 mmWidth17.5 mmLength93 mm	Height79 mmWidth17.5 mmLength93 mm
Tightening torque	0.5 ... 1 Nm
Height	79 mm
Width	17.5 mm
Length	93 mm
EU-type examination certificate	PTB 07 ATEX 1004 U
Marking II 2 G Ex d e IIC	Marking II 2 G Ex d e IIC
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-1:2014 , EN 60079-7:2015+A1:2018	Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-1:2014 , EN 60079-7:2015+A1:2018
Marking	II 2 G Ex d e IIC
Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 , EN 60079-1:2014 , EN 60079-7:2015+A1:2018
IECEx approval	IECEx approval
IECEx certificateIECEx BKI 08.0008UIECEx markingEx d e IIC Gb	IECEx certificateIECEx BKI 08.0008UIECEx markingEx d e IIC Gb
Marine approval	Marine approval
DNV GL MarineTAA0000034	DNV GL MarineTAA0000034
IECEx certificate	IECEx BKI 08.0008U
IECEx marking	Ex d e IIC Gb
DNV GL Marine	TAA0000034
Order information	Customer-specific values are available in the E96 series.Minimum order quantity 50 pieces.
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
