TECHNICAL DATA
规格参数
Hardware
| Processor | Intel® Apollo Lake N4200 series |
|---|---|
| RAM | 4 GB DDR3L |
| Mass storage | 32 GB eMMC MLC |
| Power supply | Input voltage: 16 ... 28 V DC Output voltage: 16 ... 28 V DC Input current: max. 3.8 A - 2.2 A |
| Interface type | Voltage input: M12 plug, A-coded, 4-pinVoltage output: M12 socket, A-coded, 4-pinNetwork connection: M12 socket, D-coded, 4-pin, shielded via screw connectionShielded earth: Connection terminal Encoder connection: M12 socket, A-coded, 8-pin |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 EN 55032:2015, AC:2016 EN 55035:2017 | Directive 2014/30/EUEN 61326-1:2013 EN 55032:2015, AC:2016 EN 55035:2017 |
| RoHS | RoHS |
| Directive 2011/65/EU (RoHS)EN 50581:2012-09 | Directive 2011/65/EU (RoHS)EN 50581:2012-09 |
| Directive 2014/30/EU | EN 61326-1:2013 EN 55032:2015, AC:2016 EN 55035:2017 |
| Directive 2011/65/EU (RoHS) | EN 50581:2012-09 |
| Operating system | Linux Debian 10 |
| Operating temperature | -20 ... 45 °C (-4 ... 113 °F) |
| Storage temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Relative humidity | ≤ 95 % at 40 °C (non-condensing acc. to EN 60068-2-78) |
| Degree of protection | IP66 |
| Mass | 12.4 kg |

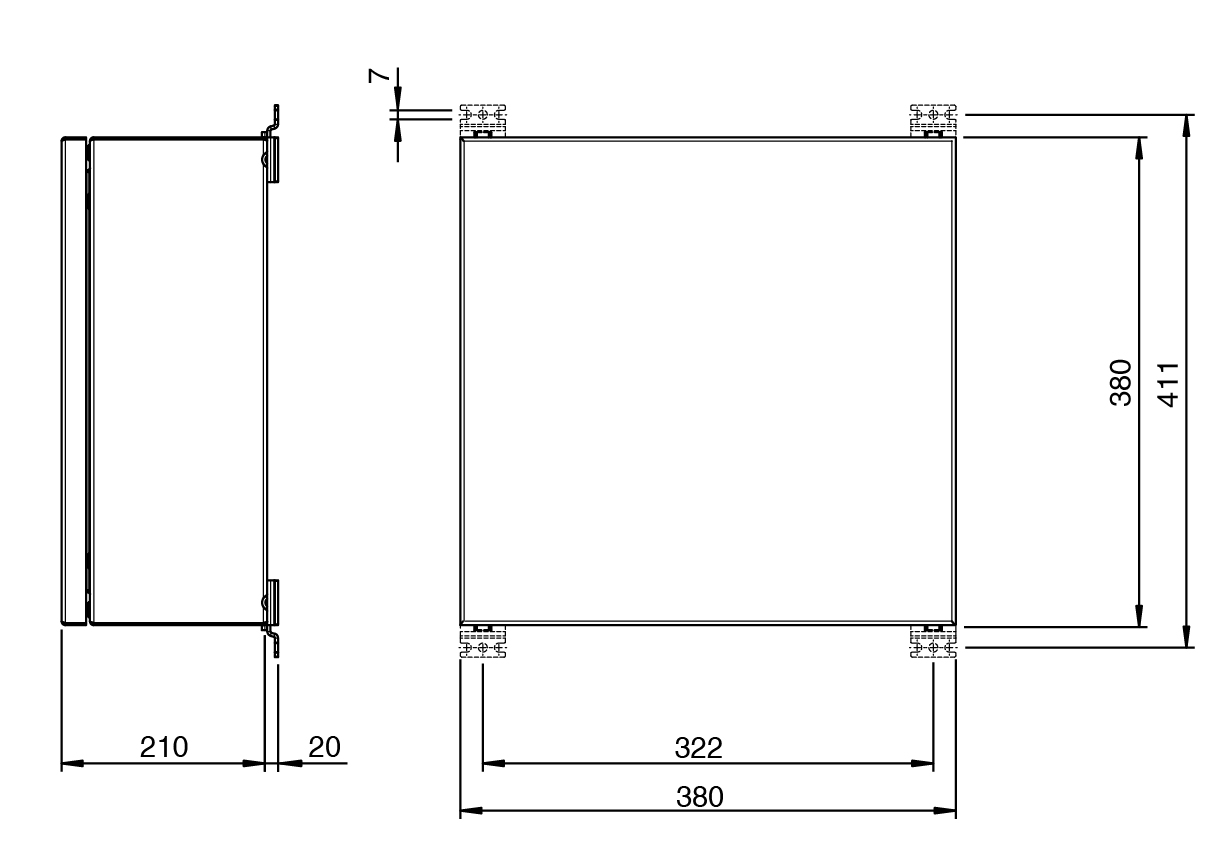

| Dimensions | 380 mm x 380 mm x 210 mm |
| Mounting | wall mounting |
| Note | Passive cooling, no rotating parts. Power supply not included. |
| System information | System information |
