产品数据表
Datasheet
已就绪 · 可下载下载文件
TECHNICAL DATA
规格参数
General specifications
| Type | Personal Computer |
|---|---|
| Processor | 1N: Intel® Celeron2N: Intel® Core™ i5-7300U |
| RAM | 2x SO-DIMM slots,supports up to 32 GB DDR4-2133 (one SO-DIMM slot) Configurable RAM options:Wide temperature grade (temperature option B):L: 1x 8GB DDR4-2133M: 1x 16GB DDR4-2133P: 2x 16GB DDR4-2133 [Industrial, general purpose (Non-Ex), i5] |
| Mass storage | Storage interface:1x M.2 2242/2280 M Key, PCIe + SATA 3 Configurable storage options:Wide temperature grade (temperature option B):P: 256 GB M.2 NVMe 1.3 (PCIe 4x)Q: 512 GB M.2 NVMe 1.3 (PCIe 4x) |
| Power consumption | Power consumption |
| ACmax. load: 64 W Further information can be found in the VisuNet FLX manual for the extended temperature range.DCmax. load: 55 W Further information can be found in the VisuNet FLX manual for the extended temperature range. | ACmax. load: 64 W Further information can be found in the VisuNet FLX manual for the extended temperature range.DCmax. load: 55 W Further information can be found in the VisuNet FLX manual for the extended temperature range. |
| AC | max. load: 64 W Further information can be found in the VisuNet FLX manual for the extended temperature range. |
| DC | max. load: 55 W Further information can be found in the VisuNet FLX manual for the extended temperature range. |
| Display | Display |
| TypeLiquid Crystal Display (LCD) with LED backlightScreen size54.61 cm (21,5 '')Resolution1920 x 1080 pixels (Full HD) Aspect ratio 16:9Color depth24 bit (16.7 M) colorContrast ratio22FC: 5000:1Brightness22FC: 300 cd/m2Viewing angle22FC: 170 ° horizontal, 160 ° verticalLife span22FC: back lamp life: 50.000 hrs typical half life, at 25 °C (77 °F) | TypeLiquid Crystal Display (LCD) with LED backlightScreen size54.61 cm (21,5 '')Resolution1920 x 1080 pixels (Full HD) Aspect ratio 16:9Color depth24 bit (16.7 M) colorContrast ratio22FC: 5000:1Brightness22FC: 300 cd/m2Viewing angle22FC: 170 ° horizontal, 160 ° verticalLife span22FC: back lamp life: 50.000 hrs typical half life, at 25 °C (77 °F) |
| Input devices | Input devices |
| Touch screen10-finger multi-touch, glove-friendlyConfigurable display options:22FC: Capacitive touch, optical bondingKeyboardOptional: Foil keyboard with different pointing device options available (see EXTA4 datasheet)RFID readerOptional: Integrated in the VisuNet FLX housing,2 configuration options available:TWN4 MultiTech 3 M LF HFTWN4 MultiTech 3 LEGIC M LF HF(see RFID20-* technical data) | Touch screen10-finger multi-touch, glove-friendlyConfigurable display options:22FC: Capacitive touch, optical bondingKeyboardOptional: Foil keyboard with different pointing device options available (see EXTA4 datasheet)RFID readerOptional: Integrated in the VisuNet FLX housing,2 configuration options available:TWN4 MultiTech 3 M LF HFTWN4 MultiTech 3 LEGIC M LF HF(see RFID20-* technical data) |
| Type | Liquid Crystal Display (LCD) with LED backlight |
| Screen size | 54.61 cm (21,5 '') |
| Resolution | 1920 x 1080 pixels (Full HD) Aspect ratio 16:9 |
| Color depth | 24 bit (16.7 M) color |
| Contrast ratio | 22FC: 5000:1 |
| Brightness | 22FC: 300 cd/m2 |
| Viewing angle | 22FC: 170 ° horizontal, 160 ° vertical |
| Life span | 22FC: back lamp life: 50.000 hrs typical half life, at 25 °C (77 °F) |
| Touch screen | 10-finger multi-touch, glove-friendlyConfigurable display options:22FC: Capacitive touch, optical bonding |
| Keyboard | Optional: Foil keyboard with different pointing device options available (see EXTA4 datasheet) |
| RFID reader | Optional: Integrated in the VisuNet FLX housing,2 configuration options available:TWN4 MultiTech 3 M LF HFTWN4 MultiTech 3 LEGIC M LF HF(see RFID20-* technical data) |
| Interface type | 1 x DisplayPort 1.2 (DP++) 1 x mini DisplayPort 1.2 (DP++ w/ mono locking screw) 1 x Audio Line-out 2 x USB Ex i ports prepared for Pepperl+Fuchs intrinsically safe keyboard2 x USB 3.1 Gen1 (5 Gbps) ports1 x USB 2.0 port 2 x LAN ports (RJ45, 10/100/1000 Mbps) 2 x RS232/422/485 (BIOS configurable) with 5V/12V to power peripherals (1 x DB9 male + 1 x RJ45) |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUNon-RFID products onlyEN 61000-6-4:2007EN 61000-6-4:2007/A1:2011EN 61326-1:2013 | Directive 2014/30/EUNon-RFID products onlyEN 61000-6-4:2007EN 61000-6-4:2007/A1:2011EN 61326-1:2013 |
| Explosion protection | Explosion protection |
| Directive 2014/34/EUEN IEC 60079-0:2018EN IEC 60079-7:2015/A1:2018EN 60079-11:2012EN IEC 60079-31:2024 | Directive 2014/34/EUEN IEC 60079-0:2018EN IEC 60079-7:2015/A1:2018EN 60079-11:2012EN IEC 60079-31:2024 |
| Radio and telecommunication terminal equipment | Radio and telecommunication terminal equipment |
| Directive 2014/53/EURFID products onlyEN 301489-1 V2.2.3:2019EN 301489-3 V2.3.2:2023EN 300 330 V2.1.1:2017EN 61326-1:2013EN 61000-6-4:2007EN 61000-6-4:2007/A1:2011EN 61010-1:2010EN 62479 :2010EN 62311:2008 | Directive 2014/53/EURFID products onlyEN 301489-1 V2.2.3:2019EN 301489-3 V2.3.2:2023EN 300 330 V2.1.1:2017EN 61326-1:2013EN 61000-6-4:2007EN 61000-6-4:2007/A1:2011EN 61010-1:2010EN 62479 :2010EN 62311:2008 |
| RoHS | RoHS |
| Directive 2011/65/EU (RoHS)EN IEC 63000:2018 | Directive 2011/65/EU (RoHS)EN IEC 63000:2018 |
| Directive 2014/30/EU | Non-RFID products onlyEN 61000-6-4:2007EN 61000-6-4:2007/A1:2011EN 61326-1:2013 |
| Directive 2014/34/EU | EN IEC 60079-0:2018EN IEC 60079-7:2015/A1:2018EN 60079-11:2012EN IEC 60079-31:2024 |
| Directive 2014/53/EU | RFID products onlyEN 301489-1 V2.2.3:2019EN 301489-3 V2.3.2:2023EN 300 330 V2.1.1:2017EN 61326-1:2013EN 61000-6-4:2007EN 61000-6-4:2007/A1:2011EN 61010-1:2010EN 62479 :2010EN 62311:2008 |
| Directive 2011/65/EU (RoHS) | EN IEC 63000:2018 |
| Operating system | Windows® 10 IoT Enterprise LTSC 2021 x64 |
| Operating temperature | -20 ... 50 °C (-4 ... 122 °F) |
| Storage temperature | -20 ... 65 °C (-4 ... 149 °F) |
| Relative humidity | max. relative humidity 93% at 50°C (non-condensing) according to EN60068-2-78 |
| Climatic conditions | Passive cooling, no rotating parts. |
| Altitude | Operating altitude max. 2000 m |
| Shock resistance | 18 shocks 15 g, 11 ms all axis, IEC 60068-2-27 |
| Vibration resistance | 10 ... 150 Hz, +/- 0.075 mm, 1g, 10 cycles per axis according to EN60068-2-6 |
| Degree of protection | IP66 Type 4X: with RFID option for indoor use only |
| Material | Housing: Powder-coated marine-grade aluminum alloy (EN AW-5754) |
| Installation | System with enclosure |

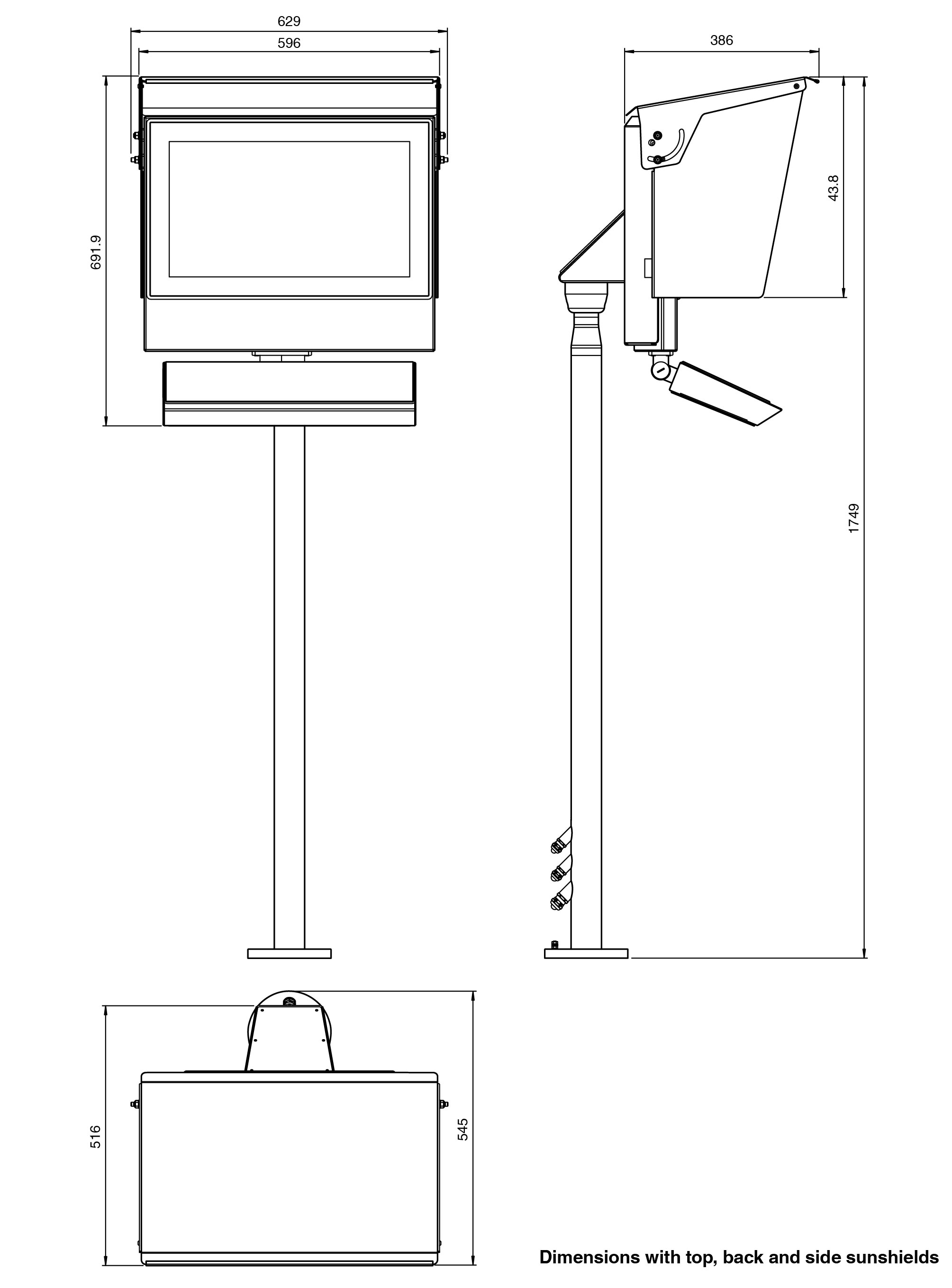

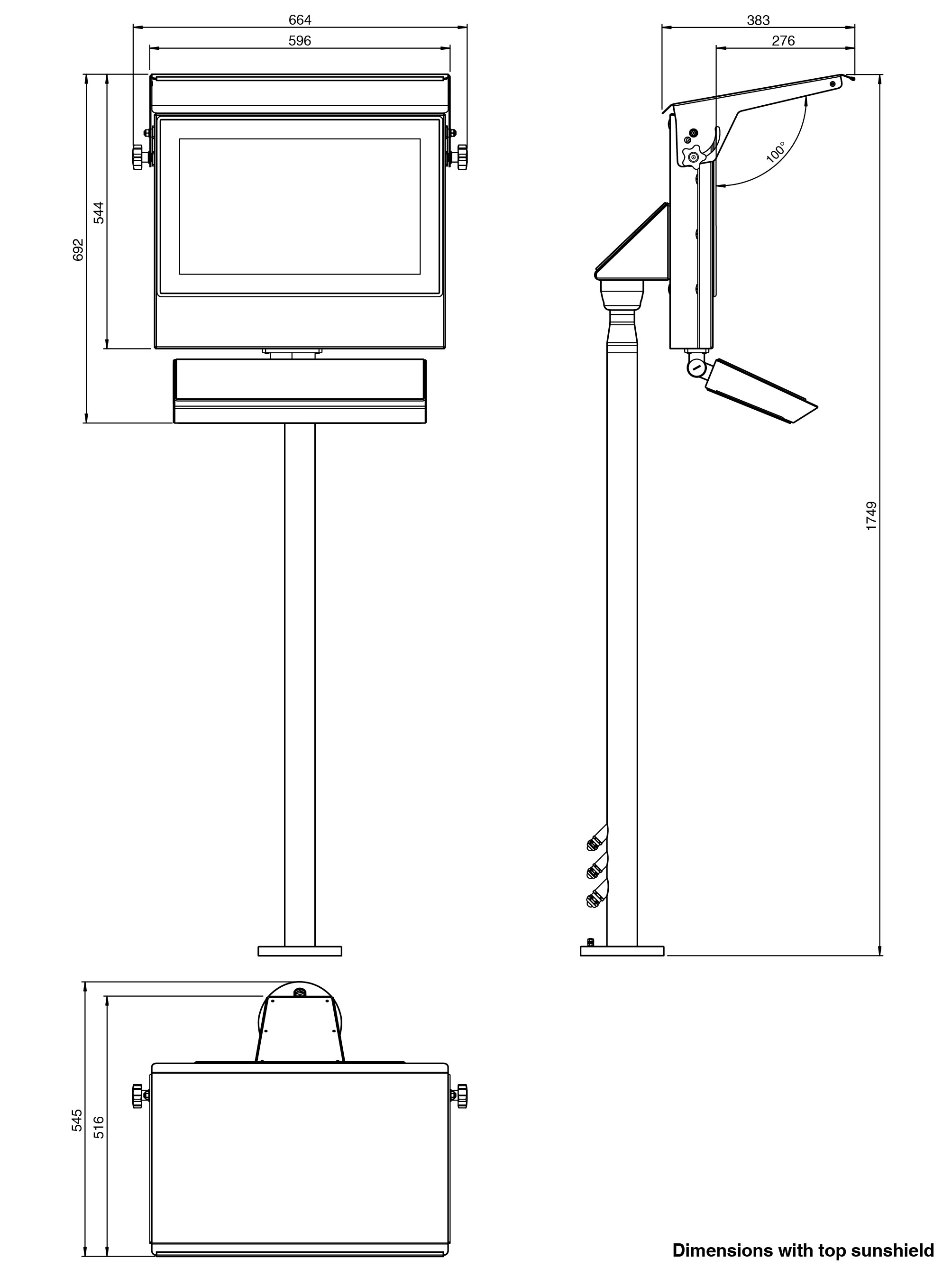

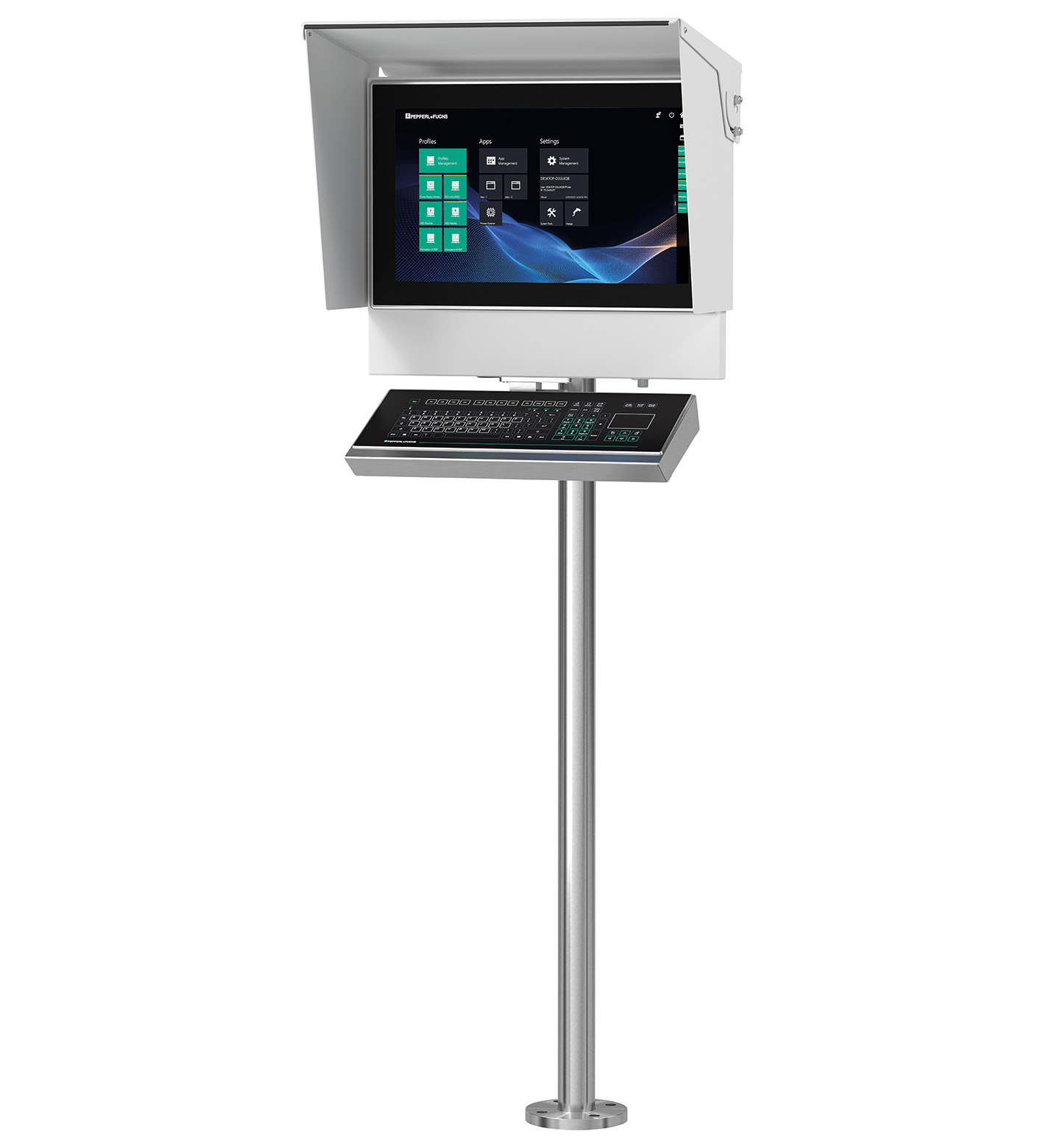

| Mass | Approx. 11.4 kgApprox. 13.4 kg with AC power supplywith top sunshield: + Approx. 1.6 kgwith top and side sunshield: + Approx. 3 kg |

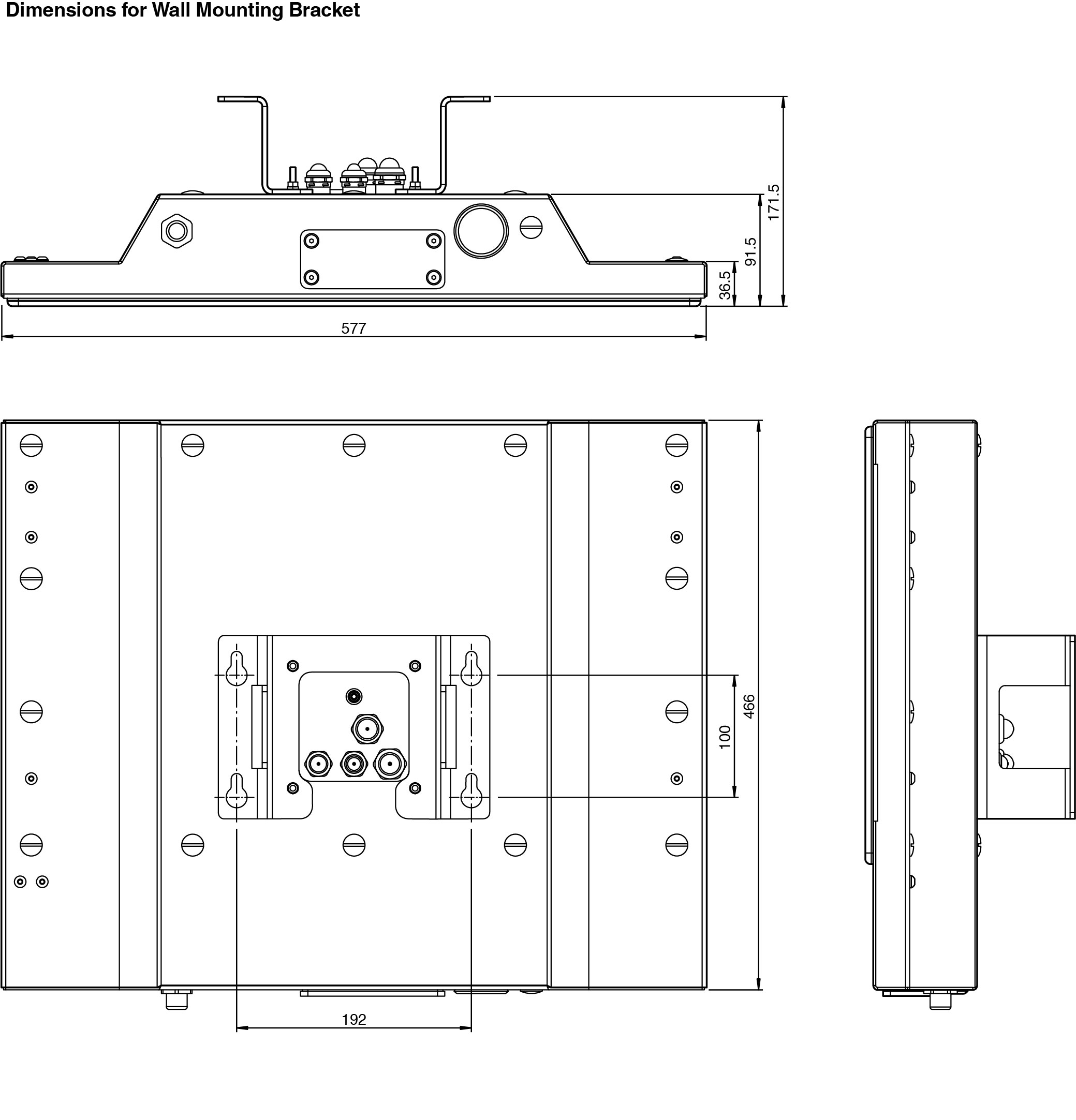

| Dimensions | 577 mm x 466 mm x 233 mm |
| UL approval | UL approval |
| Approved forUL OrdLocUL approval E223772UL61010-1 Ed.3UL 61010-2-201 Ed2CAN/CSA C22.2 No 61010-1-12CAN/CSA C22.2 No 61010-2-201 UL HazLocUL approval E492874Non-Incendive circuits forCL I, DIV 2, GP A-DCL II, DIV 2, GP F, GCL IIINon-Incendive circuits forCL I, ZN 2, IICCL II, ZN 22, IIIBCL III, ZN 22, IIIAInstall per drawing 116-0478 Mounting inCL I, DIV 2, GP A-D, T4CL II, DIV 2, GP F, G, T4CL IIIMounting inCL I, ZN 2, IIC, T4CL II, ZN 22, IIIB, T85°CCL III, ZN 22, IIIA, T85°C | Approved forUL OrdLocUL approval E223772UL61010-1 Ed.3UL 61010-2-201 Ed2CAN/CSA C22.2 No 61010-1-12CAN/CSA C22.2 No 61010-2-201 UL HazLocUL approval E492874Non-Incendive circuits forCL I, DIV 2, GP A-DCL II, DIV 2, GP F, GCL IIINon-Incendive circuits forCL I, ZN 2, IICCL II, ZN 22, IIIBCL III, ZN 22, IIIAInstall per drawing 116-0478 Mounting inCL I, DIV 2, GP A-D, T4CL II, DIV 2, GP F, G, T4CL IIIMounting inCL I, ZN 2, IIC, T4CL II, ZN 22, IIIB, T85°CCL III, ZN 22, IIIA, T85°C |
| ATEX approval | ATEX approval |
| ATEX certificateUL 22 ATEX 2481XATEX markingII 3 G Ex ec [ic Gc] IIC T4 Gc II 3 D Ex tc [ic Dc] IIIC T85°C Dc | ATEX certificateUL 22 ATEX 2481XATEX markingII 3 G Ex ec [ic Gc] IIC T4 Gc II 3 D Ex tc [ic Dc] IIIC T85°C Dc |
| IECEx approval | IECEx approval |
| IECEx certificateIECEx ULD 22.0019XIECEx markingEx ec [ic Gc] IIC T4 Gc Ex tc [ic Dc] IIIC T85°C DcIECEx standardIEC 60079-0:2017 Ed 7.0 IEC 60079-7:2017 Ed 5.1 IEC 60079-11:2011 Ed 6.0 IEC 60079-31:2013 Ed. 3 | IECEx certificateIECEx ULD 22.0019XIECEx markingEx ec [ic Gc] IIC T4 Gc Ex tc [ic Dc] IIIC T85°C DcIECEx standardIEC 60079-0:2017 Ed 7.0 IEC 60079-7:2017 Ed 5.1 IEC 60079-11:2011 Ed 6.0 IEC 60079-31:2013 Ed. 3 |
| CCC approval | CCC approval |
| CCC certificate2024322309005748CCC markingEx ec [ic Gc] IIC T4 Gc Ex tc [ic Dc] IIIC T85°C DcCCC standardGB 3836.1-2021GB/T 3836.3-2021GB/T 3836.4-2021GB/T 3836.31-2021 | CCC certificate2024322309005748CCC markingEx ec [ic Gc] IIC T4 Gc Ex tc [ic Dc] IIIC T85°C DcCCC standardGB 3836.1-2021GB/T 3836.3-2021GB/T 3836.4-2021GB/T 3836.31-2021 |
| Approved for | UL OrdLocUL approval E223772UL61010-1 Ed.3UL 61010-2-201 Ed2CAN/CSA C22.2 No 61010-1-12CAN/CSA C22.2 No 61010-2-201 UL HazLocUL approval E492874Non-Incendive circuits forCL I, DIV 2, GP A-DCL II, DIV 2, GP F, GCL IIINon-Incendive circuits forCL I, ZN 2, IICCL II, ZN 22, IIIBCL III, ZN 22, IIIAInstall per drawing 116-0478 Mounting inCL I, DIV 2, GP A-D, T4CL II, DIV 2, GP F, G, T4CL IIIMounting inCL I, ZN 2, IIC, T4CL II, ZN 22, IIIB, T85°CCL III, ZN 22, IIIA, T85°C |
| ATEX certificate | UL 22 ATEX 2481X |
| ATEX marking | II 3 G Ex ec [ic Gc] IIC T4 Gc II 3 D Ex tc [ic Dc] IIIC T85°C Dc |
| IECEx certificate | IECEx ULD 22.0019X |
| IECEx marking | Ex ec [ic Gc] IIC T4 Gc Ex tc [ic Dc] IIIC T85°C Dc |
| IECEx standard | IEC 60079-0:2017 Ed 7.0 IEC 60079-7:2017 Ed 5.1 IEC 60079-11:2011 Ed 6.0 IEC 60079-31:2013 Ed. 3 |
| CCC certificate | 2024322309005748 |
| CCC marking | Ex ec [ic Gc] IIC T4 Gc Ex tc [ic Dc] IIIC T85°C Dc |
| CCC standard | GB 3836.1-2021GB/T 3836.3-2021GB/T 3836.4-2021GB/T 3836.31-2021 |
