PC-GXP1200-19S--P5/P6

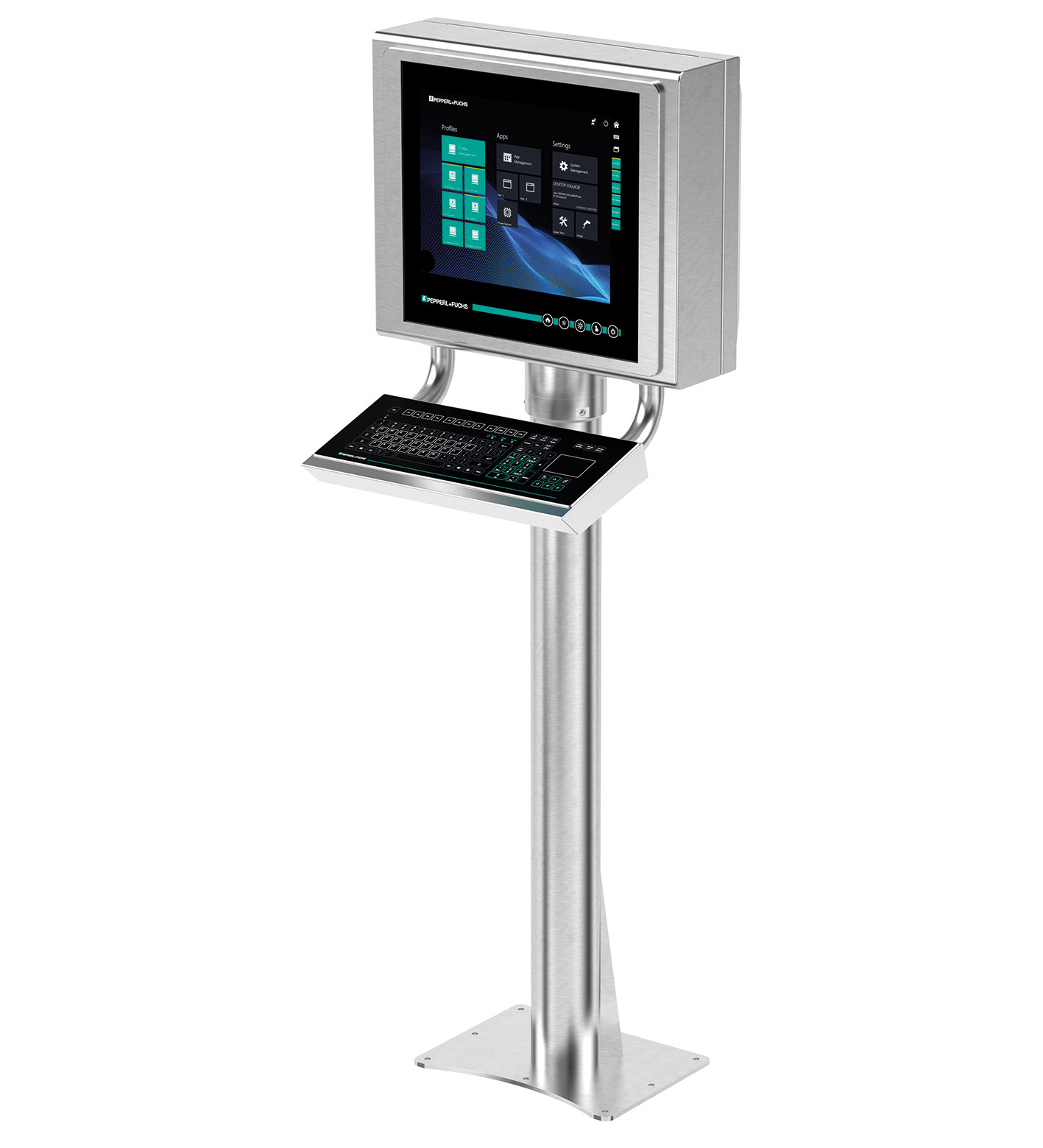

PC-GXP1200-19S-*-P5/P6* Operator Workstation (PC)VisuNet GXP PC Zone 2/22 (2024 Generation)

订货号: T217609
产品分类: 工业监视器

VisuNet GXP PC Zone 2/22 (2024 Generation, Intel® Atom Elkhart Lake Processor)

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Type	Personal Computer
Processor	Intel® Atom Elkhart Lake x6425RE
RAM	8 GB
Mass storage	240 GByte industrial grade SSD optional: 480 GByte SSD
Power consumption	Power consumption
AC115/230 V AC, 0.4 ... 0.7 A, 50/60 HzDC18 ... 36 V DC , 1.5 ... 3 A	AC115/230 V AC, 0.4 ... 0.7 A, 50/60 HzDC18 ... 36 V DC , 1.5 ... 3 A
AC	115/230 V AC, 0.4 ... 0.7 A, 50/60 Hz
DC	18 ... 36 V DC , 1.5 ... 3 A
Display	Display
TypeLiquid Crystal Display (LCD) with LED backlightScreen size48.26 cm (19 inch)Resolution1280 x 1024 (SXGA) , Aspect ratio 5:4Color depth24 bit (16.7 M) colorContrast ratio1000:1Brightness450 cd/m2 (nit) (typically)Viewing angle170° horizontal 160° verticalLife spanback lamp life: 50.000 hrs typical half life , at 25 °C (77 °F)	TypeLiquid Crystal Display (LCD) with LED backlightScreen size48.26 cm (19 inch)Resolution1280 x 1024 (SXGA) , Aspect ratio 5:4Color depth24 bit (16.7 M) colorContrast ratio1000:1Brightness450 cd/m2 (nit) (typically)Viewing angle170° horizontal 160° verticalLife spanback lamp life: 50.000 hrs typical half life , at 25 °C (77 °F)
Input devices	Input devices
Touch screenoptional: projective capacitive; 10 finger multi-touch, glove friendlyKeyboardFoil keyboard with different pointing device options available (see EXTA4 datasheet)	Touch screenoptional: projective capacitive; 10 finger multi-touch, glove friendlyKeyboardFoil keyboard with different pointing device options available (see EXTA4 datasheet)
Type	Liquid Crystal Display (LCD) with LED backlight
Screen size	48.26 cm (19 inch)
Resolution	1280 x 1024 (SXGA) , Aspect ratio 5:4
Color depth	24 bit (16.7 M) color
Contrast ratio	1000:1
Brightness	450 cd/m2 (nit) (typically)
Viewing angle	170° horizontal 160° vertical
Life span	back lamp life: 50.000 hrs typical half life , at 25 °C (77 °F)
Touch screen	optional: projective capacitive; 10 finger multi-touch, glove friendly
Keyboard	Foil keyboard with different pointing device options available (see EXTA4 datasheet)
Interface type	Standard: 1 x Ethernet 100/1000BASE-TX (Ex e) or1 x fiber optic 1000BASE-SX (Multimode) or1 x fiber optic 1000BASE-LX (Singlemode),1 x USB 2.0 (Ex e; service port),2 x USB 1.1 (Ex i; intended for Pepperl+Fuchs keyboard and mouse),1 x DC or AC power in (via power supply unit) Optional:"interface 3": 1 x barcode reader interface for wired 1-D scanners IDM-160-D, IDM-Z1-160-D- and IDM-164-D-* and base station IDMx61-B-, IDM-Z1-x61-B- and IDM-Z1-x64-B-* (Ex i) "interface 4": 1 x barcode reader interface for wired 2-D scanner IDM-Z1-260-D-* and IDM-Z1-264-D-* (Ex i) "interface 5": 1 x RS-232 interface with Power Supply for miscellaneous devices and peripherals (Ex i) 1 x RS-232 (Ex e) 1 x RS-485 (Ex e) 1 x Ethernet 100/1000Base-TX (Ex e) Bluetooth v4.0, communication distance up to 30 m in open terrain, transmission power +8 dBm, transmission frequency 2.402 ... 2.48 GHz
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations) non-Bluetooth products only	Directive 2014/30/EUEN 61326-1:2013 (industrial locations) non-Bluetooth products only
Radio and telecommunication terminal equipment	Radio and telecommunication terminal equipment
Directive 2014/53/EUEN 301 328 V2.1.1 EN 301 489-1 V2.1.1 EN 301 489-17 V3.1.1 Bluetooth products only	Directive 2014/53/EUEN 301 328 V2.1.1 EN 301 489-1 V2.1.1 EN 301 489-17 V3.1.1 Bluetooth products only
RoHS	RoHS
Directive 2011/65/EU (RoHS)EN 50581:2012-09	Directive 2011/65/EU (RoHS)EN 50581:2012-09
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations) non-Bluetooth products only
Directive 2014/53/EU	EN 301 328 V2.1.1 EN 301 489-1 V2.1.1 EN 301 489-17 V3.1.1 Bluetooth products only
Directive 2011/65/EU (RoHS)	EN 50581:2012-09
Operating system	Windows® 10 IoT Enterprise LTSC 2021 x64
Operating temperature	-20 ... 50 °C (-4 ... 122 °F)
Storage temperature	-20 ... 60 °C (-4 ... 140 °F)
Relative humidity	93% at 40°C, non-condensating, according to EN60068-2-78
Altitude	Operating altitude max. 2000 m
Shock resistance	18 shocks 15 g , 11 ms all axis, IEC 60068-2-27
Vibration resistance	10 ... 150 Hz, +/- 0.075 mm , 1g, 10 cycles per axis according to EN60068-2-6
Degree of protection	IP66 (individual components and entire system with housing)
Material	Internal: Panel: anodized aluminum (TCU, PSU), powder coated aluminum (DPU) External: Bezel: stainless steel AISI 304 (1.4301)System housing: stainless steel AISI 304 (1.4301), bead blasted, typical surface roughness Ra = 1.6 µm
Installation	Flush-mount installation (requires customized mounting kit)Panel-mount installation into system housing with bezelPanel-mount installation into cabinet with Bezel and standard mounting kit
Mass	panel with DC: 22 kg , panel with AC: 23 kg , system housing AG1: 19 kg

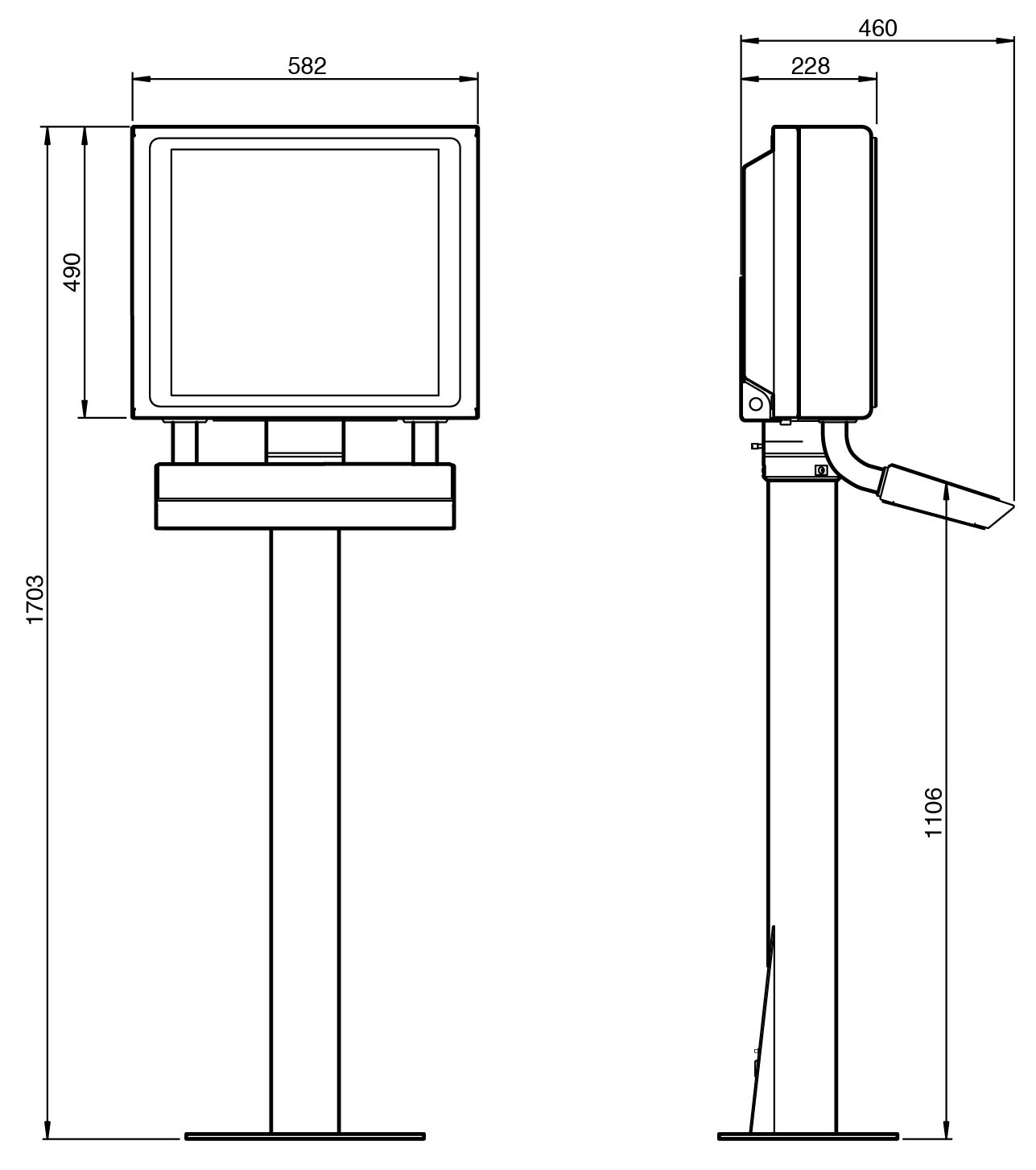

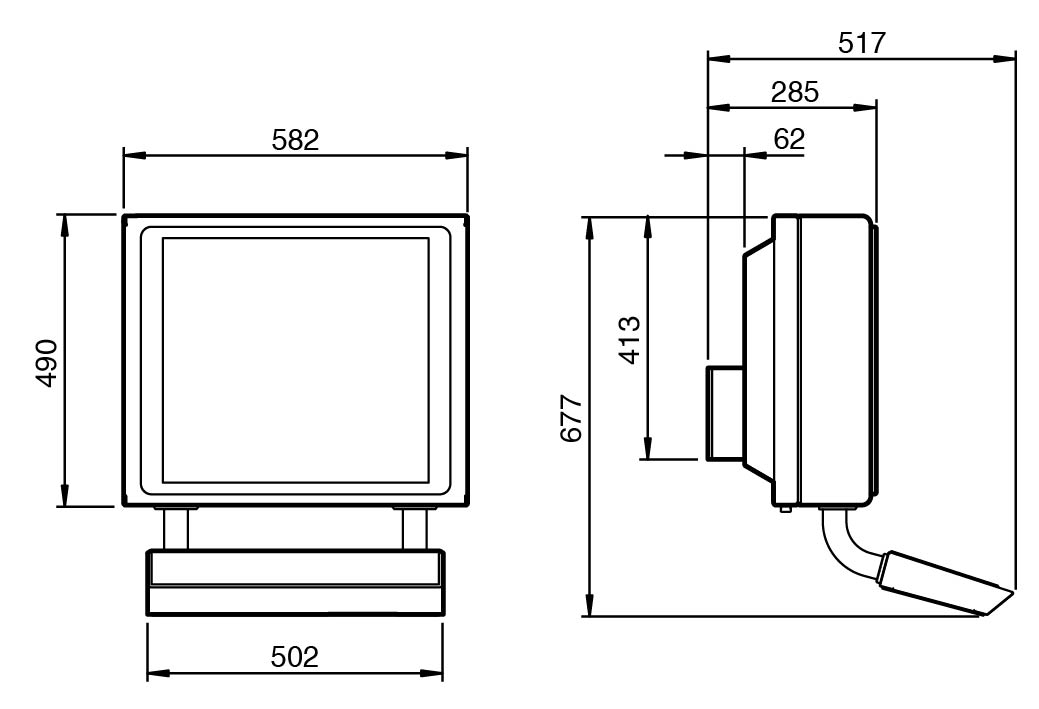

Dimensions	panel with DC: 524 mm x 453 mm x 120 mmpanel with AC: 524 mm x 453 mm x 137 mmpanel with AG1 housing: 582 mm x 490 mm x 224 mm
EU-type examination certificate	BVS 17 ATEX E 037 X
Marking II 3G Ex ec q [ib] IIC T4 Gc [exsign] II 3D Ex tc [ib] IIIC T85°C Dc	Marking II 3G Ex ec q [ib] IIC T4 Gc [exsign] II 3D Ex tc [ib] IIIC T85°C Dc
Directive conformity	Directive conformity
Directive 2014/34/EUEN 60079-0:2012+A11:2013, EN 60079-7:2015, EN 60079-11:2012, EN 60079-31:2014	Directive 2014/34/EUEN 60079-0:2012+A11:2013, EN 60079-7:2015, EN 60079-11:2012, EN 60079-31:2014
Marking	II 3G Ex ec q [ib] IIC T4 Gc [exsign] II 3D Ex tc [ib] IIIC T85°C Dc
Directive 2014/34/EU	EN 60079-0:2012+A11:2013, EN 60079-7:2015, EN 60079-11:2012, EN 60079-31:2014
IECEx approval	IECEx approval
IECEx certificateIECEx BVS 17.0029XIECEx markingEx ec q [ib] IIC T4 Gc Ex tc [ib] IIIC T85°C DcStandardsIEC 60079-0:2011, IEC 60079-7:2015, IEC 60079-11:2011, IEC 60079-31:2013	IECEx certificateIECEx BVS 17.0029XIECEx markingEx ec q [ib] IIC T4 Gc Ex tc [ib] IIIC T85°C DcStandardsIEC 60079-0:2011, IEC 60079-7:2015, IEC 60079-11:2011, IEC 60079-31:2013
IECEx certificate	IECEx BVS 17.0029X
IECEx marking	Ex ec q [ib] IIC T4 Gc Ex tc [ib] IIIC T85°C Dc
Standards	IEC 60079-0:2011, IEC 60079-7:2015, IEC 60079-11:2011, IEC 60079-31:2013
