TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | 16 ... 28 V DC , via zener barrier or galvanic isolator |
|---|---|
| Operating current | 15 mA @ 24 V DC max. - value measured with Zener barrier connected |
| Terminal capacity | 0.5 ... 2.5 mm2 |

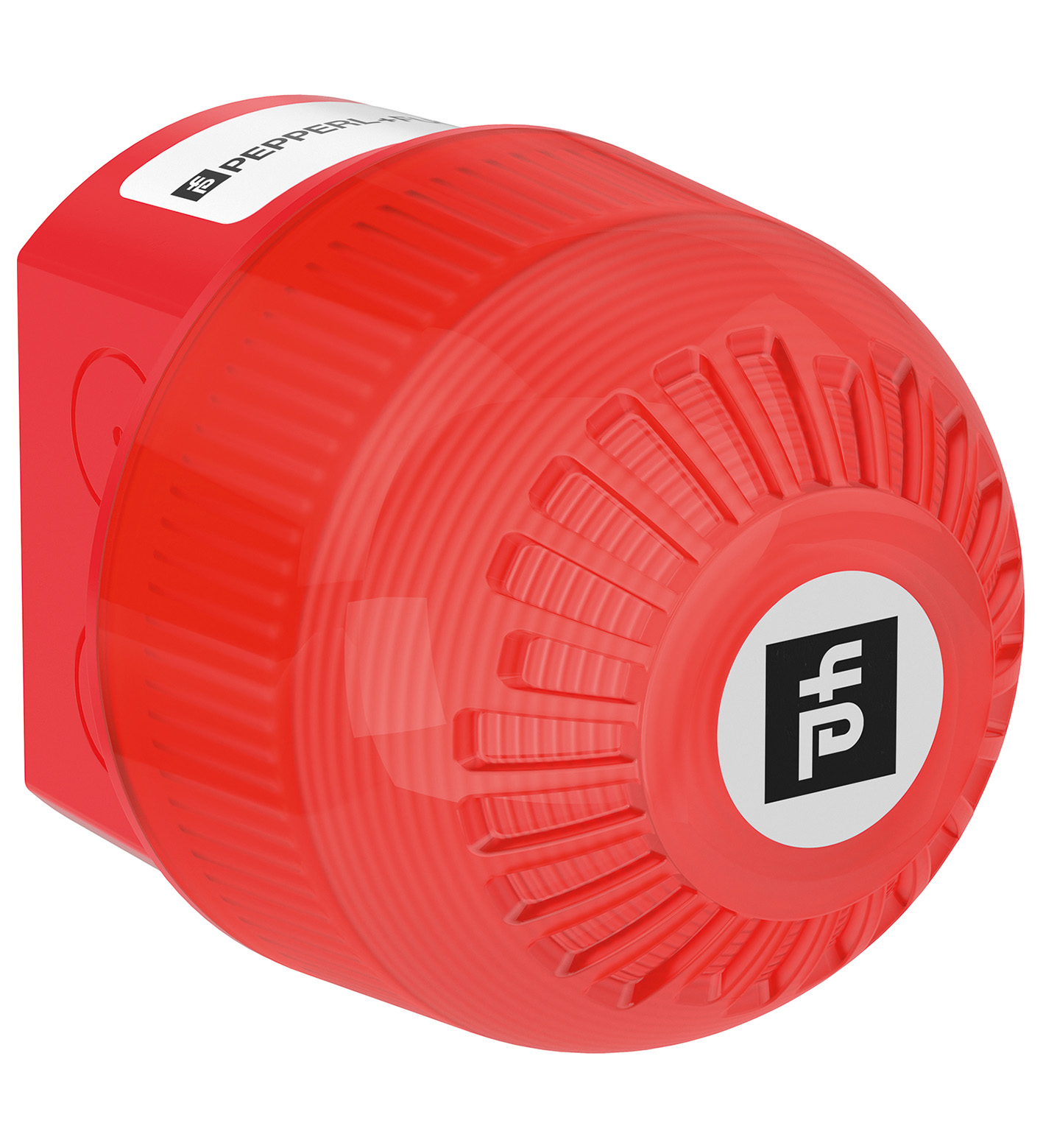

| Function | flashing signal beacon LED |
| Lens colorred , amber , green , blue or clear Flash mode1 Hz flash 60 FPM or steady light high powerLuminous intensityDependent on head selectedEffective luminous intensity, measured4.22 cd max. value measured with Zener barrier connected Illuminant, typearray of 9x high-intensity LEDs | Lens colorred , amber , green , blue or clear Flash mode1 Hz flash 60 FPM or steady light high powerLuminous intensityDependent on head selectedEffective luminous intensity, measured4.22 cd max. value measured with Zener barrier connected Illuminant, typearray of 9x high-intensity LEDs |
| Lens color | red , amber , green , blue or clear |
| Flash mode | 1 Hz flash 60 FPM or steady light high power |
| Luminous intensity | Dependent on head selected |
| Effective luminous intensity, measured | 4.22 cd max. value measured with Zener barrier connected |
| Illuminant, type | array of 9x high-intensity LEDs |
| Enclosure cover | fully detachable |
| Cover fixing | Stainless steel screws |
| Degree of protection | IP66 |

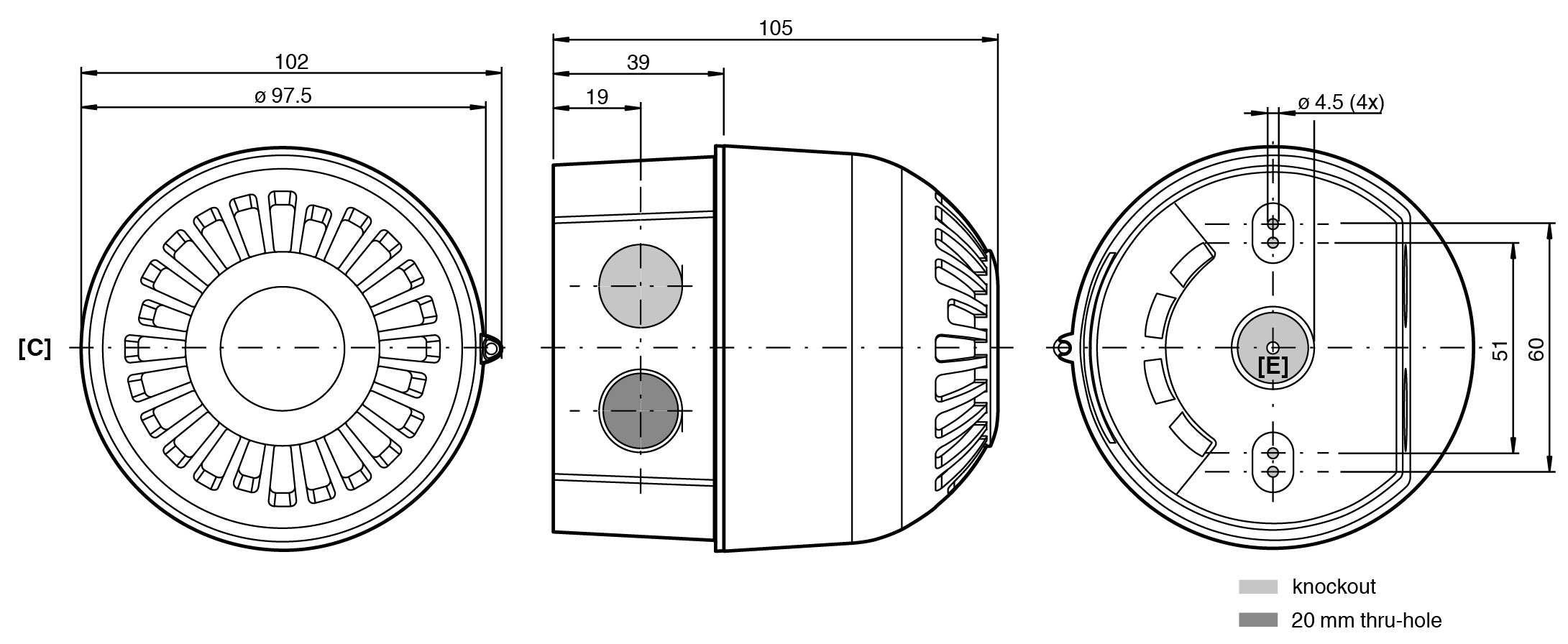

| Cable entry face C | Cable entry face C |
| M20 quantity1M20 typethru-holesM20 infowithout entry devices (ordered separately) | M20 quantity1M20 typethru-holesM20 infowithout entry devices (ordered separately) |
| Cable entry face E | Cable entry face E |
| M20 quantity1M20 typeknockout | M20 quantity1M20 typeknockout |
| Material | Material |
| EnclosurePolycarbonate UL94 V2FinishRAL 3000 (red)Sealnitrile O-ringSeal insertNeoprene | EnclosurePolycarbonate UL94 V2FinishRAL 3000 (red)Sealnitrile O-ringSeal insertNeoprene |
| Mass | 0.22 kg |
| Grounding | Internal connection |
| M20 quantity | 1 |
| M20 type | thru-holes |
| M20 info | without entry devices (ordered separately) |
| M20 quantity | 1 |
| M20 type | knockout |
| Enclosure | Polycarbonate UL94 V2 |
| Finish | RAL 3000 (red) |
| Seal | nitrile O-ring |
| Seal insert | Neoprene |
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
| EU-type examination certificate | ERO 24 ATEX 0014X |
| Marking II 1 GD Ex ia IIC T5 Ga Ex ia IIIC T200 85°C Da [exsign] I M1 Ex ia I Ma | Marking II 1 GD Ex ia IIC T5 Ga Ex ia IIIC T200 85°C Da [exsign] I M1 Ex ia I Ma |
| Equipment | Equipment |
| VoltageUi28 V max.CurrentIi93 mA max.PowerPi660 mW max.Internal capacitanceCi0 µF max.Internal inductanceLi0 mH max. | VoltageUi28 V max.CurrentIi93 mA max.PowerPi660 mW max.Internal capacitanceCi0 µF max.Internal inductanceLi0 mH max. |
| Marking | II 1 GD Ex ia IIC T5 Ga Ex ia IIIC T200 85°C Da [exsign] I M1 Ex ia I Ma |
| Voltage | 28 V max. |
| Current | 93 mA max. |
| Power | 660 mW max. |
| Internal capacitance | 0 µF max. |
| Internal inductance | 0 mH max. |
| IECEx approval | IECEx EMT 24.0011X |
| UKCA approval | EMA 24 UKEX 0006X |
| Further approvals | available on request |
| Degree of protection | EN 60529 |
| CE marking | 2829 |
| UKCA marking | 2503 |
| Scope of delivery | device Instruction leaflet Gasket set Allen wrench anti-rotation grub screw |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
| Optional accessories | CG.PIDS1.M20.PA.C.10.K01.LN55 SP.PE.M20.* |
