TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | 16 ... 28 V DC , via zener barrier or galvanic isolator |
|---|---|
| Operating current | 21 mA @ 24 V DC max. - value measured with Zener barrier connected |
| Terminal capacity | 0.5 ... 2.5 mm2 |

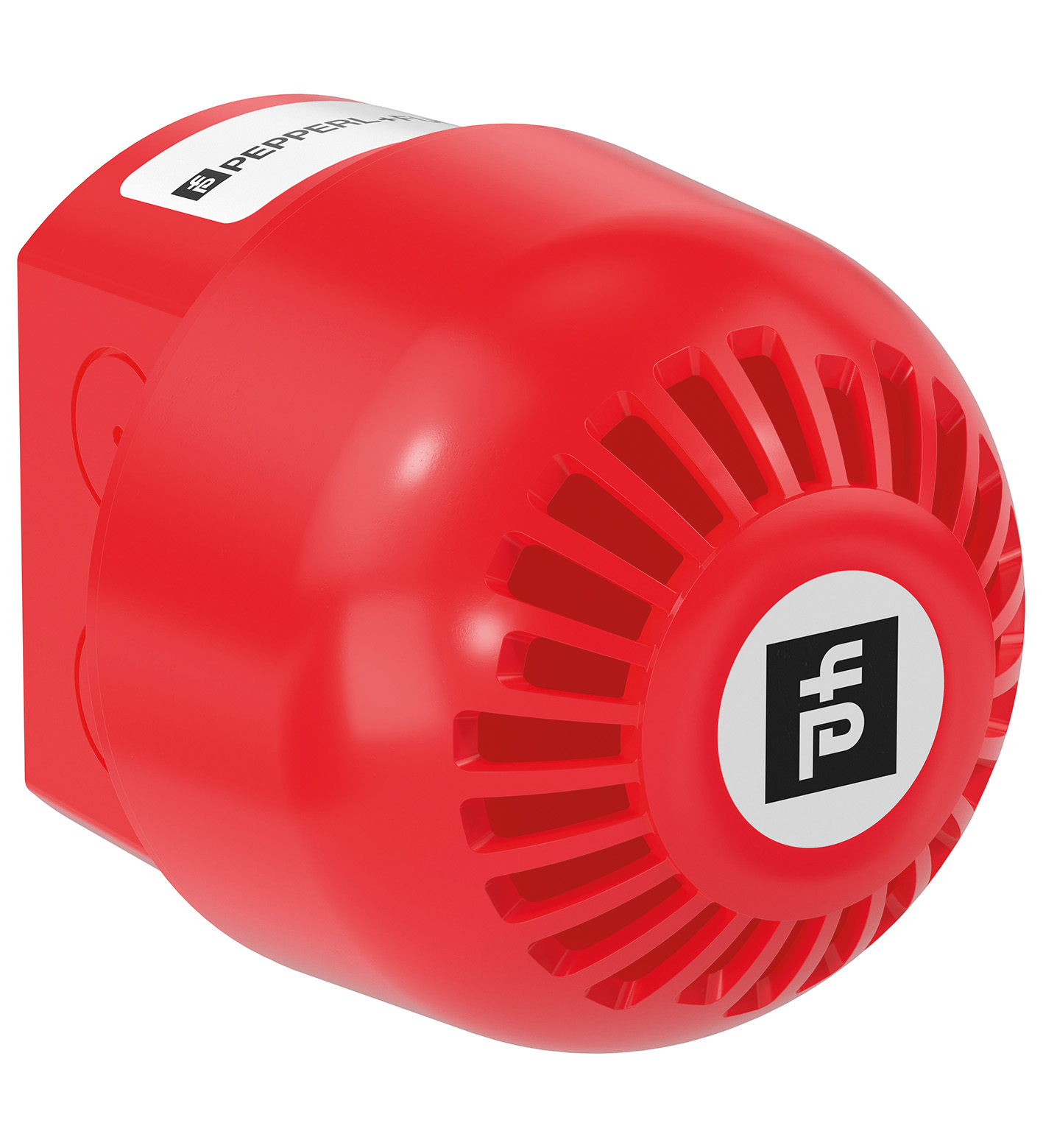

| Function | Alarm sounder |
| Flash modeSound pressure level, maximum105 dB @ 1 m +/- 3 dB - sound 18 , 95 dB @ 3 mSound pressure level, nominal87 dB @ 1 m +/- 3 dB - sound 1 Number of sounds32 Number of stages2 | Flash modeSound pressure level, maximum105 dB @ 1 m +/- 3 dB - sound 18 , 95 dB @ 3 mSound pressure level, nominal87 dB @ 1 m +/- 3 dB - sound 1 Number of sounds32 Number of stages2 |
| Flash mode | Flash mode |
| Sound pressure level, maximum | 105 dB @ 1 m +/- 3 dB - sound 18 , 95 dB @ 3 m |
| Sound pressure level, nominal | 87 dB @ 1 m +/- 3 dB - sound 1 |
| Number of sounds | 32 |
| Number of stages | 2 |
| Enclosure cover | fully detachable |
| Cover fixing | Stainless steel screws |
| Degree of protection | IP66 |

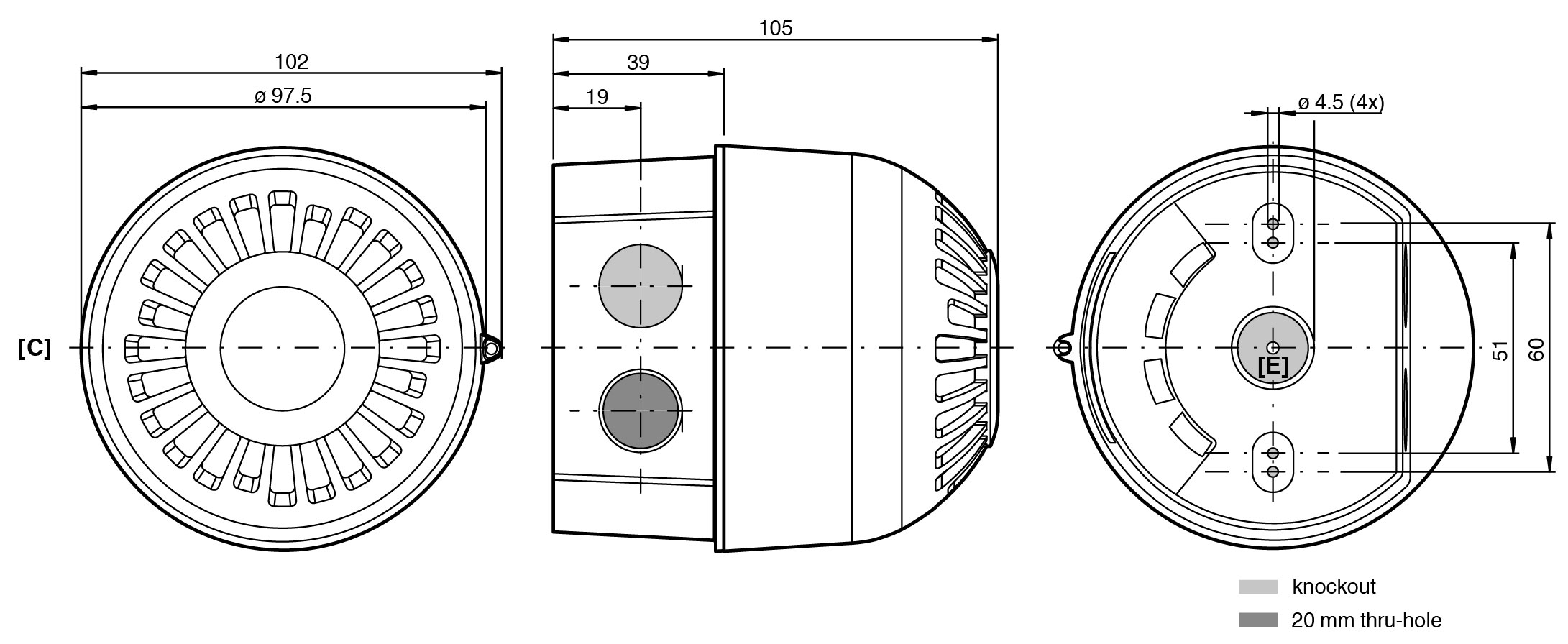

| Cable entry face C | Cable entry face C |
| M20 quantity1M20 typethru-holesM20 infowithout entry devices (ordered separately) | M20 quantity1M20 typethru-holesM20 infowithout entry devices (ordered separately) |
| Cable entry face E | Cable entry face E |
| M20 quantity1M20 typeknockout | M20 quantity1M20 typeknockout |
| Material | Material |
| EnclosurePolycarbonate UL94 V2FinishRAL 3000 (red)Sealnitrile O-ringSeal insertNeoprene | EnclosurePolycarbonate UL94 V2FinishRAL 3000 (red)Sealnitrile O-ringSeal insertNeoprene |
| Mass | 0.29 kg |
| Grounding | Internal connection |
| M20 quantity | 1 |
| M20 type | thru-holes |
| M20 info | without entry devices (ordered separately) |
| M20 quantity | 1 |
| M20 type | knockout |
| Enclosure | Polycarbonate UL94 V2 |
| Finish | RAL 3000 (red) |
| Seal | nitrile O-ring |
| Seal insert | Neoprene |
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
| EU-type examination certificate | ERO 24 ATEX 0014X |
| Marking II 1 GD Ex ia IIC T6 Ga Ex ia IIIC T200 85°C Da [exsign] I M1 Ex ia I Ma | Marking II 1 GD Ex ia IIC T6 Ga Ex ia IIIC T200 85°C Da [exsign] I M1 Ex ia I Ma |
| Equipment | Equipment |
| VoltageUi28 V max.CurrentIi93 mA max.PowerPi660 mW max.Internal capacitanceCi0 µF max.Internal inductanceLi0 mH max. | VoltageUi28 V max.CurrentIi93 mA max.PowerPi660 mW max.Internal capacitanceCi0 µF max.Internal inductanceLi0 mH max. |
| Marking | II 1 GD Ex ia IIC T6 Ga Ex ia IIIC T200 85°C Da [exsign] I M1 Ex ia I Ma |
| Voltage | 28 V max. |
| Current | 93 mA max. |
| Power | 660 mW max. |
| Internal capacitance | 0 µF max. |
| Internal inductance | 0 mH max. |
| IECEx approval | IECEx EMT 24.0011X |
| UKCA approval | EMA 24 UKEX 0006X |
| Further approvals | available on request |
| Degree of protection | EN 60529 |
| CE marking | 2829 |
| UKCA marking | 2503 |
| Scope of delivery | device Instruction leaflet Gasket set Allen wrench anti-rotation grub screw |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
| Optional accessories | CG.PIDS1.M20.PA.C.10.K01.LN55 SP.PE.M20.* |
