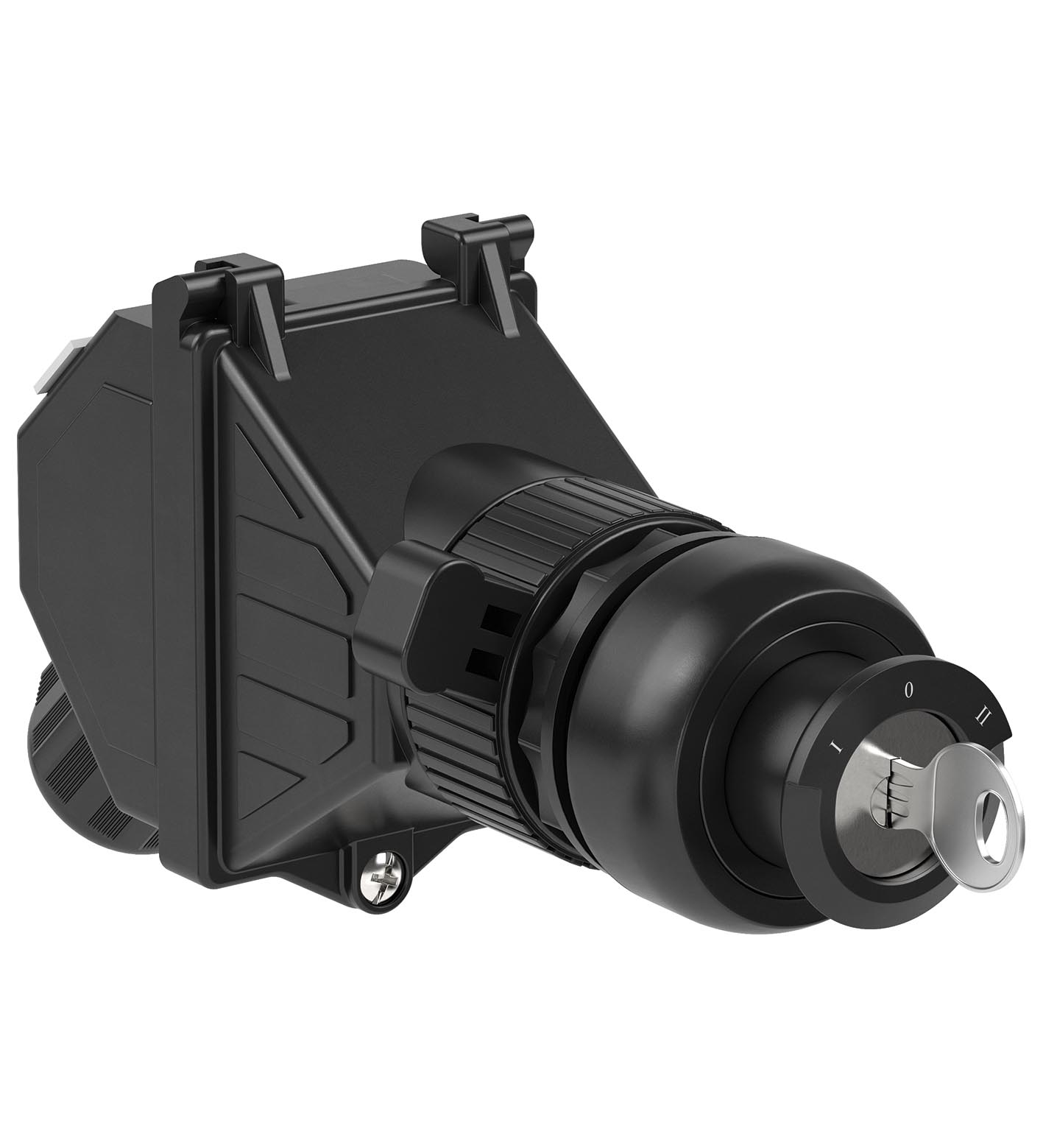

产品数据表
Datasheet
已就绪 · 可下载下载文件
TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | 250 V max. |
|---|---|
| Operating current | 16 A max. |
| Terminal capacity | 2x 2.5 mm2 |
| Terminal torque0.8 Nm | Terminal torque0.8 Nm |
| Function | key switch |
| Colorblack / silverContact configuration2x NOSwitching configuration3 position changeover with center OFFUsage categoryAC12 - 12 ... 250 V AC - 16 AAC15 - 12 ... 250 V AC - 10 ADC13 - 12 ... 110 V DC - 1 ADC13 - 12 ... 24 V DC - 1ANumber of poles2Operator actionengage - engage - engageLockableyesLabelingI - 0 - II | Colorblack / silverContact configuration2x NOSwitching configuration3 position changeover with center OFFUsage categoryAC12 - 12 ... 250 V AC - 16 AAC15 - 12 ... 250 V AC - 10 ADC13 - 12 ... 110 V DC - 1 ADC13 - 12 ... 24 V DC - 1ANumber of poles2Operator actionengage - engage - engageLockableyesLabelingI - 0 - II |
| Terminal torque | 0.8 Nm |
| Color | black / silver |
| Contact configuration | 2x NO |

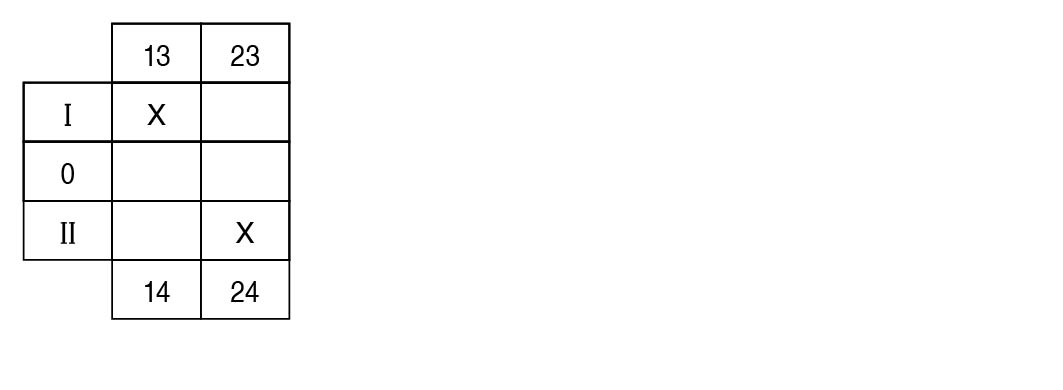

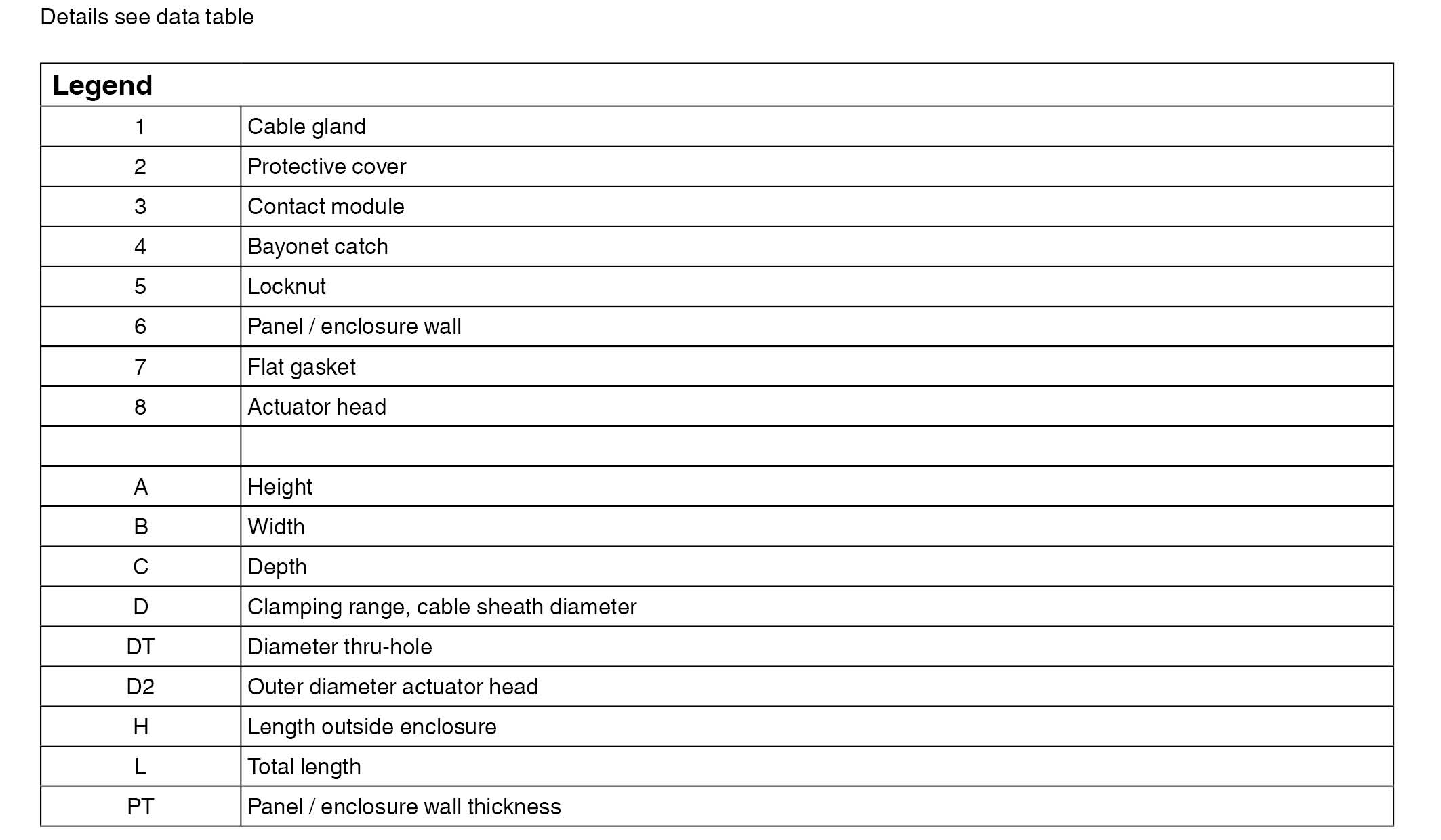

| Switching configuration | 3 position changeover with center OFF |
| Usage category | AC12 - 12 ... 250 V AC - 16 AAC15 - 12 ... 250 V AC - 10 ADC13 - 12 ... 110 V DC - 1 ADC13 - 12 ... 24 V DC - 1A |
| Number of poles | 2 |
| Operator action | engage - engage - engage |
| Lockable | yes |
| Labeling | I - 0 - II |
| Cable type | non-armored cables |
| Clamping range (D) | 5.5 ... 13 mm (D) |
| Covering | Protective cap fully detachable |
| Cover fixing | Phillips head screw |
| Degree of protection | IP66 |
| Cable entry | Cable entry |
| Number of cable entries1x M20 cable gland in protective cover | Number of cable entries1x M20 cable gland in protective cover |
| Material | Material |
| HousingPolyamide (PA)Finishinherent color blackSealsiliconeWasher gasketsilicone | HousingPolyamide (PA)Finishinherent color blackSealsiliconeWasher gasketsilicone |
| Mass | 150 g max. |
| Dimensions | Dimensions |

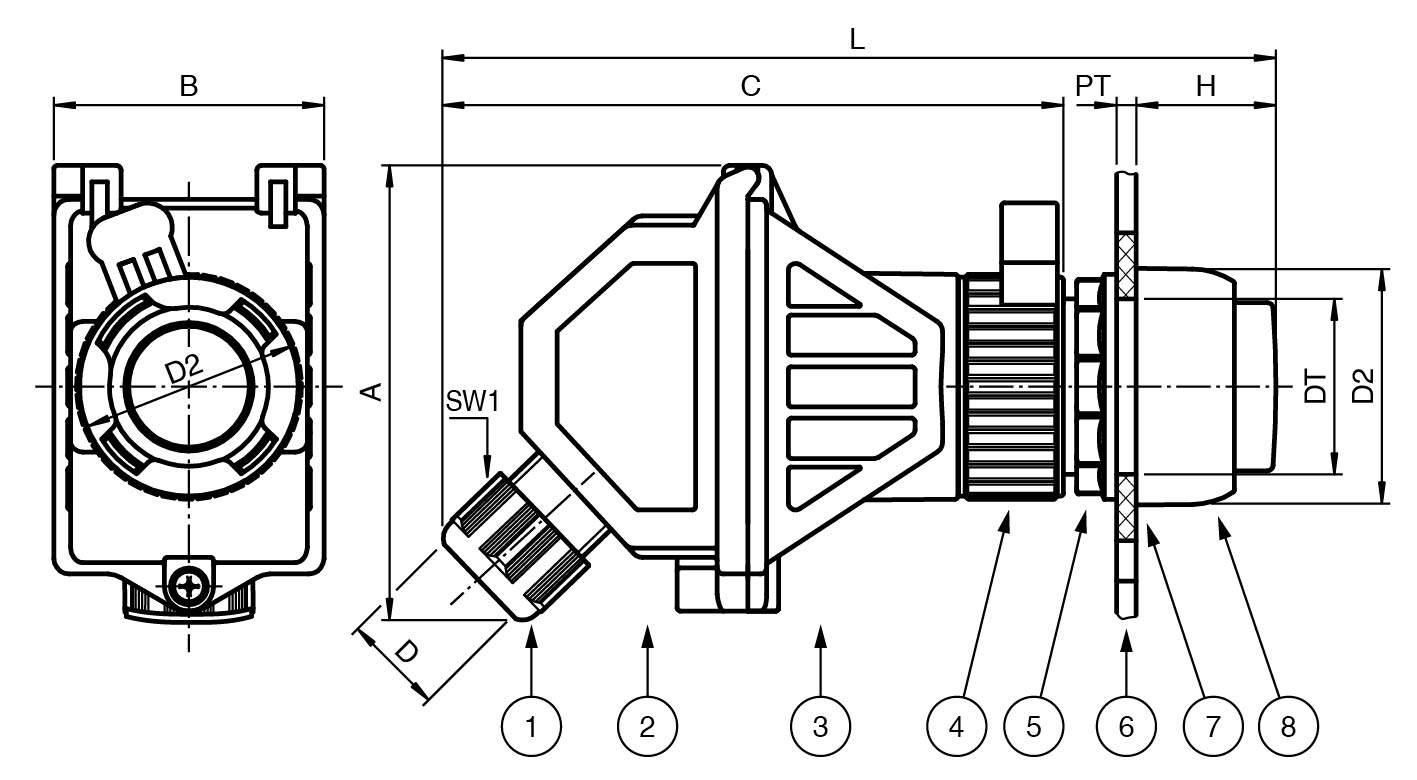

| Height (A)77 mm (A)Width (B)44 mm (B)Depth (C)105 mm (C)Actuator head diameter (D2)39 mm (D2)Panel wall thickness (PT)1 ... 6 mm (PT)Diameter thru-hole (DT)30.6 mm (DT)Length outside enclosure (H)33.3 mm (H)Width across flats (SW1)24 mm (SW1)Total length (L)145.8 mm (L) | Height (A)77 mm (A)Width (B)44 mm (B)Depth (C)105 mm (C)Actuator head diameter (D2)39 mm (D2)Panel wall thickness (PT)1 ... 6 mm (PT)Diameter thru-hole (DT)30.6 mm (DT)Length outside enclosure (H)33.3 mm (H)Width across flats (SW1)24 mm (SW1)Total length (L)145.8 mm (L) |
| Tightening torque | Tightening torque |
| Nut torque at enclosure (SW1)2 Nm (SW1) | Nut torque at enclosure (SW1)2 Nm (SW1) |
| Mounting | via actuator head |
| Number of cable entries | 1x M20 cable gland in protective cover |
| Housing | Polyamide (PA) |
| Finish | inherent color black |
| Seal | silicone |
| Washer gasket | silicone |
| Height (A) | 77 mm (A) |
| Width (B) | 44 mm (B) |
| Depth (C) | 105 mm (C) |
| Actuator head diameter (D2) | 39 mm (D2) |
| Panel wall thickness (PT) | 1 ... 6 mm (PT) |
| Diameter thru-hole (DT) | 30.6 mm (DT) |
| Length outside enclosure (H) | 33.3 mm (H) |
| Width across flats (SW1) | 24 mm (SW1) |
| Total length (L) | 145.8 mm (L) |
| Nut torque at enclosure (SW1) | 2 Nm (SW1) |
| Ambient temperature | -40 ... 50 °C (-40 ... 122 °F) |
| EU-type examination certificate | CML 16 ATEX 3106X |
| Marking II 2 GD Ex de IIC T6 Gb Ex tb IIIC T80 °C Db | Marking II 2 GD Ex de IIC T6 Gb Ex tb IIIC T80 °C Db |
| Marking | II 2 GD Ex de IIC T6 Gb Ex tb IIIC T80 °C Db |
| IECEx approval | IECEx CML 16.0046X |
| UKCA approval | CML 21 UKEX 21275X |
| Degree of protection | EN 60529 |
| Usage category | IEC / EN 60947 |
| CE marking | 0080 or 0102, see type label |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
