POWERBUS-COV.250

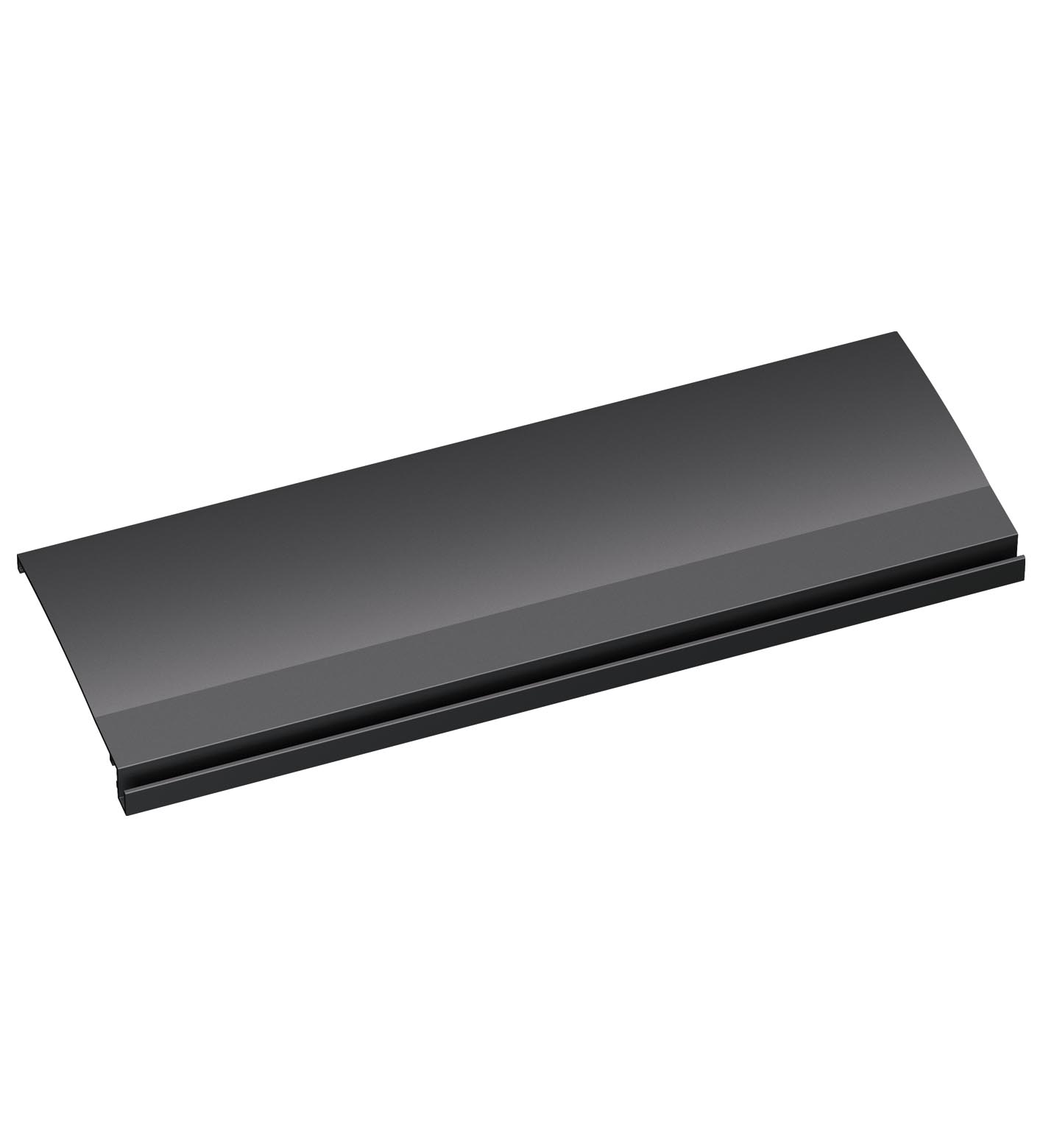

POWERBUS-COV.250 Cover for DIN Mounting Rail

订货号: 278541
产品分类: SC 系统（DIN 导轨安装，紧凑设计）

Cover for 35 mm DIN mounting rail, length: 250 mm

查看规格参数资料与附件

TECHNICAL DATA

规格参数

Mechanical specifications

Material	Polycarbonate
Mass	approx. 100 g

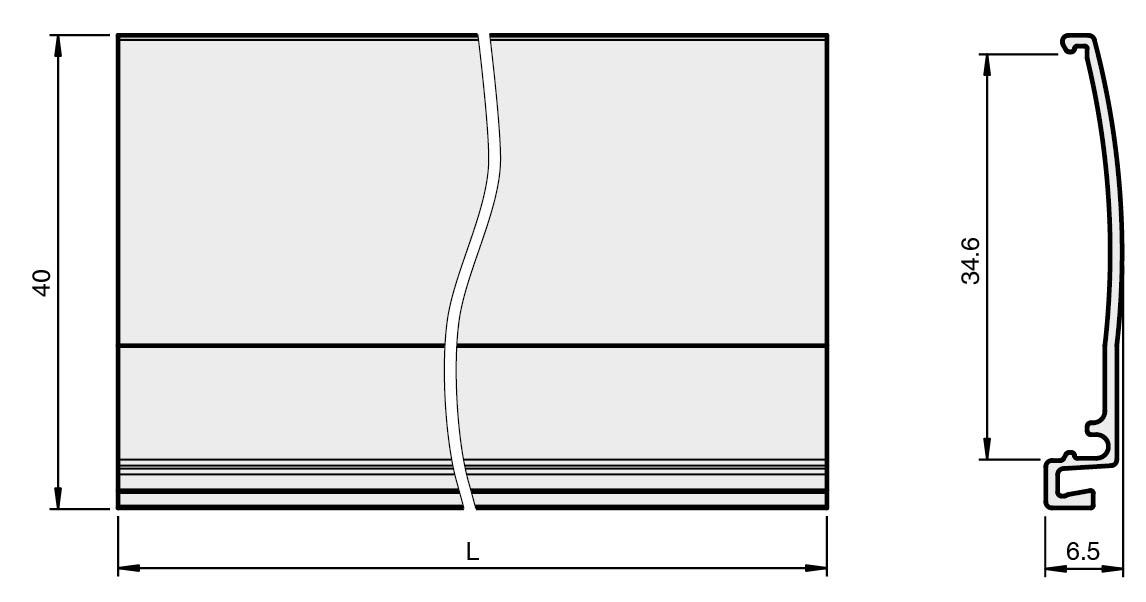

Dimensions	7.6 x 42.2 x 250 mm (0.3 x 1.66 x 9.84 inch)
Height7.6 mmWidth42.2 mmLength250 mm	Height7.6 mmWidth42.2 mmLength250 mm
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
Height	7.6 mm
Width	42.2 mm
Length	250 mm
Packing unit	5 item(s)
