POWERBUS-SETH5.250

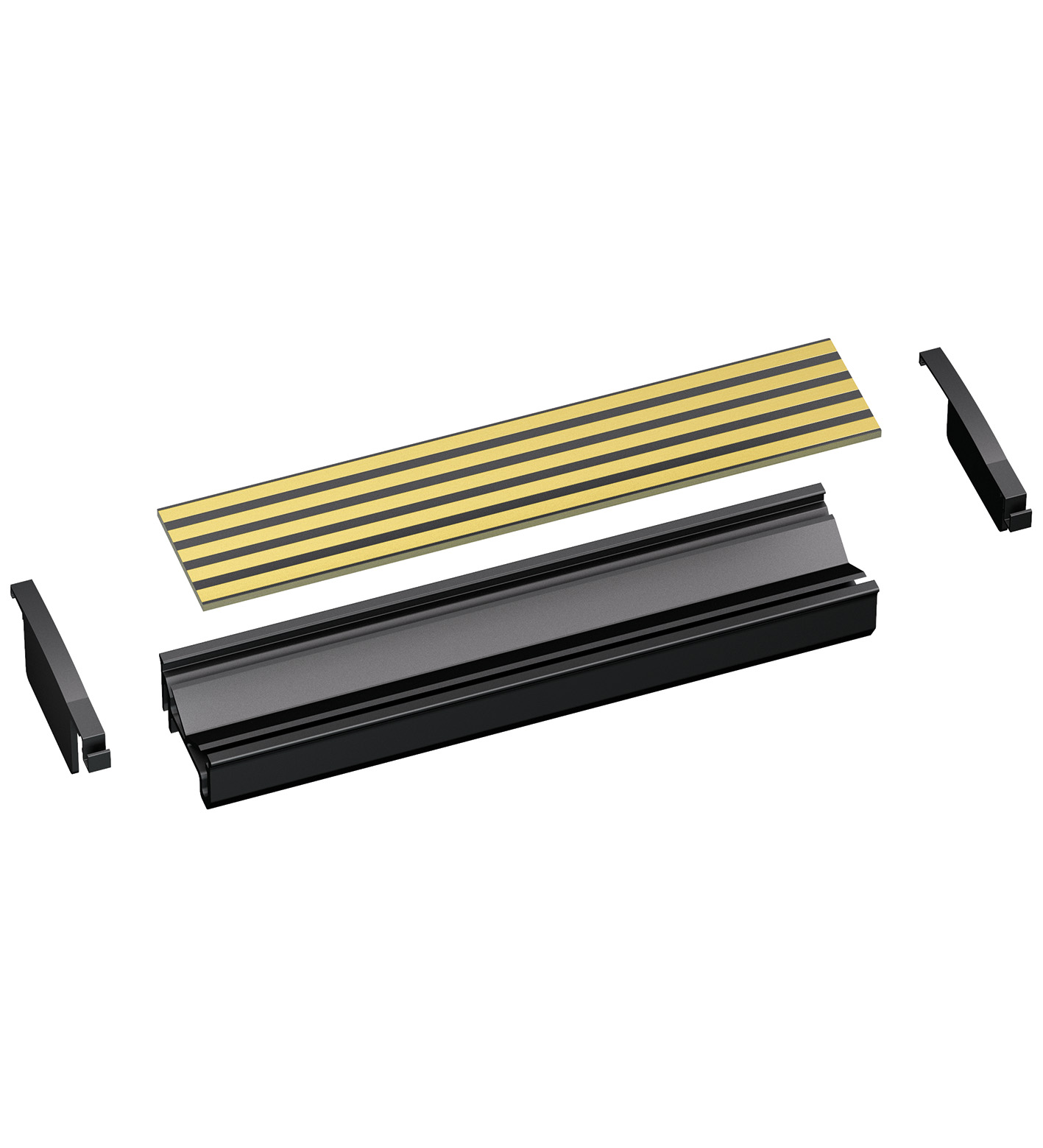

POWERBUS-SETH5.250 Power Bus for DIN Mouning Rail

Power bus for 35 mm DIN mounting rail, height: 15 mm, length: 250 mm

TECHNICAL DATA

规格参数

Electrical specifications

Rated voltage	24 V DC
Rated current	3 A
Ambient temperature	-25 ... 70 °C (-13 ... 158 °F)
Connection	5 conductors
Supply2 ConductorsFault output1 Conductors	Supply2 ConductorsFault output1 Conductors
Dimensions	13 x 25 x 250 mm (0.51 x 1.57 x 9.84 inch)
Height13 mmWidth25 mmLength250 mm	Height13 mmWidth25 mmLength250 mm
Mounting	in 35 mm DIN mounting rail acc. to EN 60715:2001 Height: 15 mm
Supply	2 Conductors
Fault output	1 Conductors
Height	13 mm
Width	25 mm
Length	250 mm
Scope of delivery	- power bus POWERBUS-SETH5.250 - end cap POWERBUS-CAP
Optional accessories	- cover POWERBUS-COV.250- end cap POWERBUS-CAP- 35 mm DIN mounting rail acc. to EN 60715
