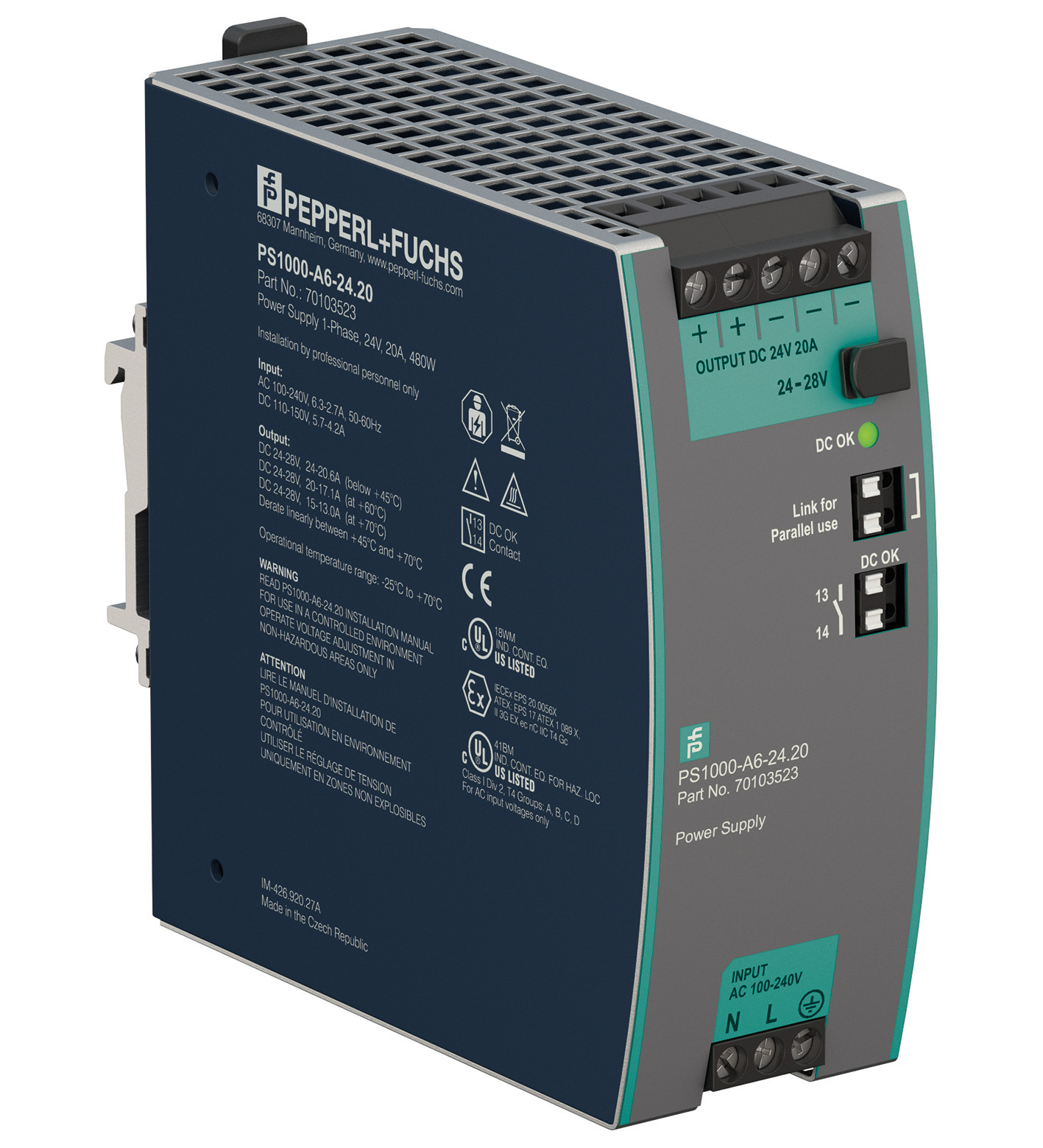

TECHNICAL DATA
规格参数
Electrical specifications
| Efficiency | 94.2 % at 120 V AC 95.6 % at 230 V AC |
|---|---|
| Power dissipation | 29.6 W at 120 V AC 22.1 W at 230 V AC |
| Voltage range | 100 ... 240 V AC (-15 %/+10 %), 50 ... 60 Hz (±6 %) 110 ... 150 V DC (±20 %) |
| Current | 4.26 A at 120 V AC 2.23 A at 230 V AC 4.64 A at 110 V DC for lower output currents see technical information |
| Inrush current | 10 A peak at 120 V AC, temperature independent 4.5 A peak at 230 V AC, temperature independent |
| Capacity factor | 0.99 at 120 V AC 0.98 at 230 V AC |
| Rated voltage | 24 V DC |
| Voltage range | 24 ... 28 V DC factory setting: 24.1 V |
| Rated current | 20 A |
| Current | 24 ... 20.6 A at ambient temperature < 45 °C (113 °F) 20 ... 17.1 A at ambient temperature 60 °C (140 °F) 15 ... 13 A at ambient temperature 70 °C (158 °F) linear power derating see technical information |
| Power | 480 W |
| Ripple | max. 50 mV pp |
| Hold-up time | 32 ms at 120 V AC 32 ms at 230 V AC |
| Overload behavior | continuous current : output voltage > 13 V DC intermittent current : output voltage < 13 V DC |
| Short-circuit current | typ. 29 A intermitted current peak value for typ. 2 s |
| Voltage limitation | typ. 30.5 V DC max. 32 V DC |
| Connection | terminals 13, 14 |
| Output type | relay contact DC OK - contact is closed if the output voltage is > 90 % of the adjusted output voltage |
| Contact loading | max. 60 V DC/0.3 A ; 30 V DC/1 A ; 30 V AC/0.5 A resistive load min. 1 mA at 5 V DC |
| Input/Output | SELV/PELV |
| Display elements | LED green: status DC OK - LED lights up if the output voltage is > 90 % of the adjusted output voltage |
| Control elements | potentiometer , plug-in jumper |
| Configuration | setting of the output voltage via potentiometer setting of the operating mode- plug-in jumper plugged in: "parallel use" operating mode- plug-in jumper not plugged in: "single use" operating mode |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUIEC/EN 61000-6-1 , IEC/EN 61000-6-2 , IEC/EN 61000-6-3 , IEC/EN 61000-6-4 , IEC/EN 61000-3-2 , IEC/EN 61000-3-3 | Directive 2014/30/EUIEC/EN 61000-6-1 , IEC/EN 61000-6-2 , IEC/EN 61000-6-3 , IEC/EN 61000-6-4 , IEC/EN 61000-3-2 , IEC/EN 61000-3-3 |
| Low voltage | Low voltage |
| Directive 2014/35/EUEN 61010-1 | Directive 2014/35/EUEN 61010-1 |
| RoHS | RoHS |
| Directive 2011/65/EU (RoHS)IEC/EN 63000:2019 | Directive 2011/65/EU (RoHS)IEC/EN 63000:2019 |
| Directive 2014/30/EU | IEC/EN 61000-6-1 , IEC/EN 61000-6-2 , IEC/EN 61000-6-3 , IEC/EN 61000-6-4 , IEC/EN 61000-3-2 , IEC/EN 61000-3-3 |
| Directive 2014/35/EU | EN 61010-1 |
| Directive 2011/65/EU (RoHS) | IEC/EN 63000:2019 |
| Degree of protection | EN 60529 |
| Shock resistance | EN 60068-2-27 |
| Vibration resistance | EN 60068-2-6 |
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) , see technical information |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | 5 ... 95 %, non-condensing |
| Shock resistance | 20 g , 11 ms or 30 g , 6 ms |
| Vibration resistance | 2 ... 17.8 Hz : ± 1.6 mm , 17.8 ... 500 Hz : 2 g |
| Corrosion resistance | IEC 60068-2-60, Method 4 ISA-71.04, severity level G3 |
| Housing material | aluminum alloy , galvanized steel |
| Degree of protection | IP20 |
| Connection | Connection |
| Input/Outputscrew terminals conductor cross section: max. 6 mm2 (AWG 20-10) cable diameter: max. 2.8 mm, wire end ferrules included stripped insulation length: 7 mm tightening torque: max. 1 NmRelay contact outputspring terminals with push-in connection technology conductor cross section: max. 1.5 mm2 (AWG 24-16) cable diameter: max. 1.6 mm, wire end ferrules included stripped insulation length: 7 mm | Input/Outputscrew terminals conductor cross section: max. 6 mm2 (AWG 20-10) cable diameter: max. 2.8 mm, wire end ferrules included stripped insulation length: 7 mm tightening torque: max. 1 NmRelay contact outputspring terminals with push-in connection technology conductor cross section: max. 1.5 mm2 (AWG 24-16) cable diameter: max. 1.6 mm, wire end ferrules included stripped insulation length: 7 mm |
| Mass | approx. 830 g |
| Dimensions | 48 x 124 x 127 mm , without plugs and without DIN mounting rail |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 |
| Input/Output | screw terminals conductor cross section: max. 6 mm2 (AWG 20-10) cable diameter: max. 2.8 mm, wire end ferrules included stripped insulation length: 7 mm tightening torque: max. 1 Nm |
| Relay contact output | spring terminals with push-in connection technology conductor cross section: max. 1.5 mm2 (AWG 24-16) cable diameter: max. 1.6 mm, wire end ferrules included stripped insulation length: 7 mm |
| ATEX approval | ATEX approval |
| ATEX certificateEPS 17 ATEX 1 089 XATEX marking II 3G Ex ec nC II T4 Gc | ATEX certificateEPS 17 ATEX 1 089 XATEX marking II 3G Ex ec nC II T4 Gc |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-7:2015 , EN 60079-15:2010 | Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-7:2015 , EN 60079-15:2010 |
| ATEX certificate | EPS 17 ATEX 1 089 X |
| ATEX marking | II 3G Ex ec nC II T4 Gc |
| Directive 2014/34/EU | EN 60079-0:2012+A11:2013 , EN 60079-7:2015 , EN 60079-15:2010 |
| UL approval | E350173 , E223176 |
| IECEx approval | IECEx approval |
| IECEx certificateIECEx EPS 20.0056XIECEx markingEx ec nC IIC T4 GcStandardsIEC 60079-0:2011 , IEC 60079-7:2015 , IEC 60079-15:2010 | IECEx certificateIECEx EPS 20.0056XIECEx markingEx ec nC IIC T4 GcStandardsIEC 60079-0:2011 , IEC 60079-7:2015 , IEC 60079-15:2010 |
| IECEx certificate | IECEx EPS 20.0056X |
| IECEx marking | Ex ec nC IIC T4 Gc |
| Standards | IEC 60079-0:2011 , IEC 60079-7:2015 , IEC 60079-15:2010 |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
