倍加福

PS1000-A9-24.40

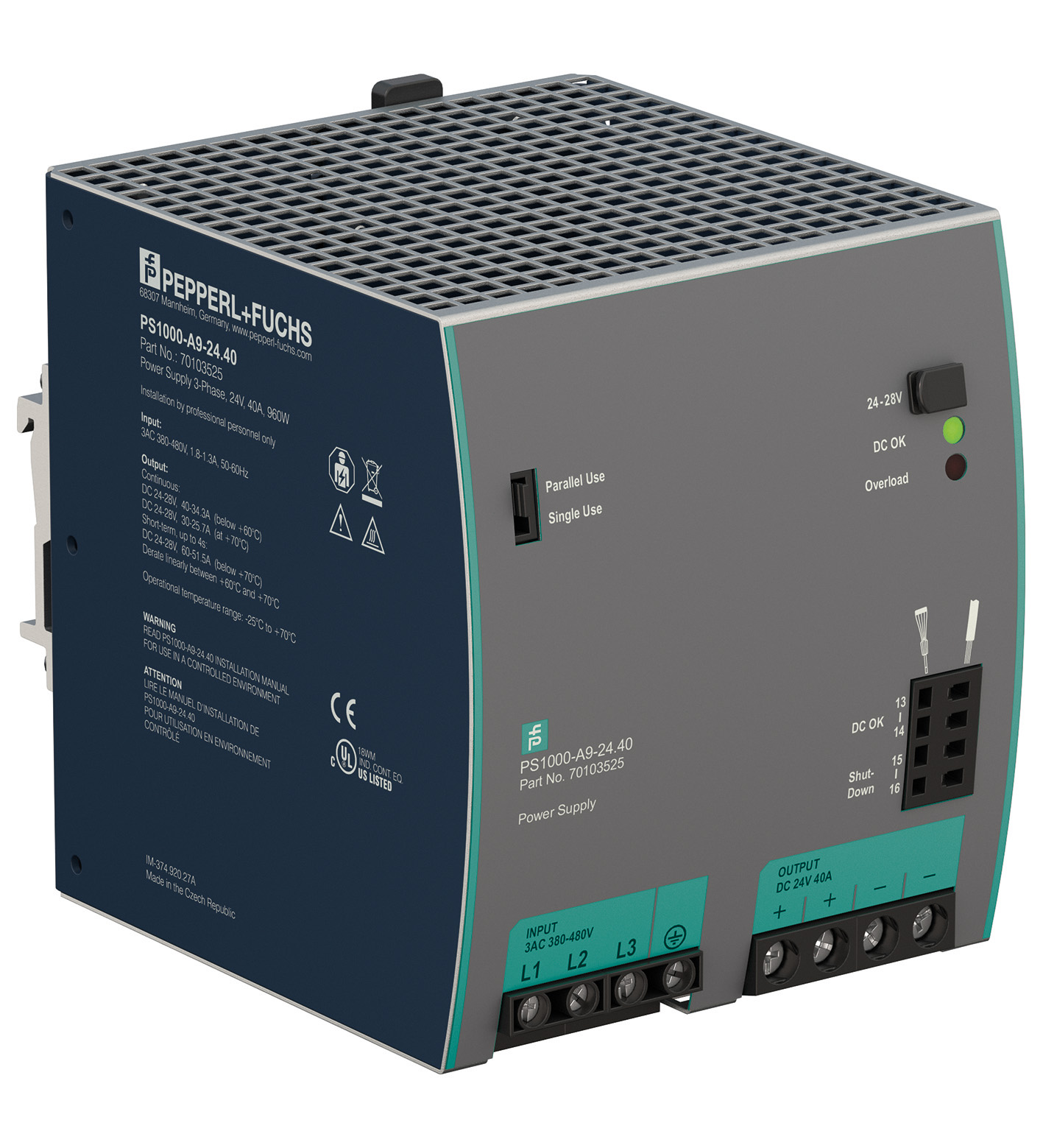

PS1000-A9-24.40 Power Supply

订货号
70103525
产品分类
工业电源

Power Supply

查看规格参数 资料与附件

TECHNICAL DATA

规格参数

Electrical specifications
Efficiency95.3 % at 3 x 400 V AC 95.2 % at 3 x 480 V AC
Power dissipation47.3 W at 3 x 400 V AC 48.4 W at 3 x 480 V AC
Voltage range3x 380 ... 480 V AC (-15 %/+20 %), 50 ... 60 Hz (±6 %)
Current1.65 A at 3 x 400 V AC 1.35 A at 3 x 480 V AC for lower output currents see technical information
Inrush current4.5 A peak at 3 x 400 V AC, temperature-independent 4.5 A peak at 3 x 480 V AC , temperature-independent
Capacity factor0.88 at 3 x 400 V AC 0.9 at 3 x 480 V AC
Remote controlterminals 15, 16 remote control for ON/OFF and shutdown input
Rated voltage24 V DC
Voltage range24 ... 28 V DC factory setting: 24.1 V
Rated current40 A
Currentcontinuous: 40 ... 34.3 A short-term up to 4 s: 60 ... 51.5 A linear power derating see technical information
Power960 W
Ripplemax. 100 mV pp
Hold-up time25 ms at 3 x 400 V AC 25 ms at 3 x 480 V AC
Overload behaviorconstant current mode
Short-circuit currenttyp. 46 A continuous, load impedance < 10 mΩ
Voltage limitationtyp. 30.5 V DC max. 32 V DC
Connectionterminals 13, 14
Output typerelay contact DC OK - contact is closed if the output voltage is > 90 % of the adjusted output voltage
Contact loadingmax. 60 V DC/0.3 A ; 30 V DC/1 A ; 30 V AC/0.5 A resistive load min. 1 mA at 5 V DC
Input/OutputSELV/PELV
Display elementsLED green: status DC OK - LED lights up if the output voltage is > 90 % of the adjusted output voltage LED red: overload - LED lights up if the output voltage is < 90 % of the adjusted output voltage or in case of short circuit - flashes if the shutdown has been activated or if the device has shut down due to overtemperature
Control elementspotentiometer , plug-in jumper
Configurationsetting of the output voltage via potentiometer setting of the operating mode- plug-in jumper plugged in: "parallel use" operating mode- plug-in jumper not plugged in: "single use" operating mode setting of the shutdown input:- plug-in jumper plugged in: device switches off
Electromagnetic compatibilityElectromagnetic compatibility
Directive 2014/30/EUIEC/EN 61000-6-1 , IEC/EN 61000-6-2 , IEC/EN 61000-6-3 , IEC/EN 61000-6-4 , IEC/EN 61000-3-2 , IEC/EN 61000-3-3Directive 2014/30/EUIEC/EN 61000-6-1 , IEC/EN 61000-6-2 , IEC/EN 61000-6-3 , IEC/EN 61000-6-4 , IEC/EN 61000-3-2 , IEC/EN 61000-3-3
Low voltageLow voltage
Directive 2014/35/EUEN 61010-1Directive 2014/35/EUEN 61010-1
RoHSRoHS
Directive 2011/65/EU (RoHS)IEC/EN 63000:2019Directive 2011/65/EU (RoHS)IEC/EN 63000:2019
Directive 2014/30/EUIEC/EN 61000-6-1 , IEC/EN 61000-6-2 , IEC/EN 61000-6-3 , IEC/EN 61000-6-4 , IEC/EN 61000-3-2 , IEC/EN 61000-3-3
Directive 2014/35/EUEN 61010-1
Directive 2011/65/EU (RoHS)IEC/EN 63000:2019
Degree of protectionEN 60529
Shock resistanceEN 60068-2-27
Vibration resistanceEN 60068-2-6
Ambient temperature-25 ... 70 °C (-13 ... 158 °F) , see technical information
Storage temperature-40 ... 85 °C (-40 ... 185 °F)
Relative humidity5 ... 95 %, non-condensing
Shock resistance15 g , 6 ms or 10 g , 11 ms
Vibration resistance2 ... 17.8 Hz : ± 1.6 mm , 17.8 ... 500 Hz : 1 g
Housing materialaluminum alloy , galvanized steel
Degree of protectionIP20
ConnectionConnection
Inputscrew terminals conductor cross section: max. 6 mm2 (AWG 20-10) cable diameter: max. 2.8 mm, wire end ferrules included stripped insulation length: 7 mm tightening torque: max. 1 NmOutputscrew terminals conductor cross section: max. 16 mm2 (AWG 22-8) cable diameter: max. 5.2 mm, wire end ferrules included stripped insulation length: 12 mm tightening torque: max. 2.3 NmRelay contact outputspring terminals conductor cross section: max. 1.5 mm2 (AWG 24-16) cable diameter: max. 1.6 mm, wire end ferrules included stripped insulation length: 7 mmRemote control/shutdown inputspring terminals conductor cross section: max. 1.5 mm2 (AWG 24-16) cable diameter: max. 1.6 mm, wire end ferrules included stripped insulation length: 7 mmInputscrew terminals conductor cross section: max. 6 mm2 (AWG 20-10) cable diameter: max. 2.8 mm, wire end ferrules included stripped insulation length: 7 mm tightening torque: max. 1 NmOutputscrew terminals conductor cross section: max. 16 mm2 (AWG 22-8) cable diameter: max. 5.2 mm, wire end ferrules included stripped insulation length: 12 mm tightening torque: max. 2.3 NmRelay contact outputspring terminals conductor cross section: max. 1.5 mm2 (AWG 24-16) cable diameter: max. 1.6 mm, wire end ferrules included stripped insulation length: 7 mmRemote control/shutdown inputspring terminals conductor cross section: max. 1.5 mm2 (AWG 24-16) cable diameter: max. 1.6 mm, wire end ferrules included stripped insulation length: 7 mm
Massapprox. 1500 g
Dimensions110 x 124 x 127 mm (W x H x D) , without DIN mounting rail
Mountingon 35 mm DIN mounting rail acc. to EN 60715:2001
Inputscrew terminals conductor cross section: max. 6 mm2 (AWG 20-10) cable diameter: max. 2.8 mm, wire end ferrules included stripped insulation length: 7 mm tightening torque: max. 1 Nm
Outputscrew terminals conductor cross section: max. 16 mm2 (AWG 22-8) cable diameter: max. 5.2 mm, wire end ferrules included stripped insulation length: 12 mm tightening torque: max. 2.3 Nm
Relay contact outputspring terminals conductor cross section: max. 1.5 mm2 (AWG 24-16) cable diameter: max. 1.6 mm, wire end ferrules included stripped insulation length: 7 mm
Remote control/shutdown inputspring terminals conductor cross section: max. 1.5 mm2 (AWG 24-16) cable diameter: max. 1.6 mm, wire end ferrules included stripped insulation length: 7 mm
UL approvalE223176
Supplementary informationObserve the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
