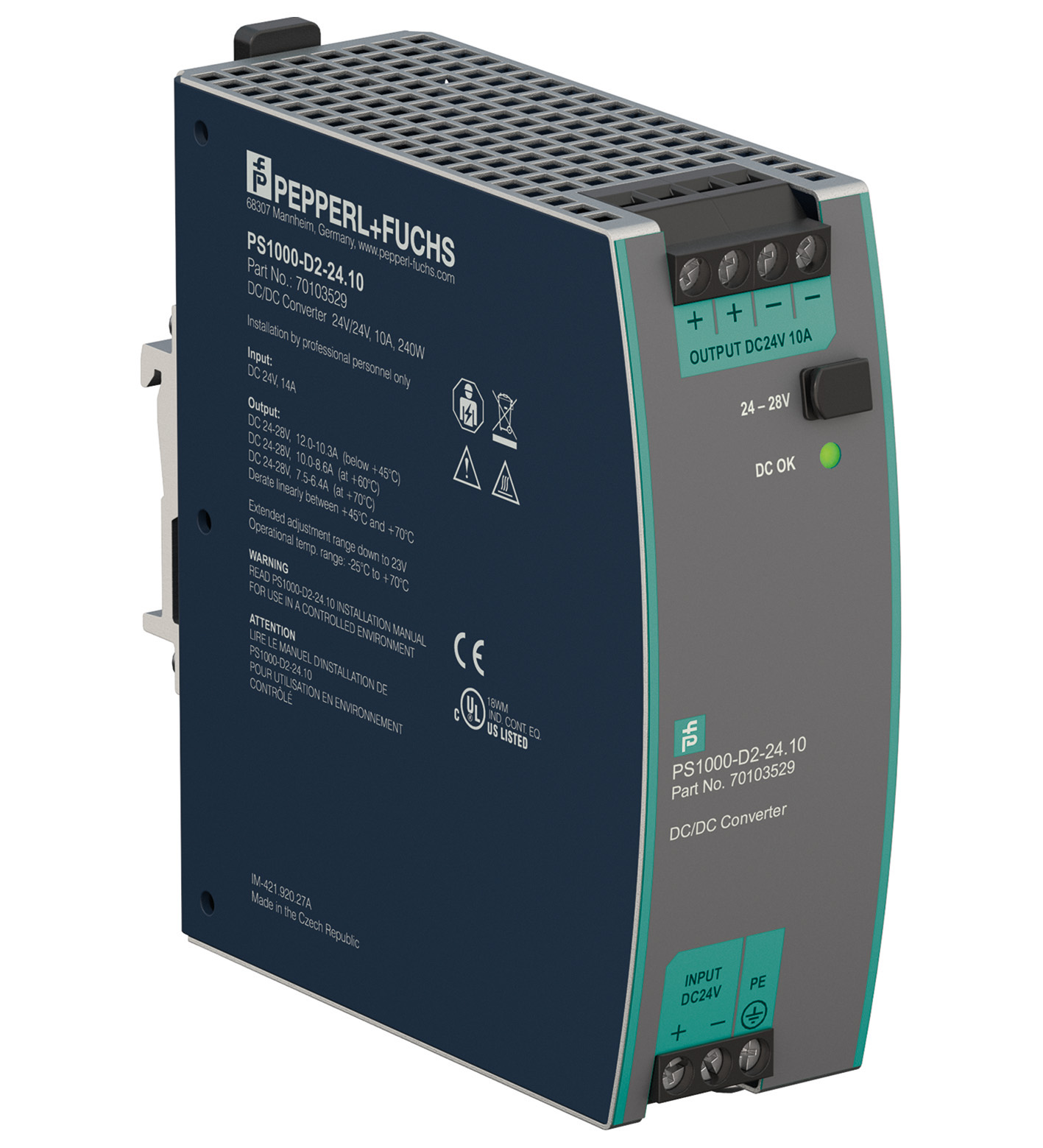

TECHNICAL DATA
规格参数
Electrical specifications
| Efficiency | 94.2 % |
|---|---|
| Power dissipation | 14.8 W |
| Rated voltage | 24 V DC |
| Voltage range | 18 ... 35 V DC |
| Current | 10.5 mA at 24 V DC |
| Inrush current | 6 A peak at ambient temperature 25 °C (77 °F) |
| Voltage range | 24 ... 28 V DC factory setting: 24.1 V |
| Rated current | 10 A |
| Current | 12 ... 10.3 A at ambient temperature < 45 °C (113 °F) 10 ... 8.6 A at ambient temperature 60 °C (140 °F) 7.5 ... 6.4 A at ambient temperature 70 °C (158 °F) linear power derating see technical information |
| Power | 240 W |
| Ripple | max. 50 mV pp |
| Hold-up time | 4 ms at 24 V DC |
| Short-circuit current | max. 15 A |
| Input/Output | SELV/PELV |
| Display elements | LED green: status DC OK - LED lights up if the output voltage is > 21 V |
| Control elements | potentiometer |
| Configuration | setting of the output voltage via potentiometer |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUIEC/EN 61000-6-1 , IEC/EN 61000-6-2 , IEC/EN 61000-6-3 , IEC/EN 61000-6-4 | Directive 2014/30/EUIEC/EN 61000-6-1 , IEC/EN 61000-6-2 , IEC/EN 61000-6-3 , IEC/EN 61000-6-4 |
| Low voltage | Low voltage |
| Directive 2014/35/EUEN 61010-1 | Directive 2014/35/EUEN 61010-1 |
| RoHS | RoHS |
| Directive 2011/65/EU (RoHS)IEC/EN 63000:2019 | Directive 2011/65/EU (RoHS)IEC/EN 63000:2019 |
| Directive 2014/30/EU | IEC/EN 61000-6-1 , IEC/EN 61000-6-2 , IEC/EN 61000-6-3 , IEC/EN 61000-6-4 |
| Directive 2014/35/EU | EN 61010-1 |
| Directive 2011/65/EU (RoHS) | IEC/EN 63000:2019 |
| Degree of protection | EN 60529 |
| Shock resistance | EN 60068-2-27 |
| Vibration resistance | EN 60068-2-6 |
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) , see technical information |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | 5 ... 95 %, non-condensing |
| Shock resistance | 20 g , 11 ms or 30 g , 6 ms |
| Vibration resistance | 2 ... 17.8 Hz : ± 1.6 mm , 17.8 ... 500 Hz : 2 g |
| Housing material | aluminum alloy , galvanized steel |
| Degree of protection | IP20 |
| Connection | Connection |
| Input/Outputscrew terminals conductor cross section: max. 6 mm2 (AWG 20-10) cable diameter: max. 2.8 mm, wire end ferrules included stripped insulation length: 7 mm tightening torque: max. 1 Nm | Input/Outputscrew terminals conductor cross section: max. 6 mm2 (AWG 20-10) cable diameter: max. 2.8 mm, wire end ferrules included stripped insulation length: 7 mm tightening torque: max. 1 Nm |
| Mass | approx. 500 g |
| Dimensions | 42 x 124 x 117 mm (W x H x D) , without DIN mounting rail |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 |
| Input/Output | screw terminals conductor cross section: max. 6 mm2 (AWG 20-10) cable diameter: max. 2.8 mm, wire end ferrules included stripped insulation length: 7 mm tightening torque: max. 1 Nm |
| UL approval | E223176 |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
