PS1000-D2-24.20.RM

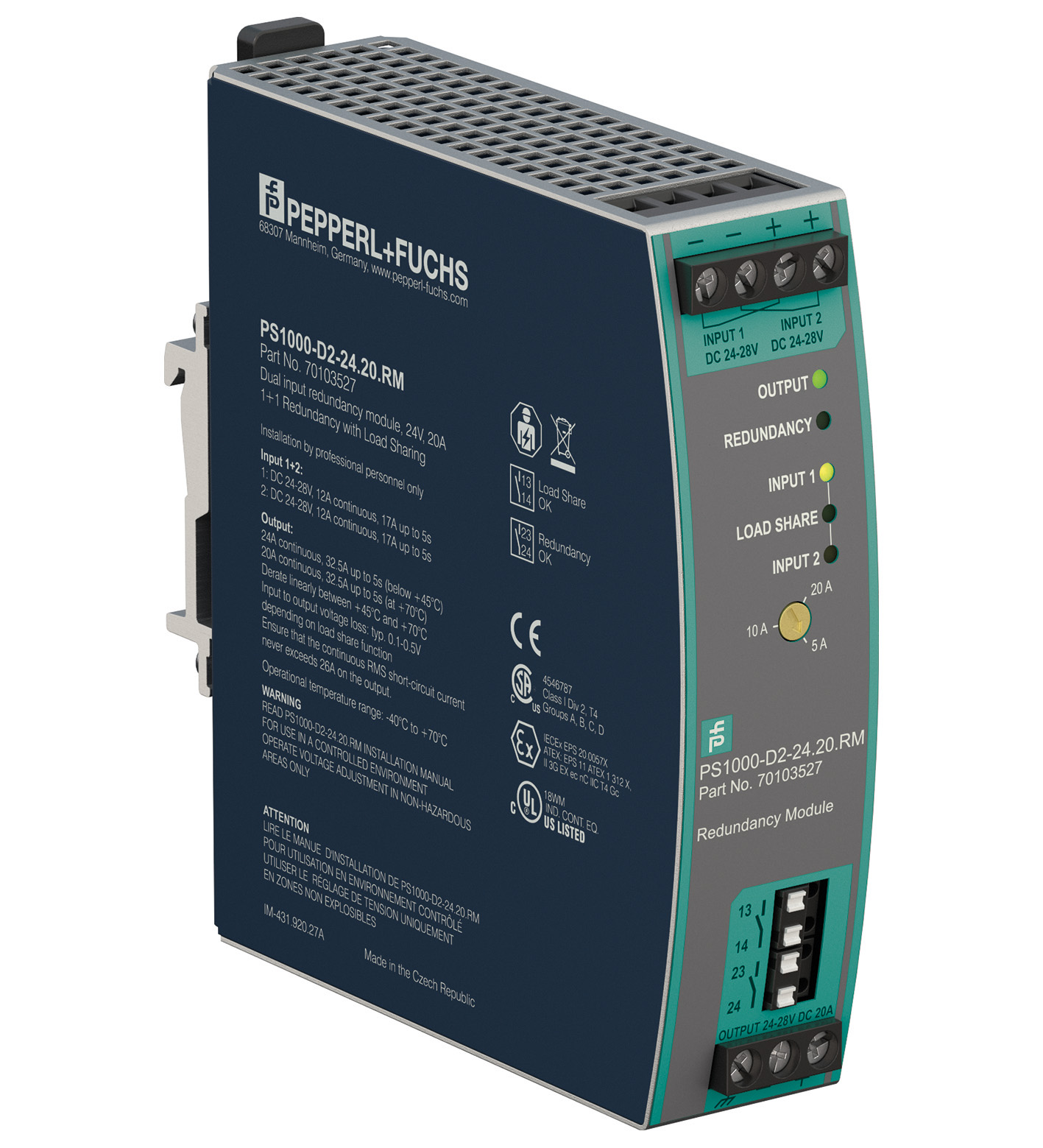

PS1000-D2-24.20.RM Redundancy Module

订货号: 70103527
产品分类: 工业电源

Redundancy Module

查看规格参数资料与附件

TECHNICAL DATA

规格参数

Electrical specifications

Voltage drop	input to output 0.1 ... 0.5 V at input 2 x 5 A 0.2 ... 0.5 V at input 2 x 10 A 0.24 ... 0.5 V at input 2 x 12 A load share dependent
Power dissipation	1.7 W no load 2.6 ... 4.7 W at input 2 x 5 A 5.6 ... 8.7 W at input 2 x 10 A
Rated voltage	24 ... 28 V
Voltage range	18 ... 35 V DC
Current	2 x 12 A at ambient temperature < 45 °C (113 °F) 2 x 10 A at ambient temperature 70 °C (158 °F) 2x 17 mA for max. 5 s for lower output currents see technical information
Voltage range	24 ... 28 V DC
Current	24 A at ambient temperature < 45 °C (113 °F) 20 A at ambient temperature < 70 °C (158 °F) 32.5 A for max. 5 s max. 26 A in overload or short circuit mode (voltage < 6 V DC)
Connection	terminals 13, 14 : relay contact load share terminals 23, 24 : relay contact redundancy
Output type	relay contact load share - contact is closed if the adjustment of the output voltages are sufficient - contact is open if an even load share does not occur and readjustment of the output voltage is required relay contact redundancy - contact is closed if no fault is detected - contact is open if one or both input voltages are below 22 V DC or above 30 V DC- contact is open if the output current is higher than the adjusted value of the output current- contact is open if an internal defect of the device is detected
Contact loading	max. 60 V DC/0.3 A ; 30 V DC/1 A ; 30 V AC/0.5 A resistive load min. 1 mA at 5 V DC
Input/Output	SELV/PELV
Display elements	LED green: output status- LED lights up if the output current is smaller than the adjusted value of the output current LEDs green: load share status- LEDs indicate the load share status between the two power supplies LED green: redundancy status- LED lights up if no fault is detected- LED flashes if one ore both input values are below 22 V or above 30 V- LED flashes if the output current is higher than the adjusted value of the output current- LED flashes if an internal defect is detected
Control elements	rotary switch
Configuration	setting of the output current via rotary switch - switch setting to 5 A in combination with two 5A power supplies (1+1 redundancy)- switch setting to 10 A in combination with two 10A power supplies (1+1 redundancy)- switch setting to 20 A for N+1 redundant systems
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUIEC/EN 61000-6-1 , IEC/EN 61000-6-2 , IEC/EN 61000-6-3 , IEC/EN 61000-6-4	Directive 2014/30/EUIEC/EN 61000-6-1 , IEC/EN 61000-6-2 , IEC/EN 61000-6-3 , IEC/EN 61000-6-4
Low voltage	Low voltage
Directive 2014/35/EUEN 61010-1	Directive 2014/35/EUEN 61010-1
RoHS	RoHS
Directive 2011/65/EU (RoHS)IEC/EN 63000:2019	Directive 2011/65/EU (RoHS)IEC/EN 63000:2019
Directive 2014/30/EU	IEC/EN 61000-6-1 , IEC/EN 61000-6-2 , IEC/EN 61000-6-3 , IEC/EN 61000-6-4
Directive 2014/35/EU	EN 61010-1
Directive 2011/65/EU (RoHS)	IEC/EN 63000:2019
Degree of protection	EN 60529
Shock resistance	EN 60068-2-27
Vibration resistance	EN 60068-2-6
Ambient temperature	-40 ... 70 °C (-40 ... 158 °F) , see technical information
Storage temperature	-40 ... 85 °C (-40 ... 185 °F)
Relative humidity	5 ... 95 %, non-condensing
Shock resistance	20 g , 11 ms or 30 g , 6 ms
Vibration resistance	2 ... 17.8 Hz : ± 1.6 mm , 17.8 ... 500 Hz : 2 g
Housing material	aluminum alloy , galvanized steel
Degree of protection	IP20
Connection	Connection
Input/Outputscrew terminals conductor cross section: max. 6 mm2 (AWG 20-10) cable diameter: max. 2.8 mm, wire end ferrules included stripped insulation length: 7 mm tightening torque: max. 0.8 NmRelay contact outputspring terminals conductor cross section: max. 1.5 mm2 (AWG 24-16) cable diameter: max. 1.6 mm, wire end ferrules included stripped insulation length: 7 mm	Input/Outputscrew terminals conductor cross section: max. 6 mm2 (AWG 20-10) cable diameter: max. 2.8 mm, wire end ferrules included stripped insulation length: 7 mm tightening torque: max. 0.8 NmRelay contact outputspring terminals conductor cross section: max. 1.5 mm2 (AWG 24-16) cable diameter: max. 1.6 mm, wire end ferrules included stripped insulation length: 7 mm
Mass	approx. 310 g
Dimensions	32 x 124 x 117 mm (W x H x D) , without DIN mounting rail
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
Input/Output	screw terminals conductor cross section: max. 6 mm2 (AWG 20-10) cable diameter: max. 2.8 mm, wire end ferrules included stripped insulation length: 7 mm tightening torque: max. 0.8 Nm
Relay contact output	spring terminals conductor cross section: max. 1.5 mm2 (AWG 24-16) cable diameter: max. 1.6 mm, wire end ferrules included stripped insulation length: 7 mm
ATEX approval	ATEX approval
ATEX certificateEPS 11 ATEX 1 312 XATEX marking II 3G Ex ec nC II T4 Gc	ATEX certificateEPS 11 ATEX 1 312 XATEX marking II 3G Ex ec nC II T4 Gc
Directive conformity	Directive conformity
Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-7:2016 , EN 60079-15:2010	Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-7:2016 , EN 60079-15:2010
ATEX certificate	EPS 11 ATEX 1 312 X
ATEX marking	II 3G Ex ec nC II T4 Gc
Directive 2014/34/EU	EN 60079-0:2012+A11:2013 , EN 60079-7:2016 , EN 60079-15:2010
UL approval	E223176
IECEx approval	IECEx approval
IECEx certificateIECEx EPS 20.0057XIECEx markingEx ec nC IIC T4 GcStandardsIEC 60079-0:2011 , IEC 60079-7:2015 , IEC 60079-15:2010	IECEx certificateIECEx EPS 20.0057XIECEx markingEx ec nC IIC T4 GcStandardsIEC 60079-0:2011 , IEC 60079-7:2015 , IEC 60079-15:2010
IECEx certificate	IECEx EPS 20.0057X
IECEx marking	Ex ec nC IIC T4 Gc
Standards	IEC 60079-0:2011 , IEC 60079-7:2015 , IEC 60079-15:2010
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
