PS1000-D2-24.40.RM

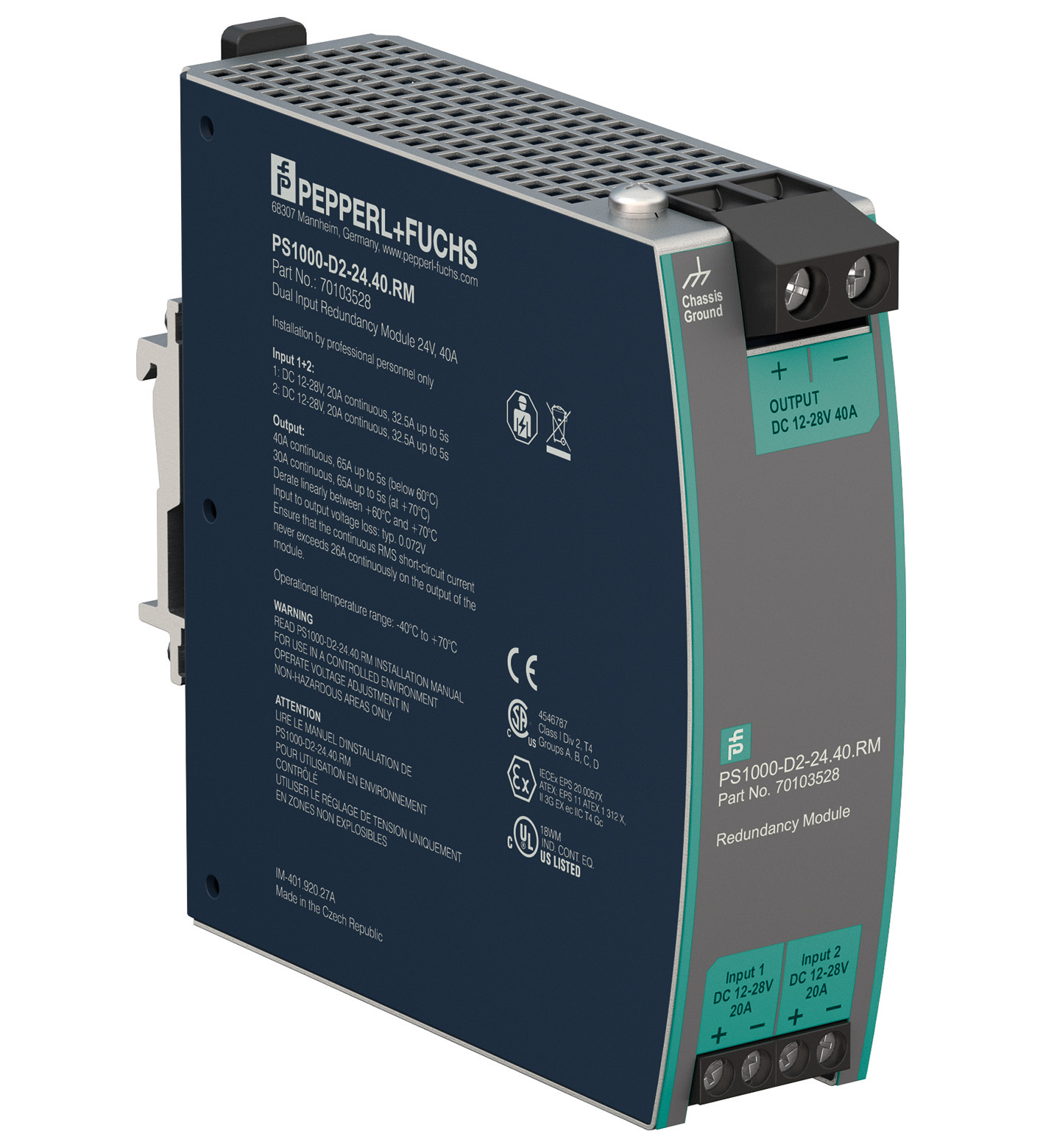

PS1000-D2-24.40.RM Redundancy Module

订货号: 70103528
产品分类: 工业电源

Redundancy Module

查看规格参数资料与附件

TECHNICAL DATA

规格参数

Electrical specifications

Voltage drop	input to output 72 mV at input 2 x 10 A 140 mV at input 2 x 20 A
Power dissipation	0.23 W no load 1.7 W at input 2 x 10 A 5.9 W at input 2 x 20 A
Rated voltage	12 ... 28 V
Voltage range	8.4 ... 36.4 V DC
Current	2 x 20 A at ambient temperature < 60 °C (140 °F) 2 x 15 A at ambient temperature 70 °C (158 °F) 2 x 20 ... 32.5 A for up to 5 s for lower output currents see technical information
Voltage range	12 ... 28 V DC
Current	40 A at ambient temperature < 60 °C (140 °F) 30 A at ambient temperature < 70 °C (158 °F) 65 A for up to 5 s max. 26 A in overload or short circuit mode (voltage < 6 V DC)
Input/Output	SELV/PELV
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUIEC/EN 61000-6-1 , IEC/EN 61000-6-2 , IEC/EN 61000-6-3 , IEC/EN 61000-6-4	Directive 2014/30/EUIEC/EN 61000-6-1 , IEC/EN 61000-6-2 , IEC/EN 61000-6-3 , IEC/EN 61000-6-4
Low voltage	Low voltage
Directive 2014/35/EUEN 61010-1	Directive 2014/35/EUEN 61010-1
RoHS	RoHS
Directive 2011/65/EU (RoHS)IEC/EN 63000:2019	Directive 2011/65/EU (RoHS)IEC/EN 63000:2019
Directive 2014/30/EU	IEC/EN 61000-6-1 , IEC/EN 61000-6-2 , IEC/EN 61000-6-3 , IEC/EN 61000-6-4
Directive 2014/35/EU	EN 61010-1
Directive 2011/65/EU (RoHS)	IEC/EN 63000:2019
Degree of protection	EN 60529
Shock resistance	EN 60068-2-27
Vibration resistance	EN 60068-2-6
Ambient temperature	-25 ... 70 °C (-13 ... 158 °F) , see technical information
Storage temperature	-40 ... 85 °C (-40 ... 185 °F)
Relative humidity	5 ... 95 %, non-condensing
Shock resistance	20 g , 11 ms or 30 g , 6 ms
Vibration resistance	2 ... 17.8 Hz : ± 1.6 mm , 17.8 ... 500 Hz : 2 g
Corrosion resistance	IEC 60068-2-60, Method 4 ISA-71.04, severity level G3
Housing material	aluminum alloy , galvanized steel
Degree of protection	IP20
Connection	Connection
Inputscrew terminals conductor cross section: max. 6 mm2 (AWG 20-10) cable diameter: max. 2.8 mm, wire end ferrules included stripped insulation length: 7 mm tightening torque: recommendet 0.8 NmOutputscrew terminals conductor cross section: max. 16 mm2 (AWG 22-8) cable diameter: max. 5.2 mm, wire end ferrules included stripped insulation length: 12 mm tightening torque: recommendet 1.2 Nm	Inputscrew terminals conductor cross section: max. 6 mm2 (AWG 20-10) cable diameter: max. 2.8 mm, wire end ferrules included stripped insulation length: 7 mm tightening torque: recommendet 0.8 NmOutputscrew terminals conductor cross section: max. 16 mm2 (AWG 22-8) cable diameter: max. 5.2 mm, wire end ferrules included stripped insulation length: 12 mm tightening torque: recommendet 1.2 Nm
Mass	approx. 280 g
Dimensions	36 x 124 x 127 mm (W x H x D) , without DIN mounting rail
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
Input	screw terminals conductor cross section: max. 6 mm2 (AWG 20-10) cable diameter: max. 2.8 mm, wire end ferrules included stripped insulation length: 7 mm tightening torque: recommendet 0.8 Nm
Output	screw terminals conductor cross section: max. 16 mm2 (AWG 22-8) cable diameter: max. 5.2 mm, wire end ferrules included stripped insulation length: 12 mm tightening torque: recommendet 1.2 Nm
ATEX approval	ATEX approval
ATEX certificateEPS 11 ATEX 1 312 XATEX marking II 3G Ex ec II T4 Gc	ATEX certificateEPS 11 ATEX 1 312 XATEX marking II 3G Ex ec II T4 Gc
Directive conformity	Directive conformity
Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-7:2016 , EN 60079-15:2010	Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-7:2016 , EN 60079-15:2010
ATEX certificate	EPS 11 ATEX 1 312 X
ATEX marking	II 3G Ex ec II T4 Gc
Directive 2014/34/EU	EN 60079-0:2012+A11:2013 , EN 60079-7:2016 , EN 60079-15:2010
UL approval	E223176
IECEx approval	IECEx approval
IECEx certificateIECEx EPS 20.0057XIECEx markingEx ec IIC T4 GcStandardsIEC 60079-0:2011 , IEC 60079-7:2015 , IEC 60079-15:2010	IECEx certificateIECEx EPS 20.0057XIECEx markingEx ec IIC T4 GcStandardsIEC 60079-0:2011 , IEC 60079-7:2015 , IEC 60079-15:2010
IECEx certificate	IECEx EPS 20.0057X
IECEx marking	Ex ec IIC T4 Gc
Standards	IEC 60079-0:2011 , IEC 60079-7:2015 , IEC 60079-15:2010
