TECHNICAL DATA
规格参数
Supply
| Rated voltage | AC: 100 ... 240 V 50/60 Hz DC: 24 V |
|---|---|
| Input current | AC: 1.09 A DC: 0.1 A |
| Interface type | Ethernet Interface4 x 10/100BaseT(X) Ports (RJ45 connector) All models support:- Auto negotiation speed- Full/half duplex mode- Auto MDI/MDI-X connection |
| Communication | IEEE 802.3 for 10BASE-T IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control |
| Ambient temperature | -25 ... 50 °C (-13 ... 122 °F) |
| Operating temperature | -20 ... 50 °C (-4 ... 122 °F) |
| Relative humidity | 5 ... 95 %, non-condensing |
| Degree of protection | IP66 / Type 4X |
| Material | Material |
| Housing316L stainless steel Enclosure cover: Fully detachableCover fixing: Stainless steel A4 (V4A) hexagonal head screws, optional quarter-turn key locksSurfacebrushed finish | Housing316L stainless steel Enclosure cover: Fully detachableCover fixing: Stainless steel A4 (V4A) hexagonal head screws, optional quarter-turn key locksSurfacebrushed finish |

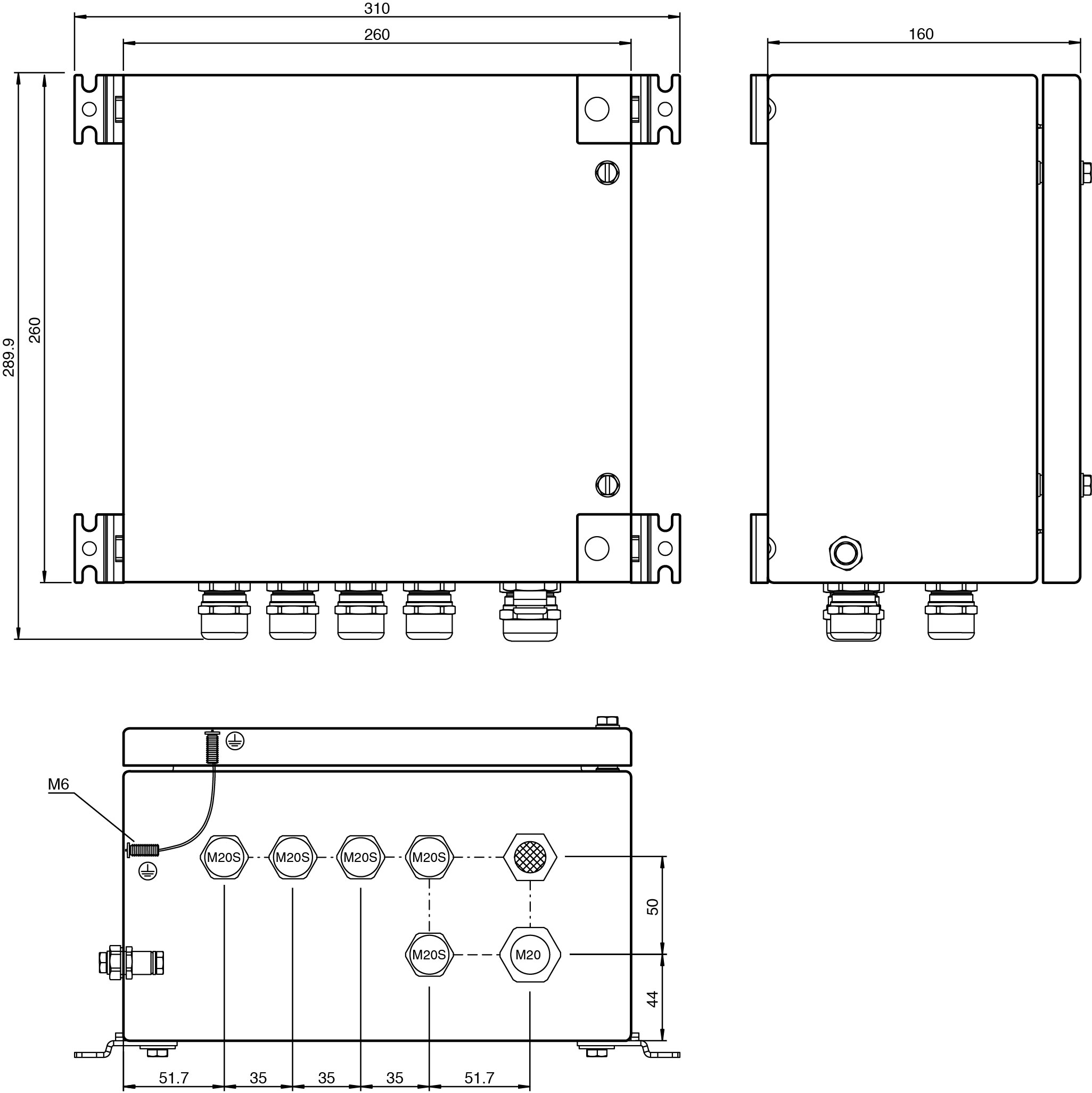

| Dimensions | 260 mm x 260 mm x 160 mm |
| Housing | 316L stainless steel Enclosure cover: Fully detachableCover fixing: Stainless steel A4 (V4A) hexagonal head screws, optional quarter-turn key locks |
| Surface | brushed finish |
| ETL approval | ETL approval |
| ETL markingClass I Division 2 Groups ABCD T4Class II Division 2 Groups FG T135°CApproved forSuitable for Class I, Division 2 Groups B,C,D T4For ETLusNFPA 70 (NEC)UL50-2007UL50E-2007UL508AUL 121201 For cETLCSA C22.2 No.14CSA22.1-12 (CEC)CSA C22.2 No. 94.1-07CSA C22.2 No. 94.2-07CSA C22.2 No. 213 | ETL markingClass I Division 2 Groups ABCD T4Class II Division 2 Groups FG T135°CApproved forSuitable for Class I, Division 2 Groups B,C,D T4For ETLusNFPA 70 (NEC)UL50-2007UL50E-2007UL508AUL 121201 For cETLCSA C22.2 No.14CSA22.1-12 (CEC)CSA C22.2 No. 94.1-07CSA C22.2 No. 94.2-07CSA C22.2 No. 213 |
| Approved for | ATEX / IECEx Zone 2/22NEC Class I, II Div. 2 |
| ETL marking | Class I Division 2 Groups ABCD T4Class II Division 2 Groups FG T135°C |
| Approved for | Suitable for Class I, Division 2 Groups B,C,D T4For ETLusNFPA 70 (NEC)UL50-2007UL50E-2007UL508AUL 121201 For cETLCSA C22.2 No.14CSA22.1-12 (CEC)CSA C22.2 No. 94.1-07CSA C22.2 No. 94.2-07CSA C22.2 No. 213 |
