R-SP-E12

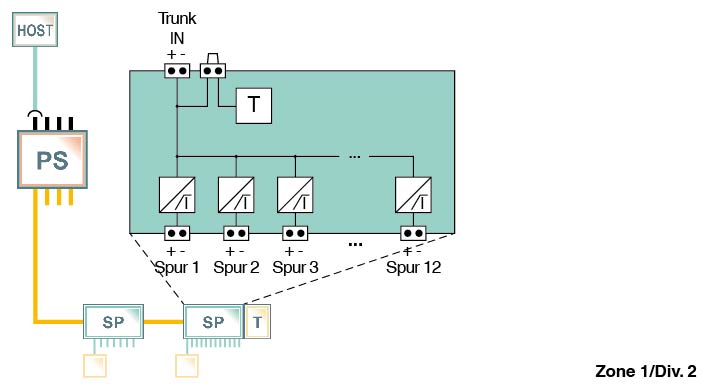

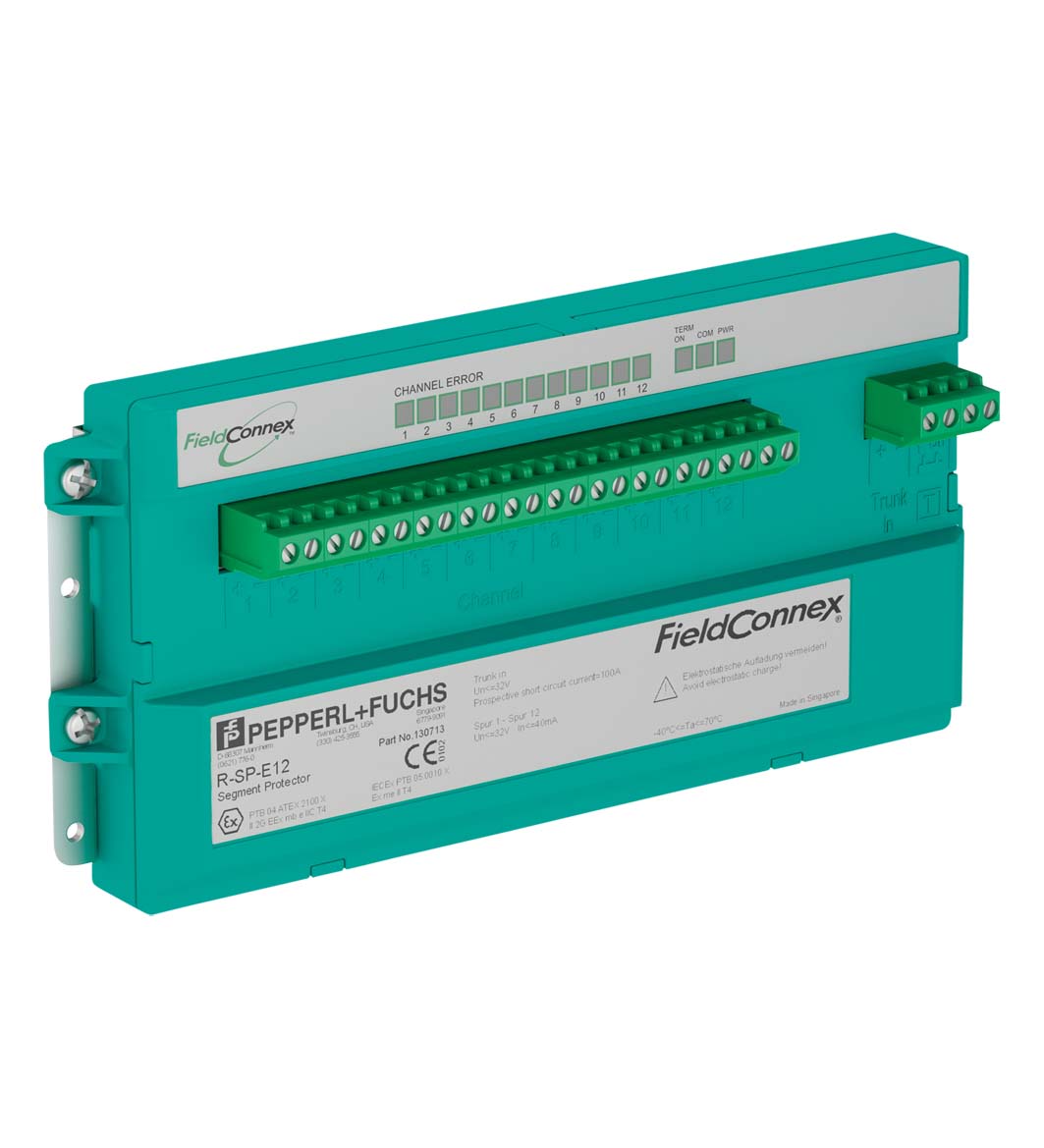

R-SP-E12 Segment ProtectorFieldConnex® Fieldbus

订货号: 130713
产品分类: 网段保护器

Segment protector, junction box for fieldbus with short-circuit protection, Field junction box, module for DIN rail mounting

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Design / Mounting	Cabinet installation
Installation in hazardous area	Zone 1 / Div. 2
Power dissipation	250 mW
Main cable (Trunk)	Main cable (Trunk)
Cable entry typescrew terminal , fixedRated voltage9 ... 32 V DC	Cable entry typescrew terminal , fixedRated voltage9 ... 32 V DC
Outputs	Outputs
Number of outputs12Cable entry typescrew terminal , fixedRated voltagemax. 32 VRated currentmax. 40 mAShort-circuit currentmax. 52 mA	Number of outputs12Cable entry typescrew terminal , fixedRated voltagemax. 32 VRated currentmax. 40 mAShort-circuit currentmax. 52 mA
Self current consumption	max. 9 mA
Voltage drop main cable/outputs	max. 1.3 V
Terminating resistor	selectable 100 Ω integrated
Surge protection	trunk, spurs overvoltage protected if voltage exceeds typ. 39 V, max. 41 V
Cable entry type	screw terminal , fixed
Rated voltage	9 ... 32 V DC
Number of outputs	12
Cable entry type	screw terminal , fixed
Rated voltage	max. 32 V
Rated current	max. 40 mA
Short-circuit current	max. 52 mA
LED PWR	green: Fieldbus voltage > 10 V
LED CHANNEL ERROR	red flashing: short-circuit
LED COM	yellow: bus activity
LED TERM ON	yellow: termination activated
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013	Directive 2014/30/EUEN 61326-1:2013
Directive 2014/30/EU	EN 61326-1:2013
Electromagnetic compatibility	NE 21:2006
Degree of protection	IEC 60529
Fieldbus standard	IEC 61158-2
Shock resistance	EN 60068-2-27
Vibration resistance	EN 60068-2-6
Ambient temperature	-40 ... 70 °C (-40 ... 158 °F)
Storage temperature	-40 ... 85 °C (-40 ... 185 °F)
Relative humidity	95 % non-condensing
Shock resistance	15 g , 11 ms
Vibration resistance	5 g , 10 ... 150 Hz
Connection type	screw terminal , fixed
Core cross section	max. 2.5 mm2 / AWG 12-24
Housing material	Polycarbonate
Degree of protection	IP20
Mass	800 g
Dimensions	Dimensions
Height100 mmWidth216 mmDepth50 mm	Height100 mmWidth216 mmDepth50 mm
Mounting	DIN rail mounting
Coating	resin filled
Height	100 mm
Width	216 mm
Depth	50 mm
EU-type examination certificate	PTB 04 ATEX 2100 X
Marking II 2 G Ex eb mb IIC T4 Gb	Marking II 2 G Ex eb mb IIC T4 Gb
Maximum values	Maximum values
Rated voltage≤ 35 VProspective short-circuit current100 A	Rated voltage≤ 35 VProspective short-circuit current100 A
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN IEC 60079-7:2015+A1:2018 , EN 60079-18:2015+A1:2017	Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN IEC 60079-7:2015+A1:2018 , EN 60079-18:2015+A1:2017
Marking	II 2 G Ex eb mb IIC T4 Gb
Rated voltage	≤ 35 V
Prospective short-circuit current	100 A
Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 , EN IEC 60079-7:2015+A1:2018 , EN 60079-18:2015+A1:2017
IECEx approval	IECEx approval
IECEx certificateIECEx PTB 05.0010XIECEx markingEx eb mb IIC T4 Gb	IECEx certificateIECEx PTB 05.0010XIECEx markingEx eb mb IIC T4 Gb
IECEx certificate	IECEx PTB 05.0010X
IECEx marking	Ex eb mb IIC T4 Gb
Supplementary information	EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
