TECHNICAL DATA
规格参数

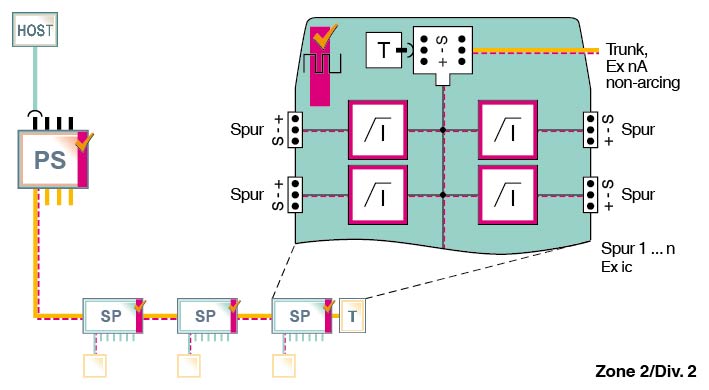

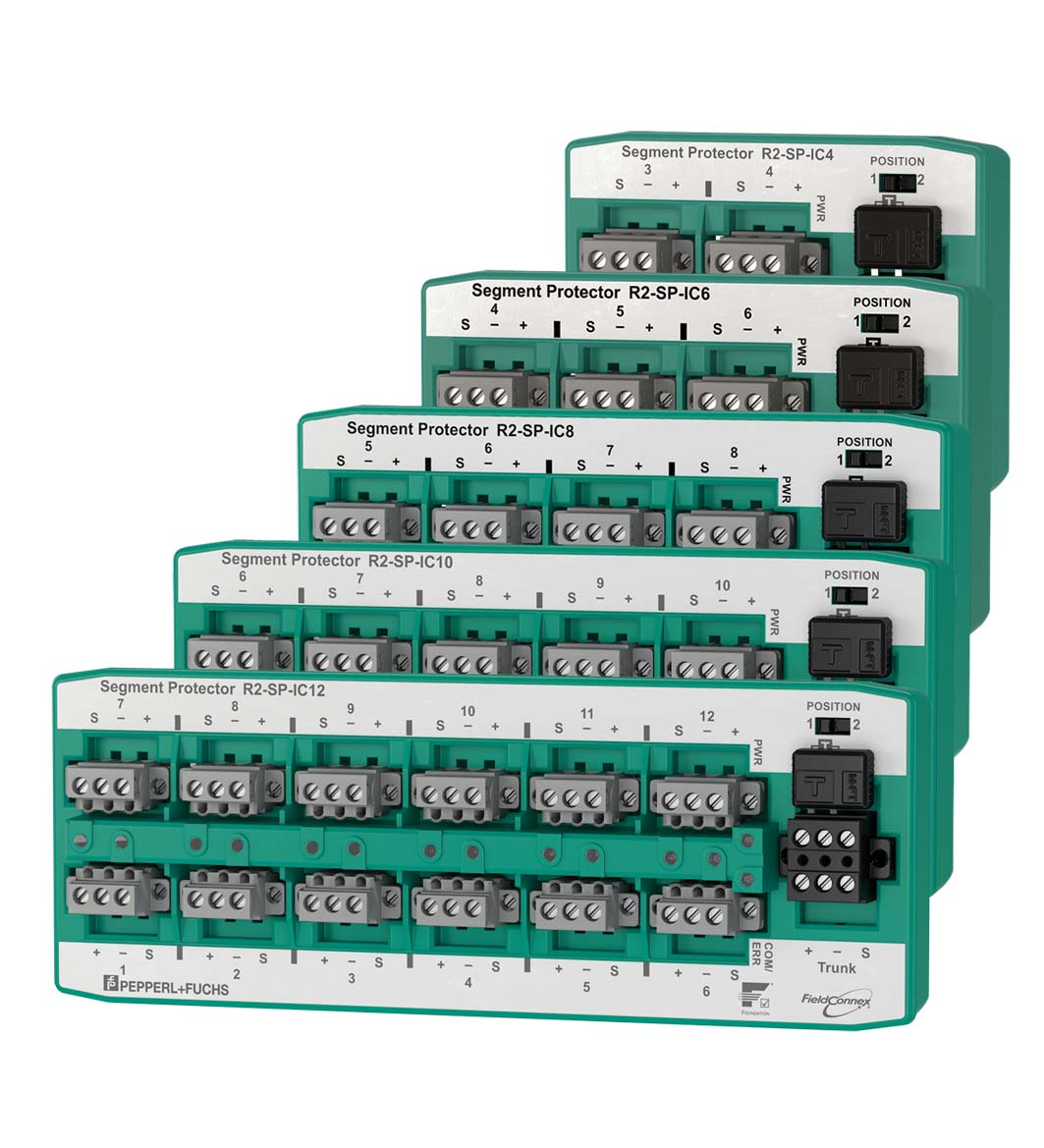

General specifications
| Design / Mounting | Cabinet installation |
|---|---|
| Installation in hazardous area | Zone 2 / Div. 2 |
| Main cable (Trunk) | Main cable (Trunk) |
| Rated voltage9 ... 31 V DC10.5 V DC minimum input voltage acc. to FF-846Rated currentmax. 4.5 A | Rated voltage9 ... 31 V DC10.5 V DC minimum input voltage acc. to FF-846Rated currentmax. 4.5 A |
| Outputs | Outputs |
| Number of outputssee table "Technical data depending on model"Number of devices per output1Rated voltagemax. 31 VRated currentmax. 32 mA switch 1, position 1 max. 43 mA switch 1, position 2Short-circuit current46 mA switch 1, position 1 57 mA switch 1, position 2 | Number of outputssee table "Technical data depending on model"Number of devices per output1Rated voltagemax. 31 VRated currentmax. 32 mA switch 1, position 1 max. 43 mA switch 1, position 2Short-circuit current46 mA switch 1, position 1 57 mA switch 1, position 2 |
| Self current consumption | see table "Technical data depending on model" |
| Voltage drop main cable/outputs | max. 1.2 V |
| Voltage drop trunk In/Out | 0 V |
| Terminating resistor | external type M-FT 100 Ω +/- 10 % |
| Surge protection | Trunk overvoltage protection if voltage exceeds typ. 39 V, max. 41 V |
| Rated voltage | 9 ... 31 V DC10.5 V DC minimum input voltage acc. to FF-846 |
| Rated current | max. 4.5 A |
| Number of outputs | see table "Technical data depending on model" |
| Number of devices per output | 1 |
| Rated voltage | max. 31 V |
| Rated current | max. 32 mA switch 1, position 1 max. 43 mA switch 1, position 2 |
| Short-circuit current | 46 mA switch 1, position 1 57 mA switch 1, position 2 |
| Switch | configuration of short-circuit current/rated current |
| LED PWR | green: Fieldbus voltage > 10 V and fieldbus terminator is deactivated |
| LED COM/ERR | yellow: flashing: fieldbus communication status and physical layer diagnostic status |
| LED SPURS | red: 2 Hz flashing in short-circuit condition |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 | Directive 2014/30/EUEN 61326-1:2013 |
| Directive 2014/30/EU | EN 61326-1:2013 |
| Electromagnetic compatibility | NE 21:2011 |
| Degree of protection | IEC 60529 |
| Fieldbus standard | IEC 61158-2 |
| Climatic conditions | IEC 60721 |
| Shock resistance | EN 60068-2-27 |
| Vibration resistance | EN 60068-2-6 |
| Ambient temperature | -50 ... 70 °C (-58 ... 158 °F) |
| Storage temperature | -50 ... 85 °C (-58 ... 185 °F) |
| Relative humidity | < 95 % non-condensing |
| Shock resistance | 15 g 11 ms |
| Vibration resistance | 1 g , 10 ... 150 Hz |
| Corrosion resistance | acc. to ISA-S71.04-1985, severity level G3 |
| Connection type | screw terminal , pluggable or spring terminal , pluggable |
| Core cross section | see table 2 |
| Housing material | Polycarbonate |
| Degree of protection | IP20 |
| Mass | see table "Technical data depending on model" |
| Dimensions | see table "Technical data depending on model" |
| Mounting | DIN rail mounting |
| EU-type examination certificate | TÜV 12 ATEX 098651 X |
| Marking II 3G Ex nA [ic] IIC T4 Gc [exsign] II (3)D [Ex ic Dc] IIIC | Marking II 3G Ex nA [ic] IIC T4 Gc [exsign] II (3)D [Ex ic Dc] IIIC |
| Supply | Supply |
| Maximum safe voltageUm35 V | Maximum safe voltageUm35 V |
| Outputs | Outputs |
| VoltageUo32 VCurrentIo46 mA switch 1, position 1 65 mA switch 1, position 2InductanceLo0.125 mH switch 1, position 1 0.25 mH switch 1, position 2CapacitanceCo60 nF | VoltageUo32 VCurrentIo46 mA switch 1, position 1 65 mA switch 1, position 2InductanceLo0.125 mH switch 1, position 1 0.25 mH switch 1, position 2CapacitanceCo60 nF |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010 | Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010 |
| Marking | II 3G Ex nA [ic] IIC T4 Gc [exsign] II (3)D [Ex ic Dc] IIIC |
| Maximum safe voltage | 35 V |
| Voltage | 32 V |
| Current | 46 mA switch 1, position 1 65 mA switch 1, position 2 |
| Inductance | 0.125 mH switch 1, position 1 0.25 mH switch 1, position 2 |
| Capacitance | 60 nF |
| Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010 |
| UL approval | E106378 |
| Control drawing116-0406Approved forClass I, Division 2, Groups A, B, C, D | Control drawing116-0406Approved forClass I, Division 2, Groups A, B, C, D |
| IECEx approval | IECEx approval |
| IECEx certificateIECEx TUN 12.0015XIECEx markingEx nA [ic] IIC T4 Gc [Ex ic Dc] IIIC | IECEx certificateIECEx TUN 12.0015XIECEx markingEx nA [ic] IIC T4 Gc [Ex ic Dc] IIIC |
| Control drawing | 116-0406 |
| Approved for | Class I, Division 2, Groups A, B, C, D |
| IECEx certificate | IECEx TUN 12.0015X |
| IECEx marking | Ex nA [ic] IIC T4 Gc [Ex ic Dc] IIIC |
| Supplementary information | Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
