TECHNICAL DATA
规格参数

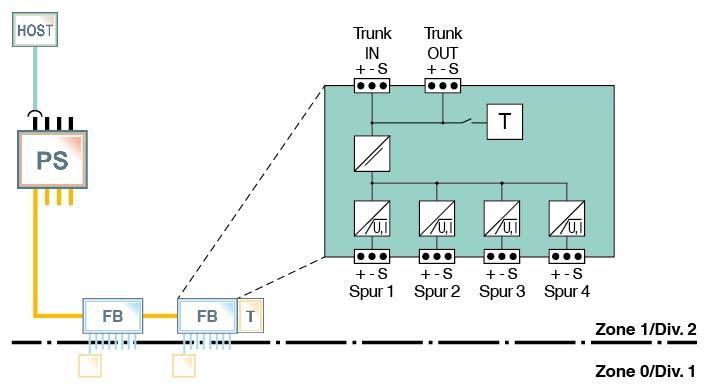

General specifications
| Design / Mounting | Cabinet installation |
|---|---|
| Installation in hazardous area | Zone 1 / Div. 2 |
| Main cable (Trunk) | Main cable (Trunk) |
| Connectioninput (Trunk IN): terminals 3+, 4-, 5soutput (Trunk OUT): terminals 7-, 8+, 6sRated voltage32 ... 16 V DCRated current31 mA ... 26 mA (without load)77 mA ... 115 mA (at 20 mA load per input)120 mA ... 209 mA (at 40 mA load per input)135 mA ... 241 mA (short-circuit on all outputs)Voltage droptrunk IN to trunk OUT 100 mV max.Number of couplersmax. 4 per segment | Connectioninput (Trunk IN): terminals 3+, 4-, 5soutput (Trunk OUT): terminals 7-, 8+, 6sRated voltage32 ... 16 V DCRated current31 mA ... 26 mA (without load)77 mA ... 115 mA (at 20 mA load per input)120 mA ... 209 mA (at 40 mA load per input)135 mA ... 241 mA (short-circuit on all outputs)Voltage droptrunk IN to trunk OUT 100 mV max.Number of couplersmax. 4 per segment |
| Outputs | Outputs |
| Number of devices per output1Connectionoutput 1: terminals 10+, 11-, 12S shield; output 2: terminals 13+, 14-, 15S shield; output 3: terminals 16+, 17-, 18S shield; output 4: terminals 19+, 20-, 21S shieldRated voltage10 ... 13 VRated currentmax. 43 mAShort-circuit current50 mA | Number of devices per output1Connectionoutput 1: terminals 10+, 11-, 12S shield; output 2: terminals 13+, 14-, 15S shield; output 3: terminals 16+, 17-, 18S shield; output 4: terminals 19+, 20-, 21S shieldRated voltage10 ... 13 VRated currentmax. 43 mAShort-circuit current50 mA |
| Connection | input (Trunk IN): terminals 3+, 4-, 5soutput (Trunk OUT): terminals 7-, 8+, 6s |
| Rated voltage | 32 ... 16 V DC |
| Rated current | 31 mA ... 26 mA (without load)77 mA ... 115 mA (at 20 mA load per input)120 mA ... 209 mA (at 40 mA load per input)135 mA ... 241 mA (short-circuit on all outputs) |
| Voltage drop | trunk IN to trunk OUT 100 mV max. |
| Number of couplers | max. 4 per segment |
| Number of devices per output | 1 |
| Connection | output 1: terminals 10+, 11-, 12S shield; output 2: terminals 13+, 14-, 15S shield; output 3: terminals 16+, 17-, 18S shield; output 4: terminals 19+, 20-, 21S shield |
| Rated voltage | 10 ... 13 V |
| Rated current | max. 43 mA |
| Short-circuit current | 50 mA |
| LED voltage Fieldbus | green: on, bus voltage existent |
| LED status output | red flashing: short-circuit |
| Main wire/outputs | isolation is not affected by interference according to EN 50020, voltage peak value 375 V |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 | Directive 2014/30/EUEN 61326-1:2013 |
| Directive 2014/30/EU | EN 61326-1:2013 |
| Electromagnetic compatibility | NE 21:2006 |
| Degree of protection | IEC/EN 60529 |
| Fieldbus standard | IEC 61158-2 |
| Climatic conditions | DIN IEC 721 |
| Corrosion resistance | acc. to ISA-S71.04-1985, severity level G3 |
| Ambient temperature | -50 ... 70 °C (-58 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Connection type | screw terminal |
| Core cross section | up to 2.5 mm2 |

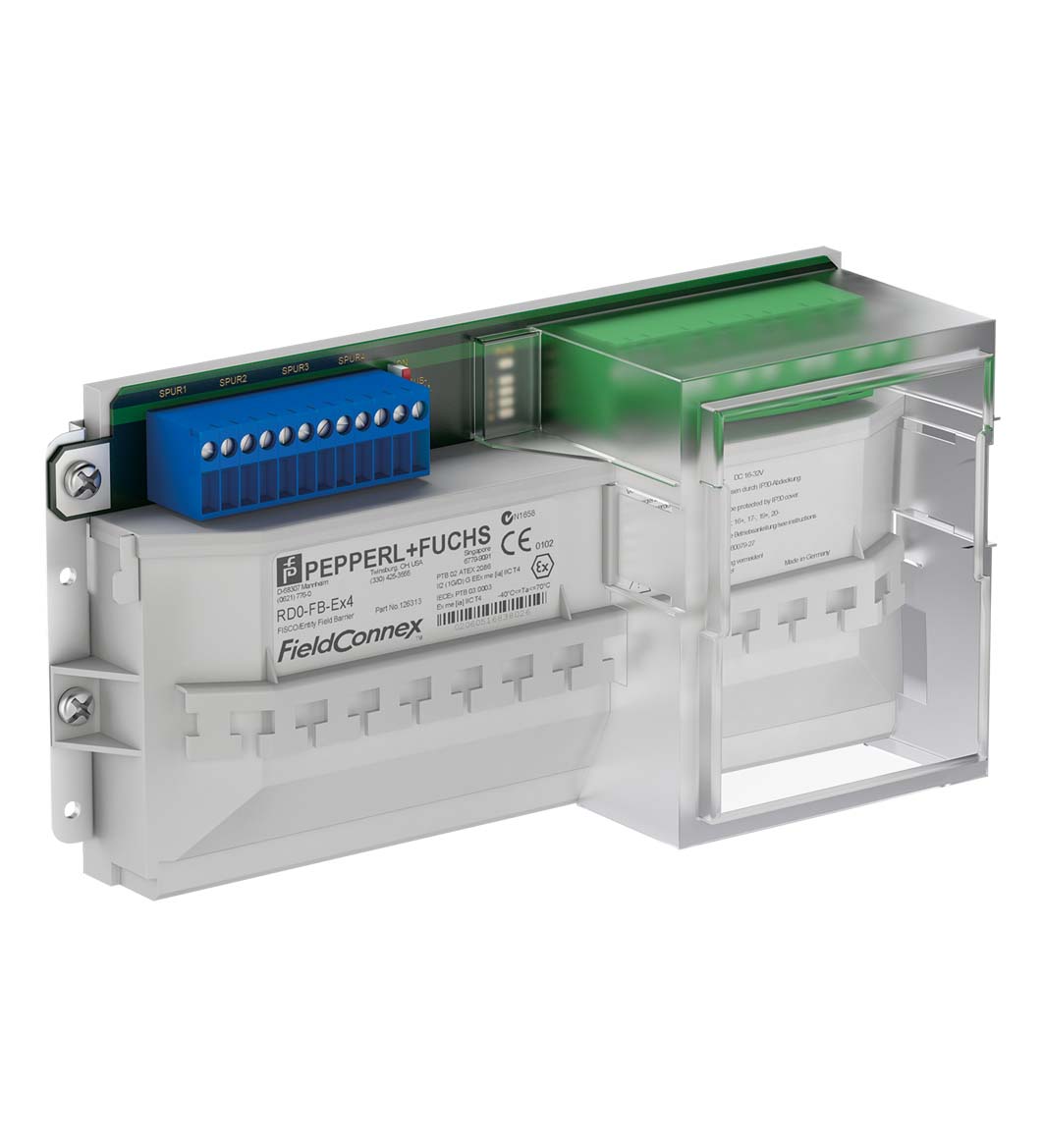

| Housing | see figure 1 |
| Housing material | Polycarbonate |
| R... DIN rail housingPA 6.6 | R... DIN rail housingPA 6.6 |
| Degree of protection | IP20 |
| Mass | 1050 g |
| Mounting | DIN rail mounting |
| R... DIN rail housing | PA 6.6 |
| EU-type examination certificate | PTB 02 ATEX 2086 |
| Marking II 2 (1) G Ex eb mb [ia Ga] IIC T4 Gb ,[exsign] II (1) D [Ex ia Da] IIIC | Marking II 2 (1) G Ex eb mb [ia Ga] IIC T4 Gb ,[exsign] II (1) D [Ex ia Da] IIIC |
| Main cable (Trunk) | Main cable (Trunk) |
| Maximum safe voltage Um253 V AC | Maximum safe voltage Um253 V AC |
| Outputs | Outputs |
| PowerPo975 mWVoltageUo15.75 VCurrentIo248 mA | PowerPo975 mWVoltageUo15.75 VCurrentIo248 mA |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-7:2015+A1:2018 , EN 60079-11:2012 , EN 60079-18:2015+A1:2017 | Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-7:2015+A1:2018 , EN 60079-11:2012 , EN 60079-18:2015+A1:2017 |
| Marking | II 2 (1) G Ex eb mb [ia Ga] IIC T4 Gb ,[exsign] II (1) D [Ex ia Da] IIIC |
| Maximum safe voltage Um | 253 V AC |
| Power | 975 mW |
| Voltage | 15.75 V |
| Current | 248 mA |
| Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 , EN 60079-7:2015+A1:2018 , EN 60079-11:2012 , EN 60079-18:2015+A1:2017 |
| FM approval | CoC 3015728 |
| Control drawing116-0266Approved forClass I, Division 2, Groups A, B, C, D / Class I, Zone 2, AEx nA [ia] IIC T4 | Control drawing116-0266Approved forClass I, Division 2, Groups A, B, C, D / Class I, Zone 2, AEx nA [ia] IIC T4 |
| CSA approval | CoC 1845315 |
| Control drawing116-0266Approved forClass I, Division 2, Groups A, B, C, D / Class I, Zone 2, Ex nA [ia] IIC T4 | Control drawing116-0266Approved forClass I, Division 2, Groups A, B, C, D / Class I, Zone 2, Ex nA [ia] IIC T4 |
| IECEx approval | IECEx approval |
| IECEx certificateIECEx PTB 03.0003IECEx markingEx eb mb [ia Ga] IIC T4 Gb [Ex ia Da] IIIC | IECEx certificateIECEx PTB 03.0003IECEx markingEx eb mb [ia Ga] IIC T4 Gb [Ex ia Da] IIIC |
| Control drawing | 116-0266 |
| Approved for | Class I, Division 2, Groups A, B, C, D / Class I, Zone 2, AEx nA [ia] IIC T4 |
| Control drawing | 116-0266 |
| Approved for | Class I, Division 2, Groups A, B, C, D / Class I, Zone 2, Ex nA [ia] IIC T4 |
| IECEx certificate | IECEx PTB 03.0003 |
| IECEx marking | Ex eb mb [ia Ga] IIC T4 Gb [Ex ia Da] IIIC |
| FOUNDATION Fieldbus | FF-846 |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
