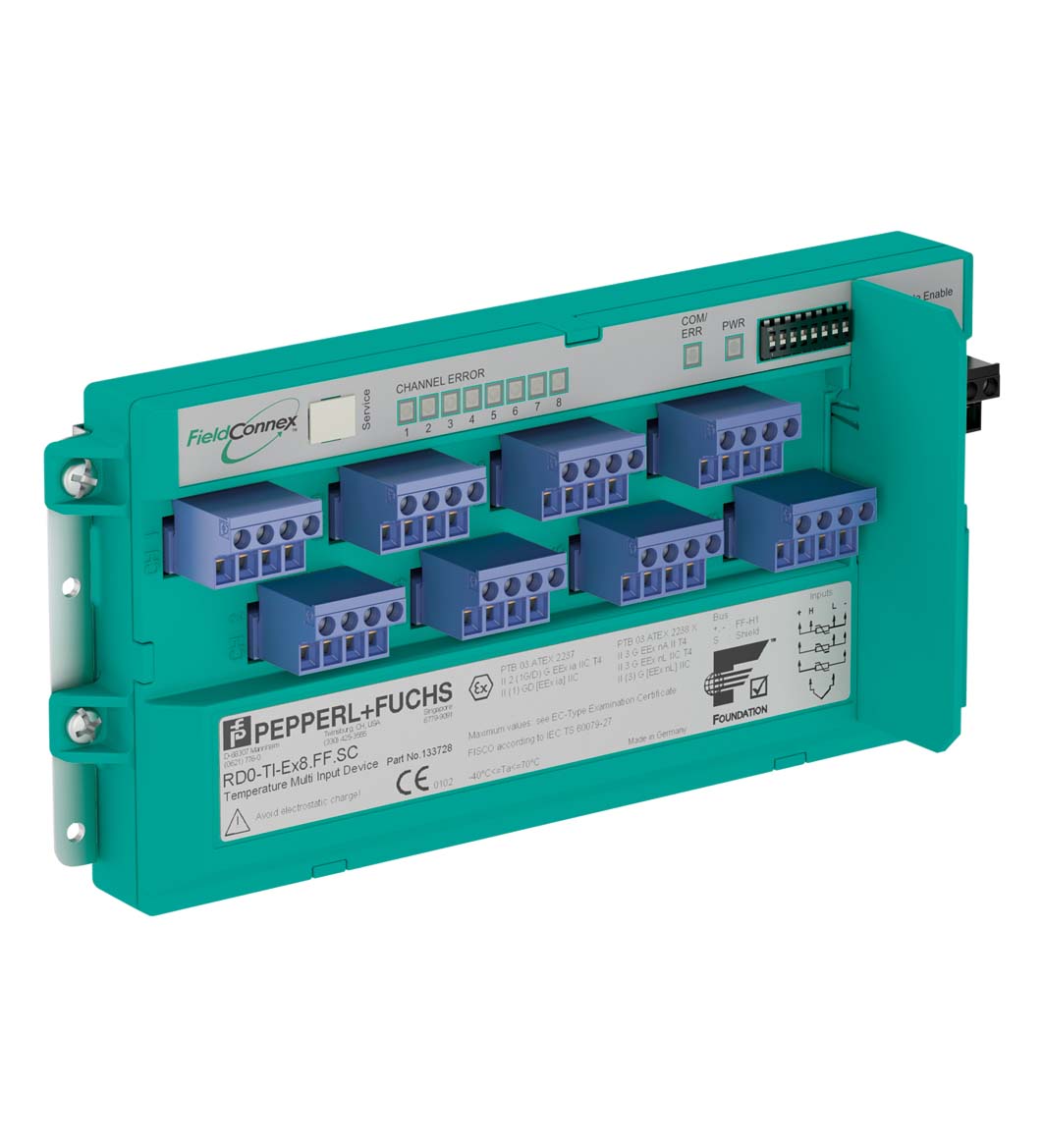

TECHNICAL DATA
规格参数

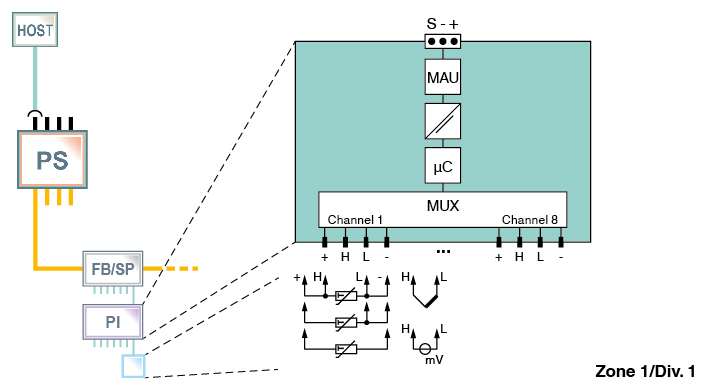

General specifications
| Design / Mounting | Cabinet installation |
|---|---|
| Installation in hazardous area | Zone 1 / Div. 1 |
| Fieldbus type | FOUNDATION Fieldbus |
| Physical layer profile | profile type 511 (FISCO), profile type 111 (Entity) |
| ITK version | 6.2.0 (DEV_REV 02) |
| Implementation | resource block 1x RSfunction block 8x AI, 1x MAItransducer block 8x sensor TB, 1x concentrator TB |
| Execution time | AI, MAI 40 ms max. |
| Macro cycle | typical for one device 8xAI or 1xMAI max. 500 ms |
| Firmware update | via separate plug connection |
| FDE (Fault Disconnect Equipment) | 6.7 mA |
| Polarity | not polarity sensitive |
| Rated voltage | 9 ... 32 V |
| Rated current | max. 23 mA |
| LED PWR | green: on, bus voltage existent |
| LED COM ERR | red, continuous lightning: hardware error; red, flashing: no bus activities or bus fault; off: no error |
| LED CHANNEL ERROR | red: 2 Hz flashing: lead breakage, overrange; off: no error |
| Number | 8 |
| Sensor types | see table 1 |
| Grounding | grounding of thermoelements possible |
| Error detection | lead breakage, wiring error, hardware device error |
| Common mode voltage | Input to Input 600 Vpeak |
| Deviation | Deviation |
| Cold junction compensation± 0.5 °C (32.9 °F)Resolution/accuracysee table 2Influence of ambient temperaturesee table 3LinearizationT/C input 0.1°C RTD input 0.03°C | Cold junction compensation± 0.5 °C (32.9 °F)Resolution/accuracysee table 2Influence of ambient temperaturesee table 3LinearizationT/C input 0.1°C RTD input 0.03°C |
| Internal measurement cycle | for all sensor types max. 1 s |
| Cold junction compensation | ± 0.5 °C (32.9 °F) |
| Resolution/accuracy | see table 2 |
| Influence of ambient temperature | see table 3 |
| Linearization | T/C input 0.1°C RTD input 0.03°C |
| Fieldbus/inputs | safe galvanic isolation acc. to EN 60079-11, voltage peak value 375 V |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 | Directive 2014/30/EUEN 61326-1:2013 |
| Directive 2014/30/EU | EN 61326-1:2013 |
| Galvanic isolation | EN 60079-11 |
| Electromagnetic compatibility | NE 21:2011 |
| Degree of protection | IEC 60529 |
| Fieldbus standard | IEC 61158-2 |
| Shock resistance | EN 60068-2-27 |
| Vibration resistance | EN 60068-2-6 |
| Ambient temperature | -40 ... 70 °C (-40 ... 158 °F) hazardous area -40 ... 85 °C (-40 ... 185 °F) safe area |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | ≤ 95 % non-condensing |
| Shock resistance | 15 g , 11 ms |
| Vibration resistance | 5 g , 10 ... 150 Hz |
| Corrosion resistance | acc. to ISA-S71.04-1985, severity level G3 |
| Connection type | plug-in terminals , spring terminal and screw terminal |
| Core cross section | Core cross section |
| Busup to 2.5 mm2Inputsup to 2.5 mm2 | Busup to 2.5 mm2Inputsup to 2.5 mm2 |
| Housing material | Polycarbonate |
| Degree of protection | IP20 |
| Mass | 360 g |
| Mounting | DIN rail mounting |
| Bus | up to 2.5 mm2 |
| Inputs | up to 2.5 mm2 |
| EU-type examination certificate | PTB 03 ATEX 2237 |
| Marking II 2 (1) G Ex ia [ia Ga] IIC T4 Gb , [exsign] II (1) G [Ex ia Ga] IIC , [exsign] II (1) D [Ex ia Da] IIIC , [exsign] II 3 G Ex ic IIC T4 Gc | Marking II 2 (1) G Ex ia [ia Ga] IIC T4 Gb , [exsign] II (1) G [Ex ia Ga] IIC , [exsign] II (1) D [Ex ia Da] IIIC , [exsign] II 3 G Ex ic IIC T4 Gc |
| Bus | FISCO see EC-Type Examination Certificate |
| Inputs | see EC-Type Examination Certificate |
| Certificate | PTB 03 ATEX 2238 X |
| Marking II 3 G Ex nA IIC T4 Gc | Marking II 3 G Ex nA IIC T4 Gc |
| Galvanic isolation | Galvanic isolation |
| Bussee Statement of ConformityInputsee EC-Type Examination Certificate | Bussee Statement of ConformityInputsee EC-Type Examination Certificate |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010 | Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010 |
| Marking | II 2 (1) G Ex ia [ia Ga] IIC T4 Gb , [exsign] II (1) G [Ex ia Ga] IIC , [exsign] II (1) D [Ex ia Da] IIIC , [exsign] II 3 G Ex ic IIC T4 Gc |
| Marking | II 3 G Ex nA IIC T4 Gc |
| Bus | see Statement of Conformity |
| Input | see EC-Type Examination Certificate |
| Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010 |
| FM approval | FM approval |
| FM certificateFM18US0054X , FM18CA0027XControl drawing16-473FM-12A | FM certificateFM18US0054X , FM18CA0027XControl drawing16-473FM-12A |
| IECEx approval | IECEx approval |
| IECEx certificateIECEx PTB 05.0001 IECEx PTB 05.0002XIECEx markingEx ia [ia Ga] IIC T4 Gb [Ex ia Ga] IIC [Ex ia Da] IIIC Ex ic IIC T4 Gc Ex nA IIC T4 Gc | IECEx certificateIECEx PTB 05.0001 IECEx PTB 05.0002XIECEx markingEx ia [ia Ga] IIC T4 Gb [Ex ia Ga] IIC [Ex ia Da] IIIC Ex ic IIC T4 Gc Ex nA IIC T4 Gc |
| FM certificate | FM18US0054X , FM18CA0027X |
| Control drawing | 16-473FM-12A |
| IECEx certificate | IECEx PTB 05.0001 IECEx PTB 05.0002X |
| IECEx marking | Ex ia [ia Ga] IIC T4 Gb [Ex ia Ga] IIC [Ex ia Da] IIIC Ex ic IIC T4 Gc Ex nA IIC T4 Gc |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
