TECHNICAL DATA
规格参数
General specifications

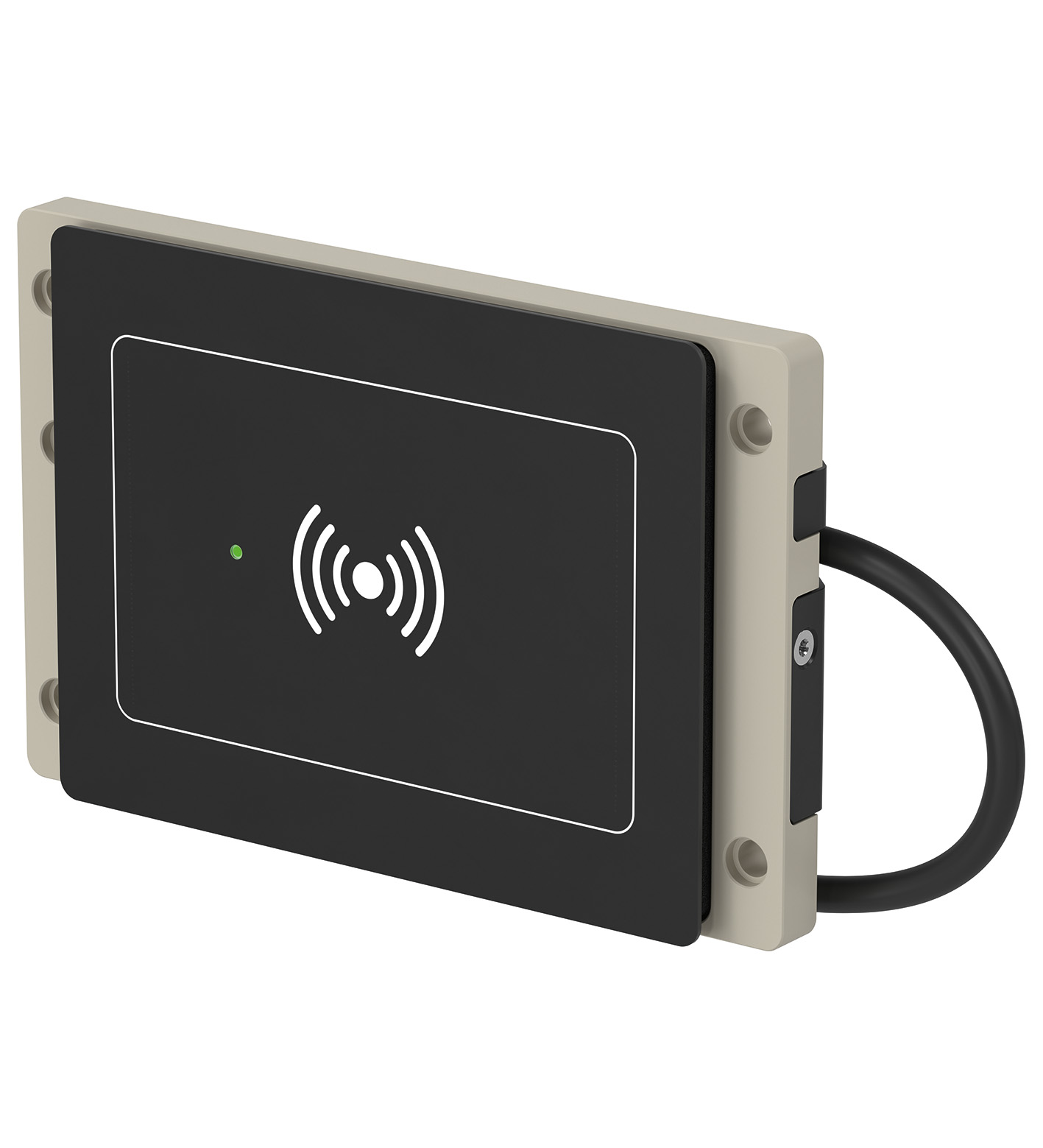

| Type | RFID Reader/Writer for LF, HF, NFC |
|---|---|
| Operating distance | LF and HF: Up to 76 mm / 3 inch, depending on environment and transponder |
| Power supply | 4.3 V - 5.5 V via USB; via generic interface (X2) 3.3 V ± 5%Limited power source according to the safety norms listed in the respective declaration of conformity, short-circuit current < 8 A |
| Indicators | LED green: power onLED red flashing beeper/buzzer: read/write attempt performed |
| Operation frequency | 125 kHz (LF) / 13.56 MHz (HF) |
| Interface type | USB |
| Explosion protection | Explosion protection |
| Directive 2014/34/EUEN IEC 60079-0:2018EN IEC 60079-7:2015+A1:2018EN IEC 60079-31:2024 | Directive 2014/34/EUEN IEC 60079-0:2018EN IEC 60079-7:2015+A1:2018EN IEC 60079-31:2024 |
| Radio and telecommunication terminal equipment | Radio and telecommunication terminal equipment |
| Directive 2014/53/EURFID20-A-*NF-****-N**:EN 300 330 V2.1.1EN 301 489-1 V1.9.2EN 62368-1:2014+AC:2015-05+AC:2015-11EN 50364:2010EN 62479:2010EN 55032:2015 Additional standards:EN 301 489-1 V2.1 .1EN 301 489-3 V2.1 .1EN 62311:2008EN 62369-1:2009 RFID20-B-*NF-****-N**:EN 300 330 V2.1.1EN 301 489-1 V1.9.2EN 62368-1:2014+AC:2015-05+AC:2015-11EN 50364:2010EN 62479:2010EN 55032:2015 Additional standards:EN 301 489-1 V2.2.3EN 301 489-3 V2.1 .1EN 62369-1:2009EN 62311:2008 | Directive 2014/53/EURFID20-A-*NF-****-N**:EN 300 330 V2.1.1EN 301 489-1 V1.9.2EN 62368-1:2014+AC:2015-05+AC:2015-11EN 50364:2010EN 62479:2010EN 55032:2015 Additional standards:EN 301 489-1 V2.1 .1EN 301 489-3 V2.1 .1EN 62311:2008EN 62369-1:2009 RFID20-B-*NF-****-N**:EN 300 330 V2.1.1EN 301 489-1 V1.9.2EN 62368-1:2014+AC:2015-05+AC:2015-11EN 50364:2010EN 62479:2010EN 55032:2015 Additional standards:EN 301 489-1 V2.2.3EN 301 489-3 V2.1 .1EN 62369-1:2009EN 62311:2008 |
| RoHS | RoHS |
| Directive 2011/65/EU (RoHS)EN IEC 63000:2018 | Directive 2011/65/EU (RoHS)EN IEC 63000:2018 |
| Directive 2014/34/EU | EN IEC 60079-0:2018EN IEC 60079-7:2015+A1:2018EN IEC 60079-31:2024 |
| Directive 2014/53/EU | RFID20-A-*NF-****-N**:EN 300 330 V2.1.1EN 301 489-1 V1.9.2EN 62368-1:2014+AC:2015-05+AC:2015-11EN 50364:2010EN 62479:2010EN 55032:2015 Additional standards:EN 301 489-1 V2.1 .1EN 301 489-3 V2.1 .1EN 62311:2008EN 62369-1:2009 RFID20-B-*NF-****-N**:EN 300 330 V2.1.1EN 301 489-1 V1.9.2EN 62368-1:2014+AC:2015-05+AC:2015-11EN 50364:2010EN 62479:2010EN 55032:2015 Additional standards:EN 301 489-1 V2.2.3EN 301 489-3 V2.1 .1EN 62369-1:2009EN 62311:2008 |
| Directive 2011/65/EU (RoHS) | EN IEC 63000:2018 |
| Degree of protection | Front side: Non-Ex: IP66 with included front foil, With Ex-certification: IP66 with included front foil Back side: IP20 |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Storage temperature | -20 ... 65 °C (-4 ... 149 °F) |
| Relative humidity | max. relative humidity 93% at 40°C (non-condensing) according to EN60068-2-78 |
| Material | PEEK housing, anodized aluminum backside |
| Mass | 300 g |

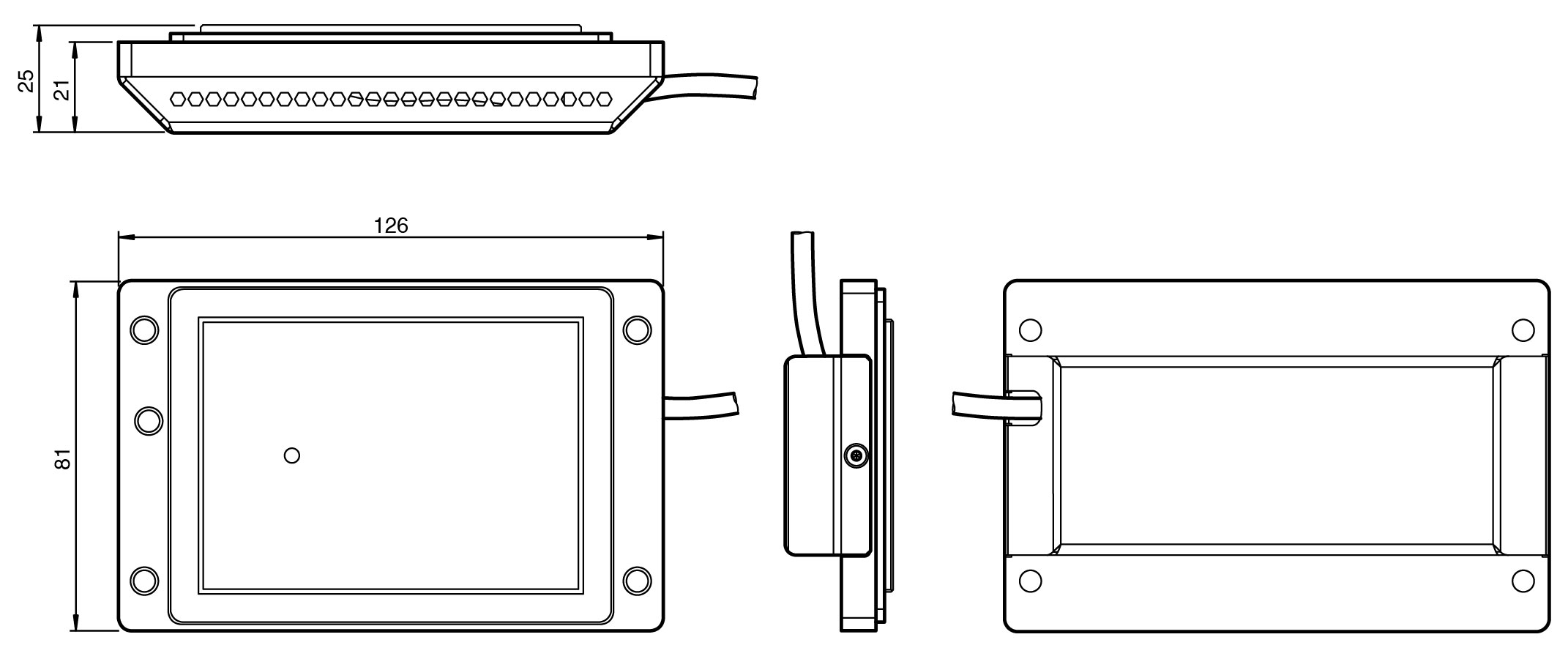

| Dimensions | 126 mm x 81 mm x 25 mm |
| Cut out dimensions | 82 mm x 57 mm |
| Cable length | 1.8 m / 0.6 m |
| UL approval | UL approval |
| Approved forULusUL 121201:2017(R2019)UL 50:2015UL 50E:2020UL 60079-0:2019UL 60079-7:2017UL 60079-31:2015UL 61010-1:2012UL 61010-2-201:2018 cULCSA C22.2 NO. 94.1:15CSA C22.2 No. 94.2:20CAN/CSA C22.2 NO. 61010-1-12CAN/CSA NO. 61010-2-201:18CSA C22.2 NO. 213-17CAN/CSA C22.2 NO. 60079-0:19CAN/CSA C22.2 No. 60079-7:16CSA C22.2 NO. 60079-31:15 | Approved forULusUL 121201:2017(R2019)UL 50:2015UL 50E:2020UL 60079-0:2019UL 60079-7:2017UL 60079-31:2015UL 61010-1:2012UL 61010-2-201:2018 cULCSA C22.2 NO. 94.1:15CSA C22.2 No. 94.2:20CAN/CSA C22.2 NO. 61010-1-12CAN/CSA NO. 61010-2-201:18CSA C22.2 NO. 213-17CAN/CSA C22.2 NO. 60079-0:19CAN/CSA C22.2 No. 60079-7:16CSA C22.2 NO. 60079-31:15 |
| ATEX approval | ATEX approval |
| ATEX certificateUL 24 ATEX 3251UATEX markingII 3G Ex ec IIC T4 Gc II 3D Ex tc IIIC 135 °C Dc | ATEX certificateUL 24 ATEX 3251UATEX markingII 3G Ex ec IIC T4 Gc II 3D Ex tc IIIC 135 °C Dc |
| IECEx approval | IECEx approval |
| IECEx certificateIECEx ULD 24.0019UIECEx markingEx ec IIC T4 Gc Ex tc IIIC 135 °C DcStandardsIEC 60079-0:2017IEC 60079-7:2015+ISH1:2016+AMD1:2017IEC 60079-31:2022 | IECEx certificateIECEx ULD 24.0019UIECEx markingEx ec IIC T4 Gc Ex tc IIIC 135 °C DcStandardsIEC 60079-0:2017IEC 60079-7:2015+ISH1:2016+AMD1:2017IEC 60079-31:2022 |
| Approved for | ULusUL 121201:2017(R2019)UL 50:2015UL 50E:2020UL 60079-0:2019UL 60079-7:2017UL 60079-31:2015UL 61010-1:2012UL 61010-2-201:2018 cULCSA C22.2 NO. 94.1:15CSA C22.2 No. 94.2:20CAN/CSA C22.2 NO. 61010-1-12CAN/CSA NO. 61010-2-201:18CSA C22.2 NO. 213-17CAN/CSA C22.2 NO. 60079-0:19CAN/CSA C22.2 No. 60079-7:16CSA C22.2 NO. 60079-31:15 |
| ATEX certificate | UL 24 ATEX 3251U |
| ATEX marking | II 3G Ex ec IIC T4 Gc II 3D Ex tc IIIC 135 °C Dc |
| IECEx certificate | IECEx ULD 24.0019U |
| IECEx marking | Ex ec IIC T4 Gc Ex tc IIIC 135 °C Dc |
| Standards | IEC 60079-0:2017IEC 60079-7:2015+ISH1:2016+AMD1:2017IEC 60079-31:2022 |
