RM-320P-*

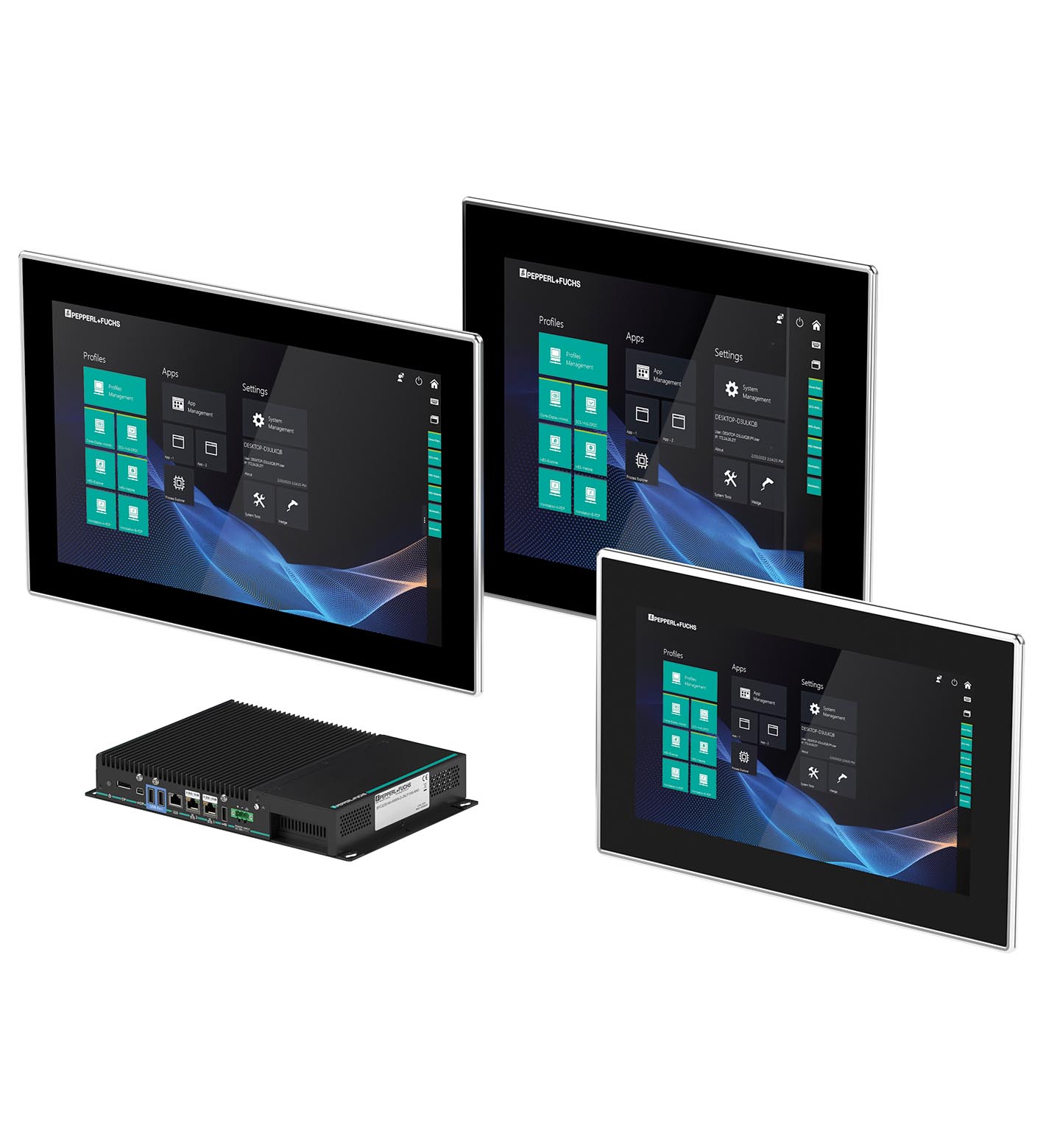

RM-320P-* Remote Monitor - Panel MountVisuNet FLX

订货号: T193551
产品分类: 远程监视器

Remote Monitor - Panel Mount

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Type	Remote Monitor
Processor	Intel® Celeron™ 3965U
RAM	Configurable RAM options:Industrial temperature grade (temperature option A):A: 1x 4 GB DDR4-2133B: 1x 8 GB DDR4-2133 Wide temperature grade (temperature option B):K: 1x 4 GB DDR4-2133L: 1x 8 GB DDR4-2133
Mass storage	Storage interface:1x M.2 2242/2280 M Key, PCIe + SATA 3 Configurable storage options:B: 64 GB M.2 SATA III, F134D 3D TLC, industrial temperature grade [temperature class A]L: 64 GB M.2 SATA III, F134D 3D TLC, wide temperature grade
Input current	max. 3 A, max. 60 W
Power consumption	Power consumption
DC20 ... 28 V d.c. / 4.0 A (SELV/PELV or class 2) For connections designation refer to the VisuNet FLX Panel Mount manual.	DC20 ... 28 V d.c. / 4.0 A (SELV/PELV or class 2) For connections designation refer to the VisuNet FLX Panel Mount manual.
DC	20 ... 28 V d.c. / 4.0 A (SELV/PELV or class 2) For connections designation refer to the VisuNet FLX Panel Mount manual.
Display	Display
TypeLiquid Crystal Display (LCD) with LED backlightScreen sizeConfigurable display options:22KT, 22GT: 54.61 cm (21.5") [temperature class A]22FC: 54.61 cm (21.5'')(Display might react sluggishly below 0 °C)19SC: 48.26 cm (19")15FC: 39,62 cm (15,6")Resolution22KT, 22GT, 22FC, 15FC: 1920 x 1080 pixels (Full HD) Aspect Ratio (16:9)19SC: 1280 x 1024 pixels (SXGA) Aspect Ratio (5:4)Color depth24 bit (16.7 M) colorContrast ratioTypically22KT, 22GT: 1000:122FC: 5000:119SC: 1000:115FC: 800:1BrightnessConfigurable display options:22KT, 22GT: 250 cd/m222FC: 300 cd/m219SC: 450 cd/m215FC: 450 cd/m2Viewing angle22KT, 22GT: 178 ° in all directions22FC, 19SC: horizontal: 170 °, vertical: 160 °15FC: 170 ° in all directionsLife span22GT: back lamp life: 30.000 hrs typical half life, at 25 °C (77 °F) 22KT, 22FC, 19SC, 15FC: back lamp life: 50.000 hrs typical half life, at 25 °C (77 °F)	TypeLiquid Crystal Display (LCD) with LED backlightScreen sizeConfigurable display options:22KT, 22GT: 54.61 cm (21.5") [temperature class A]22FC: 54.61 cm (21.5'')(Display might react sluggishly below 0 °C)19SC: 48.26 cm (19")15FC: 39,62 cm (15,6")Resolution22KT, 22GT, 22FC, 15FC: 1920 x 1080 pixels (Full HD) Aspect Ratio (16:9)19SC: 1280 x 1024 pixels (SXGA) Aspect Ratio (5:4)Color depth24 bit (16.7 M) colorContrast ratioTypically22KT, 22GT: 1000:122FC: 5000:119SC: 1000:115FC: 800:1BrightnessConfigurable display options:22KT, 22GT: 250 cd/m222FC: 300 cd/m219SC: 450 cd/m215FC: 450 cd/m2Viewing angle22KT, 22GT: 178 ° in all directions22FC, 19SC: horizontal: 170 °, vertical: 160 °15FC: 170 ° in all directionsLife span22GT: back lamp life: 30.000 hrs typical half life, at 25 °C (77 °F) 22KT, 22FC, 19SC, 15FC: back lamp life: 50.000 hrs typical half life, at 25 °C (77 °F)
Input devices	Input devices
Touch screenConfigurable Display Options:10-finger multi-touch, glove-friendly22KT, 22GT: Capacitive touch, no optical bonding22FC, 19SC, 15FC: Capacitive touch, optical bonding	Touch screenConfigurable Display Options:10-finger multi-touch, glove-friendly22KT, 22GT: Capacitive touch, no optical bonding22FC, 19SC, 15FC: Capacitive touch, optical bonding
Type	Liquid Crystal Display (LCD) with LED backlight
Screen size	Configurable display options:22KT, 22GT: 54.61 cm (21.5") [temperature class A]22FC: 54.61 cm (21.5'')(Display might react sluggishly below 0 °C)19SC: 48.26 cm (19")15FC: 39,62 cm (15,6")
Resolution	22KT, 22GT, 22FC, 15FC: 1920 x 1080 pixels (Full HD) Aspect Ratio (16:9)19SC: 1280 x 1024 pixels (SXGA) Aspect Ratio (5:4)
Color depth	24 bit (16.7 M) color
Contrast ratio	Typically22KT, 22GT: 1000:122FC: 5000:119SC: 1000:115FC: 800:1
Brightness	Configurable display options:22KT, 22GT: 250 cd/m222FC: 300 cd/m219SC: 450 cd/m215FC: 450 cd/m2
Viewing angle	22KT, 22GT: 178 ° in all directions22FC, 19SC: horizontal: 170 °, vertical: 160 °15FC: 170 ° in all directions
Life span	22GT: back lamp life: 30.000 hrs typical half life, at 25 °C (77 °F) 22KT, 22FC, 19SC, 15FC: back lamp life: 50.000 hrs typical half life, at 25 °C (77 °F)
Touch screen	Configurable Display Options:10-finger multi-touch, glove-friendly22KT, 22GT: Capacitive touch, no optical bonding22FC, 19SC, 15FC: Capacitive touch, optical bonding
Interface type	1 x DisplayPort 1.2 (DP++) 1 x mini DisplayPort 1.2 (DP++ w/ mono locking screw) 1 x Audio Line-out 2 x USB Ex i ports prepared for Pepperl+Fuchs intrinsically safe keyboard2 x USB 3.1 Gen1 (5 Gbps) ports1 x USB 2.0 port 2 x LAN ports (RJ45, 10/100/1000 Mbps) 2 x RS232/422/485 (BIOS configurable) with 5V/12V to power peripherals (1 x DB9 male + 1 x RJ45)
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (ind. Locations) EN 61000-6-4:2007+A1:2011 EN 55035:2017/A11:2020 EN 55011:2016+A1:2017	Directive 2014/30/EUEN 61326-1:2013 (ind. Locations) EN 61000-6-4:2007+A1:2011 EN 55035:2017/A11:2020 EN 55011:2016+A1:2017
Explosion protection	Explosion protection
Directive 2014/34/EUEN IEC 60079-0:2018EN IEC 60079-7:2015/A1:2018EN 60079-11:2012EN IEC 60079-31:2014	Directive 2014/34/EUEN IEC 60079-0:2018EN IEC 60079-7:2015/A1:2018EN 60079-11:2012EN IEC 60079-31:2014
RoHS	RoHS
Directive 2011/65/EU (RoHS)EN IEC 63000:2018	Directive 2011/65/EU (RoHS)EN IEC 63000:2018
Directive 2014/30/EU	EN 61326-1:2013 (ind. Locations) EN 61000-6-4:2007+A1:2011 EN 55035:2017/A11:2020 EN 55011:2016+A1:2017
Directive 2014/34/EU	EN IEC 60079-0:2018EN IEC 60079-7:2015/A1:2018EN 60079-11:2012EN IEC 60079-31:2014
Directive 2011/65/EU (RoHS)	EN IEC 63000:2018
Operating system	VisuNet RM Shell 6 (based on Windows® 10 IoT Enterprise LTSC 2021 x64) Optional:I: IGEL OS 11 (based on Linux, without licence)J: IGEL OS 12 (based on Linux, without licence) T: ThinManager Ready
Operating temperature	Temperature classes:A: 0 … 45 °C (32 … 113 °F)B: -20 … 55 °C (-4 … 131 °F) [with wide temperature grade RAM/storage and optically bonded display unit]
Storage temperature	-20 ... 65 °C (-4 ... 149 °F)
Relative humidity	max. relative humidity 93% at 40°C (non-condensing) according to EN60068-2-78
Climatic conditions	Passive cooling, no rotating parts.
Altitude	Operating altitude max. 2000 m
Shock resistance	18 shocks 15 g, 11 ms all axis, IEC 60068-2-27
Vibration resistance	10 ... 150 Hz, +/- 0.075 mm, 1g, 10 cycles per axis according to EN60068-2-6
Degree of protection	Front side: IP66/Type 4X Back side: IP20
Material	Front bezel: Stainless steel AISI304 (glass, silicone gasket)Backside: Painted aluminum sheet metal
Installation	Panel mount (additional mounting kits available)
Mass	22KT, 22GT, 22FC and 19SC: approx. 8 kg15FC: 5.4 kg

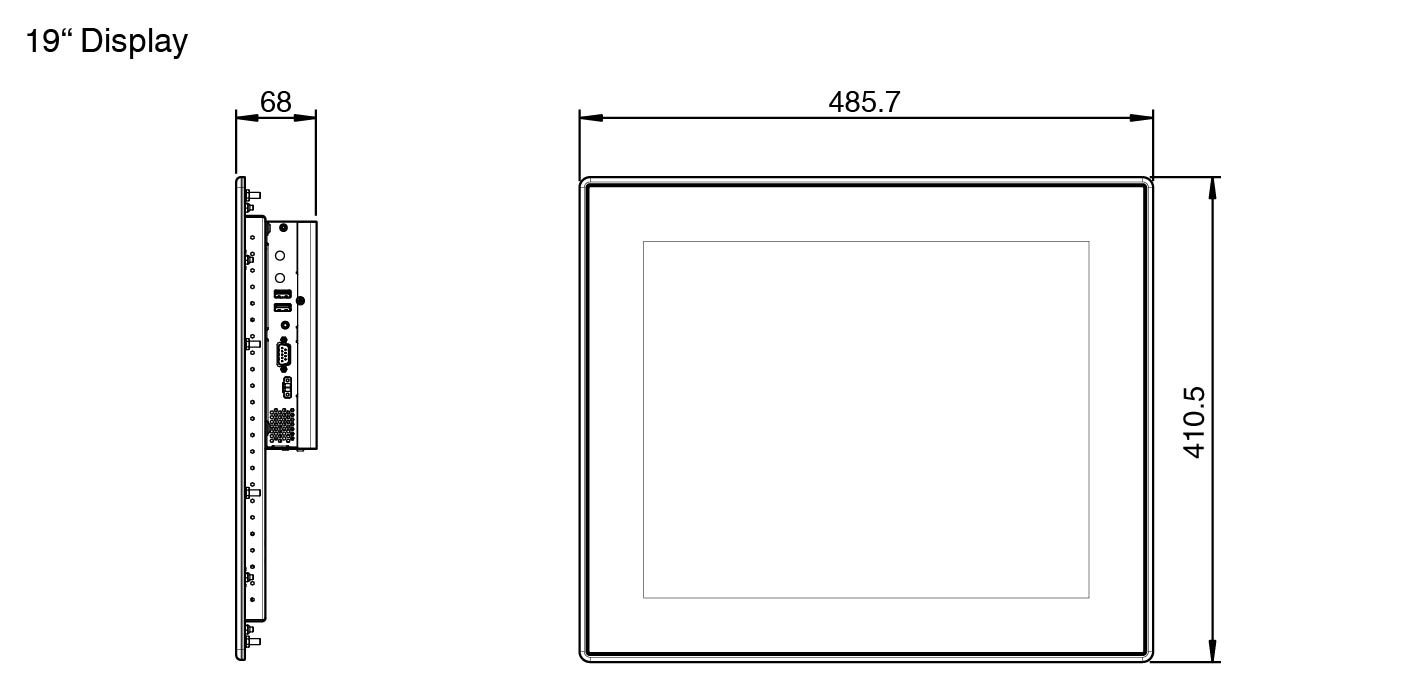

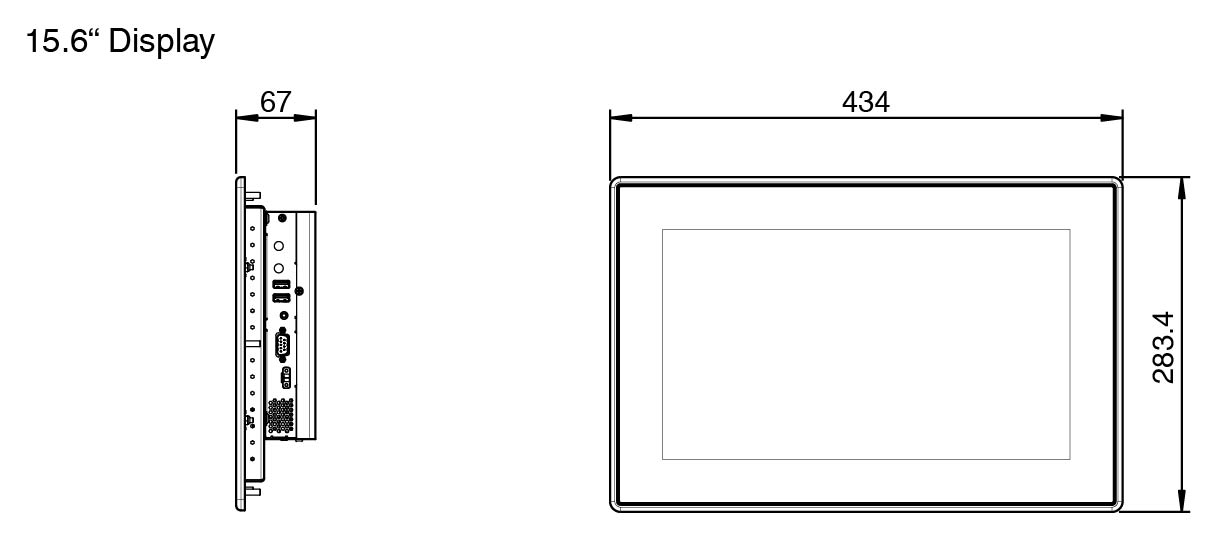

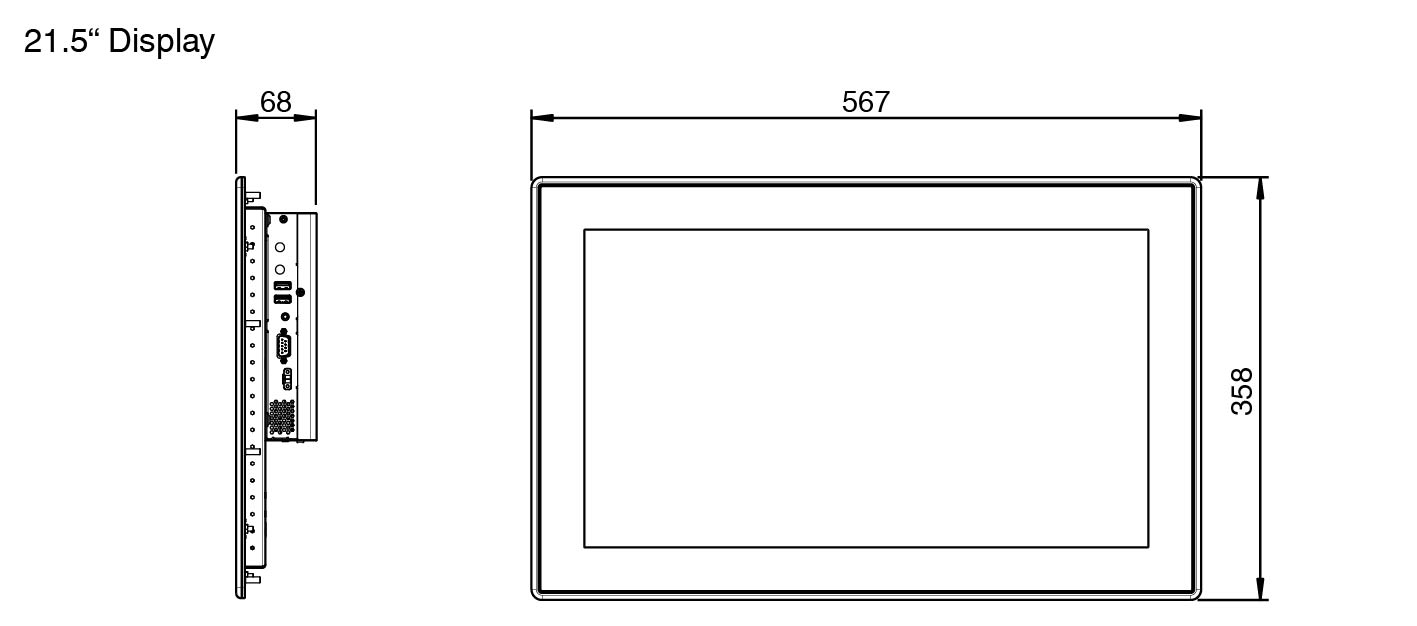

Dimensions	22 inch: 567 mm x 358 mm x 68 mm19 inch: 485.7 mm x 410.5 mm x 68 mm15 inch: 434 mm x 283.4 mm x 67 mmFor cut out dimensions refer to the VisuNet FLX Panel mount manual.
UL approval	UL approval
Approved forUL OrdLocUL approval E223772UL61010-1 Ed.3UL 61010-2-201 Ed2CAN/CSA C22.2 No 61010-1-12CAN/CSA C22.2 No 61010-2-201 IS circuits forCL I, DIV 2, GP A-DCL II, DIV 2, GP E, F, GCL IIIIS circuits forCL I, ZN 2, IICCL II, ZN 22, IIIBCL III, ZN 22, IIIAInstall per drawing 116-0478 Mounting inCL I, DIV 2, GP A-D, T4CL II, DIV 2, GP E, F, GCL IIIMounting inCL I, ZN 2, IIC, T4CL II, ZN 22, IIIBCL III, ZN 22, IIIA	Approved forUL OrdLocUL approval E223772UL61010-1 Ed.3UL 61010-2-201 Ed2CAN/CSA C22.2 No 61010-1-12CAN/CSA C22.2 No 61010-2-201 IS circuits forCL I, DIV 2, GP A-DCL II, DIV 2, GP E, F, GCL IIIIS circuits forCL I, ZN 2, IICCL II, ZN 22, IIIBCL III, ZN 22, IIIAInstall per drawing 116-0478 Mounting inCL I, DIV 2, GP A-D, T4CL II, DIV 2, GP E, F, GCL IIIMounting inCL I, ZN 2, IIC, T4CL II, ZN 22, IIIBCL III, ZN 22, IIIA
ATEX approval	ATEX approval
ATEX certificateUL 22 ATEX 2479XATEX markingII 3 G Ex ec [ic Gc] IIC T4 GcATEX certificateUL 22 ATEX 2480UATEX markingII 3D Ex tc [ic Dc] IIIC Dc	ATEX certificateUL 22 ATEX 2479XATEX markingII 3 G Ex ec [ic Gc] IIC T4 GcATEX certificateUL 22 ATEX 2480UATEX markingII 3D Ex tc [ic Dc] IIIC Dc
IECEx approval	IECEx approval
IECEx certificateIECEx ULD 22.0017XIECEx markingEx ec [ic Gc] IIC T4 GcIECEx certificateIECEx ULD 22.0018UIECEx markingEx tc [ic Dc] IIIC DcIECEx standardIEC 60079-0:2017 Ed 7.0 IEC 60079-7:2017 Ed 5.1 IEC 60079-11:2011 Ed 6.0 IEC 60079-31:2013 Ed. 2	IECEx certificateIECEx ULD 22.0017XIECEx markingEx ec [ic Gc] IIC T4 GcIECEx certificateIECEx ULD 22.0018UIECEx markingEx tc [ic Dc] IIIC DcIECEx standardIEC 60079-0:2017 Ed 7.0 IEC 60079-7:2017 Ed 5.1 IEC 60079-11:2011 Ed 6.0 IEC 60079-31:2013 Ed. 2
CCC approval	CCC approval
CCC certificate2023322309005728CCC markingEx ec [ic Gc] IIC T4 Gc Ex tc [ic Dc] IIIC T85°C DcCCC standardGB 3836.1-2021GB/T 3836.3-2021GB/T 3836.4-2021GB/T 3836.31-2021	CCC certificate2023322309005728CCC markingEx ec [ic Gc] IIC T4 Gc Ex tc [ic Dc] IIIC T85°C DcCCC standardGB 3836.1-2021GB/T 3836.3-2021GB/T 3836.4-2021GB/T 3836.31-2021
Approved for	UL OrdLocUL approval E223772UL61010-1 Ed.3UL 61010-2-201 Ed2CAN/CSA C22.2 No 61010-1-12CAN/CSA C22.2 No 61010-2-201 IS circuits forCL I, DIV 2, GP A-DCL II, DIV 2, GP E, F, GCL IIIIS circuits forCL I, ZN 2, IICCL II, ZN 22, IIIBCL III, ZN 22, IIIAInstall per drawing 116-0478 Mounting inCL I, DIV 2, GP A-D, T4CL II, DIV 2, GP E, F, GCL IIIMounting inCL I, ZN 2, IIC, T4CL II, ZN 22, IIIBCL III, ZN 22, IIIA
ATEX certificate	UL 22 ATEX 2479X
ATEX marking	II 3 G Ex ec [ic Gc] IIC T4 Gc
ATEX certificate	UL 22 ATEX 2480U
ATEX marking	II 3D Ex tc [ic Dc] IIIC Dc
IECEx certificate	IECEx ULD 22.0017X
IECEx marking	Ex ec [ic Gc] IIC T4 Gc
IECEx certificate	IECEx ULD 22.0018U
IECEx marking	Ex tc [ic Dc] IIIC Dc
IECEx standard	IEC 60079-0:2017 Ed 7.0 IEC 60079-7:2017 Ed 5.1 IEC 60079-11:2011 Ed 6.0 IEC 60079-31:2013 Ed. 2
CCC certificate	2023322309005728
CCC marking	Ex ec [ic Gc] IIC T4 Gc Ex tc [ic Dc] IIIC T85°C Dc
CCC standard	GB 3836.1-2021GB/T 3836.3-2021GB/T 3836.4-2021GB/T 3836.31-2021
