倍加福

RM-320S-A-

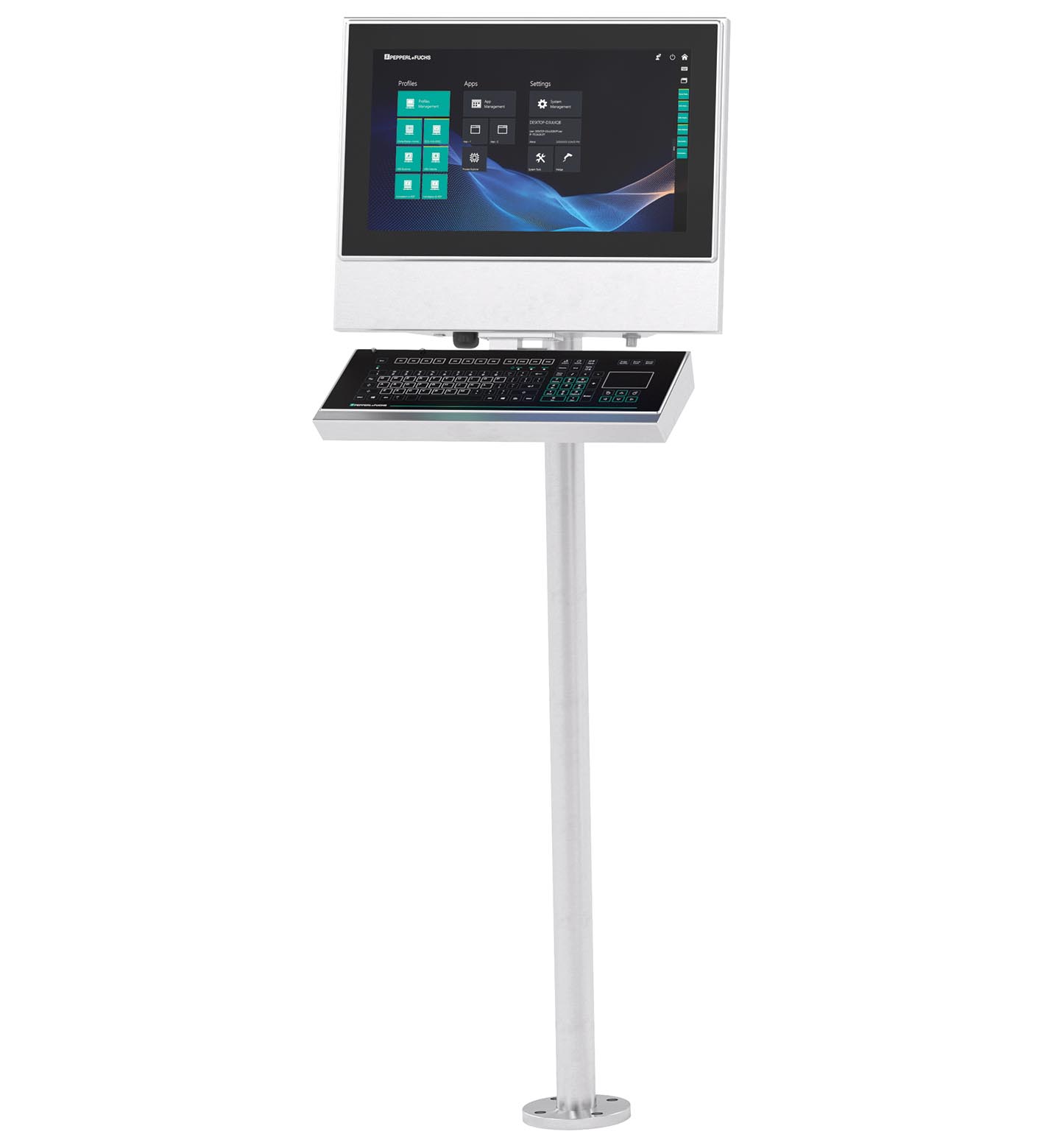

RM-320S-*A-* Remote Monitor - System with enclosureVisuNet FLX

订货号: T193550
产品分类: 远程监视器

Remote Monitor - System with enclosure

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Type	Remote Monitor
Processor	Intel® Celeron™ 3965U
RAM	A: 1x 4 GB DDR4-2133, industrial temperature gradeB: 1x 8 GB DDR4-2133, industrial temperature grade
Mass storage	Storage interface:1x M.2 2242/2280 M Key, PCIe + SATA 3 Storage:64 GB M.2 SATA 3, industrial temperature grade
Power consumption	Power consumption
ACA: 115/230 V a.c. (100 ... 240 V a.c.), max. 0.7 A, max. 70 W For connections designation refer to the Power Supply PS1000-A6-24.5 manual.DCD: 20 ... 28 V d.c. / 2.8 A (SELV/PELV or class 2) For connections designation refer to the VisuNet FLX Panel Mount manual.	ACA: 115/230 V a.c. (100 ... 240 V a.c.), max. 0.7 A, max. 70 W For connections designation refer to the Power Supply PS1000-A6-24.5 manual.DCD: 20 ... 28 V d.c. / 2.8 A (SELV/PELV or class 2) For connections designation refer to the VisuNet FLX Panel Mount manual.
AC	A: 115/230 V a.c. (100 ... 240 V a.c.), max. 0.7 A, max. 70 W For connections designation refer to the Power Supply PS1000-A6-24.5 manual.
DC	D: 20 ... 28 V d.c. / 2.8 A (SELV/PELV or class 2) For connections designation refer to the VisuNet FLX Panel Mount manual.
Display	Display
TypeLiquid Crystal Display (LCD) with LED backlightScreen size54.61 cm (21.5 inch)Resolution1920 x 1080 pixels (Full HD) Aspect ratio 16:9Color depth24 bit (16.7 M) colorContrast ratioTypically22KT, 22GT: 1000:122FC: 5000:1BrightnessConfigurable display options:22KT, 22GT: 250 cd/m222FC: 300 cd/m2Viewing angle22KT, 22GT: 178 ° in all directions22FC: 170 ° horizontal, 160 ° verticalLife span22GT: back lamp life: 30.000 hrs typical half life, at 25 °C (77 °F)22KT, 22FC: back lamp life: 50.000 hr	TypeLiquid Crystal Display (LCD) with LED backlightScreen size54.61 cm (21.5 inch)Resolution1920 x 1080 pixels (Full HD) Aspect ratio 16:9Color depth24 bit (16.7 M) colorContrast ratioTypically22KT, 22GT: 1000:122FC: 5000:1BrightnessConfigurable display options:22KT, 22GT: 250 cd/m222FC: 300 cd/m2Viewing angle22KT, 22GT: 178 ° in all directions22FC: 170 ° horizontal, 160 ° verticalLife span22GT: back lamp life: 30.000 hrs typical half life, at 25 °C (77 °F)22KT, 22FC: back lamp life: 50.000 hr
Input devices	Input devices
Touch screen10-finger multi-touch, glove-friendlyConfigurable display options:22KT, 22GT: Capacitive touch, no optical bonding22FC: Capacitive touch, optical bondingKeyboardOptional: Foil keyboard with different pointing device options available (see EXTA4 datasheet)RFID readerOptional: Integrated in the VisuNet FLX housing,2 configuration options available:TWN4 MultiTech 3 M LF HFTWN4 MultiTech 3 LEGIC M LF HF(see RFID20-* technical data)	Touch screen10-finger multi-touch, glove-friendlyConfigurable display options:22KT, 22GT: Capacitive touch, no optical bonding22FC: Capacitive touch, optical bondingKeyboardOptional: Foil keyboard with different pointing device options available (see EXTA4 datasheet)RFID readerOptional: Integrated in the VisuNet FLX housing,2 configuration options available:TWN4 MultiTech 3 M LF HFTWN4 MultiTech 3 LEGIC M LF HF(see RFID20-* technical data)
Type	Liquid Crystal Display (LCD) with LED backlight
Screen size	54.61 cm (21.5 inch)
Resolution	1920 x 1080 pixels (Full HD) Aspect ratio 16:9
Color depth	24 bit (16.7 M) color
Contrast ratio	Typically22KT, 22GT: 1000:122FC: 5000:1
Brightness	Configurable display options:22KT, 22GT: 250 cd/m222FC: 300 cd/m2
Viewing angle	22KT, 22GT: 178 ° in all directions22FC: 170 ° horizontal, 160 ° vertical
Life span	22GT: back lamp life: 30.000 hrs typical half life, at 25 °C (77 °F)22KT, 22FC: back lamp life: 50.000 hr
Touch screen	10-finger multi-touch, glove-friendlyConfigurable display options:22KT, 22GT: Capacitive touch, no optical bonding22FC: Capacitive touch, optical bonding
Keyboard	Optional: Foil keyboard with different pointing device options available (see EXTA4 datasheet)
RFID reader	Optional: Integrated in the VisuNet FLX housing,2 configuration options available:TWN4 MultiTech 3 M LF HFTWN4 MultiTech 3 LEGIC M LF HF(see RFID20-* technical data)
Interface type	1 x DisplayPort 1.2 (DP++) 1 x mini DisplayPort 1.2 (DP++ w/ mono locking screw) 1 x Audio Line-out 2 x USB Ex i ports prepared for Pepperl+Fuchs intrinsically safe keyboard2 x USB 3.1 Gen1 (5 Gbps) ports1 x USB 2.0 port 2 x LAN ports (RJ45, 10/100/1000 Mbps) 2 x RS232/422/485 (BIOS configurable) with 5V/12V to power peripherals (1 x DB9 male + 1 x RJ45)
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUNon-RFID products onlyEN 61000-6-4:2007EN 61000-6-4:2007/A1:2011EN 61326-1:2013	Directive 2014/30/EUNon-RFID products onlyEN 61000-6-4:2007EN 61000-6-4:2007/A1:2011EN 61326-1:2013
Explosion protection	Explosion protection
Directive 2014/34/EUEN IEC 60079-0:2018EN IEC 60079-7:2015/A1:2018EN 60079-11:2012EN IEC 60079-31:2024	Directive 2014/34/EUEN IEC 60079-0:2018EN IEC 60079-7:2015/A1:2018EN 60079-11:2012EN IEC 60079-31:2024
Radio and telecommunication terminal equipment	Radio and telecommunication terminal equipment
Directive 2014/53/EURFID products onlyEN 301489-1 V2.2.3:2019EN 301489-3 V2.3.2:2023EN 300 330 V2.1.1:2017EN 61326-1:2013EN 61000-6-4:2007EN 61000-6-4:2007/A1:2011EN 61010-1:2010EN 62479 :2010EN 62311:2008	Directive 2014/53/EURFID products onlyEN 301489-1 V2.2.3:2019EN 301489-3 V2.3.2:2023EN 300 330 V2.1.1:2017EN 61326-1:2013EN 61000-6-4:2007EN 61000-6-4:2007/A1:2011EN 61010-1:2010EN 62479 :2010EN 62311:2008
RoHS	RoHS
Directive 2011/65/EU (RoHS)EN IEC 63000:2018	Directive 2011/65/EU (RoHS)EN IEC 63000:2018
Directive 2014/30/EU	Non-RFID products onlyEN 61000-6-4:2007EN 61000-6-4:2007/A1:2011EN 61326-1:2013
Directive 2014/34/EU	EN IEC 60079-0:2018EN IEC 60079-7:2015/A1:2018EN 60079-11:2012EN IEC 60079-31:2024
Directive 2014/53/EU	RFID products onlyEN 301489-1 V2.2.3:2019EN 301489-3 V2.3.2:2023EN 300 330 V2.1.1:2017EN 61326-1:2013EN 61000-6-4:2007EN 61000-6-4:2007/A1:2011EN 61010-1:2010EN 62479 :2010EN 62311:2008
Directive 2011/65/EU (RoHS)	EN IEC 63000:2018
Operating system	VisuNet RM Shell 6 (based on Windows® 10 IoT Enterprise LTSC 2021 x64) Optional:I: IGEL OS 11 (based on Linux, without licence)J: IGEL OS 12 (based on Linux, without licence) T: ThinManager Ready
Operating temperature	0 ... 40 °C (32 ... 104 °F)
Storage temperature	-20 ... 65 °C (-4 ... 149 °F)
Relative humidity	max. relative humidity 93% at 40°C (non-condensing) according to EN60068-2-78
Climatic conditions	Passive cooling, no rotating parts.
Altitude	Operating altitude max. 2000 m
Shock resistance	18 shocks 15 g, 11 ms all axis, IEC 60068-2-27
Vibration resistance	10 ... 150 Hz, +/- 0.075 mm, 1g, 10 cycles per axis according to EN60068-2-6
Degree of protection	IP66 Type 4X: with RFID option for indoor use only
Material	Housing: Stainless steel AISI304 (1.4301)Surface finish: Bead blasted, typical surface roughness 0.8 µm
Installation	System with enclosure
Mass	approx. 16 kgapprox. 18 kg with AC Power Supply
Dimensions	577 mm x 466 mm x 233 mm
UL approval	UL approval
Approved forUL OrdLocUL approval E223772UL61010-1 Ed.3UL 61010-2-201 Ed2CAN/CSA C22.2 No 61010-1-12CAN/CSA C22.2 No 61010-2-201 UL approval E492874Non-Incendive circuits forCL I, DIV 2, GP A-DCL II, DIV 2, GP F, GCL IIINon-Incendive circuits forCL I, ZN 2, IICCL II, ZN 22, IIIBCL III, ZN 22, IIIAInstall per drawing 116-0478 Mounting inCL I, DIV 2, GP A-D, T4CL II, DIV 2, GP F, G, T4CL IIIMounting inCL I, ZN 2, IIC, T4CL II, ZN 22, IIIB, T85°CCL III, ZN 22, IIIA, T85°C	Approved forUL OrdLocUL approval E223772UL61010-1 Ed.3UL 61010-2-201 Ed2CAN/CSA C22.2 No 61010-1-12CAN/CSA C22.2 No 61010-2-201 UL approval E492874Non-Incendive circuits forCL I, DIV 2, GP A-DCL II, DIV 2, GP F, GCL IIINon-Incendive circuits forCL I, ZN 2, IICCL II, ZN 22, IIIBCL III, ZN 22, IIIAInstall per drawing 116-0478 Mounting inCL I, DIV 2, GP A-D, T4CL II, DIV 2, GP F, G, T4CL IIIMounting inCL I, ZN 2, IIC, T4CL II, ZN 22, IIIB, T85°CCL III, ZN 22, IIIA, T85°C
ATEX approval	ATEX approval
ATEX certificateUL 22 ATEX 2481XATEX markingII 3 G Ex ec [ic Gc] IIC T4 Gc II 3 D Ex tc [ic Dc] IIIC T85°C Dc	ATEX certificateUL 22 ATEX 2481XATEX markingII 3 G Ex ec [ic Gc] IIC T4 Gc II 3 D Ex tc [ic Dc] IIIC T85°C Dc
IECEx approval	IECEx approval
IECEx certificateIECEx ULD 22.0019XIECEx markingEx ec [ic Gc] IIC T4 Gc Ex tc [ic Dc] IIIC T85°C DcIECEx standardIEC 60079-0:2017 Ed 7.0 IEC 60079-7:2017 Ed 5.1 IEC 60079-11:2011 Ed 6.0 IEC 60079-31:2013 Ed. 3	IECEx certificateIECEx ULD 22.0019XIECEx markingEx ec [ic Gc] IIC T4 Gc Ex tc [ic Dc] IIIC T85°C DcIECEx standardIEC 60079-0:2017 Ed 7.0 IEC 60079-7:2017 Ed 5.1 IEC 60079-11:2011 Ed 6.0 IEC 60079-31:2013 Ed. 3
CCC approval	CCC approval
CCC certificate2024322309005748CCC markingEx ec [ic Gc] IIC T4 Gc Ex tc [ic Dc] IIIC T85°C DcCCC standardGB 3836.1-2021GB/T 3836.3-2021GB/T 3836.4-2021GB/T 3836.31-2021	CCC certificate2024322309005748CCC markingEx ec [ic Gc] IIC T4 Gc Ex tc [ic Dc] IIIC T85°C DcCCC standardGB 3836.1-2021GB/T 3836.3-2021GB/T 3836.4-2021GB/T 3836.31-2021
Approved for	UL OrdLocUL approval E223772UL61010-1 Ed.3UL 61010-2-201 Ed2CAN/CSA C22.2 No 61010-1-12CAN/CSA C22.2 No 61010-2-201 UL approval E492874Non-Incendive circuits forCL I, DIV 2, GP A-DCL II, DIV 2, GP F, GCL IIINon-Incendive circuits forCL I, ZN 2, IICCL II, ZN 22, IIIBCL III, ZN 22, IIIAInstall per drawing 116-0478 Mounting inCL I, DIV 2, GP A-D, T4CL II, DIV 2, GP F, G, T4CL IIIMounting inCL I, ZN 2, IIC, T4CL II, ZN 22, IIIB, T85°CCL III, ZN 22, IIIA, T85°C
ATEX certificate	UL 22 ATEX 2481X
ATEX marking	II 3 G Ex ec [ic Gc] IIC T4 Gc II 3 D Ex tc [ic Dc] IIIC T85°C Dc
IECEx certificate	IECEx ULD 22.0019X
IECEx marking	Ex ec [ic Gc] IIC T4 Gc Ex tc [ic Dc] IIIC T85°C Dc
IECEx standard	IEC 60079-0:2017 Ed 7.0 IEC 60079-7:2017 Ed 5.1 IEC 60079-11:2011 Ed 6.0 IEC 60079-31:2013 Ed. 3
CCC certificate	2024322309005748
CCC marking	Ex ec [ic Gc] IIC T4 Gc Ex tc [ic Dc] IIIC T85°C Dc
CCC standard	GB 3836.1-2021GB/T 3836.3-2021GB/T 3836.4-2021GB/T 3836.31-2021

DOCUMENTS & DOWNLOADS

资料与附件

产品数据表 Datasheet

语言：en

已就绪 · 可下载下载文件

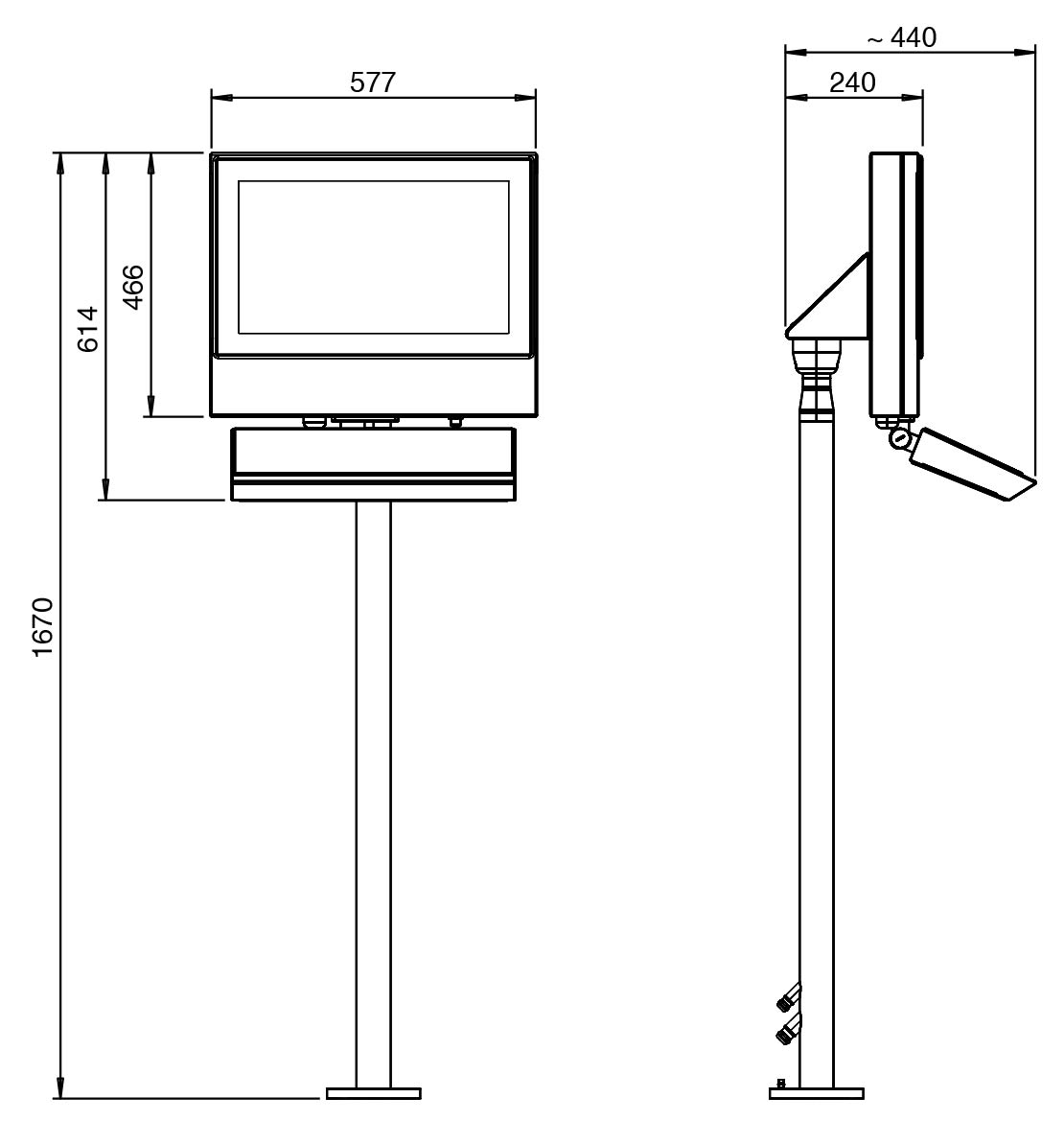

STP 三维图纸 3-D model VisuNet FLX System installed with 0° adapter

已就绪 · 可下载下载文件

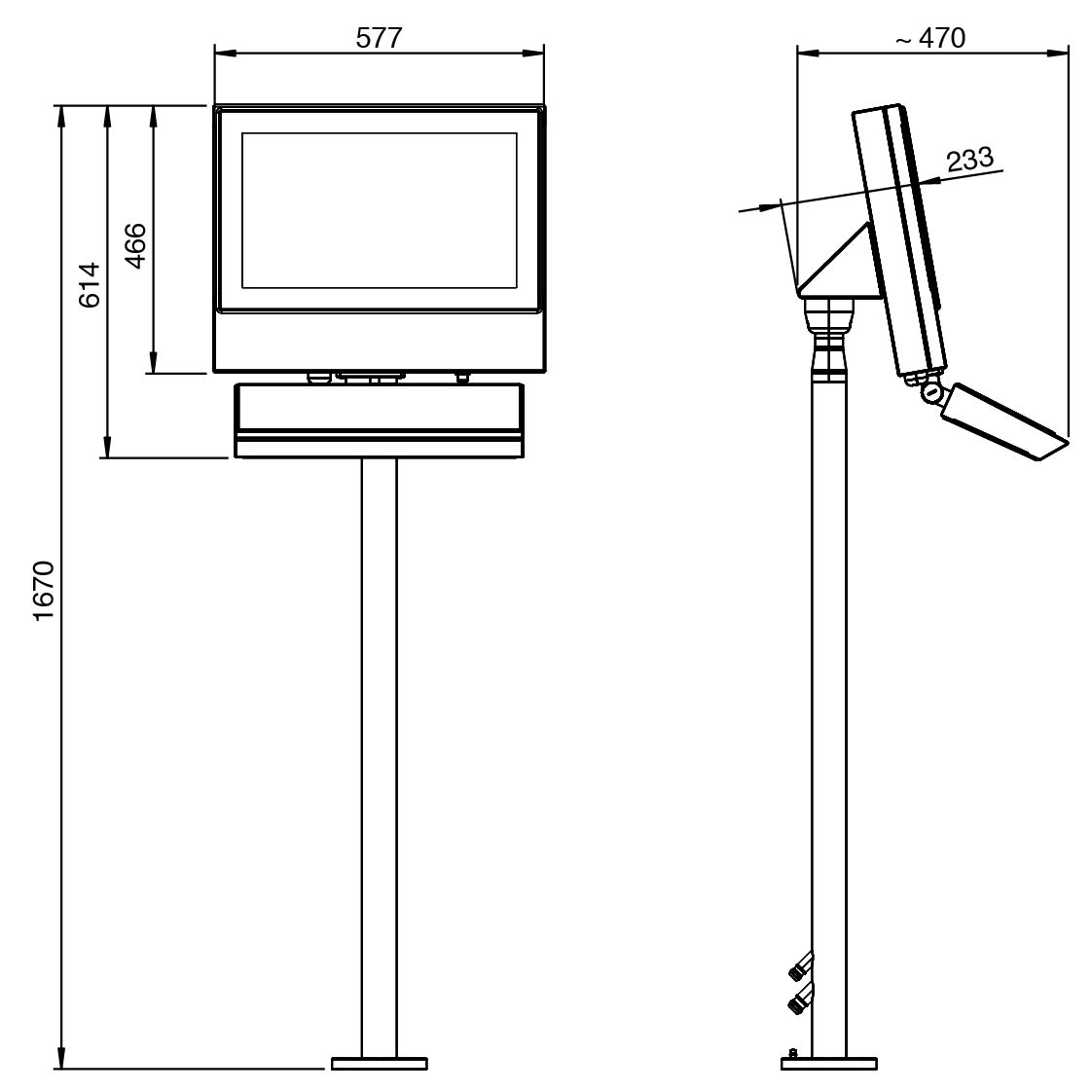

STP 三维图纸 3-D model VisuNet FLX System installed with 10° adapter

已就绪 · 可下载下载文件

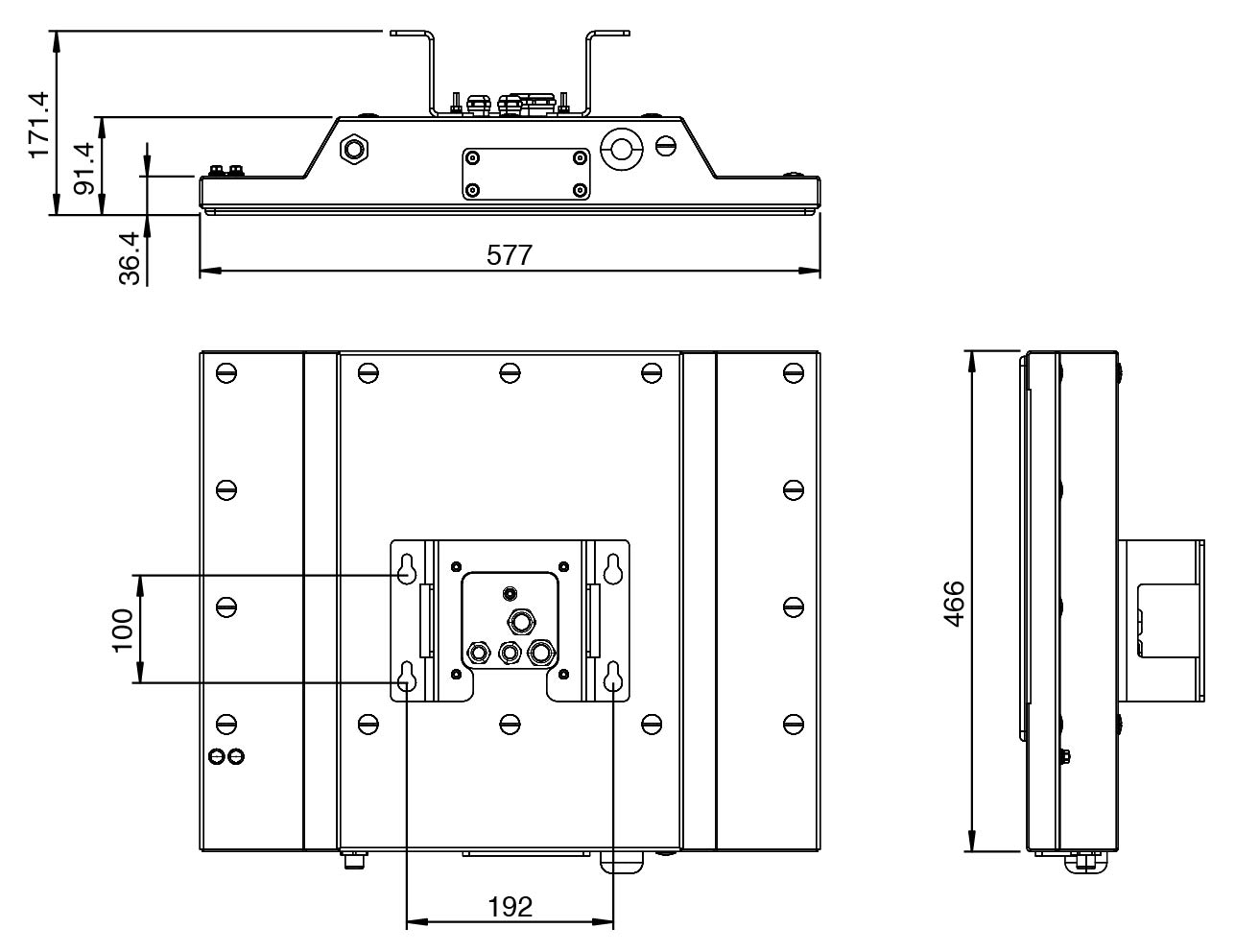

STP 三维图纸 3-D model VisuNet FLX System Wall Mounting
