TECHNICAL DATA
规格参数
General specifications

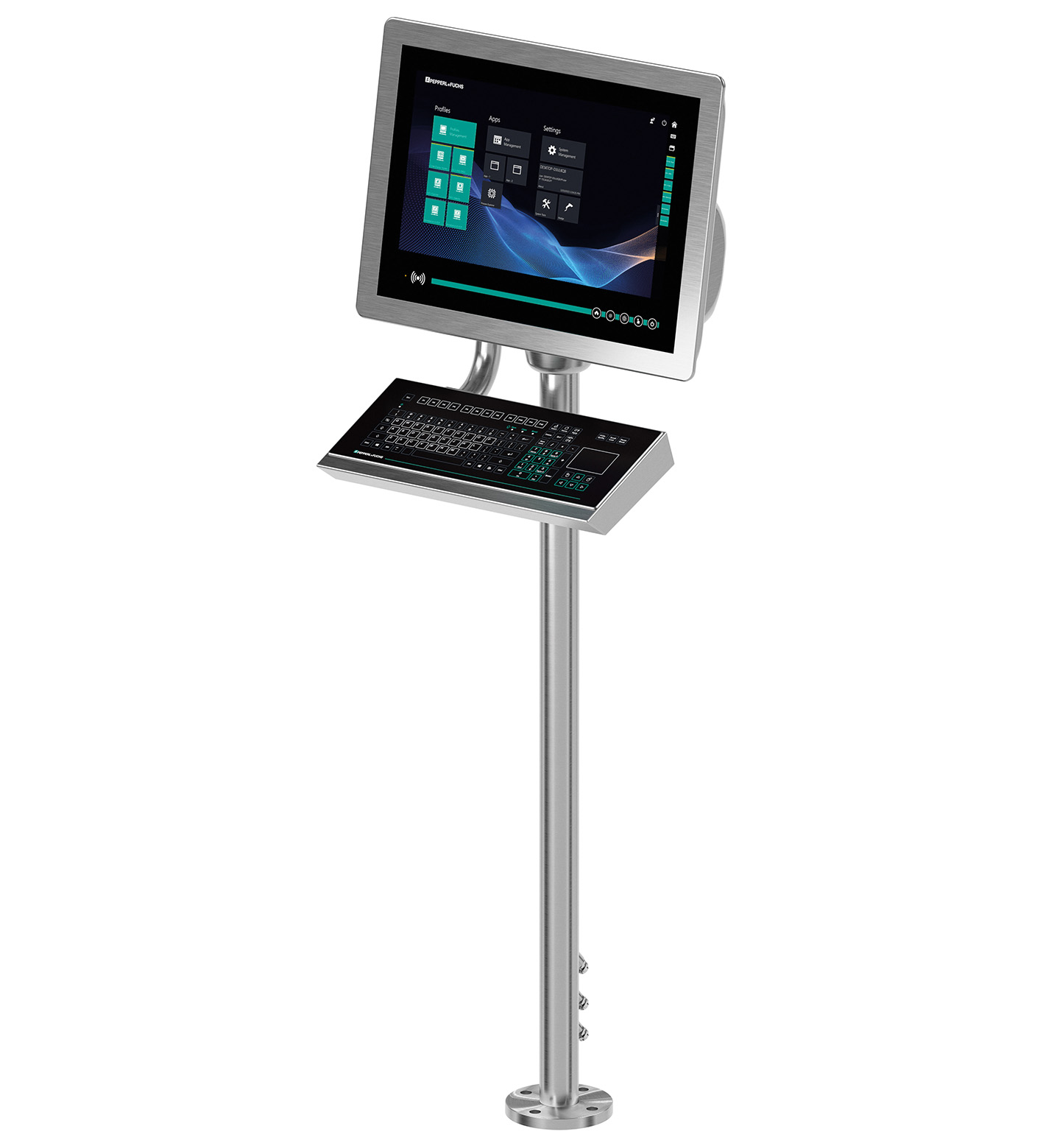

| Type | Remote Monitor |
|---|---|
| Processor | Intel® Atom Elkhart Lake x6211E |
| RAM | 4 GB |
| Mass storage | 64 GByte eMMC |
| Power consumption | Power consumption |
| AC115/230 V AC, 0.4 ... 0.7 A, 50/60 HzDC18 ... 36 V DC , 1.5 ... 3 A | AC115/230 V AC, 0.4 ... 0.7 A, 50/60 HzDC18 ... 36 V DC , 1.5 ... 3 A |
| AC | 115/230 V AC, 0.4 ... 0.7 A, 50/60 Hz |
| DC | 18 ... 36 V DC , 1.5 ... 3 A |
| Display | Display |
| TypeLiquid Crystal Display (LCD) with LED backlightScreen size54.61 cm (21.5 inch)Resolution1920 x 1080 pixels (Full HD) Aspect ratio 16:9Color depth24 bit (16.7 M) colorContrast ratio5000:1 (typically)Brightness300 cd/m2 (nit) (typically)Viewing angle175° in all directionsLife spanback lamp life: 50.000 hrs typical half life , at 25 °C (77 °F) | TypeLiquid Crystal Display (LCD) with LED backlightScreen size54.61 cm (21.5 inch)Resolution1920 x 1080 pixels (Full HD) Aspect ratio 16:9Color depth24 bit (16.7 M) colorContrast ratio5000:1 (typically)Brightness300 cd/m2 (nit) (typically)Viewing angle175° in all directionsLife spanback lamp life: 50.000 hrs typical half life , at 25 °C (77 °F) |
| Input devices | Input devices |
| Touch screenoptional: projective capacitive; 10 finger multi-touch, glove friendlyKeyboardFoil keyboard with different pointing device options available (see EXTA4 datasheet) | Touch screenoptional: projective capacitive; 10 finger multi-touch, glove friendlyKeyboardFoil keyboard with different pointing device options available (see EXTA4 datasheet) |
| Type | Liquid Crystal Display (LCD) with LED backlight |
| Screen size | 54.61 cm (21.5 inch) |
| Resolution | 1920 x 1080 pixels (Full HD) Aspect ratio 16:9 |
| Color depth | 24 bit (16.7 M) color |
| Contrast ratio | 5000:1 (typically) |
| Brightness | 300 cd/m2 (nit) (typically) |
| Viewing angle | 175° in all directions |
| Life span | back lamp life: 50.000 hrs typical half life , at 25 °C (77 °F) |
| Touch screen | optional: projective capacitive; 10 finger multi-touch, glove friendly |
| Keyboard | Foil keyboard with different pointing device options available (see EXTA4 datasheet) |
| Interface type | Standard: 1 x Ethernet 100/1000BASE-TX (Ex e) or1 x fiber optic 1000BASE-SX (Multimode) or1 x fiber optic 1000BASE-LX (Singlemode),1 x USB 2.0 (Ex e; service port),2 x USB 1.1 (Ex i; intended for Pepperl+Fuchs keyboard and mouse),1 x DC or AC power in (via power supply unit) Optional:"interface 3": 1 x barcode reader interface for wired 1-D scanners IDM-160-D*, IDM-Z1-160-D-* and IDM-164-D-* and base station IDMx61-B-*, IDM-Z1-x61-B-* and IDM-Z1-x64-B-* (Ex i) "interface 4": 1 x barcode reader interface for wired 2-D scanner IDM-Z1-260-D-* and IDM-Z1-264-D-* (Ex i) "interface 5": 1 x RS-232 interface with Power Supply for miscellaneous devices and peripherals (Ex i) 1 x RS-232 (Ex e) 1 x RS-485 (Ex e) 1 x Ethernet 100/1000Base-TX (Ex e) Bluetooth v4.0, communication distance up to 30 m in open terrain, transmission power +8 dBm, transmission frequency 2.402 ... 2.48 GHz |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 (industrial locations) Non-Bluetooth / non-RFID products only | Directive 2014/30/EUEN 61326-1:2013 (industrial locations) Non-Bluetooth / non-RFID products only |
| Radio and telecommunication terminal equipment | Radio and telecommunication terminal equipment |
| Directive 2014/53/EUEN 61326-1:2013EN 300 328 V2.2.2:2019EN 301 489-1 V2.2.0:2017EN 301 489-17 V3.2.0:2017Bluetooth products only EN 61326-1:2013EN 301489-1 V2.2.3:2019EN 301489-3 V2.3.2:2023EN 300 330 V2.1.1:2017EN 61010-1:2010EN 62479 :2010EN 62311:2008RFID products only | Directive 2014/53/EUEN 61326-1:2013EN 300 328 V2.2.2:2019EN 301 489-1 V2.2.0:2017EN 301 489-17 V3.2.0:2017Bluetooth products only EN 61326-1:2013EN 301489-1 V2.2.3:2019EN 301489-3 V2.3.2:2023EN 300 330 V2.1.1:2017EN 61010-1:2010EN 62479 :2010EN 62311:2008RFID products only |
| RoHS | RoHS |
| Directive 2011/65/EU (RoHS)EN IEC 63000:2018 | Directive 2011/65/EU (RoHS)EN IEC 63000:2018 |
| Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) Non-Bluetooth / non-RFID products only |
| Directive 2014/53/EU | EN 61326-1:2013EN 300 328 V2.2.2:2019EN 301 489-1 V2.2.0:2017EN 301 489-17 V3.2.0:2017Bluetooth products only EN 61326-1:2013EN 301489-1 V2.2.3:2019EN 301489-3 V2.3.2:2023EN 300 330 V2.1.1:2017EN 61010-1:2010EN 62479 :2010EN 62311:2008RFID products only |
| Directive 2011/65/EU (RoHS) | EN IEC 63000:2018 |
| Operating system | VisuNet RM Shell 6 (based on Windows® 10 IoT Enterprise LTSC 2021 x64) Optional:TJ-: IGEL OS 12 (based on Linux, pre-installed without licence)TI-: IGEL OS 11 (based on Linux, pre-installed without licence) |
| Operating temperature | -20 ... 50 °C (-4 ... 122 °F) Display might react sluggishly below 0 °C |
| Storage temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Relative humidity | 93% at 40°C, non-condensating, according to EN60068-2-78 |
| Altitude | Operating altitude max. 2000 m |
| Shock resistance | 18 shocks 15 g , 11 ms all axis, IEC 60068-2-27 |
| Vibration resistance | 10 ... 150 Hz, +/- 0.075 mm , 1g, 10 cycles per axis according to EN60068-2-6 |
| Degree of protection | IP66 (individual components and entire system with housing) |
| Material | Internal: Panel: anodized aluminum (TCU, PCU, PSU), powder coated aluminum (DPU) External: Bezel: stainless steel AISI 304 (1.4301)System housing H4: stainless steel AISI 304 (1.4301), bead blasted, typical surface roughness Ra = 1.6 µm |
| Installation | Flush-mount installation (requires customized mounting kit)Panel-mount installation into system housing with bezelPanel-mount installation into cabinet with Bezel and standard mounting kit |
| Mass | Panel (DPU with bezel, TCU, PSU DC): approx. 17.5 kgPanel (DPU with bezel, TCU, PSU AC): approx. 18 kgSystem housing: approx. 11 kg |

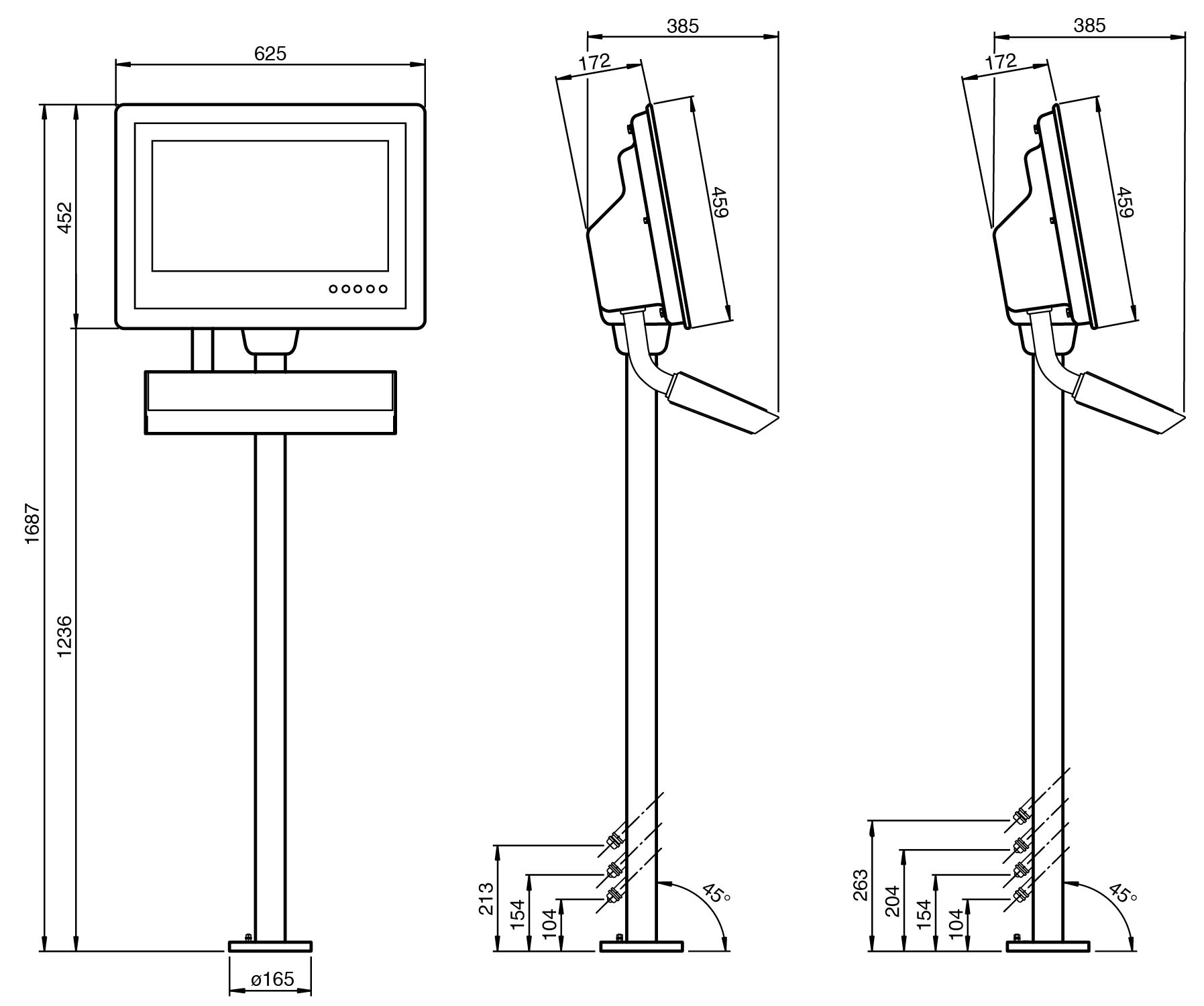

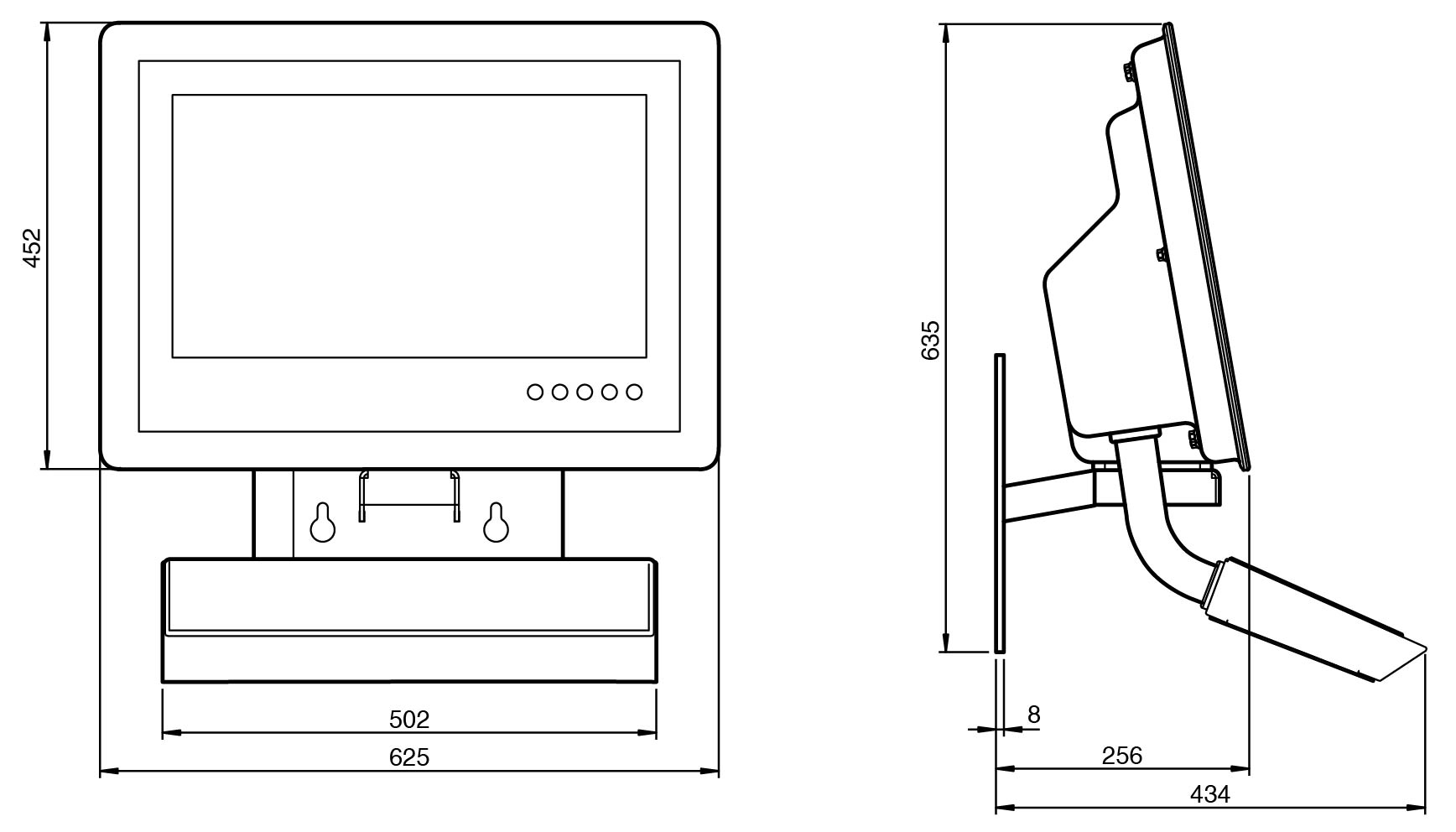

| Dimensions | Panel (DPU with bezel, TCU, PSU DC): 625 mm x 459 mm x 120 mmPanel (DPU with bezel, TCU, PSU AC): 625 mm x 459 mm x 137 mmPanel with system housing: 625 mm x 459 mm x 173 mm Panel cut-out dimensions: 583 mm x 417 mm (installation surface) |
| Note | * see nameplate: 2021 alternative, processor cannot be selected |
| EU-type examination certificate | BVS 17 ATEX E 037 X |
| Marking II 3G Ex ec q [ib] IIC T4 Gc [exsign] II 3D Ex tc [ib] IIIC T85°C Dc | Marking II 3G Ex ec q [ib] IIC T4 Gc [exsign] II 3D Ex tc [ib] IIIC T85°C Dc |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN IEC 60079-0:2018EN 60079-5:2015EN IEC 60079-7:2015+A1:2018EN 60079-11:2012EN 60079-31:2014 | Directive 2014/34/EUEN IEC 60079-0:2018EN 60079-5:2015EN IEC 60079-7:2015+A1:2018EN 60079-11:2012EN 60079-31:2014 |
| Marking | II 3G Ex ec q [ib] IIC T4 Gc [exsign] II 3D Ex tc [ib] IIIC T85°C Dc |
| Directive 2014/34/EU | EN IEC 60079-0:2018EN 60079-5:2015EN IEC 60079-7:2015+A1:2018EN 60079-11:2012EN 60079-31:2014 |
| IECEx approval | IECEx approval |
| IECEx certificateIECEx BVS 17.0029XIECEx markingEx ec q [ib] IIC T4 Gc Ex tc [ib] IIIC T85°C DcStandardsIEC 60079-0:2017, Ed. 7.0IEC 60079-7:2017, Ed. 5.1IEC 60079-11:2011, Ed. 6.0IEC 60079-31:2013, Ed. 2.0 | IECEx certificateIECEx BVS 17.0029XIECEx markingEx ec q [ib] IIC T4 Gc Ex tc [ib] IIIC T85°C DcStandardsIEC 60079-0:2017, Ed. 7.0IEC 60079-7:2017, Ed. 5.1IEC 60079-11:2011, Ed. 6.0IEC 60079-31:2013, Ed. 2.0 |
| IECEx certificate | IECEx BVS 17.0029X |
| IECEx marking | Ex ec q [ib] IIC T4 Gc Ex tc [ib] IIIC T85°C Dc |
| Standards | IEC 60079-0:2017, Ed. 7.0IEC 60079-7:2017, Ed. 5.1IEC 60079-11:2011, Ed. 6.0IEC 60079-31:2013, Ed. 2.0 |
