S1SD-1AI-1C.H

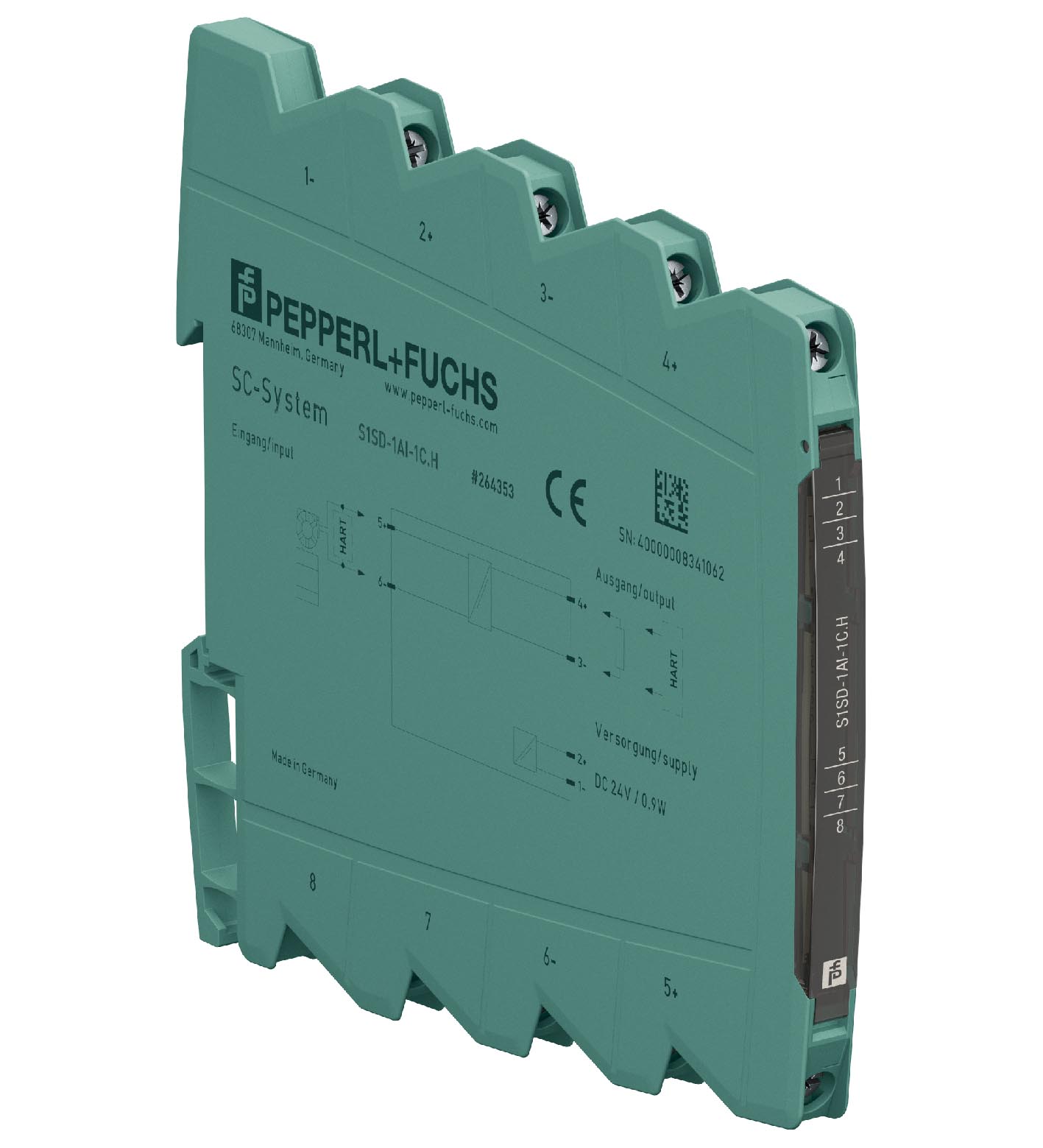

S1SD-1AI-1C.H SMART Transmitter Power Supply

订货号: 276395
产品分类: SC 系统（DIN 导轨安装，紧凑设计）

SMART Transmitter Power Supply

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Signal type	Analog input
Operation time	MTBF: 339 a acc. to SN 29500 stationary continuous operating, average ambient temperature 40 °C (104 °F)

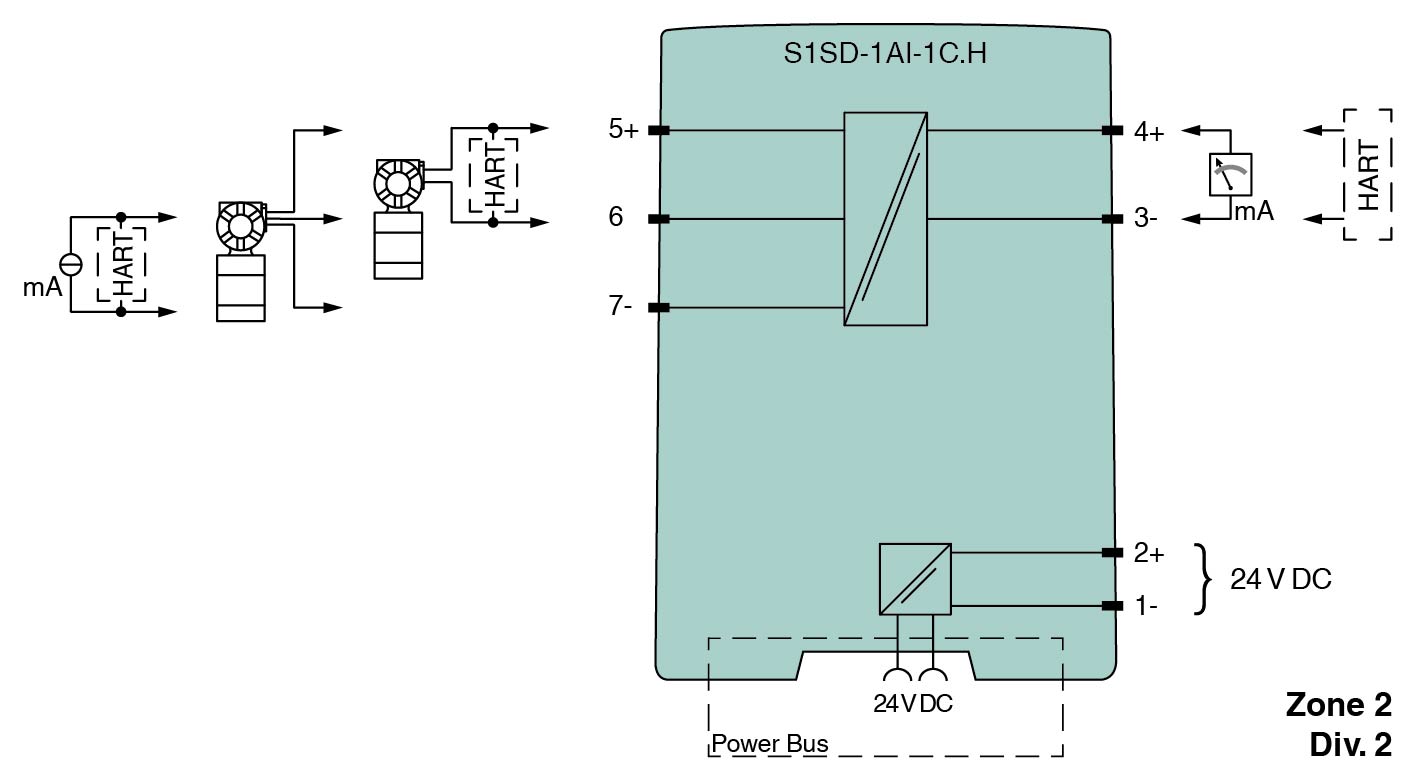

Connection	Power Bus or terminals 1-, 2+
Rated voltage	16.8 ... 31.2 V DC
Power dissipation	0.9 W
Power consumption	1.3 W
Connection side	field side
Connection	terminals 5+, 6, 7-
Input signal	0/4 ... 20 mA
Open circuit voltage/short-circuit current	≤ 22 V / 30 mA
Input resistance	max. 50 Ω
Transmission range	linearity range: -1 ... 110 %
Available voltage	16 V at 20 mA
Connection side	control side
Connection	terminals 3-, 4+
Analog current output	0/4 ... 20 mA, load ≤ 600 Ω
Ripple	≤ 10 mV eff
Accuracy	max. 0.1 % of full-scale value
Influence of ambient temperature	< 100 ppm/K of full-scale value
Rise time/fall time	≤ 3.5 ms
Output/power supply	safe electrical isolation by reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff test voltage 3 kV, 50 Hz, 1 min
Input/Other circuits	safe electrical isolation by reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff test voltage 3 kV, 50 Hz, 1 min
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Degree of protection	IEC 60529:2001
Protection against electrical shock	EN 61010-1:2010
Ambient temperature	-25 ... 70 °C (-13 ... 158 °F)
Storage temperature	-40 ... 85 °C (-40 ... 185 °F)
Damaging gas	designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3
Degree of protection	IP20
Connection	screw terminals
Core cross section	0.5 ... 2.5 mm2 (20 ... 14 AWG)
Mass	approx. 70 g
Dimensions	6.2 x 97 x 107 mm (0.24 x 3.82 x 4.21 inch) (W x H x D) , housing type S1
Height97 mmWidth6.2 mmDepth107 mm	Height97 mmWidth6.2 mmDepth107 mm
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
Height	97 mm
Width	6.2 mm
Depth	107 mm
Certificate	DEMKO 16 ATEX 1750X
Marking II 3G Ex nA IIC T4 Gc	Marking II 3G Ex nA IIC T4 Gc
Directive conformity	Directive conformity
Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-15:2010	Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-15:2010
Marking	II 3G Ex nA IIC T4 Gc
Directive 2014/34/EU	EN 60079-0:2012+A11:2013 , EN 60079-15:2010
UL approval	E106378
IECEx approval	IECEx approval
IECEx certificateIECEx UL 16.0116XIECEx markingEx nA IIC T4 Gc	IECEx certificateIECEx UL 16.0116XIECEx markingEx nA IIC T4 Gc
IECEx certificate	IECEx UL 16.0116X
IECEx marking	Ex nA IIC T4 Gc
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
