倍加福

S1SD-1AI-1R

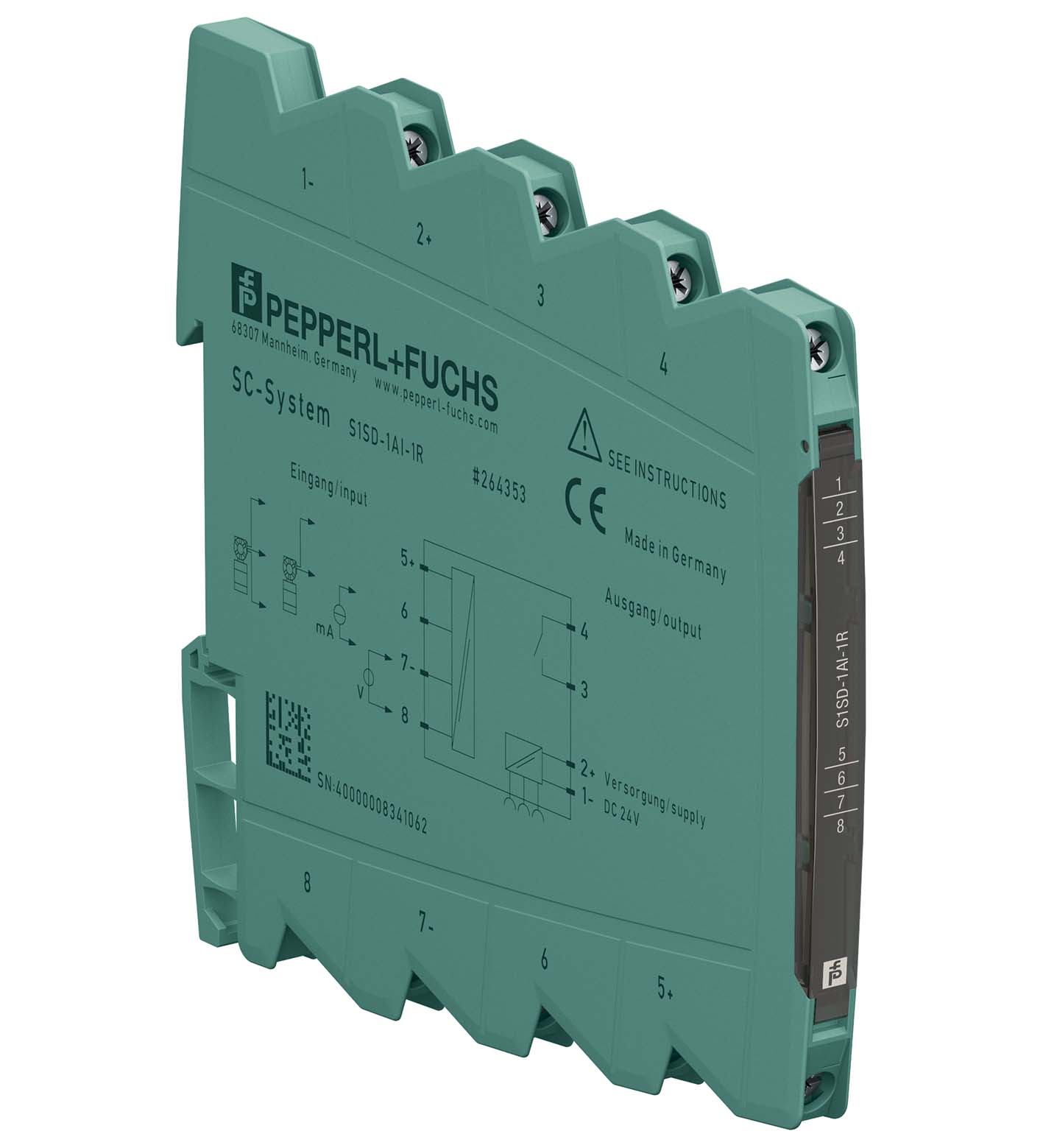

S1SD-1AI-1R Trip amplifier

订货号: 305245
产品分类: SC 系统（DIN 导轨安装，紧凑设计）

Trip amplifier

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Signal type	Analog input
Connection	Power Bus or terminals 1-, 2+
Rated voltage	16.8 ... 31.2 V DC
Power dissipation	0.6 W
Power consumption	0.8 W
Programming interface	programming socket
Connection side	field side
Transmission range	linearity range:unipolar -1 ... 110 %bipolar -110 ... 110 %

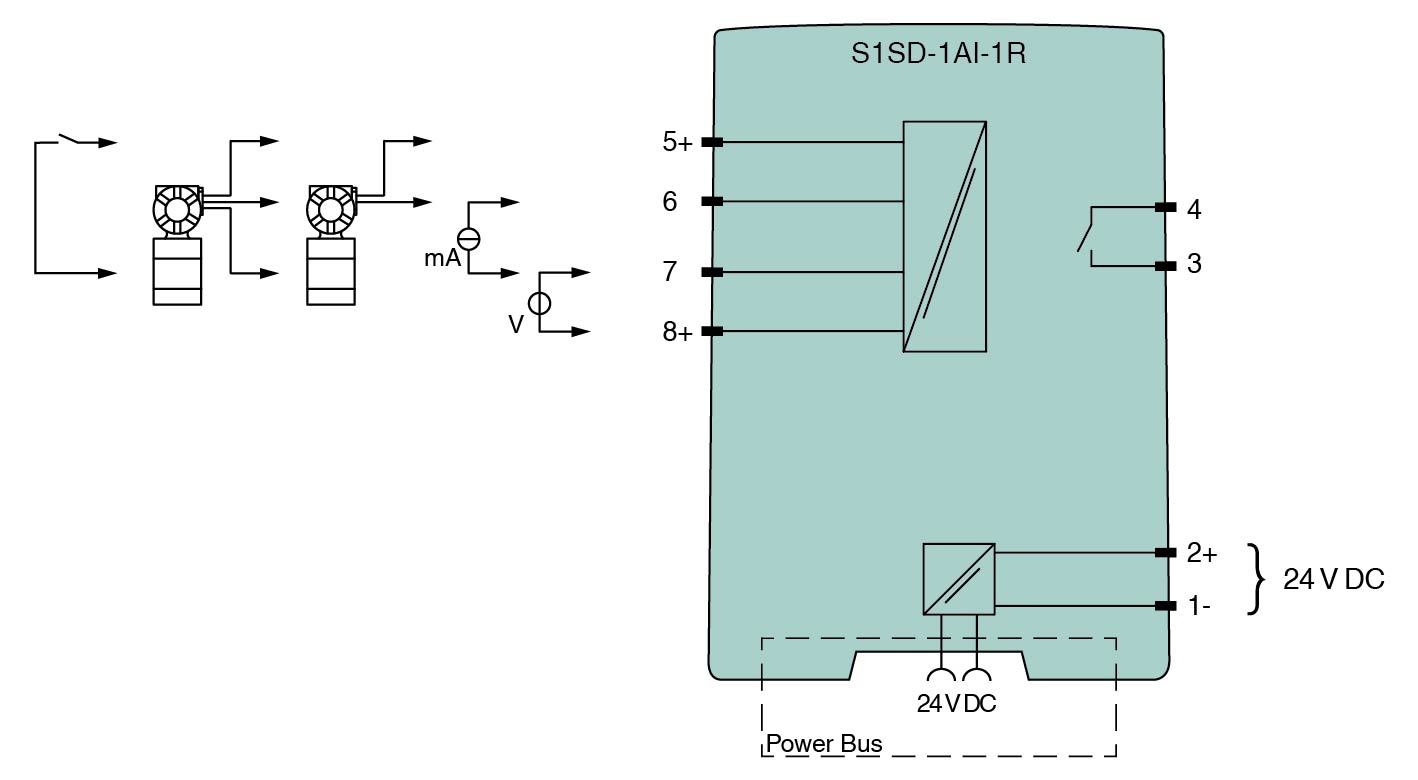

Input I	Input I
Connectionterminals 5, 6, 7-Input signal0/4 ... 20 mA , 0/2 ... 10 mA , ± 10 mA, ± 20 mA , max. 50 mAInput resistance≤ 25 Ω	Connectionterminals 5, 6, 7-Input signal0/4 ... 20 mA , 0/2 ... 10 mA , ± 10 mA, ± 20 mA , max. 50 mAInput resistance≤ 25 Ω
Input II	Input II
Connectionterminals 7-, 8+Input signal0/1 ... 5 V , 0/2 ... 10 V , ± 5 V , ± 10 V , max. 30 VInput resistance> 1 MΩ	Connectionterminals 7-, 8+Input signal0/1 ... 5 V , 0/2 ... 10 V , ± 5 V , ± 10 V , max. 30 VInput resistance> 1 MΩ
Input III	Input III
Connectionterminals 5+, 6-Input signal0/4 ... 20 mAAvailable voltage16 V at 20 mAOpen circuit voltage/short-circuit current≤ 22 V / 30 mA	Connectionterminals 5+, 6-Input signal0/4 ... 20 mAAvailable voltage16 V at 20 mAOpen circuit voltage/short-circuit current≤ 22 V / 30 mA
Input IV	Input IV
Connectionterminals 5, 7Input typereset restart inhibit	Connectionterminals 5, 7Input typereset restart inhibit
Connection	terminals 5, 6, 7-
Input signal	0/4 ... 20 mA , 0/2 ... 10 mA , ± 10 mA, ± 20 mA , max. 50 mA
Input resistance	≤ 25 Ω
Connection	terminals 7-, 8+
Input signal	0/1 ... 5 V , 0/2 ... 10 V , ± 5 V , ± 10 V , max. 30 V
Input resistance	> 1 MΩ
Connection	terminals 5+, 6-
Input signal	0/4 ... 20 mA
Available voltage	16 V at 20 mA
Open circuit voltage/short-circuit current	≤ 22 V / 30 mA
Connection	terminals 5, 7
Input type	reset restart inhibit
Connection side	control side
Connection	terminals 3, 4:
Output	signal, relay
Contact loading	253 V AC/2 A/cos φ > 0.7; 126.5 V AC/2 A/cos φ > 0.7; 30 V DC/2 A resistive load
Minimum switch current	2 mA / 24 V DC
Energized/De-energized delay	≤ 20 ms / ≤ 20 ms
Mechanical life	107 switching cycles
Accuracy	max. 0.1 % of full-scale value
Influence of ambient temperature	< 100 ppm/K of full-scale value
Output/power supply	safe electrical isolation by reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff test voltage 3 kV, 50 Hz, 1 min
Input/Other circuits	safe electrical isolation by reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff test voltage 3 kV, 50 Hz, 1 min
Display elements	LEDs
Control elements	DIP switch keys
Configuration	via DIP switches via keys via software
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Low voltage	Low voltage
Directive 2014/35/EUEN 61010-1:2010	Directive 2014/35/EUEN 61010-1:2010
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Directive 2014/35/EU	EN 61010-1:2010
Degree of protection	IEC 60529:2001
Protection against electrical shock	EN 61010-1:2010
Ambient temperature	-25 ... 70 °C (-13 ... 158 °F)
Storage temperature	-40 ... 85 °C (-40 ... 185 °F)
Damaging gas	designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3
Degree of protection	IP20
Connection	screw terminals
Core cross section	0.5 ... 2.5 mm2 (20 ... 14 AWG)
Mass	approx. 70 g
Dimensions	6.2 x 97 x 107 mm (0.24 x 3.82 x 4.21 inch) (W x H x D) , housing type S1
Height97 mmWidth6.2 mmDepth107 mm	Height97 mmWidth6.2 mmDepth107 mm
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
Height	97 mm
Width	6.2 mm
Depth	107 mm
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
