倍加福

S1SD-1FI-1R

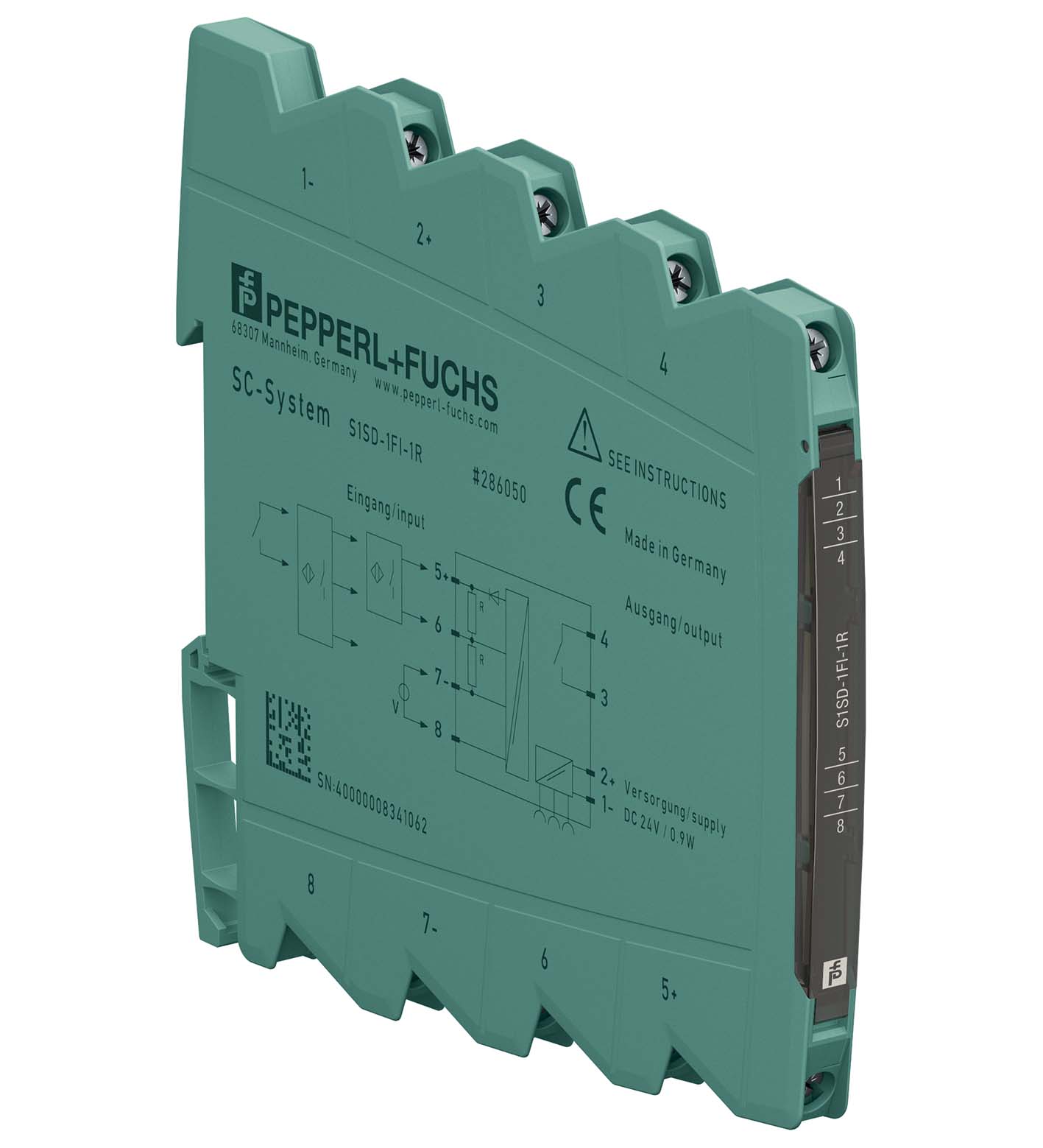

S1SD-1FI-1R Rotation Speed Monitor

订货号: 286050
产品分类: SC 系统（DIN 导轨安装，紧凑设计）

Rotation Speed Monitor

查看规格参数资料与附件

TECHNICAL DATA

规格参数

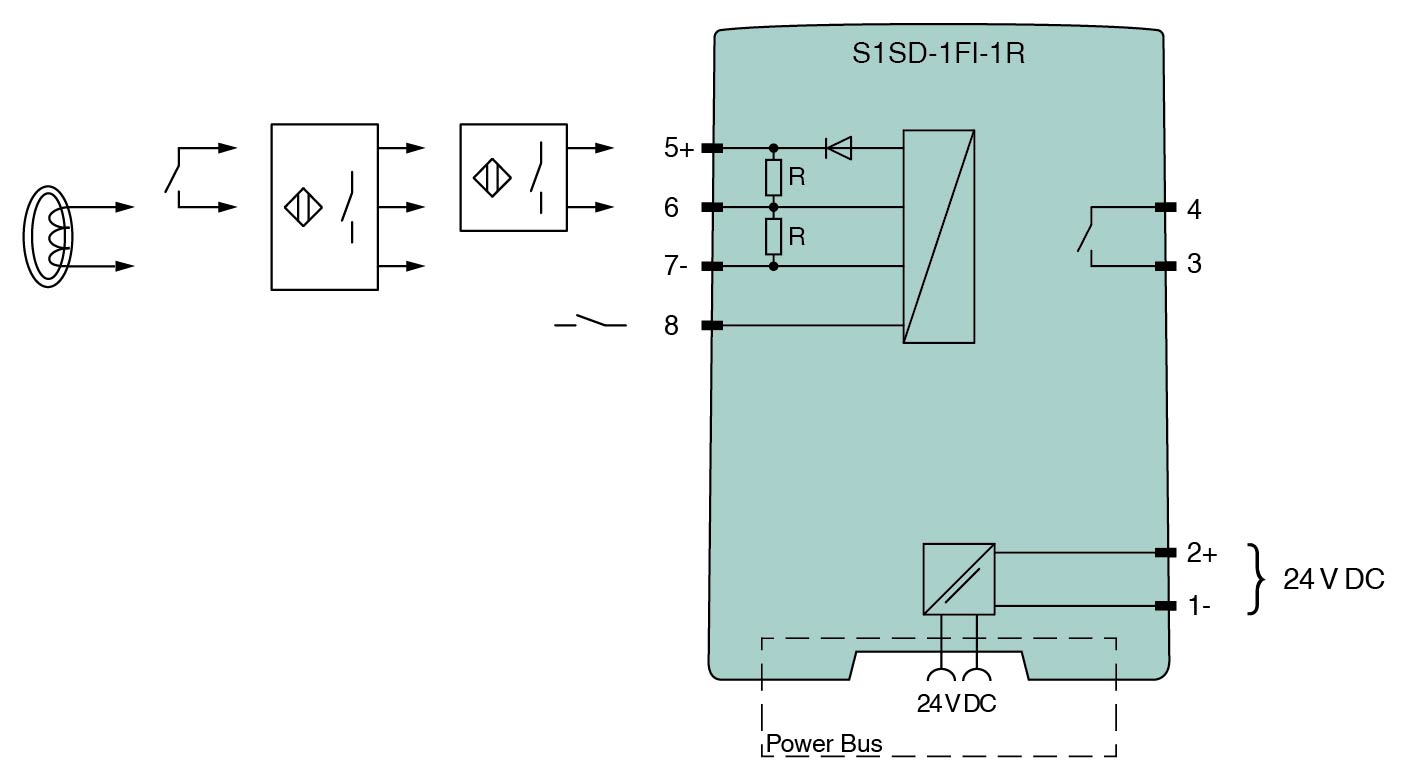

General specifications

Signal type	Digital Input
Connection	Power Bus or terminals 1-, 2+
Rated voltage	16.8 ... 31.2 V DC
Power dissipation	0.6 W
Power consumption	1.1 W
Programming interface	programming socket
Connection side	field side
NAMUR sensor	NAMUR sensor
Type2-wireConnectionterminals 5+, 6Signalacc. to EN 60947-5-6 (NAMUR)Sensor supply8 VOpen-circuit< 0.1 mASwitching point1.2 ... 2.1 mAShort-circuit> 6 mAInput impedance1 kΩ	Type2-wireConnectionterminals 5+, 6Signalacc. to EN 60947-5-6 (NAMUR)Sensor supply8 VOpen-circuit< 0.1 mASwitching point1.2 ... 2.1 mAShort-circuit> 6 mAInput impedance1 kΩ
Mechanical contact	Mechanical contact
Type2-wireConnectionterminals 5+, 6Sensor supply15 VExternal supply≤ 32 VSwitching point8 ... 10 V / 1.2 ... 2.1 mAFrequency0 ... 50 Hz , debounce filterInput impedance4 kΩ	Type2-wireConnectionterminals 5+, 6Sensor supply15 VExternal supply≤ 32 VSwitching point8 ... 10 V / 1.2 ... 2.1 mAFrequency0 ... 50 Hz , debounce filterInput impedance4 kΩ
SN sensor	SN sensor
Type2-wireConnectionterminals 5+, 6Sensor supply8 VOpen-circuit< 0.1 mASwitching point1.2 ... 2.1 mAShort-circuit> 6 mAInput impedance1 kΩ	Type2-wireConnectionterminals 5+, 6Sensor supply8 VOpen-circuit< 0.1 mASwitching point1.2 ... 2.1 mAShort-circuit> 6 mAInput impedance1 kΩ
2-wire DC sensor	2-wire DC sensor
Type2-wireConnectionterminals 5+, 6Signalacc. to EN 60947-5-2Sensor supply16 V / 25 mA , short-circuit protectedExternal supply≤ 32 VSwitching point2 ... 5 mAInput impedance1 kΩ	Type2-wireConnectionterminals 5+, 6Signalacc. to EN 60947-5-2Sensor supply16 V / 25 mA , short-circuit protectedExternal supply≤ 32 VSwitching point2 ... 5 mAInput impedance1 kΩ
S0 sensor	S0 sensor
Type2-wireConnectionterminals 5+, 6Signalacc. to EN 62053-31 , Type BSensor supply15 VSwitching point0.15 ... 2 mAInput impedance4 kΩ	Type2-wireConnectionterminals 5+, 6Signalacc. to EN 62053-31 , Type BSensor supply15 VSwitching point0.15 ... 2 mAInput impedance4 kΩ
NPN sensor	NPN sensor
Type3-wireConnectionterminals 5+, 6, 7-Signalacc. to EN 60947-5-2Sensor supply16 V / 25 mA , short-circuit protectedExternal supply≤ 32 VSwitching point3 ... 5 VInput impedance4 kΩ	Type3-wireConnectionterminals 5+, 6, 7-Signalacc. to EN 60947-5-2Sensor supply16 V / 25 mA , short-circuit protectedExternal supply≤ 32 VSwitching point3 ... 5 VInput impedance4 kΩ
PNP sensor	PNP sensor
Type3-wireConnectionterminals 5+, 6, 7-Signalacc. to EN 60947-5-2Sensor supply16 V / 25 mA , short-circuit protectedExternal supply≤ 32 VSwitching point8 ... 10 VInput impedance4 kΩ	Type3-wireConnectionterminals 5+, 6, 7-Signalacc. to EN 60947-5-2Sensor supply16 V / 25 mA , short-circuit protectedExternal supply≤ 32 VSwitching point8 ... 10 VInput impedance4 kΩ
AC/DC voltage source	AC/DC voltage source
Connectionterminals 6, 7-Signalmax. ± 30 VSwitching point150 ... 400 mVInput impedance4 kΩ	Connectionterminals 6, 7-Signalmax. ± 30 VSwitching point150 ... 400 mVInput impedance4 kΩ
Function input	Function input
Connectionterminal 8Open loop voltage7.5 VInput impedanceapprox. 50 kΩFunction 1activation start-up overrideSwitching point< 3 V , edge triggeredAdjustment range1 ... 6500 sFunction 2reset restart inhibitSwitching point> 12 V , edge triggered	Connectionterminal 8Open loop voltage7.5 VInput impedanceapprox. 50 kΩFunction 1activation start-up overrideSwitching point< 3 V , edge triggeredAdjustment range1 ... 6500 sFunction 2reset restart inhibitSwitching point> 12 V , edge triggered
Type	2-wire
Connection	terminals 5+, 6
Signal	acc. to EN 60947-5-6 (NAMUR)
Sensor supply	8 V
Open-circuit	< 0.1 mA
Switching point	1.2 ... 2.1 mA
Short-circuit	> 6 mA
Input impedance	1 kΩ
Type	2-wire
Connection	terminals 5+, 6
Sensor supply	15 V
External supply	≤ 32 V
Switching point	8 ... 10 V / 1.2 ... 2.1 mA
Frequency	0 ... 50 Hz , debounce filter
Input impedance	4 kΩ
Type	2-wire
Connection	terminals 5+, 6
Sensor supply	8 V
Open-circuit	< 0.1 mA
Switching point	1.2 ... 2.1 mA
Short-circuit	> 6 mA
Input impedance	1 kΩ
Type	2-wire
Connection	terminals 5+, 6
Signal	acc. to EN 60947-5-2
Sensor supply	16 V / 25 mA , short-circuit protected
External supply	≤ 32 V
Switching point	2 ... 5 mA
Input impedance	1 kΩ
Type	2-wire
Connection	terminals 5+, 6
Signal	acc. to EN 62053-31 , Type B
Sensor supply	15 V
Switching point	0.15 ... 2 mA
Input impedance	4 kΩ
Type	3-wire
Connection	terminals 5+, 6, 7-
Signal	acc. to EN 60947-5-2
Sensor supply	16 V / 25 mA , short-circuit protected
External supply	≤ 32 V
Switching point	3 ... 5 V
Input impedance	4 kΩ
Type	3-wire
Connection	terminals 5+, 6, 7-
Signal	acc. to EN 60947-5-2
Sensor supply	16 V / 25 mA , short-circuit protected
External supply	≤ 32 V
Switching point	8 ... 10 V
Input impedance	4 kΩ
Connection	terminals 6, 7-
Signal	max. ± 30 V
Switching point	150 ... 400 mV
Input impedance	4 kΩ
Connection	terminal 8
Open loop voltage	7.5 V
Input impedance	approx. 50 kΩ
Function 1	activation start-up override
Switching point	< 3 V , edge triggered
Adjustment range	1 ... 6500 s
Function 2	reset restart inhibit
Switching point	> 12 V , edge triggered
Connection side	control side
Connection	terminals 3, 4:
Output	signal, relay
Contact loading	253 V AC/2 A/cos φ > 0.7; 126.5 V AC/4 A/cos φ > 0.7; 30 V DC/2 A resistive load
Minimum switch current	2 mA / 24 V DC
Energized/De-energized delay	≤ 20 ms / ≤ 20 ms
Mechanical life	107 switching cycles
Accuracy	max. 0.1 % of the measurement value
Measuring time	≤ 100 ms
Influence of ambient temperature	< 100 ppm/K of the measured value
Frequency range	0.01 ... 50000 Hz
Output/power supply	safe electrical isolation by reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff test voltage 3 kV, 50 Hz, 1 min
Input/Other circuits	safe electrical isolation by reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff test voltage 3 kV, 50 Hz, 1 min
Display elements	LEDs
Control elements	DIP switch
Configuration	via DIP switches via software
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Low voltage	Low voltage
Directive 2014/35/EUEN 61010-1:2010	Directive 2014/35/EUEN 61010-1:2010
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Directive 2014/35/EU	EN 61010-1:2010
Degree of protection	IEC 60529:2001
Protection against electrical shock	EN 61010-1:2010
Ambient temperature	-25 ... 70 °C (-13 ... 158 °F)
Storage temperature	-40 ... 85 °C (-40 ... 185 °F)
Damaging gas	designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3
Degree of protection	IP20
Connection	screw terminals
Core cross section	0.5 ... 2.5 mm2 (20 ... 14 AWG)
Mass	approx. 60 g
Dimensions	6.2 x 97 x 107 mm (0.24 x 3.82 x 4.21 inch) (W x H x D) , housing type S1
Height97 mmWidth6.2 mmDepth107 mm	Height97 mmWidth6.2 mmDepth107 mm
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
Height	97 mm
Width	6.2 mm
Depth	107 mm
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
