倍加福

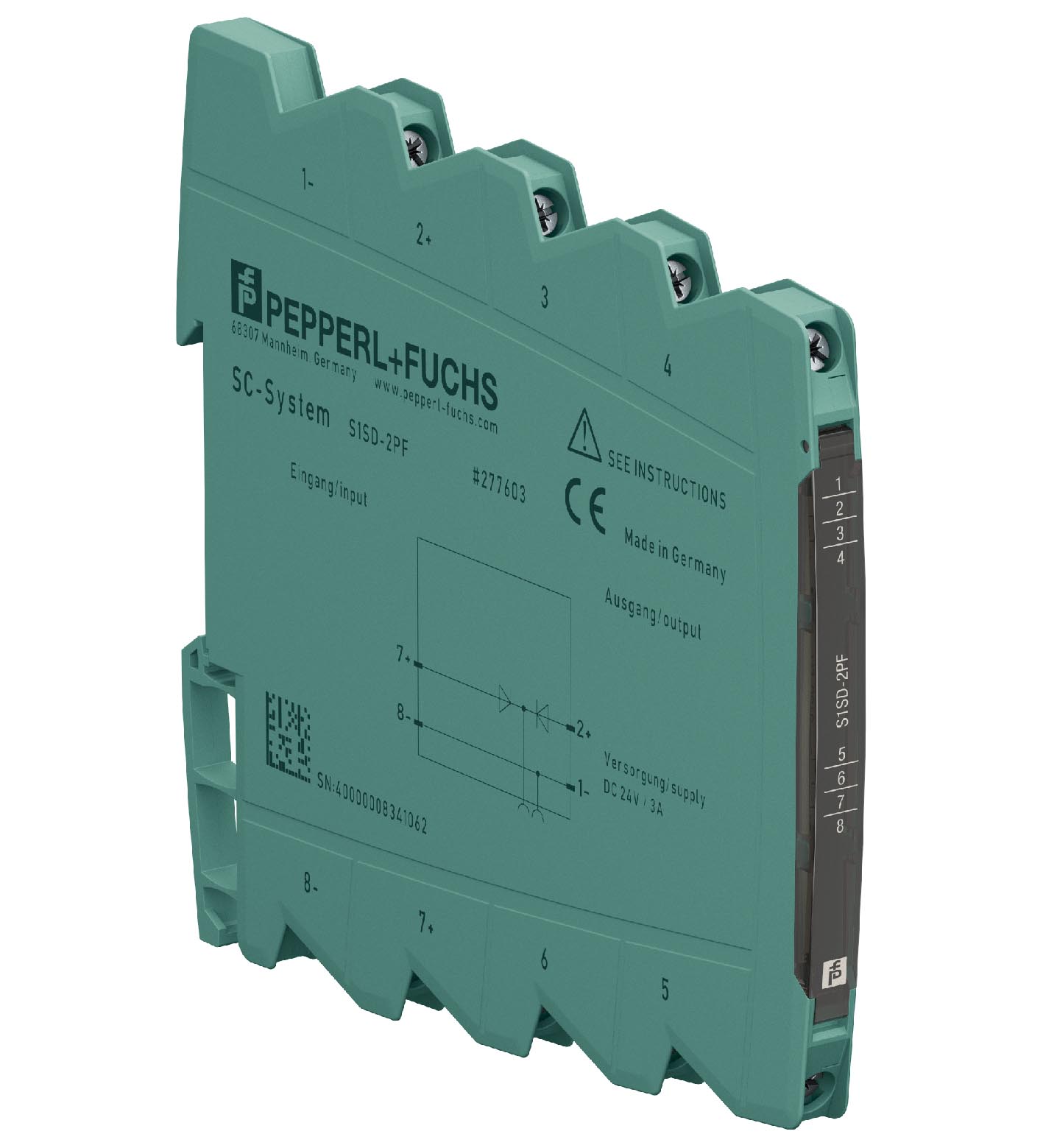

S1SD-2PF

S1SD-2PF Power Feed Module

订货号: 277603
产品分类: SC 系统（DIN 导轨安装，紧凑设计）

Power Feed Module

查看规格参数资料与附件

TECHNICAL DATA

规格参数

Supply

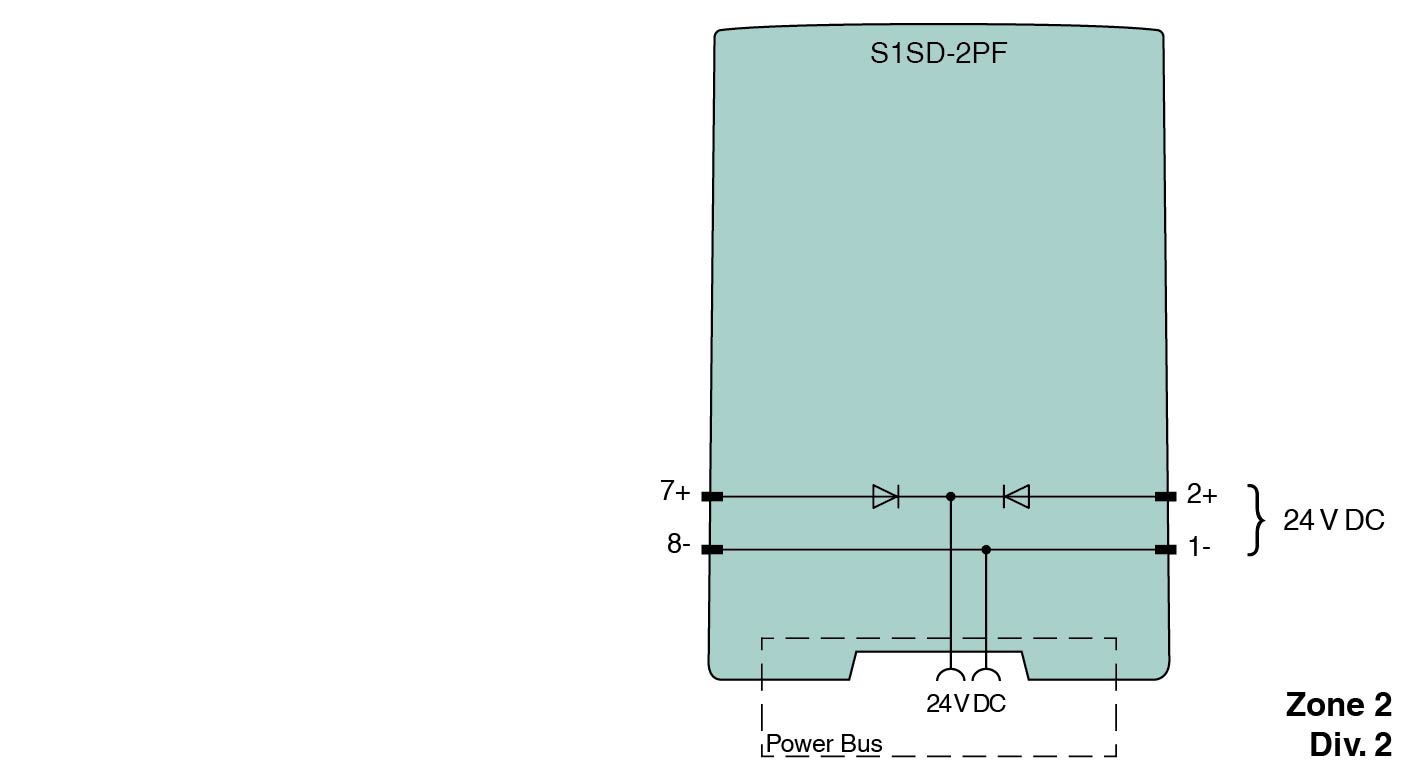

Connection	Power Bus or terminals 1-, 2+; 7+, 8-
Rated voltage	16.8 ... 31.2 V DC
Fusing	4 AT with back-up fuse
Power dissipation	0.8 W
Connection	Power Bus
Output current	max. 3 A
Output voltage	24 V DC
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Degree of protection	IEC 60529:2001
Ambient temperature	-25 ... 70 °C (-13 ... 158 °F)
Storage temperature	-40 ... 85 °C (-40 ... 185 °F)
Damaging gas	designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3
Degree of protection	IP20
Connection	screw terminals
Core cross section	0.5 ... 2.5 mm2 (20 ... 14 AWG)
Mass	approx. 70 g
Dimensions	6.2 x 97 x 107 mm (0.24 x 3.82 x 4.21 inch) (W x H x D) , housing type S1
Height97 mmWidth6.2 mmDepth107 mm	Height97 mmWidth6.2 mmDepth107 mm
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
Height	97 mm
Width	6.2 mm
Depth	107 mm
Certificate	DEMKO 16 ATEX 1750X
Marking II 3G Ex nA IIC T4 Gc	Marking II 3G Ex nA IIC T4 Gc
Directive conformity	Directive conformity
Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-15:2010	Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-15:2010
Marking	II 3G Ex nA IIC T4 Gc
Directive 2014/34/EU	EN 60079-0:2012+A11:2013 , EN 60079-15:2010
UL approval	E106378
IECEx approval	IECEx approval
IECEx certificateIECEx UL 16.0116XIECEx markingEx nA IIC T4 Gc	IECEx certificateIECEx UL 16.0116XIECEx markingEx nA IIC T4 Gc
IECEx certificate	IECEx UL 16.0116X
IECEx marking	Ex nA IIC T4 Gc
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
