TECHNICAL DATA
规格参数
General specifications
| Installation in hazardous area | Zone 2 |
|---|---|
| Interface type | 100BASE-FX Fast Ethernet fiber |
| Connection type | duplex LC to duplex LC |
| Transfer rate | 155 MBit/s |
| Fiber optics functionality | Fiber optics functionality |
| Wave length1310 nmCable type50/125μm or 62.5/125μm multi-mode fiber opticCable lengthmax. 2 kmConnector type1 Duplex LCTransmit power (optical)-20 ... 14 dBmReceive sensitivity-31 ... -8 dBmLink budget11 dBm | Wave length1310 nmCable type50/125μm or 62.5/125μm multi-mode fiber opticCable lengthmax. 2 kmConnector type1 Duplex LCTransmit power (optical)-20 ... 14 dBmReceive sensitivity-31 ... -8 dBmLink budget11 dBm |
| Wave length | 1310 nm |
| Cable type | 50/125μm or 62.5/125μm multi-mode fiber optic |
| Cable length | max. 2 km |
| Connector type | 1 Duplex LC |
| Transmit power (optical) | -20 ... 14 dBm |
| Receive sensitivity | -31 ... -8 dBm |
| Link budget | 11 dBm |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 | Directive 2014/30/EUEN 61326-1:2013 |
| Directive 2014/30/EU | EN 61326-1:2013 |
| Electromagnetic compatibility | EN 61326 , NE 21 |
| Ethernet | IEEE 802.3u for 100BASE-FX Fast Ethernet fiber |
| Shock resistance | EN 60068-2-27 |
| Vibration resistance | EN 60068-2-6 |
| Climatic conditions | DIN IEC 721 |
| Laser safety | EN 60825-1 AEL Class 1 |
| Ambient temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | ≤ 95 % non-condensing |
| Shock resistance | 15 g 11 ms |
| Vibration resistance | 1 g 10 ... 150 Hz |

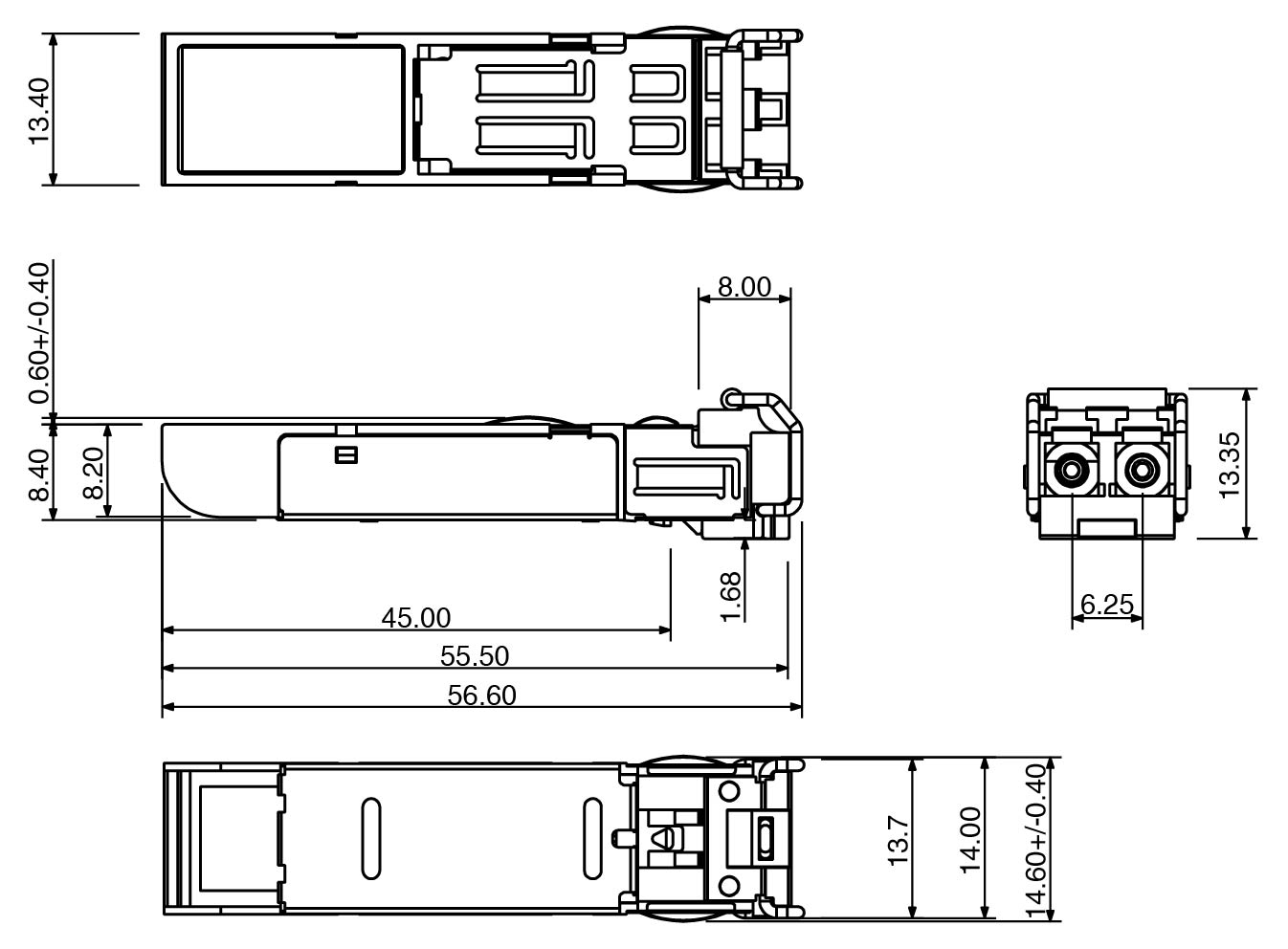

| Housing | SFP Multi-Source (MSA) compliant |
| Mass | 17 g |
| EU-type examination certificate | TÜV 20 ATEX 8572 X |
| Marking II 3 G Ex ec IIC T4 Gc | Marking II 3 G Ex ec IIC T4 Gc |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN 60079-0:2018 , EN 60079-11:2012 , EN 60079-15:2015 | Directive 2014/34/EUEN 60079-0:2018 , EN 60079-11:2012 , EN 60079-15:2015 |
| Marking | II 3 G Ex ec IIC T4 Gc |
| Directive 2014/34/EU | EN 60079-0:2018 , EN 60079-11:2012 , EN 60079-15:2015 |
| IECEx approval | IECEx TUR 21.0013X |
| Approved forEx ec IIC T4 Gc | Approved forEx ec IIC T4 Gc |
| Approved for | Ex ec IIC T4 Gc |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
