TECHNICAL DATA
规格参数
General specifications

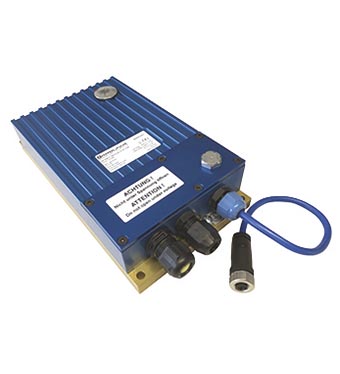

| Type | Supply Module |
|---|---|
| Power consumption | DC: 7.1 W AC: 16 W , 50 ... 60 Hz |
| Operating voltage | DC: 24 V DC typical , 18 ... 30 V DC voltage range AC: 230 V AC typical , 90 ... 253 V AC voltage range |
| Interface type | depends on modelfield side (Ex e) : RS-232 / RS-422 or USB Connection side handheld readers and base station : RS-232 or USB |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61000-6-2:2005 + AC:2005 , EN 61000-6-4:2007 + A1:2011 | Directive 2014/30/EUEN 61000-6-2:2005 + AC:2005 , EN 61000-6-4:2007 + A1:2011 |
| Directive 2014/30/EU | EN 61000-6-2:2005 + AC:2005 , EN 61000-6-4:2007 + A1:2011 |
| Operating temperature | -25 ... 60 °C (-13 ... 140 °F) |
| Storage temperature | -40 ... 60 °C (-40 ... 140 °F) |
| Relative humidity | 95 % non-condensing |
| Degree of protection | IP64 |
| Cable | power supply cable: 1.5 ... 2.5 mm2 (24 AWG ... 14 AWG), 3 pin data cable: 0.2 ... 2.5 m2 (24 AWG ... 14 AWG), 3 pin or 4 pin (depending on the model) |
| LengthLmax. 15 m or 5 m, depending on the model | LengthLmax. 15 m or 5 m, depending on the model |
| Mass | approx. 3.1 kg |
| Dimensions | 140 mm x 250 mm x 56 mm (W x H x D) |
| Length | max. 15 m or 5 m, depending on the model |
| EU-type examination certificate | IBExU18ATEX1051 IECEx IBE 18.0010 |
| Marking II 2G Ex eb q [ib IIC/IIB] IIC T4 Gb [exsign] II 2D Ex tb [ib] IIIC T135 °C Db | Marking II 2G Ex eb q [ib IIC/IIB] IIC T4 Gb [exsign] II 2D Ex tb [ib] IIIC T135 °C Db |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN 60079-0:2018 EN 60079-11:2012 IEC 60079-31:2014 IEC 60079-5:2015 IEC 60079-7:2015 | Directive 2014/34/EUEN 60079-0:2018 EN 60079-11:2012 IEC 60079-31:2014 IEC 60079-5:2015 IEC 60079-7:2015 |
| Marking | II 2G Ex eb q [ib IIC/IIB] IIC T4 Gb [exsign] II 2D Ex tb [ib] IIIC T135 °C Db |
| Directive 2014/34/EU | EN 60079-0:2018 EN 60079-11:2012 IEC 60079-31:2014 IEC 60079-5:2015 IEC 60079-7:2015 |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
