TECHNICAL DATA
规格参数
General specifications

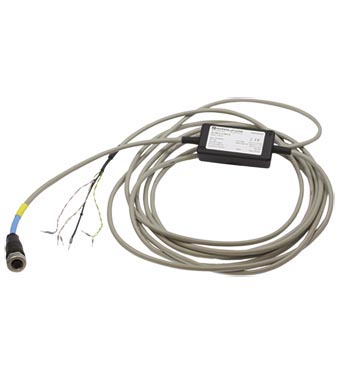

| Type | Cable barrier |
|---|---|
| Power consumption | 8 ... 30 V DC |
| Current consumption | 0.5 ... 0.2 A |
| Interface type | field side (Ex e) : RS-232 / RS-422 (adapter included) Connection side handheld readers and base station : RS-232 |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61000-6-2:2005 + AC:2005 , EN 61000-6-4:2007 + A1:2011 | Directive 2014/30/EUEN 61000-6-2:2005 + AC:2005 , EN 61000-6-4:2007 + A1:2011 |
| Directive 2014/30/EU | EN 61000-6-2:2005 + AC:2005 , EN 61000-6-4:2007 + A1:2011 |
| Operating temperature | -20 ... 70 °C (-4 ... 158 °F) |
| Storage temperature | -20 ... 70 °C (-4 ... 158 °F) |
| Relative humidity | 95 % non-condensing |
| Degree of protection | IP66 |
| Cable | power supply cable: 0.14 mm2 (26 AWG), 2 pindata cable: 0.14 m2 (26 AWG), 2 pin |
| LengthLmax. 5 m | LengthLmax. 5 m |
| Mass | approx. 250 g |
| Dimensions | 80 mm x 20 mm x 40 mm (W x H x D) |
| Length | max. 5 m |
| Certificate | IBExU19ATEXB016XIECEx IBE 19.0026X |
| MarkingII 3G Ex mc [ic] IIC/IIB T4 GcII 3D Ex mc [ic] IIIC T135°C Dc | MarkingII 3G Ex mc [ic] IIC/IIB T4 GcII 3D Ex mc [ic] IIIC T135°C Dc |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN IEC 60079-0:2018 EN 60079-11:2012 EN 60079-18:2015 | Directive 2014/34/EUEN IEC 60079-0:2018 EN 60079-11:2012 EN 60079-18:2015 |
| Marking | II 3G Ex mc [ic] IIC/IIB T4 GcII 3D Ex mc [ic] IIIC T135°C Dc |
| Directive 2014/34/EU | EN IEC 60079-0:2018 EN 60079-11:2012 EN 60079-18:2015 |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
