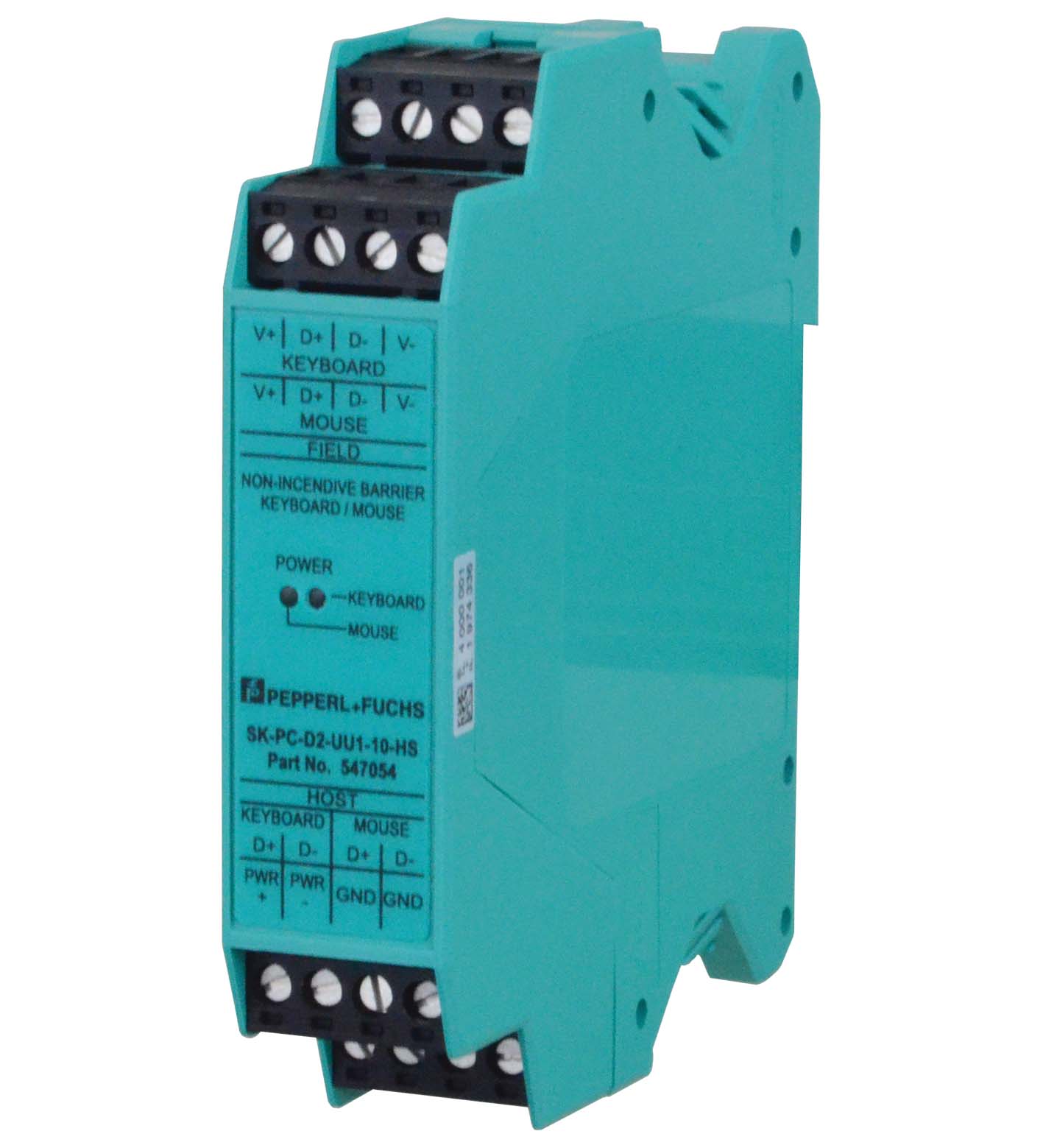

TECHNICAL DATA
规格参数
Supply
| Rated voltage | 9 ... 30 VDC (Um = 30 V SELV) |
|---|---|
| Input current | 120 mA nominal500 mA max |
| LED ON | power - Channel 1power - Channel 2 |
| Interface type | USB 1.1 |
| Output current | 89 mA |
| Output voltage | 4.8 VDC |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 (industrial locations) #224258 | Directive 2014/30/EUEN 61326-1:2013 (industrial locations) #224258 |
| RoHS | RoHS |
| Directive 2011/65/EU (RoHS)EN IEC 63000:2018 | Directive 2011/65/EU (RoHS)EN IEC 63000:2018 |
| Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) #224258 |
| Directive 2011/65/EU (RoHS) | EN IEC 63000:2018 |
| Degree of protection | IEC 60529 |
| Protection against electrical shock | IEC 61140 |
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) |
| Relative humidity | 0 ... 95% (non-condensing) |
| Vibration resistance | 5 G, 58 ... 150 Hz |
| Impact resistance | 15 g, 11 ms |
| Connection type | Terminal Block |
| Degree of protection | IP20 |
| Connection | Supply: terminals 13+, 14-Input: terminals 9+, 10-; 11+, 12-Output: terminals 1+, 2+, 3-, 4-; 5+, 6+, 7-, 8- (field terminal) Ground: terminals 15, 16 |
| Mass | 120 g |

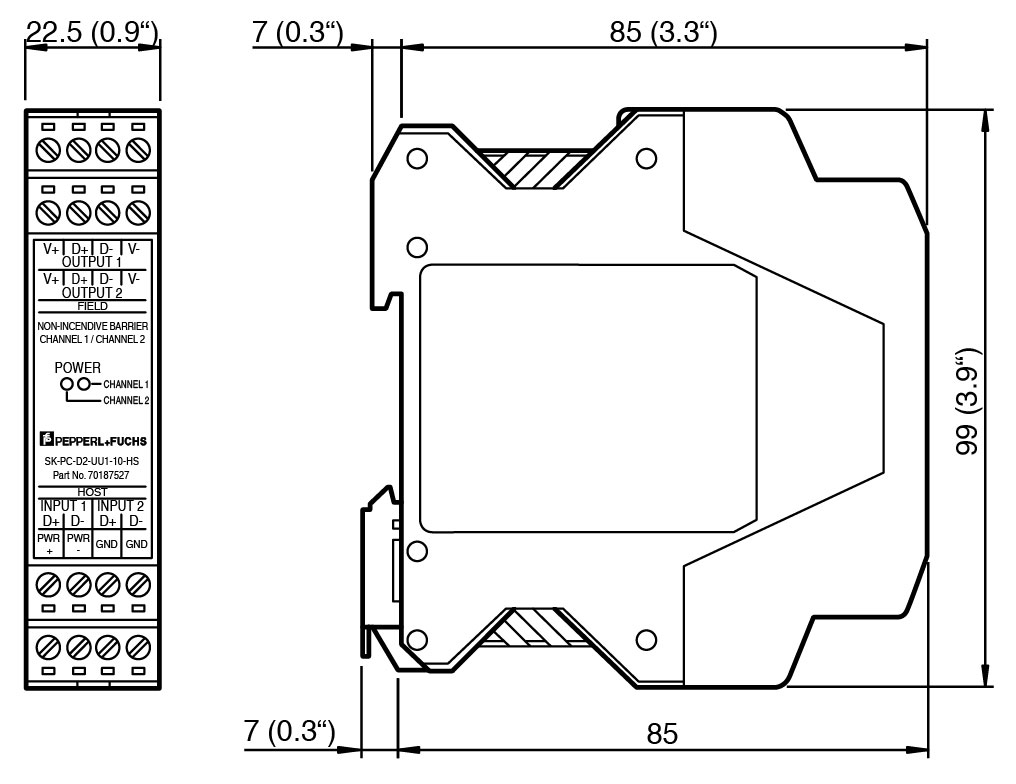

| Dimensions | 99 mm x 85 mm x 22.5 mm |
| Cable length | Max. 5 m (15'): barrier to keyboard/mouseMax. 5 m (15'): host pc to keyboard/mouse |
| EU-type examination certificate | DEMKO 14ATEX1269806X |
| Marking II 3G Ex ec [ic Gc] IIC T6 Gc [exsign] II (3)D [Ex ic Dc] IIIB | Marking II 3G Ex ec [ic Gc] IIC T6 Gc [exsign] II (3)D [Ex ic Dc] IIIB |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN IEC 60079-0:2018/A11:2024 EN IEC 60079-7:2015/A1:2018 EN 60079-11:2012 | Directive 2014/34/EUEN IEC 60079-0:2018/A11:2024 EN IEC 60079-7:2015/A1:2018 EN 60079-11:2012 |
| Marking | II 3G Ex ec [ic Gc] IIC T6 Gc [exsign] II (3)D [Ex ic Dc] IIIB |
| Directive 2014/34/EU | EN IEC 60079-0:2018/A11:2024 EN IEC 60079-7:2015/A1:2018 EN 60079-11:2012 |
| UL approval | cULus (E106378) |
| Control drawing116-0337CApproved forMountable inClass I, Division 2, Groups A, B, C, DProviding non-incendive field wiring at field terminals toClass I, Division 2, Groups A, B, C, DClass II, Division 2, Groups F, GClass IIITemperature Class T6 Mountable inClass I, Zone 2Providing intrinsic safety wiring at field terminals for hazardous locations US:Class I Zone 2, AEx ec [ic Gc] IIC T6 GcClass I Zone 2, [AEx ic Dc] IIIBCAN:Ex ec [ic Gc] IIC T6 Gc X[Ex ic Dc] IIIB X | Control drawing116-0337CApproved forMountable inClass I, Division 2, Groups A, B, C, DProviding non-incendive field wiring at field terminals toClass I, Division 2, Groups A, B, C, DClass II, Division 2, Groups F, GClass IIITemperature Class T6 Mountable inClass I, Zone 2Providing intrinsic safety wiring at field terminals for hazardous locations US:Class I Zone 2, AEx ec [ic Gc] IIC T6 GcClass I Zone 2, [AEx ic Dc] IIIBCAN:Ex ec [ic Gc] IIC T6 Gc X[Ex ic Dc] IIIB X |
| IECEx approval | IECEx UL 14.0017X |
| Approved forEx ec [ic Gc] IIC T6 Gc [Ex ic Dc] IIIBStandardsIEC 60079-0:2017 Ed 7.0 IEC 60079-7:2015 Ed 5.1 IEC 60079-11:2011 Ed 6.0 | Approved forEx ec [ic Gc] IIC T6 Gc [Ex ic Dc] IIIBStandardsIEC 60079-0:2017 Ed 7.0 IEC 60079-7:2015 Ed 5.1 IEC 60079-11:2011 Ed 6.0 |
| Control drawing | 116-0337C |
| Approved for | Mountable inClass I, Division 2, Groups A, B, C, DProviding non-incendive field wiring at field terminals toClass I, Division 2, Groups A, B, C, DClass II, Division 2, Groups F, GClass IIITemperature Class T6 Mountable inClass I, Zone 2Providing intrinsic safety wiring at field terminals for hazardous locations US:Class I Zone 2, AEx ec [ic Gc] IIC T6 GcClass I Zone 2, [AEx ic Dc] IIIBCAN:Ex ec [ic Gc] IIC T6 Gc X[Ex ic Dc] IIIB X |
| Approved for | Ex ec [ic Gc] IIC T6 Gc [Ex ic Dc] IIIB |
| Standards | IEC 60079-0:2017 Ed 7.0 IEC 60079-7:2015 Ed 5.1 IEC 60079-11:2011 Ed 6.0 |
