SK-PC-Z1D1-UU1-10-HS

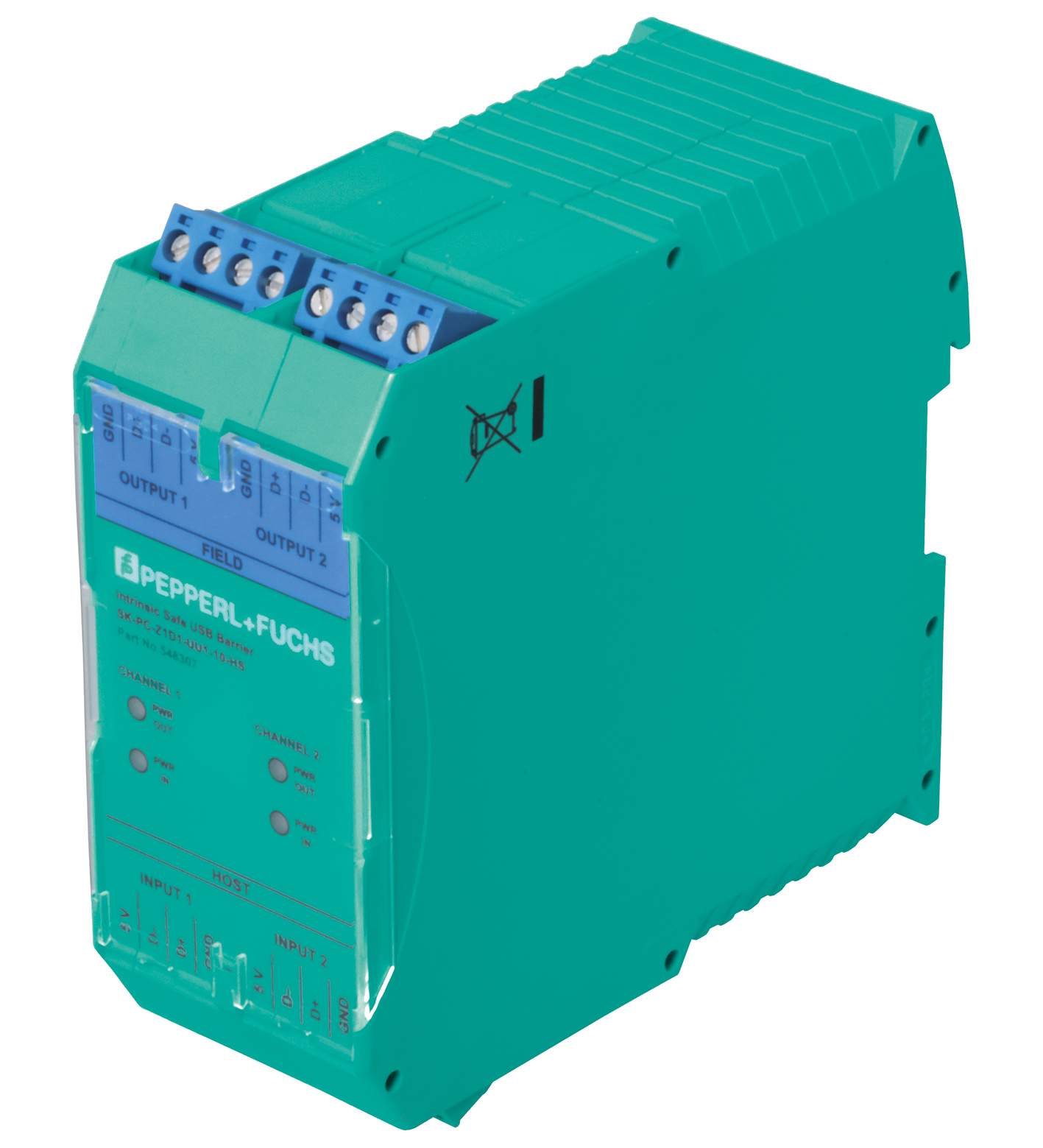

SK-PC-Z1D1-UU1-10-HS USB Intrinsic Safety Barrier

订货号: 548307
产品分类: 外围设备

USB intrinsic safety barrier for stand-alone keyboard applications

查看规格参数资料与附件

TECHNICAL DATA

规格参数

Supply

Input voltage	4.75 ... 5.1 V DC (Um = 60 V SELV/PELV)
Input current	max. 200 mA
Power consumption	max. 2.7 W
Indicators	LED PWR IN: green: input voltage OK LED PWR OUT: green: output voltage OK
Interface type	4-screw terminal MSTBT 2.5 HC / 4-STP GY7035 USB 2.0 compatible
Output current	max. 80 mA
Output voltage	4.4 ... 5 VDC
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations) , EN 61000-6-4:2007+A1:2011	Directive 2014/30/EUEN 61326-1:2013 (industrial locations) , EN 61000-6-4:2007+A1:2011
RoHS	RoHS
Directive 2011/65/EU (RoHS)EN 50581:2012-09	Directive 2011/65/EU (RoHS)EN 50581:2012-09
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations) , EN 61000-6-4:2007+A1:2011
Directive 2011/65/EU (RoHS)	EN 50581:2012-09
Operating temperature	-20 ... 60 °C (-4 ... 140 °F) -20 °C ≤ Ta ≤ 60 °C / 70 °C (depending on installation conditions)
Storage temperature	-40 ... 85 °C (-40 ... 185 °F)
Relative humidity	< 95 % non-condensing
Shock resistance	18 shocks 15 g , 11 ms all axis, IEC 60068-2-27
Vibration resistance	10 ... 150 Hz , ± 0.075 mm, 1 g, 10 cycles per axis according to EN 60068-2-6
Degree of protection	IP20
Material	ME MAX 45 2-2 KMGY-2713706 refer to 42-3388
Cable	shielded cables must be used
Mass	approx. 220 g

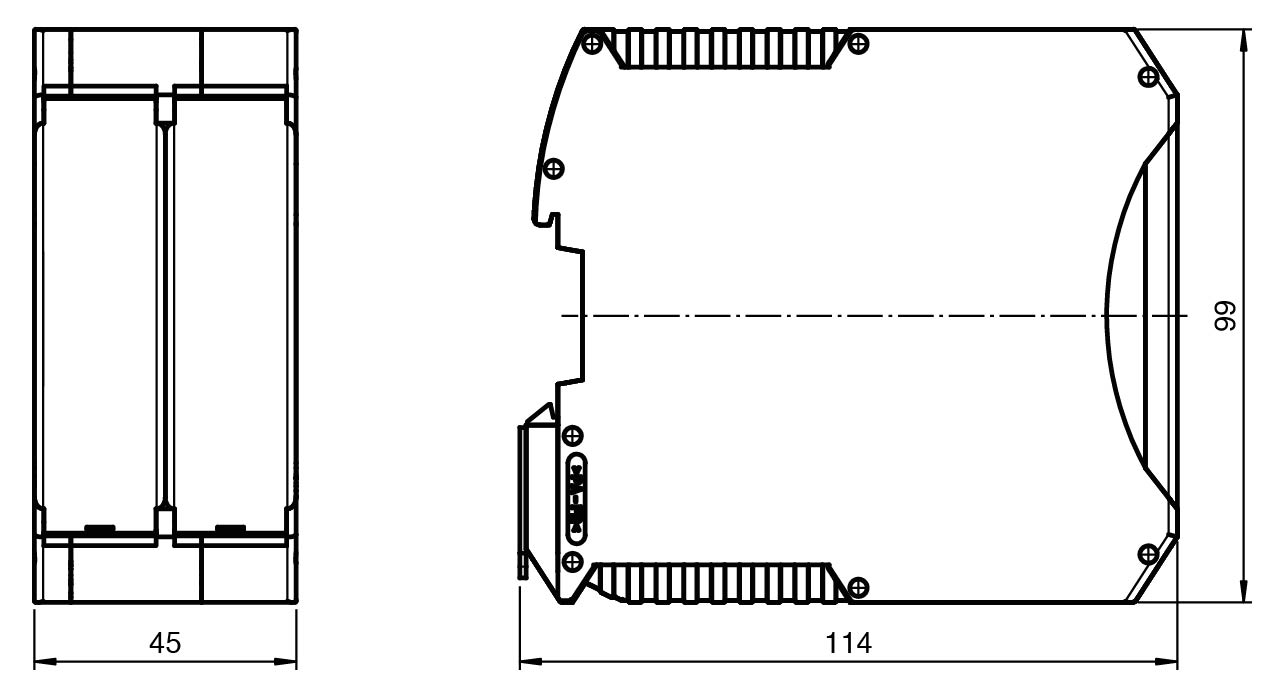

Dimensions	45 mm x 99 mm x 114 mm
Mounting	DIN rail mounting
Cable length	5 m before device , 5 m after device , 10 m total
EU-type examination certificate	EXA 18 ATEX 0054X
Marking II 3(2) G Ex ec [ib Gb] IIC T4 Gc [exsign] II (2) D [Ex ib Db] IIIC	Marking II 3(2) G Ex ec [ib Gb] IIC T4 Gc [exsign] II (2) D [Ex ib Db] IIIC
Directive conformity	Directive conformity
Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-7:2015 , EN 60079-11:2012	Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-7:2015 , EN 60079-11:2012
Marking	II 3(2) G Ex ec [ib Gb] IIC T4 Gc [exsign] II (2) D [Ex ib Db] IIIC
Directive 2014/34/EU	EN 60079-0:2012+A11:2013 , EN 60079-7:2015 , EN 60079-11:2012
IECEx approval	IECEx EXA 18.0008X
Approved forEx ec [ib Gb] IIC T4 Gc [Ex ib Db] IIICStandardsIEC 60079-0:2017 , IEC 60079-7:2015 , IEC 60079-11:2011	Approved forEx ec [ib Gb] IIC T4 Gc [Ex ib Db] IIICStandardsIEC 60079-0:2017 , IEC 60079-7:2015 , IEC 60079-11:2011
Approved for	Ex ec [ib Gb] IIC T4 Gc [Ex ib Db] IIIC
Standards	IEC 60079-0:2017 , IEC 60079-7:2015 , IEC 60079-11:2011
