TECHNICAL DATA
规格参数
Supply
| Input voltage | 10 ... 30 VDC (Redundant) |
|---|---|
| Power consumption | 2 W typical |
| Input devices | fiber optic (multimode) SC connectors |
| Electromagnetic compatibility | FCC part 15, ICES-003; EN61000-6-4, CEEN61000-6-2, CE |
| Operating temperature | -10 ... 60 °C (14 ... 140 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | 5 ... 95 %, non-condensing |
| Vibration resistance | IEC60068-2-6 |
| Degree of protection | IP30 |
| Connection | SC type |
| Material | Case: UL94V0 Lexan |
| Mass | 0.11 kg |

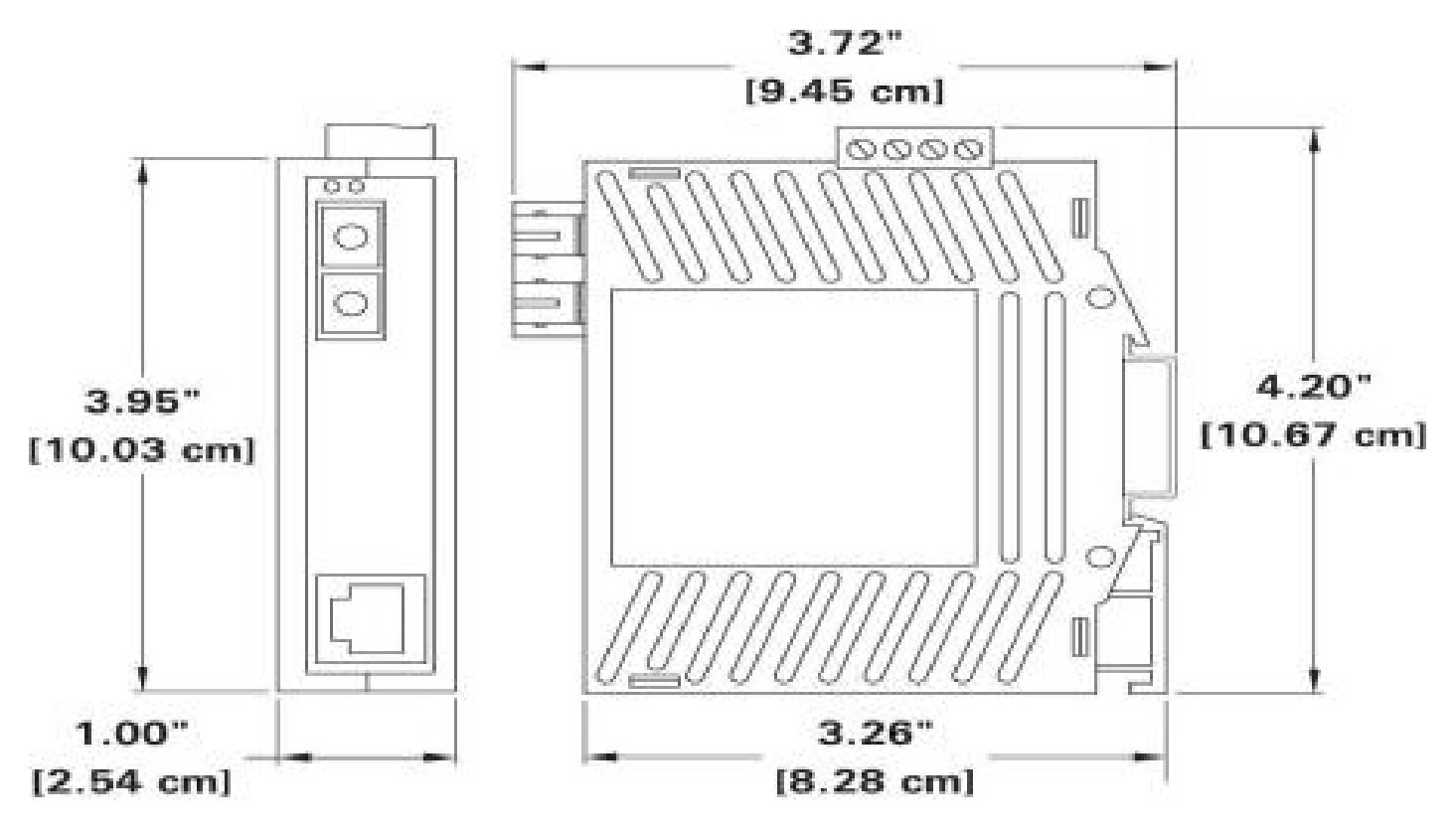

| Dimensions | see mechanical drawing |
| Mounting | DIN rail or direct panel mounting |
| EU-type examination certificate | EN60079-15 (Zone 2, Category 3), CE |
| UL approval | UL 508/CSA C22.2/14, EN61010-1, CEUL 1604/CSA C22.2/213 (Class I, Div. 2) |
