TECHNICAL DATA
规格参数
Hardware
| Scanner | Scanner |
|---|---|
| Scan engineSE4107 1D/2D-ScanmoduleSensor technologyRolling shutterResolution1280 x 960 pixels, 1.3 MPAimergreen LEDIlluminationwhiteField of viewHorizontal: 44.5°, vertical: 33.5°Focal distanceFrom front of scan engine: 15.24 cmOrientation toleranceSkew tolerance: ±60°Pitch tolerance: ±60°Roll tolerance: 360°Supported barcode symbologies5 mil Code 39, 5 mil Code 128, PDF 417, DataMatrix: 10 mil, 100 % UPCA, 15 mil QR, 20 mil QR Note: The complete table listing the barcode symbologies and their corresponding decode ranges can be found at the bottom of this datasheet. | Scan engineSE4107 1D/2D-ScanmoduleSensor technologyRolling shutterResolution1280 x 960 pixels, 1.3 MPAimergreen LEDIlluminationwhiteField of viewHorizontal: 44.5°, vertical: 33.5°Focal distanceFrom front of scan engine: 15.24 cmOrientation toleranceSkew tolerance: ±60°Pitch tolerance: ±60°Roll tolerance: 360°Supported barcode symbologies5 mil Code 39, 5 mil Code 128, PDF 417, DataMatrix: 10 mil, 100 % UPCA, 15 mil QR, 20 mil QR Note: The complete table listing the barcode symbologies and their corresponding decode ranges can be found at the bottom of this datasheet. |

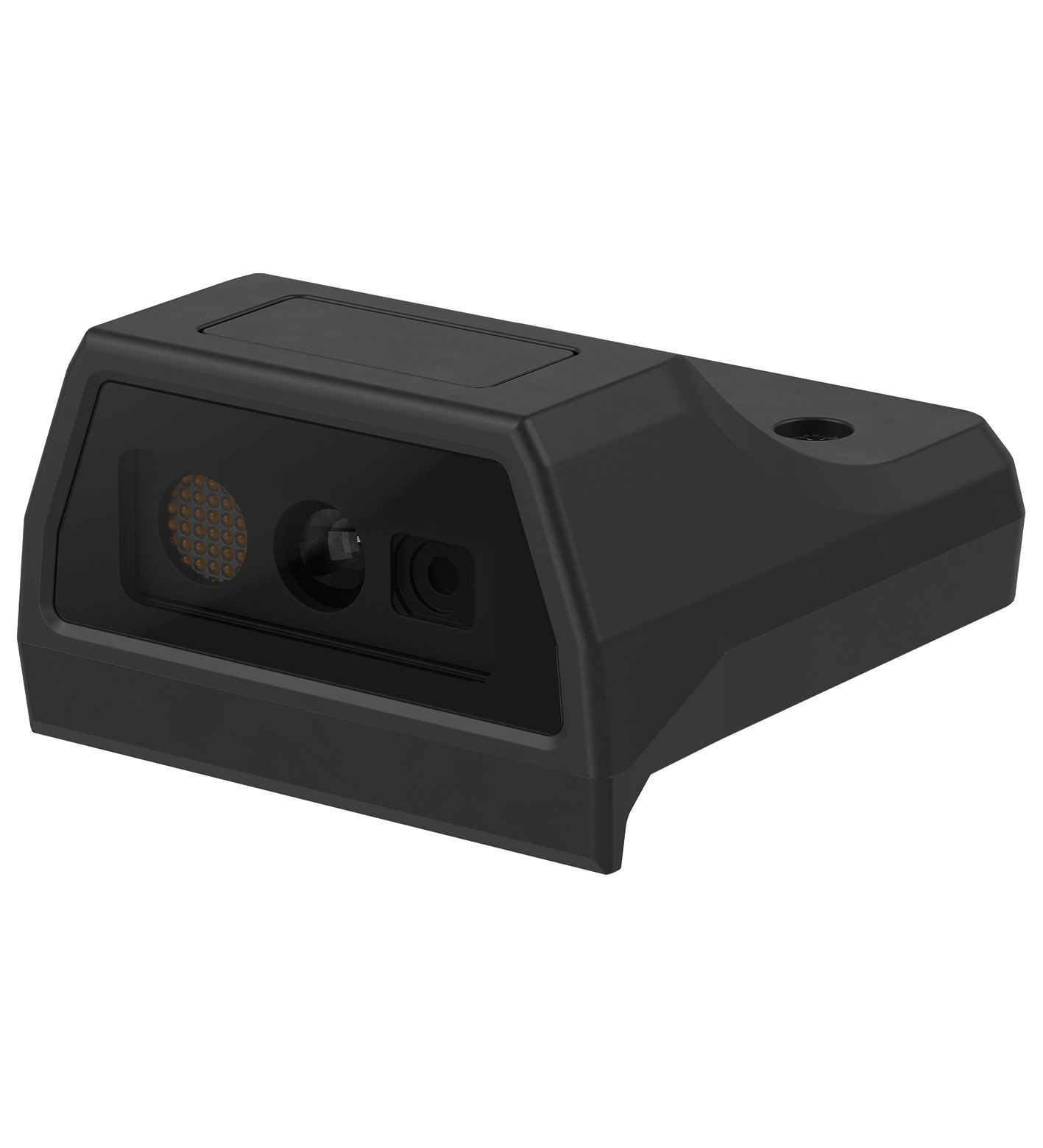

| Scan engine | SE4107 1D/2D-Scanmodule |
| Sensor technology | Rolling shutter |
| Resolution | 1280 x 960 pixels, 1.3 MP |
| Aimer | green LED |
| Illumination | white |
| Field of view | Horizontal: 44.5°, vertical: 33.5° |
| Focal distance | From front of scan engine: 15.24 cm |
| Orientation tolerance | Skew tolerance: ±60°Pitch tolerance: ±60°Roll tolerance: 360° |
| Supported barcode symbologies | 5 mil Code 39, 5 mil Code 128, PDF 417, DataMatrix: 10 mil, 100 % UPCA, 15 mil QR, 20 mil QR Note: The complete table listing the barcode symbologies and their corresponding decode ranges can be found at the bottom of this datasheet. |
| Operating temperature | -20 ... 50 °C (-4 ... 122 °F) |
| Storage temperature | -30 ... 70 °C (-22 ... 158 °F) Scanner module only, without device. |
| Mass | 25 g |
| Dimensions | Dimensions |
| W x H x D39 mm x 20.8 mm x 41.4 mmHeight20.8 mmWidth39 mmDepth41.4 mm | W x H x D39 mm x 20.8 mm x 41.4 mmHeight20.8 mmWidth39 mmDepth41.4 mm |
| W x H x D | 39 mm x 20.8 mm x 41.4 mm |
| Height | 20.8 mm |
| Width | 39 mm |
| Depth | 41.4 mm |
| Note | The certifications indicated above with logos are only valid in combination with the Smart-Ex 203. For more information, visit the Zebra website:https://www.zebra.com/gb/en/products/spec-sheets/oem/oem-engines/oem-array-imager-scan-engines/se4100-se4107.html. |
| Series | Smart-Ex® 203 |
