TECHNICAL DATA
规格参数
General specifications
| Design / Mounting | Outside installation |
|---|---|

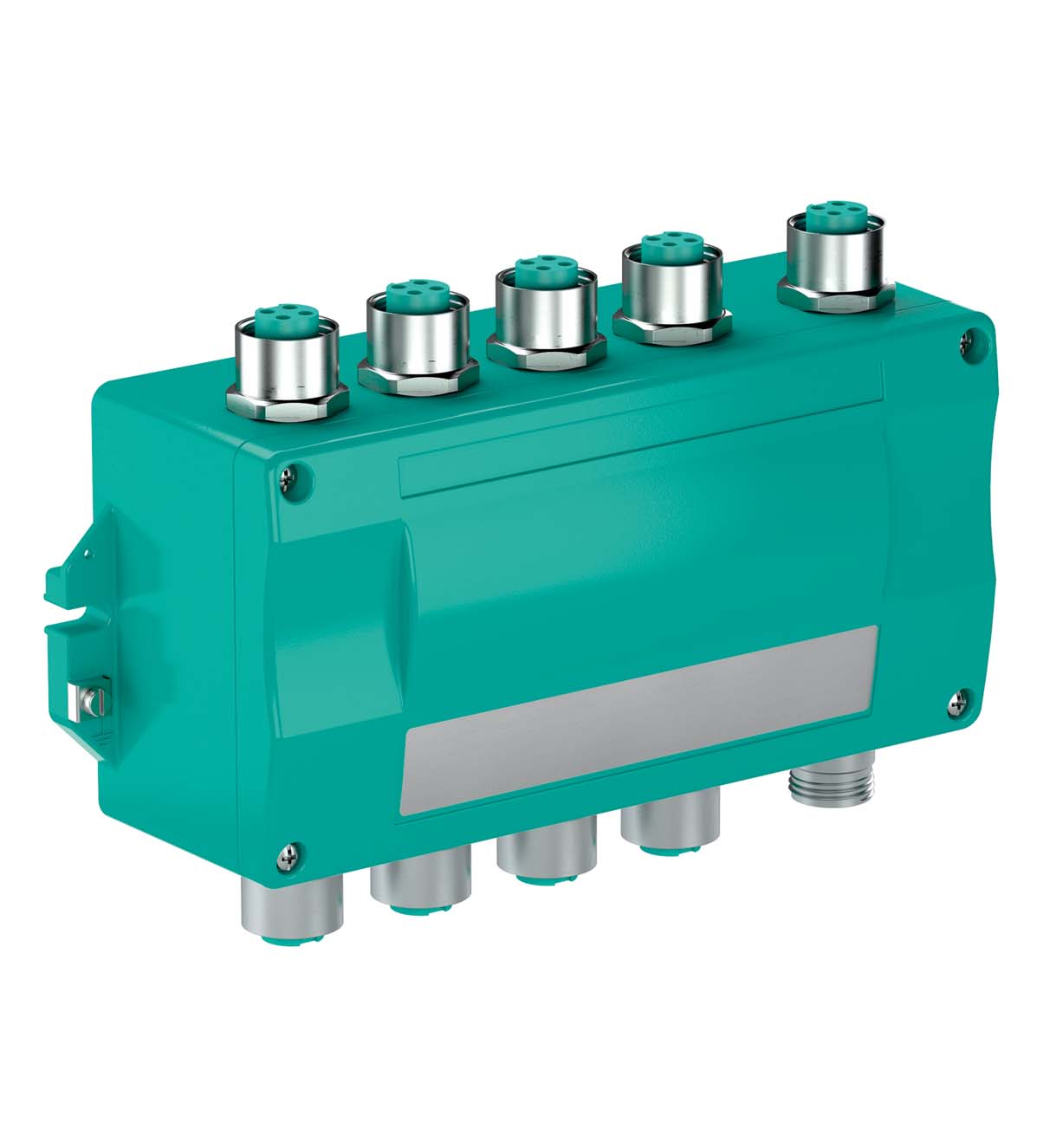

| Installed components | Segment Protector R2-SP-IC* For technical data on installed electronic component see data sheet. |
| Degree of protection | EN 60529 |
| Ambient temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | 95 % , no moisture condensation |
| Enclosure cover | detachable cover with retaining screws |
| Degree of protection | IP67 |
| Cable entry | cable gland and stopping plug options see separate table |
| Material | Material |
| HousingAluminumSurfaceepoxy polyester paintSealPolyurethane (PUR) , one-pieceMaterial thicknessenclosure body: 4 mmenclosure cover: 3 mm | HousingAluminumSurfaceepoxy polyester paintSealPolyurethane (PUR) , one-pieceMaterial thicknessenclosure body: 4 mmenclosure cover: 3 mm |
| Dimensions | (W x H x D) 114 x 258 x 84 mm |
| Mounting | panel mount with M6 slots |
| Grounding | grounding bolt on enclosure body and enclosure cover |
| Housing | Aluminum |
| Surface | epoxy polyester paint |
| Seal | Polyurethane (PUR) , one-piece |
| Material thickness | enclosure body: 4 mmenclosure cover: 3 mm |
