TECHNICAL DATA
规格参数
General specifications

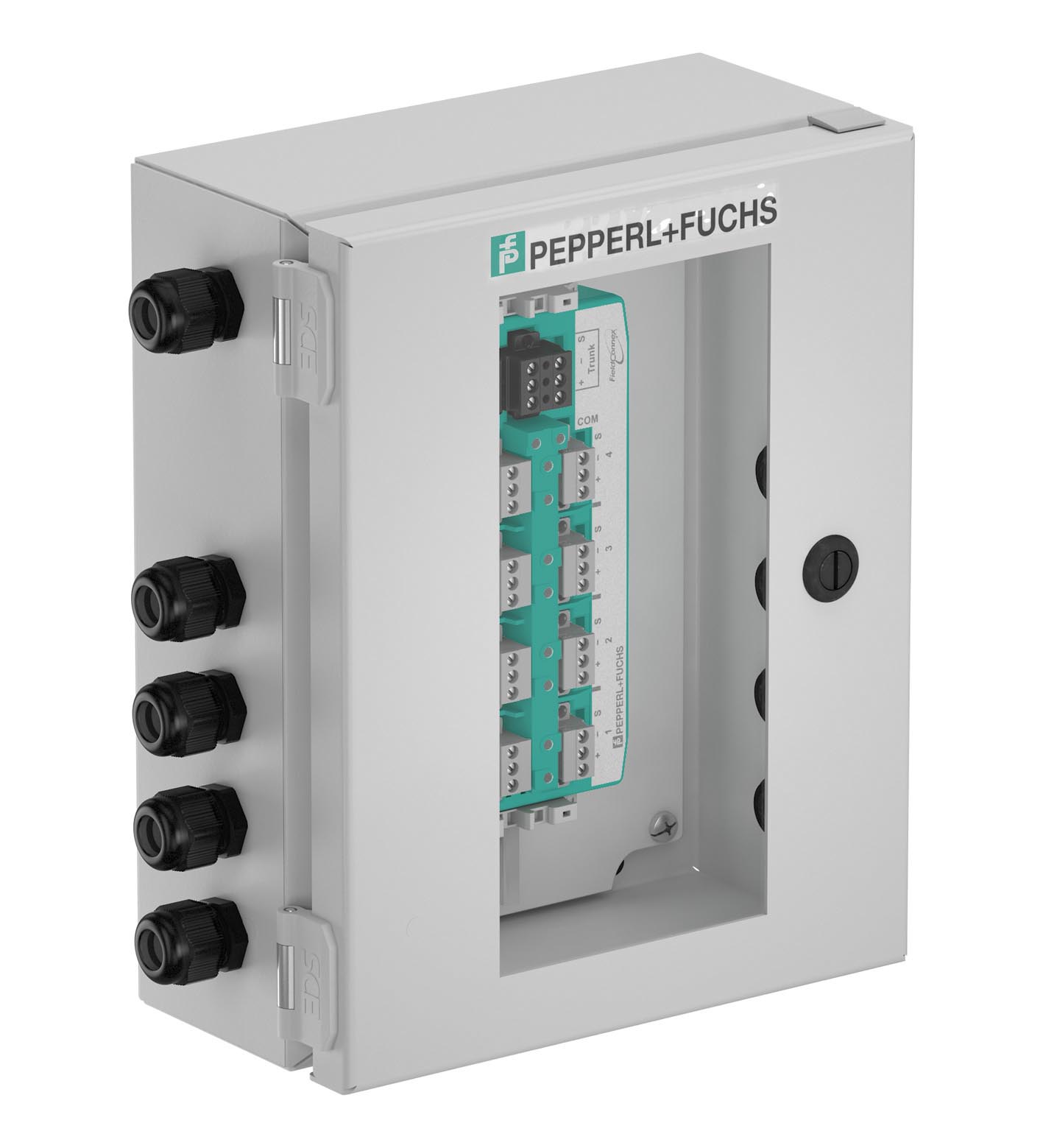

| Design / Mounting | Outside installation |
|---|---|

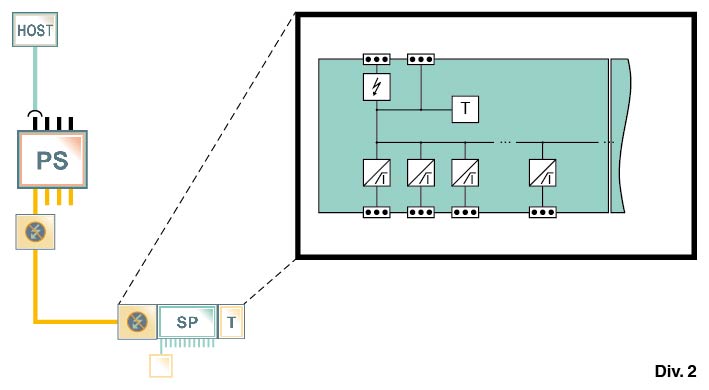

| Installed components | Segment Protector R2-SP-IC* For technical data on installed electronic component see data sheet. |
| Degree of protection | EN 60529 |
| Ambient temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | 95 % , no moisture condensation |
| Enclosure cover | hinged door with cam lock |
| Degree of protection | IP66, NEMA 4, NEMA 4X, NEMA 12 |
| Cable entry | cable gland and stopping plug options see separate table |
| Material | Material |
| HousingSteelSurfacegray paintSealoil-resistant, one pieceMaterial thicknessenclosure body, enclosure cover: 1.6 mm window: 6 mm | HousingSteelSurfacegray paintSealoil-resistant, one pieceMaterial thicknessenclosure body, enclosure cover: 1.6 mm window: 6 mm |
| Dimensions | (W x H x D) 203 x 254 x 102 mm window size: 197 x 95 mm |
| Mounting | thru-holes Ø6.4 mm |
| Grounding | grounding bolt on enclosure body and enclosure cover |
| Housing | Steel |
| Surface | gray paint |
| Seal | oil-resistant, one piece |
| Material thickness | enclosure body, enclosure cover: 1.6 mm window: 6 mm |
