TECHNICAL DATA
规格参数
General specifications
| Design / Mounting | Outside installation |
|---|---|

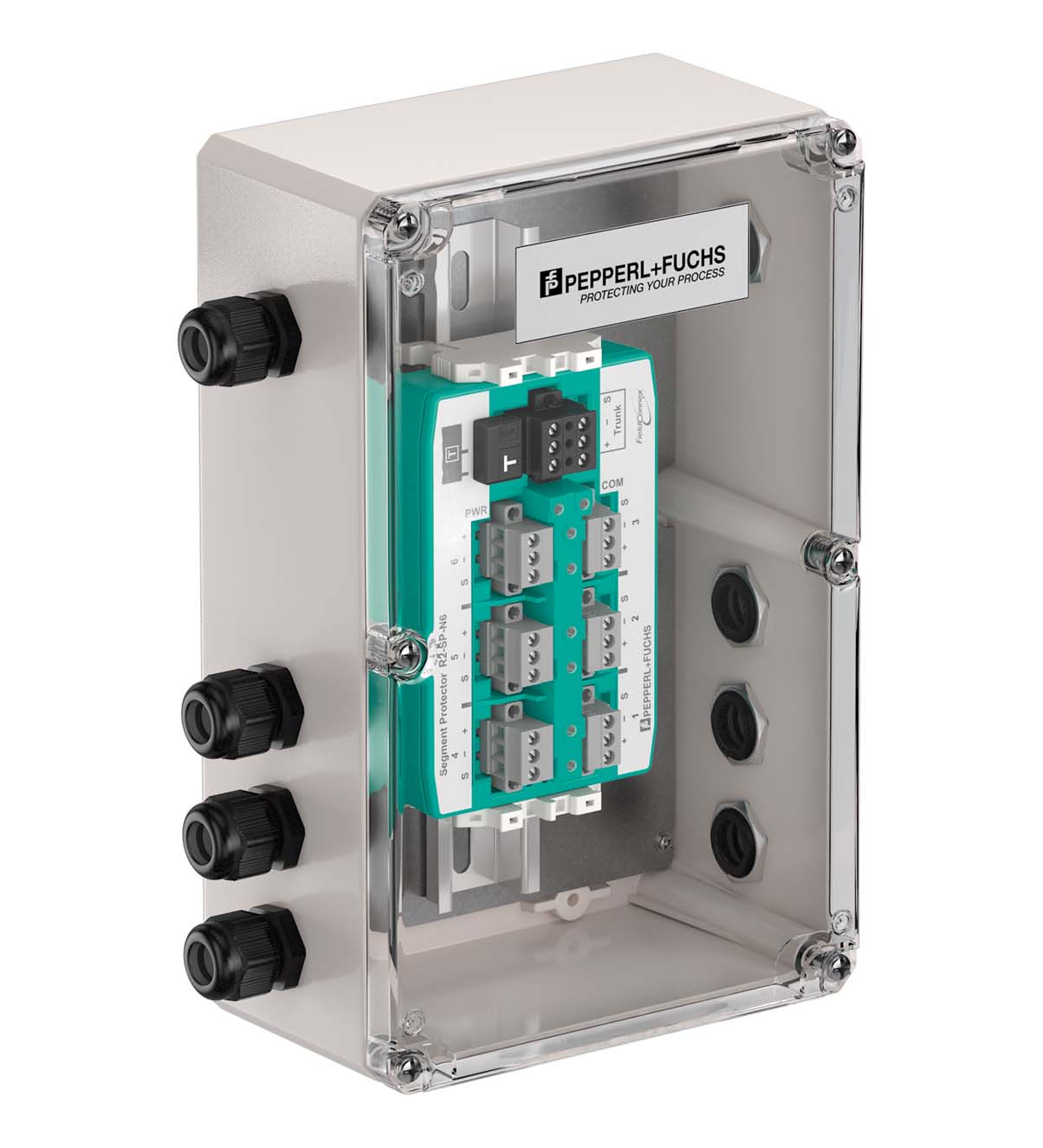

| Installed components | Segment Protector R2-SP-IC* For technical data on installed electronic component see data sheet. |
| Degree of protection | EN 60529 |
| Ambient temperature | -35 ... 70 °C (-31 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | 95 % , no moisture condensation |
| Enclosure cover | detachable cover with retaining screws |
| Degree of protection | IP67, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, NEMA 13 |
| Cable entry | cable gland and stopping plug options see separate table |
| Material | Material |
| Housingpolycarbonate, impact resistantSealPolyurethane (PUR) , one-pieceMaterial thicknessenclosure body: 4 mmenclosure cover: 3 mm | Housingpolycarbonate, impact resistantSealPolyurethane (PUR) , one-pieceMaterial thicknessenclosure body: 4 mmenclosure cover: 3 mm |
| Dimensions | (W x H x D) 160 x 240 x 90 mm |
| Mounting | holes Ø4.5 mm |
| Housing | polycarbonate, impact resistant |
| Seal | Polyurethane (PUR) , one-piece |
| Material thickness | enclosure body: 4 mmenclosure cover: 3 mm |
