TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | 400 V AC max. |
|---|---|
| Operating current | 16 A max. |
| Terminal capacity | 2.5 mm2 |
| Terminal torque0.8 Nm | Terminal torque0.8 Nm |
| Terminal torque | 0.8 Nm |
| Enclosure cover | fully detachable |
| Cover fixing | Stainless steel A4 (V4A) combination pozi driv and slotted screw , optional quarter-turn key locks |
| Cover seal | silicone |
| Degree of protection | IP66 |
| Cable entry | cable glands as per specification |
| Gland plate on face(s)optional | Gland plate on face(s)optional |
| Material | Material |
| Enclosure1.5 mm AISI 316L, (1.4404) stainless steelGland plateoptional 3 mm or 6 mm AISI 316L (1.4404) stainless steelFinishbrushed | Enclosure1.5 mm AISI 316L, (1.4404) stainless steelGland plateoptional 3 mm or 6 mm AISI 316L (1.4404) stainless steelFinishbrushed |
| Mass | see data table valid for empty enclosure, will increase according to integrated components |
| Dimensions | see data table |
| Mounting | screws , optional mounting brackets enclosed |
| Grounding | M6 internal/external brass nickel-plated grounding bolt M6 internal stainless steel grounding bolt welded to lid M6 internal stainless steel grounding bolt welded to enclosure body |
| Gland plate on face(s) | optional |
| Enclosure | 1.5 mm AISI 316L, (1.4404) stainless steel |
| Gland plate | optional 3 mm or 6 mm AISI 316L (1.4404) stainless steel |
| Finish | brushed |
| Ambient temperature | -50 ... 55 °C (-58 ... 131 °F) depending on integrated components |
| EU-type examination certificate | CML 16 ATEX 3009X |
| Marking II 2 GD Ex db eb IIC T* Gb, Ex tb IIIC T** Db orEx db eb mb IIC T* Gb, Ex tb IIIC T** Db orEx db eb op pr IIC T* Gb, Ex tb IIIC T** Db orEx ib IIC T* Gb, Ex tb IIIC T** Db orEx db eb ib mb op pr IIC T* Gb, Ex tb IIIC T** Db T6/T80 °C @ Ta +40 °C T5/T95 °C @ Ta +55 °C T4/T130 °C @ Ta +55 °C | Marking II 2 GD Ex db eb IIC T* Gb, Ex tb IIIC T** Db orEx db eb mb IIC T* Gb, Ex tb IIIC T** Db orEx db eb op pr IIC T* Gb, Ex tb IIIC T** Db orEx ib IIC T* Gb, Ex tb IIIC T** Db orEx db eb ib mb op pr IIC T* Gb, Ex tb IIIC T** Db T6/T80 °C @ Ta +40 °C T5/T95 °C @ Ta +55 °C T4/T130 °C @ Ta +55 °C |
| Marking | II 2 GD Ex db eb IIC T* Gb, Ex tb IIIC T** Db orEx db eb mb IIC T* Gb, Ex tb IIIC T** Db orEx db eb op pr IIC T* Gb, Ex tb IIIC T** Db orEx ib IIC T* Gb, Ex tb IIIC T** Db orEx db eb ib mb op pr IIC T* Gb, Ex tb IIIC T** Db T6/T80 °C @ Ta +40 °C T5/T95 °C @ Ta +55 °C T4/T130 °C @ Ta +55 °C |
| IECEx approval | IECEx CML 16.0008X |
| UKCA approval | CML 22 UKEX 2550X |
| ECAS approval | 24-11-132356/E24-11-137186/NB0002 |
| IA approval | MASC S/22-8362X |
| CCC approval | 2020322304002545 |
| Degree of protection | EN60529 |
| CE marking | 2829 |
| Order information | This device will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
| Optional accessories | Mounting plate M6 internal/external stainless steel grounding bolt cover hinges stainless steel AISI 316L gland plate 3 mm AISI 316L (1.4404) stainless steelgland plate 6 mm AISI 316L (1.4404) stainless steel M6 internal stainless steel grounding bolt welded to bottom gland plate quarter-turn key locks stainless steel A4 (V4A) engraved traffolyte tag labelengraved AISI 316L stainless steel tag labelcolor in-fill stainless steel tag label cover padlock facility eyebolts door handles |

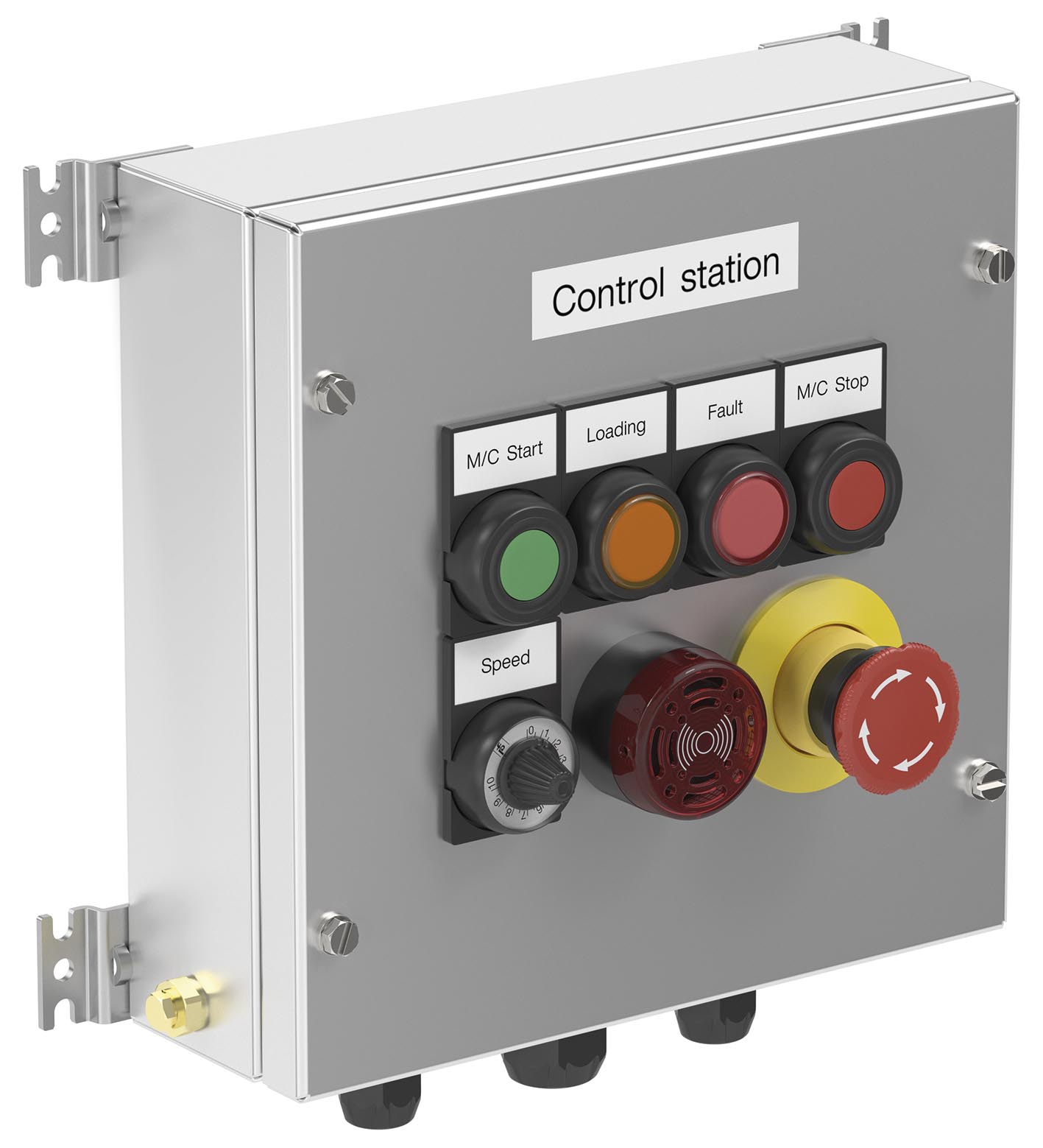

| Control elements | small footprint max. 102 see data table all NC contacts have a direct opening action for emergency stop functions |
