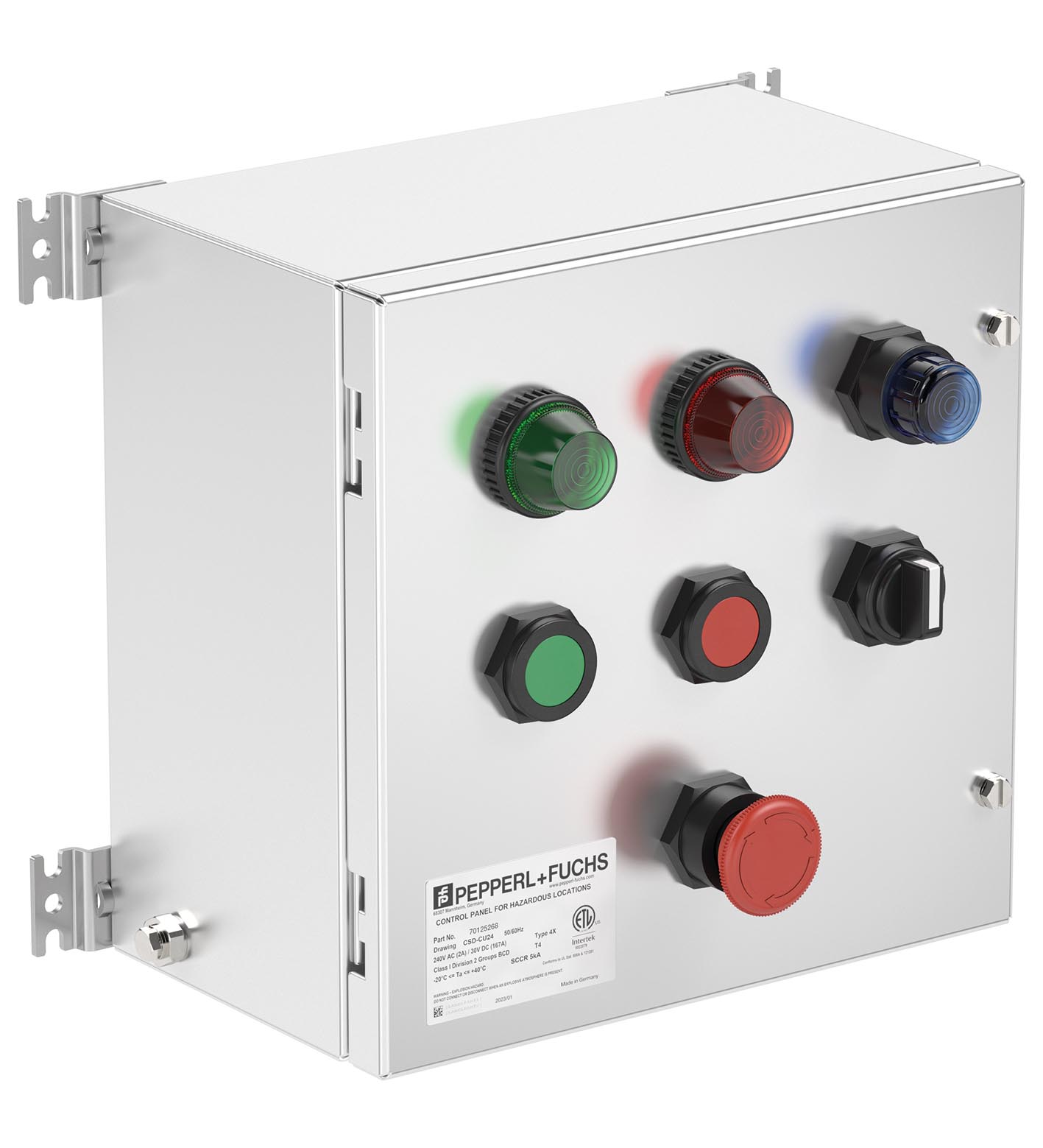

TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | 250 V AC max. |
|---|---|
| Operating current | 5 A max. |
| Terminal capacity | 2.5 mm2 |
| Terminal torque0.8 Nm ... 1.2 Nm | Terminal torque0.8 Nm ... 1.2 Nm |
| Terminal torque | 0.8 Nm ... 1.2 Nm |
| Enclosure cover | fully detachable , hinged |
| Cover fixing | Stainless steel A4 (V4A) combination pozi driv and slotted screw , optional quarter-turn key locks |
| Cover seal | silicone |
| Degree of protection | Type 4X |
| Cable entry | cable glands as per specification |
| Gland plate on face(s)optional | Gland plate on face(s)optional |
| Material | Material |
| Enclosure1.5 mm AISI 316L, (1.4404) stainless steelGland plateoptional 3 mm or 6 mm AISI 316L (1.4404) stainless steelFinishbrushed | Enclosure1.5 mm AISI 316L, (1.4404) stainless steelGland plateoptional 3 mm or 6 mm AISI 316L (1.4404) stainless steelFinishbrushed |
| Mass | see data table valid for empty enclosure, will increase according to integrated components |

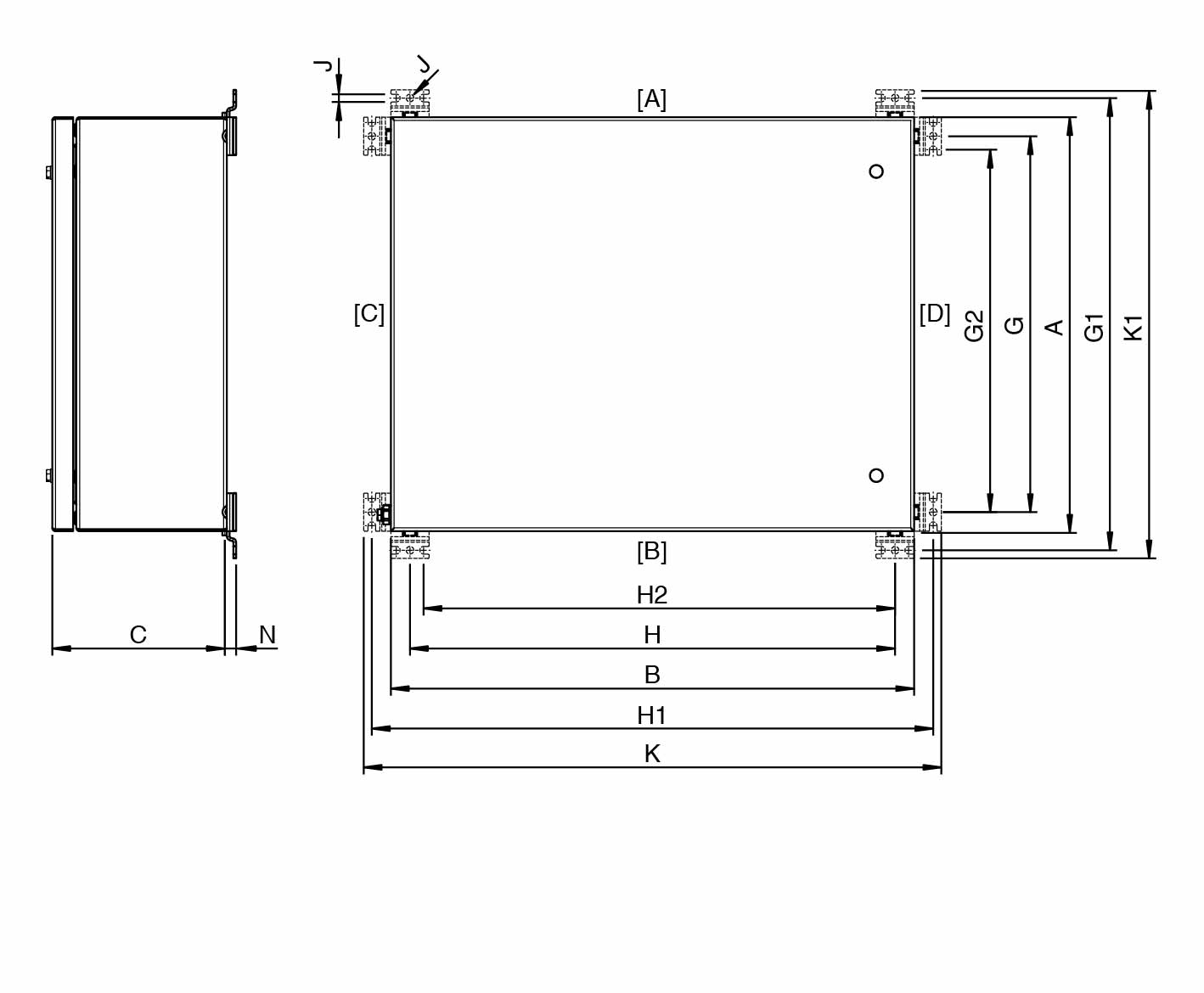

| Dimensions | see data table |
| Mounting | screws , optional mounting brackets enclosed |
| Grounding | M6 internal/external brass nickel-plated grounding bolt M6 internal stainless steel grounding bolt welded to lid M6 internal stainless steel grounding bolt welded to enclosure body |
| Gland plate on face(s) | optional |
| Enclosure | 1.5 mm AISI 316L, (1.4404) stainless steel |
| Gland plate | optional 3 mm or 6 mm AISI 316L (1.4404) stainless steel |
| Finish | brushed |
| Ambient temperature | -40 ... 55 °C (-40 ... 131 °F) depending on integrated components |
| ETL approval | ETL approval |
| ETL certificateIntertek 5003368 , Intertek 5022079Approved forClass I, Division 2, Groups A, B, C, DcETLusaccording to UL 508A , UL 121201 , CSA C22.2, No. 213, 286Ambient temperature-25 ... 40 °C (-13 ... 104 °F) T6 -40 ... 55 °C (-40 ... 131 °F) T5 | ETL certificateIntertek 5003368 , Intertek 5022079Approved forClass I, Division 2, Groups A, B, C, DcETLusaccording to UL 508A , UL 121201 , CSA C22.2, No. 213, 286Ambient temperature-25 ... 40 °C (-13 ... 104 °F) T6 -40 ... 55 °C (-40 ... 131 °F) T5 |
| ETL certificate | Intertek 5003368 , Intertek 5022079 |
| Approved for | Class I, Division 2, Groups A, B, C, D |
| cETLus | according to UL 508A , UL 121201 , CSA C22.2, No. 213, 286 |
| Ambient temperature | -25 ... 40 °C (-13 ... 104 °F) T6 -40 ... 55 °C (-40 ... 131 °F) T5 |
| Degree of protection | UL 50 / UL 50E |
| Order information | This device will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
| Optional accessories | Mounting plate M6 internal/external stainless steel grounding bolt gland plate 3 mm AISI 316L (1.4404) stainless steelgland plate 6 mm AISI 316L (1.4404) stainless steel M6 internal stainless steel grounding bolt welded to bottom gland plate quarter-turn key locks stainless steel A4 (V4A) engraved traffolyte tag labelengraved AISI 316L stainless steel tag labelcolor in-fill stainless steel tag label cover padlock facility |
| Control elements | small footprint max. 107 see data table all NC contacts have a direct opening action for emergency stop functions |
