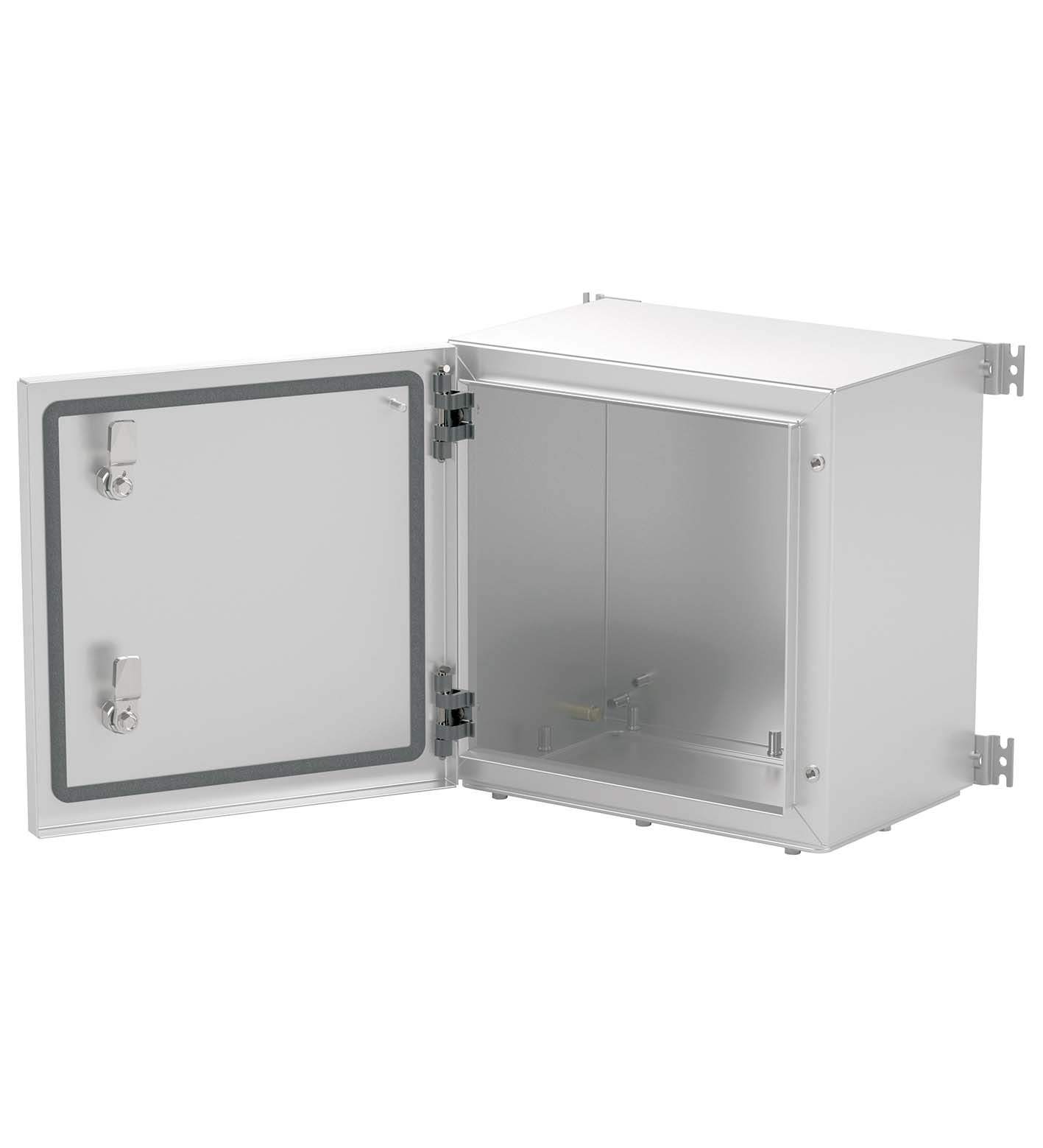

TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | 1100 V AC / DC max. for ATEX / IECEx 1000 V AC / DC max. for North American approvals |
|---|---|
| Operating current | 350 A max. , depending on size and certification |
| Enclosure cover | fully detachable |
| Cover fixing | Stainless steel A4 (V4A) combination pozi driv and slotted screw , optional quarter-turn key locks |
| Cover seal | silicone |
| Degree of protection | IP66 , Type 4X |
| Cable entry | see data table |
| Gland plate on face(s)optional | Gland plate on face(s)optional |
| Terminal assembly | Terminal assembly |
| Number of railssee data tableTerminal typeStandard see PDF datasheet, other terminal types optionalNumber of terminals per railsee data table | Number of railssee data tableTerminal typeStandard see PDF datasheet, other terminal types optionalNumber of terminals per railsee data table |
| Material | Material |
| Enclosure1.5 mm AISI 316L, (1.4404) stainless steelGland plateoptional 3 mm or 6 mm AISI 316L (1.4404) stainless steelFinishbrushed | Enclosure1.5 mm AISI 316L, (1.4404) stainless steelGland plateoptional 3 mm or 6 mm AISI 316L (1.4404) stainless steelFinishbrushed |
| Mass | see data table valid for empty enclosure, will increase according to integrated components |
| Shock resistance | IK09, IK10 |

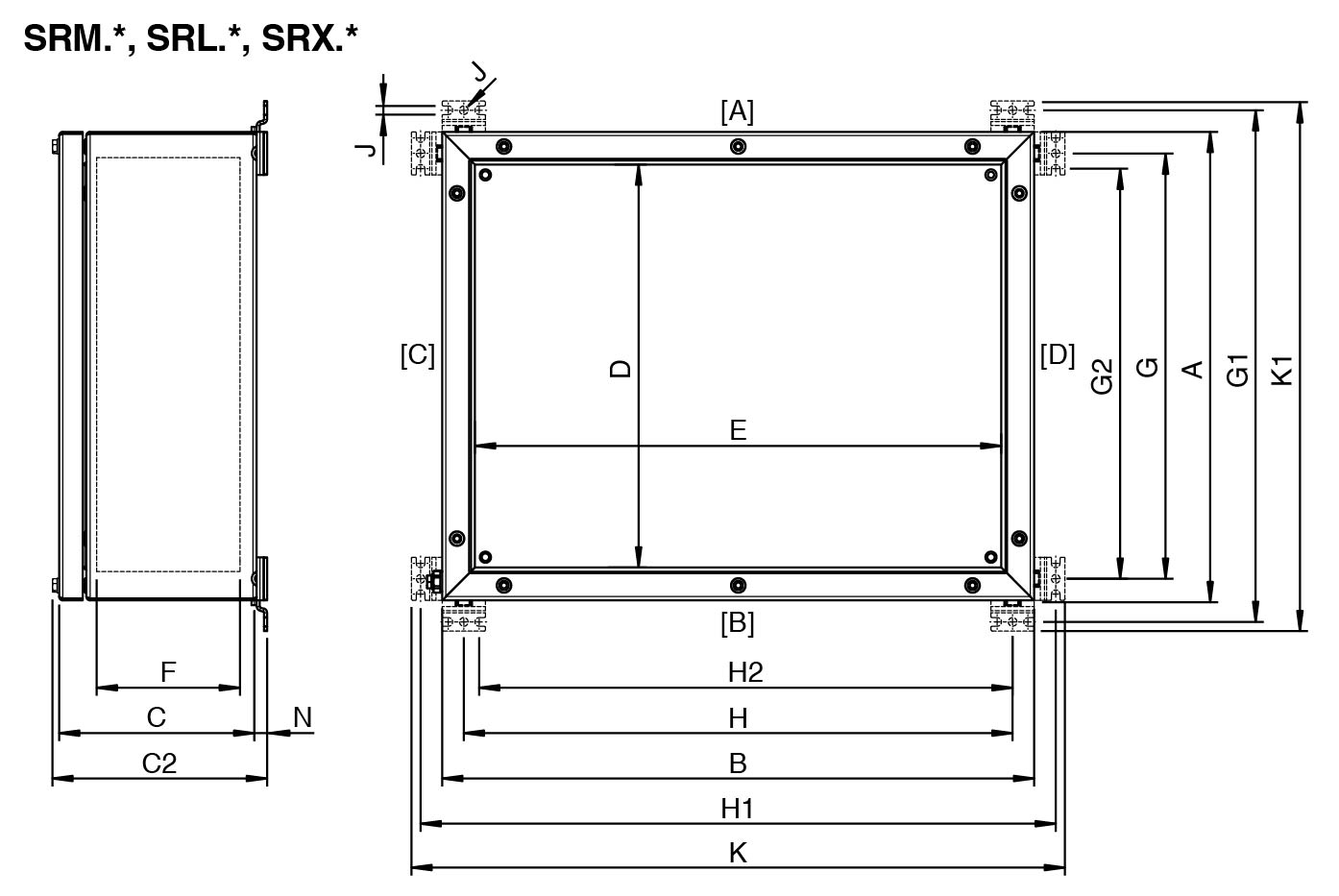

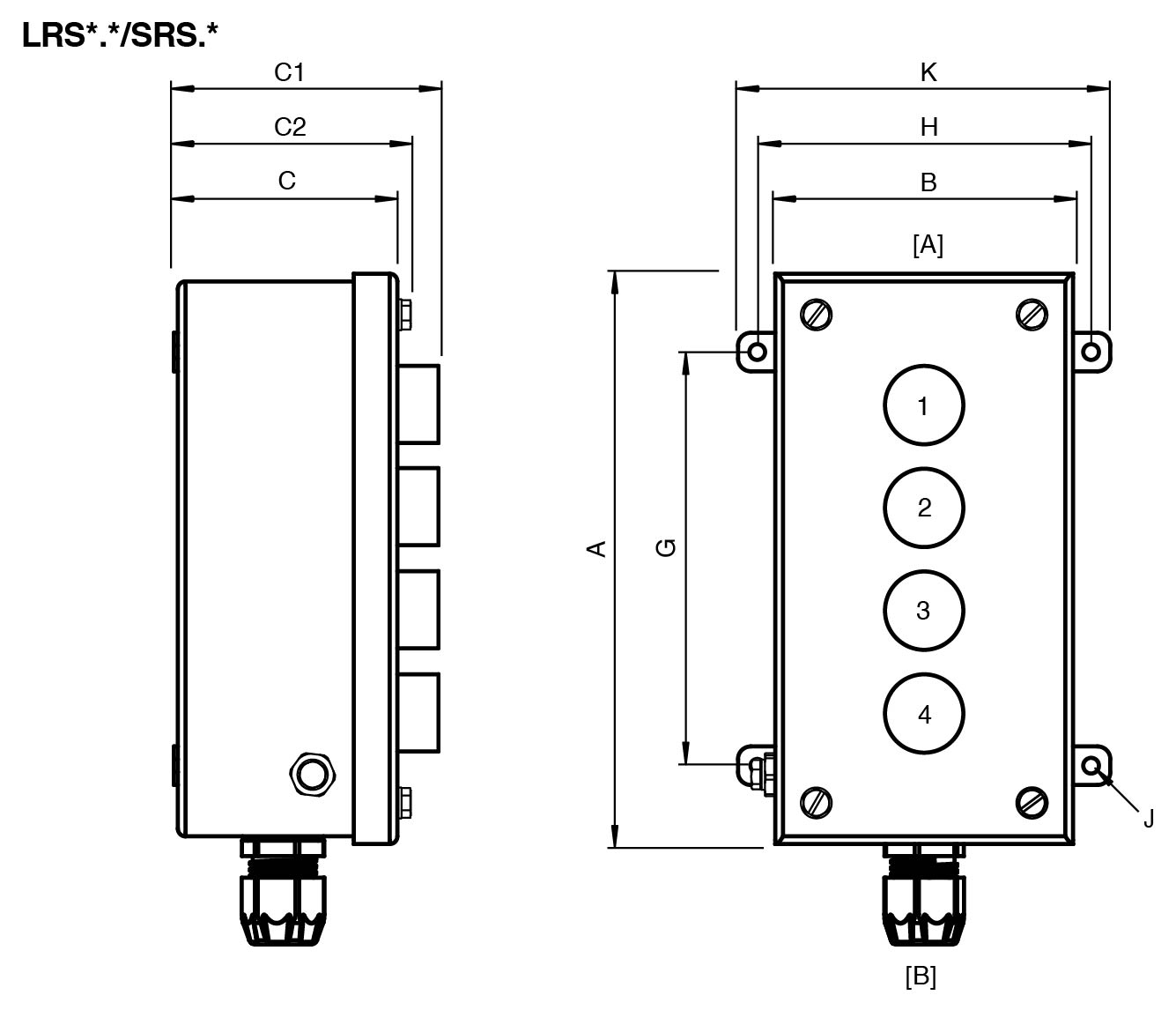

| Dimensions | see data table |
| Mounting | screws , optional mounting brackets enclosed |
| Grounding | M6 internal/external brass nickel-plated grounding bolt M6 internal stainless steel grounding bolt welded to lid M6 internal stainless steel grounding bolt welded to enclosure body |
| Gland plate on face(s) | optional |
| Number of rails | see data table |
| Terminal type | Standard see PDF datasheet, other terminal types optional |
| Number of terminals per rail | see data table |
| Enclosure | 1.5 mm AISI 316L, (1.4404) stainless steel |
| Gland plate | optional 3 mm or 6 mm AISI 316L (1.4404) stainless steel |
| Finish | brushed |
| Ambient temperature | -60 ... 120 °C (-76 ... 248 °F) depending on integrated components |
| EU-type examination certificate | CML 20 ATEX 3118U |
| Marking II 2 GD Ex eb IIC Gb Ex tb IIIC Db | Marking II 2 GD Ex eb IIC Gb Ex tb IIIC Db |
| Marking | II 2 GD Ex eb IIC Gb Ex tb IIIC Db |
| UL approval | UL approval |
| Approved forClass I and II, Division 2 Class I, Zone 2, Class II, Zone 22cULusE499269Ambient temperature-25 ... 40 °C (-13 ... 104 °F) | Approved forClass I and II, Division 2 Class I, Zone 2, Class II, Zone 22cULusE499269Ambient temperature-25 ... 40 °C (-13 ... 104 °F) |
| IECEx approval | IECEx CML 20.0076U |
| UKCA approval | CML 21 UKEX 3423U |
| Approved for | Class I and II, Division 2 Class I, Zone 2, Class II, Zone 22 |
| cULus | E499269 |
| Ambient temperature | -25 ... 40 °C (-13 ... 104 °F) |
| Degree of protection | EN60529 or UL 50 / UL50E / CSA 22.2 No. 94 |
| Shock resistance | EN IEC 62262 |
| Order information | This device will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
| Optional accessories | Mounting plate M6 internal/external stainless steel grounding bolt cover hinges stainless steel AISI 316L gland plate 3 mm AISI 316L (1.4404) stainless steelgland plate 6 mm AISI 316L (1.4404) stainless steel M6 internal stainless steel grounding bolt welded to bottom gland plate quarter-turn key locks stainless steel A4 (V4A) engraved traffolyte tag labelengraved AISI 316L stainless steel tag labelcolor in-fill stainless steel tag label cover padlock facility eyebolts door handles |
