倍加福

TCP-LBF-IA1.36.IE*

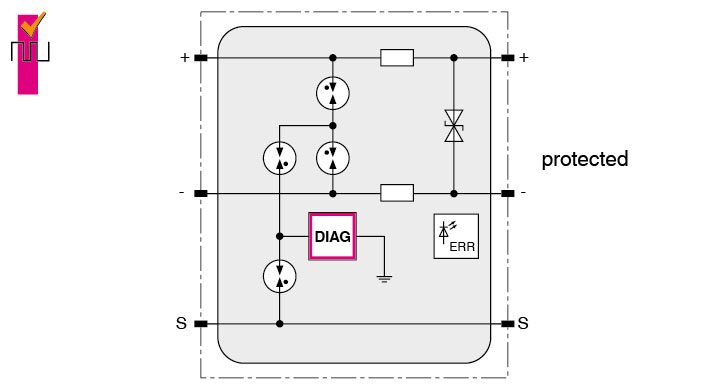

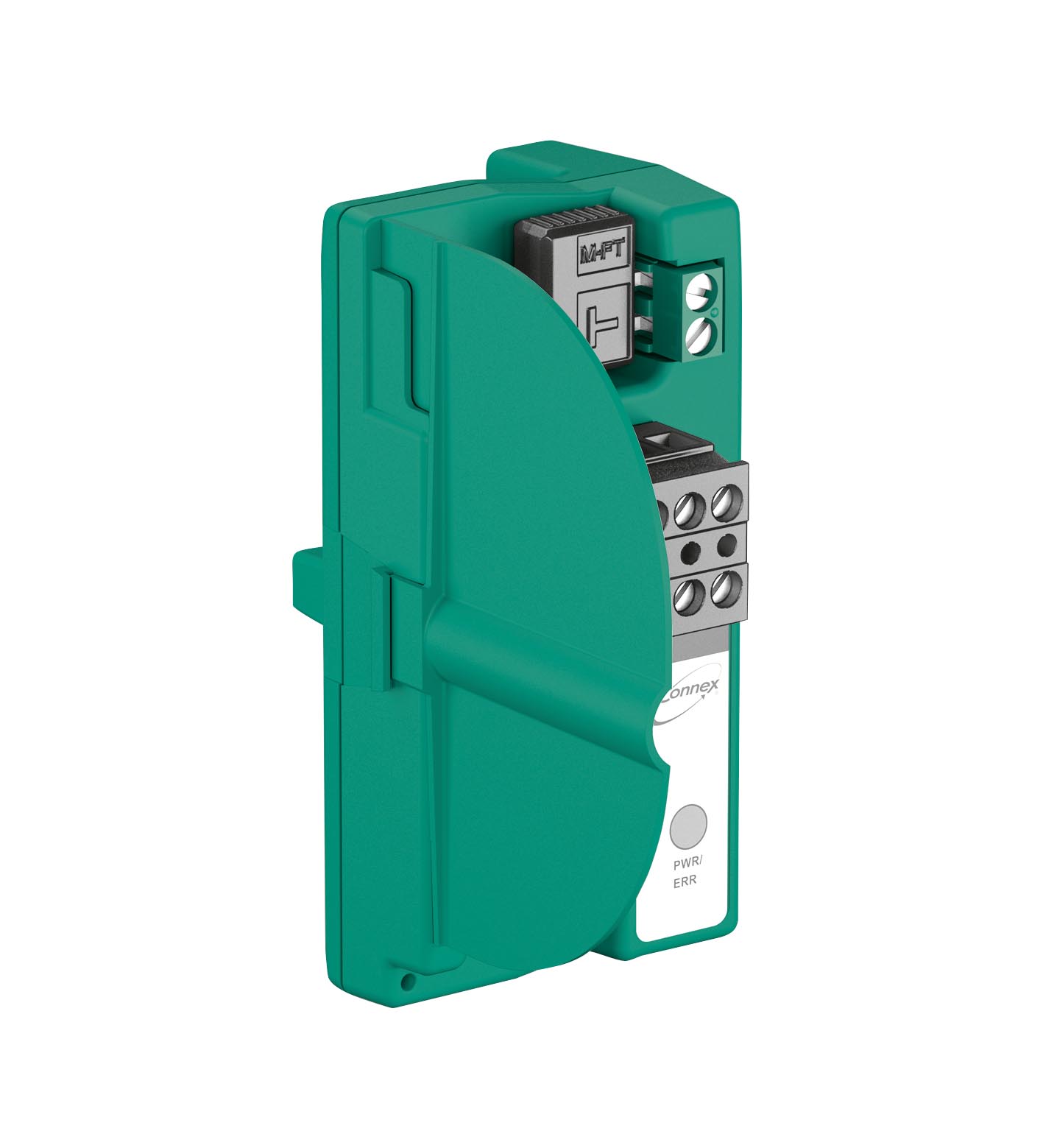

TCP-LBF-IA1.36.IE* Surge ProtectorFieldConnex® Fieldbus

订货号
T157350
产品分类
Fieldbus Protection

Surge protector, pluggable module for trunk installation on segment protector

查看规格参数 资料与附件

TECHNICAL DATA

规格参数

General specifications
Design / MountingCabinet installation
Installation in hazardous areaZone 1 / Div. 1
Self current consumptionmax. 6 mA (for version TCP-LBF-IA1.36.IE.1) , max. 0 mA (for version TCP-LBF-IA1.36.IE.0)
LED ERRgreen flashing: status OK , red flashing: maintenance required , (for version TCP-LBF-IA1.36.IE.1)
Rated voltage36 V
Rated current600 mA
Voltage protection levelUp
Line/Linemax. 50 V category B2 10/700 µsec , 25 A max. 50 V category C1 8/20 µsec , 300 A max. 55 V category C2 8/20 µsec , 5 kA max. 46 V category C3 1 kV/µsec , 10 A Line/Earthmax. 1060 V category B2 10/700 µsec , 50 A per linemax. 800 V category C1 8/20 µsec , 300 A per linemax. 1.5 kV category C2 8/20 µsec , 5 kA per linemax. 1.3 kV category C3 1 kV/µsec , 50 A per linemax. 1080 V category D1 10/350 µsec , 500 A per lineScreen/Shield indirectly grounded (via GDT)max. 500 V category B2 10/700 µsec , 100 A max. 600 V category C1 8/20 µsec , 500 A max. 720 V category C2 8/20 µsec , 10 kA max. 550 V category C3 1 kV/µsec , 100 A max. 570 V category D1 10/350 µsec , 1 kALine/Linemax. 50 V category B2 10/700 µsec , 25 A max. 50 V category C1 8/20 µsec , 300 A max. 55 V category C2 8/20 µsec , 5 kA max. 46 V category C3 1 kV/µsec , 10 A Line/Earthmax. 1060 V category B2 10/700 µsec , 50 A per linemax. 800 V category C1 8/20 µsec , 300 A per linemax. 1.5 kV category C2 8/20 µsec , 5 kA per linemax. 1.3 kV category C3 1 kV/µsec , 50 A per linemax. 1080 V category D1 10/350 µsec , 500 A per lineScreen/Shield indirectly grounded (via GDT)max. 500 V category B2 10/700 µsec , 100 A max. 600 V category C1 8/20 µsec , 500 A max. 720 V category C2 8/20 µsec , 10 kA max. 550 V category C3 1 kV/µsec , 100 A max. 570 V category D1 10/350 µsec , 1 kA
Reaction timetA
Line/Linemax. 1 nsLine/Earthmax. 100 nsScreen/Shield-Earthmax. 100 nsLine/Linemax. 1 nsLine/Earthmax. 100 nsScreen/Shield-Earthmax. 100 ns
Overstressed fault modeaccording IEC 61643-21 line inoperable mode 3
Series resistance in line2 Ω +/- 5 %
Impulse durabilityImpulse durability
Per line5 kA category C2 8/20 µsecScreen/Shield indirectly grounded (via GDT)1 kA category D1 10/350 µsec 10 kA category C2 8/20 µsecPer line5 kA category C2 8/20 µsecScreen/Shield indirectly grounded (via GDT)1 kA category D1 10/350 µsec 10 kA category C2 8/20 µsec
Line/Linemax. 50 V category B2 10/700 µsec , 25 A max. 50 V category C1 8/20 µsec , 300 A max. 55 V category C2 8/20 µsec , 5 kA max. 46 V category C3 1 kV/µsec , 10 A
Line/Earthmax. 1060 V category B2 10/700 µsec , 50 A per linemax. 800 V category C1 8/20 µsec , 300 A per linemax. 1.5 kV category C2 8/20 µsec , 5 kA per linemax. 1.3 kV category C3 1 kV/µsec , 50 A per linemax. 1080 V category D1 10/350 µsec , 500 A per line
Screen/Shield indirectly grounded (via GDT)max. 500 V category B2 10/700 µsec , 100 A max. 600 V category C1 8/20 µsec , 500 A max. 720 V category C2 8/20 µsec , 10 kA max. 550 V category C3 1 kV/µsec , 100 A max. 570 V category D1 10/350 µsec , 1 kA
Line/Linemax. 1 ns
Line/Earthmax. 100 ns
Screen/Shield-Earthmax. 100 ns
Per line5 kA category C2 8/20 µsec
Screen/Shield indirectly grounded (via GDT)1 kA category D1 10/350 µsec 10 kA category C2 8/20 µsec
Electromagnetic compatibilityElectromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013Directive 2014/30/EUEN 61326-1:2013
Directive 2014/30/EUEN 61326-1:2013
Electromagnetic compatibilityNAMUR NE 21
Degree of protectionIEC 60529
Fieldbus standardIEC 61158-2
Climatic conditionsIEC 60721
Shock resistanceEN 60068-2-27
Vibration resistanceEN 60068-2-6
Surge protectionIEC 61643-21
Ambient temperature-40 ... 70 °C (-40 ... 158 °F)
Storage temperature-40 ... 85 °C (-40 ... 185 °F)
Relative humidity≤ 95 % non-condensing
Shock resistance15 g 11 ms
Vibration resistance1 g , 10 ... 150 Hz
Corrosion resistanceacc. to ISA-S71.04-1985, severity level G3
Connection typescrew terminals
Core cross sectionflexible wire 2.5 mm2 solid wire max. 4 mm2
Housing materialPolyamide PA 6.6
Degree of protectionIP20
Mass80 g
GroundingM4 screw and external grounding rail
EU-type examination certificateSIRA 12 ATEX 2128X
Marking II 1G Ex ia IIC T4VoltageUi24 VCurrentIi500 mAInternal capacitanceCi2 nFInternal inductanceLi 0.1 µHMarking II 1G Ex ia IIC T4VoltageUi24 VCurrentIi500 mAInternal capacitanceCi2 nFInternal inductanceLi 0.1 µH
CertificateSIRA 12 ATEX 4176X
Marking II 3G Ex nAc IIC T4 , [exsign] II 3G Ex ic IIC T4VoltageUi33 VCurrentIi600 mAInternal capacitanceCi2 nFInternal inductanceLi 0.1 µHMarking II 3G Ex nAc IIC T4 , [exsign] II 3G Ex ic IIC T4VoltageUi33 VCurrentIi600 mAInternal capacitanceCi2 nFInternal inductanceLi 0.1 µH
Directive conformityDirective conformity
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010
Supplementary informationFISCO field device
MarkingII 1G Ex ia IIC T4
Voltage24 V
Current500 mA
Internal capacitance2 nF
Internal inductance0.1 µH
MarkingII 3G Ex nAc IIC T4 , [exsign] II 3G Ex ic IIC T4
Voltage33 V
Current600 mA
Internal capacitance2 nF
Internal inductance0.1 µH
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010
CSA approvalCoC 2595441
Control drawing116-0365Approved forClass I, Division 1, Groups A, B, C, D T4Class I, Zone 1, Ex ia IIC T4Class I, Zone 2, Ex ic IIC T4Class I, Zone 1, AEx ia IIC T4Class I, Zone 2, AEx ic IIC T4Class I, Division 2, Groups A, B, C, D T4Class I, Zone 2, Ex nL IIC T4Class I, Zone 2, Ex nA IIC T4Class I, Zone 2, AEx nAc IIC T4Control drawing116-0365Approved forClass I, Division 1, Groups A, B, C, D T4Class I, Zone 1, Ex ia IIC T4Class I, Zone 2, Ex ic IIC T4Class I, Zone 1, AEx ia IIC T4Class I, Zone 2, AEx ic IIC T4Class I, Division 2, Groups A, B, C, D T4Class I, Zone 2, Ex nL IIC T4Class I, Zone 2, Ex nA IIC T4Class I, Zone 2, AEx nAc IIC T4
IECEx approvalIECEx approval
IECEx certificateIECEx SIR 12.0051XIECEx markingEx ia IIC T4 Ex ic IIC T4 Ex nAc IIC T4IECEx certificateIECEx SIR 12.0051XIECEx markingEx ia IIC T4 Ex ic IIC T4 Ex nAc IIC T4
Control drawing116-0365
Approved forClass I, Division 1, Groups A, B, C, D T4Class I, Zone 1, Ex ia IIC T4Class I, Zone 2, Ex ic IIC T4Class I, Zone 1, AEx ia IIC T4Class I, Zone 2, AEx ic IIC T4Class I, Division 2, Groups A, B, C, D T4Class I, Zone 2, Ex nL IIC T4Class I, Zone 2, Ex nA IIC T4Class I, Zone 2, AEx nAc IIC T4
IECEx certificateIECEx SIR 12.0051X
IECEx markingEx ia IIC T4 Ex ic IIC T4 Ex nAc IIC T4
Supplementary informationStatement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
