TECHNICAL DATA
规格参数
Hardware
| Processor | Intel® Atom Elkhart Lake x6211E |
|---|---|
| RAM | 4 GB |
| Mass storage | 64 GByte industrial grade MLC SSD |
| Input voltage | 24 V DC ± 10 % (SELV/PELV) |
| Power consumption | 14 W average, 30 W max. |
| Interface type | Standard:1 x Ethernet 100/1000BASE-TX (Ex e) or1 x fiber optic 1000BASE-SX (Multimode) or1 x fiber optic 1000BASE-LX (Singlemode),1 x USB 2.0 (Ex e; service port),2 x USB 1.1 (Ex i; intended for Pepperl+Fuchs keyboard and mouse) Optional:1 x barcode reader interface Pepperl+Fuchs Pscan-D/B (Ex i) "S3": 1 x barcode reader interface for wired 1-D scanners IDM-160-D*, IDM-Z1-160-D-* and base station IDMx61-B-* and IDM-Z1-x61-B-* (Ex i)"S4": 1 x barcode reader interface for wired 2-D Scanner IDM-Z1-260-D-* (Ex i)"S5": 1 x RS-232 interface with Power Supply for miscellaneous devices and peripherals (Ex i) 1 x RS-232 (Ex e) 1 x RS-485 (Ex e) 1 x Ethernet 100/1000Base-TX (Ex e) Bluetooth v4.0, communication distance up to 30 m in open terrain, transmission power +8 dBm, transmission frequency 2.402 ... 2.48 GHz |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 (industrial locations) ; EN 61000-6-4:2007+A1:2011 | Directive 2014/30/EUEN 61326-1:2013 (industrial locations) ; EN 61000-6-4:2007+A1:2011 |
| RoHS | RoHS |
| Directive 2011/65/EU (RoHS)EN 50581:2012-09 | Directive 2011/65/EU (RoHS)EN 50581:2012-09 |
| Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) ; EN 61000-6-4:2007+A1:2011 |
| Directive 2011/65/EU (RoHS) | EN 50581:2012-09 |
| Operating system | VisuNet RM Shell 6 (based on Windows® 10 IoT Enterprise LTSC 2021 x64) Optional:TSJ-: IGEL OS 12 (based on Linux, pre-installed without licence)TSI-: IGEL OS 11 (based on Linux, pre-installed without licence) (pending) |
| Operating temperature | -20 ... 65 °C (-4 ... 149 °F) |
| Storage temperature | -20 ... 65 °C (-4 ... 149 °F) |
| Relative humidity | 93% at 40°C, non-condensating, according to EN 60068-2-78 |
| Shock resistance | 18 shocks 15 g , 11 ms all axis, IEC 60068-2-27 |
| Vibration resistance | 10 ... 150 Hz, +/- 0.075 mm , 1g, 10 cycles per axis according to EN60068-2-6 |
| Degree of protection | IP66 ( when mounted on the display unit from Pepperl+Fuchs ) |
| Material | Material |
| Housinganodized aluminum | Housinganodized aluminum |
| Mass | approx. 4 kg |

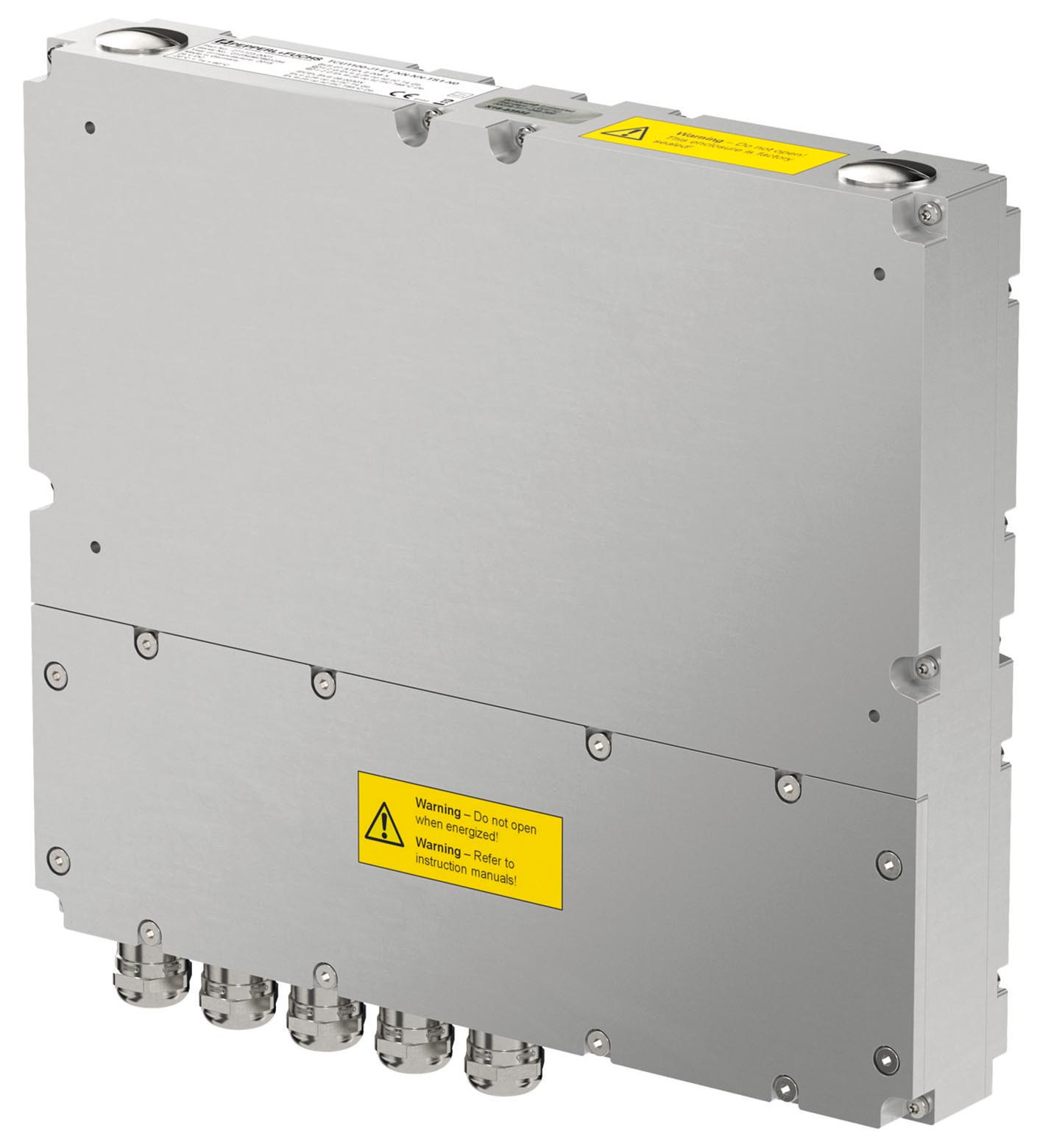

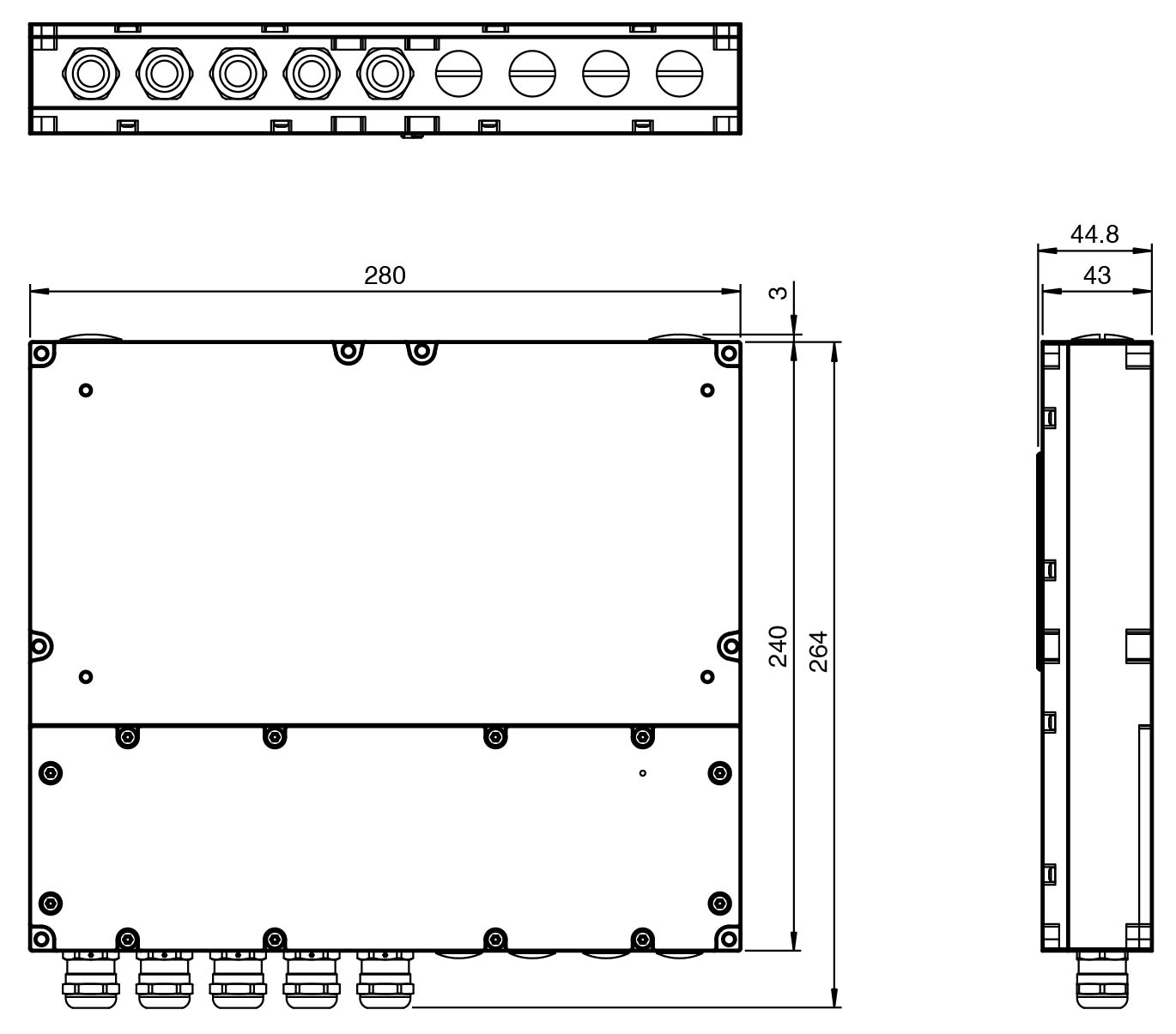

| Dimensions | 280 mm x 240 mm x 43 mm |
| Housing | anodized aluminum |
| EU-type examination certificate | BVS 16 ATEX E 082 X |
| Marking II 3G Ex ec [ib] IIC T4 IP66 Gc [exsign] II 3D Ex tc [ib] IIIC T85°C IP66 Dc | Marking II 3G Ex ec [ib] IIC T4 IP66 Gc [exsign] II 3D Ex tc [ib] IIIC T85°C IP66 Dc |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN 60079-0:2012+A11:2013, EN 60079-7:2015, EN 60079-11:2012, EN 60079-31:2014 | Directive 2014/34/EUEN 60079-0:2012+A11:2013, EN 60079-7:2015, EN 60079-11:2012, EN 60079-31:2014 |
| Marking | II 3G Ex ec [ib] IIC T4 IP66 Gc [exsign] II 3D Ex tc [ib] IIIC T85°C IP66 Dc |
| Directive 2014/34/EU | EN 60079-0:2012+A11:2013, EN 60079-7:2015, EN 60079-11:2012, EN 60079-31:2014 |
| IECEx approval | IECEx BVS 16.0060X |
| Approved forEx ec [ib] IIC T4 IP66 GcEx tc [ib] IIIC T85°C IP66 DcStandardsIEC 60079-0:2011, IEC 60079-7:2015, IEC 60079-11:2011, IEC 60079-31:2013 | Approved forEx ec [ib] IIC T4 IP66 GcEx tc [ib] IIIC T85°C IP66 DcStandardsIEC 60079-0:2011, IEC 60079-7:2015, IEC 60079-11:2011, IEC 60079-31:2013 |
| Approved for | Ex ec [ib] IIC T4 IP66 GcEx tc [ib] IIIC T85°C IP66 Dc |
| Standards | IEC 60079-0:2011, IEC 60079-7:2015, IEC 60079-11:2011, IEC 60079-31:2013 |
