UB1000-18GM75-E4-V15

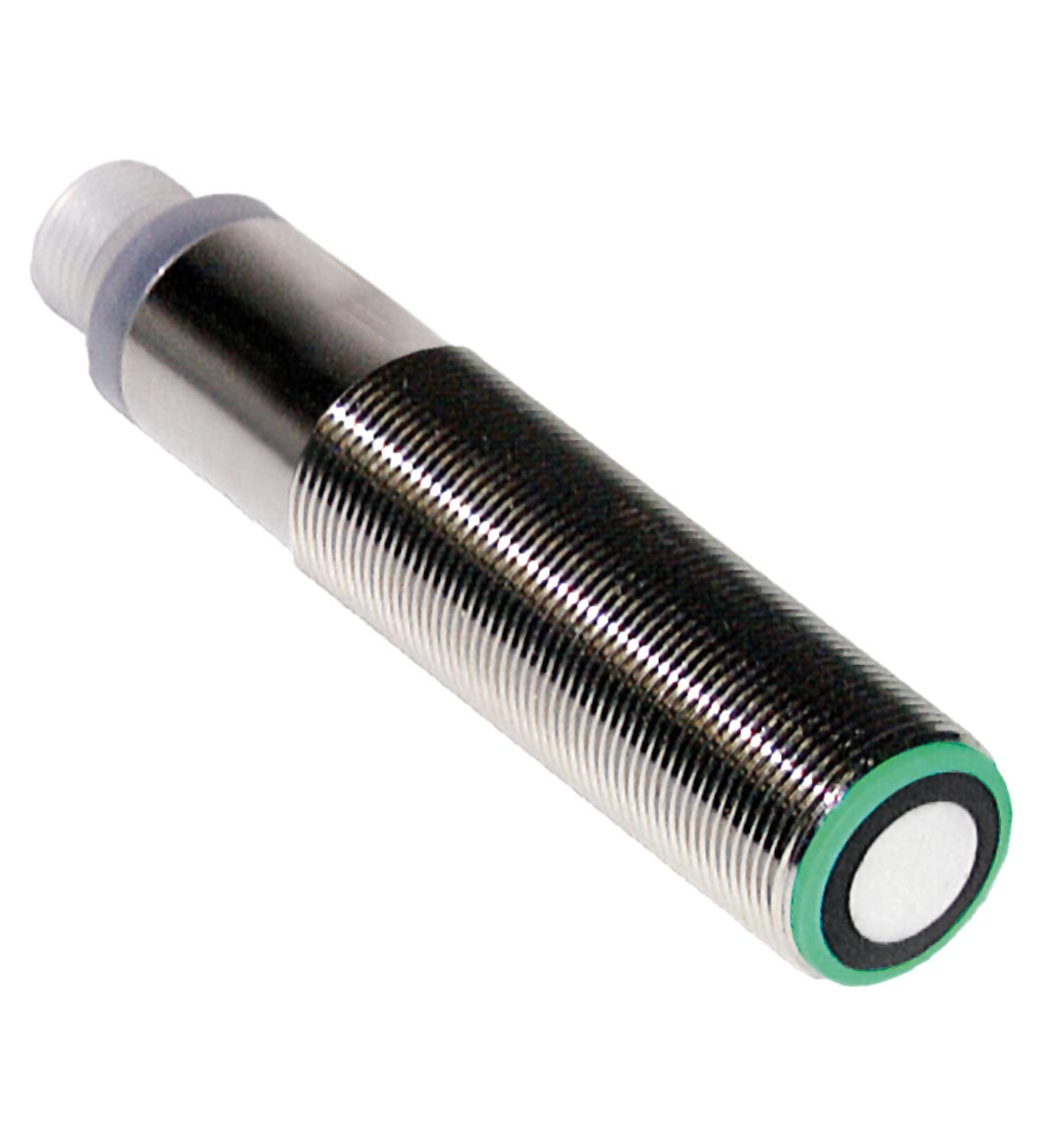

UB1000-18GM75-E4-V15 超声波传感器

订货号: 204529
产品分类: 漫反射型传感器和反射板型传感器

单头系统

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Sensing range	70 ... 1000 mm
Adjustment range	90 ... 1000 mm
Dead band	0 ... 70 mm
Standard target plate	100 mm x 100 mm
Transducer frequency	approx. 255 kHz
Response delay	approx. 125 ms
LED yellow	indication of the switching stateflashing: program function object detected
LED red	solid red: Errorred, flashing: program function, object not detected
Operating voltage	10 ... 30 V DC , ripple 10 %SS
No-load supply current	≤ 50 mA
Synchronization	1 synchronous connection, bi-directional0-level: -UB...+1 V1-level: +4 V...+UB input impedance: > 12 kΩsynchronization pulse: ≥ 100 µs, synchronization interpulse period: ≥ 2 ms
Synchronization frequency	Synchronization frequency
Common mode operationmax. 40 HzMultiplex operation≤ 40 Hz / n, n = number of sensors, n ≤ 5	Common mode operationmax. 40 HzMultiplex operation≤ 40 Hz / n, n = number of sensors, n ≤ 5
Common mode operation	max. 40 Hz
Multiplex operation	≤ 40 Hz / n, n = number of sensors, n ≤ 5
Input type	1 program input,operating range 1: -UB ... +1 V, operating range 2: +4 V ... +UB input impedance: > 4.7 kΩ; program pulse: ≥ 1 s
Output type	1 switch output NPN Normally open/closed , programmable
Rated operating current	200 mA , short-circuit/overload protected
Voltage drop	≤ 3 V
Repeat accuracy	≤ 1 %
Switching frequency	max. 3 Hz
Range hysteresis	1 % of the set operating distance
Temperature influence	± 1.5 % of full-scale value
Standard conformity	Standard conformity
StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019	StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019
Standards	EN IEC 60947-5-2:2020 IEC 60947-5-2:2019
UL approval	cULus Listed, Class 2 Power Source
CCC approval	CCC approval / marking not required for products rated ≤36 V
Ambient temperature	-25 ... 70 °C (-13 ... 158 °F)
Storage temperature	-40 ... 85 °C (-40 ... 185 °F)
Connection type	Connector plug M12 x 1 , 5-pin
Degree of protection	IP67
Material	Material
Housingbrass, nickel-platedTransducerepoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT	Housingbrass, nickel-platedTransducerepoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT
Mass	60 g

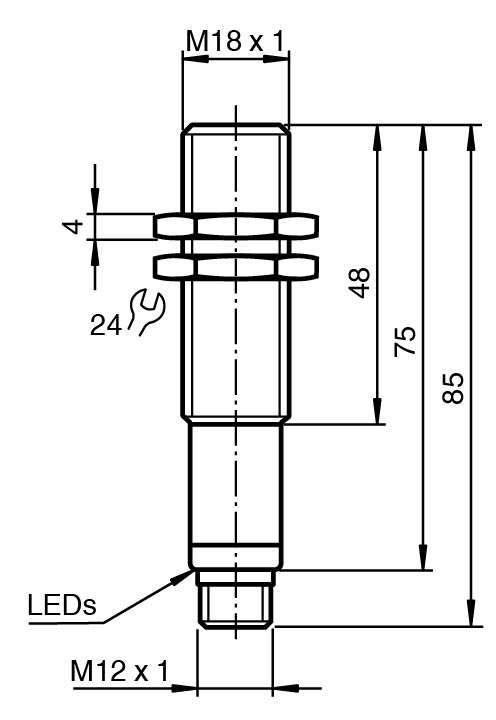

Dimensions	Dimensions
Length75 mmDiameter18 mm	Length75 mmDiameter18 mm
Housing	brass, nickel-plated
Transducer	epoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT
Length	75 mm
Diameter	18 mm
Output	Switch point A1: 90 mm Switch point A2: 1000 mm output function: Window mode output behavior: NO contact
Beam width	wide

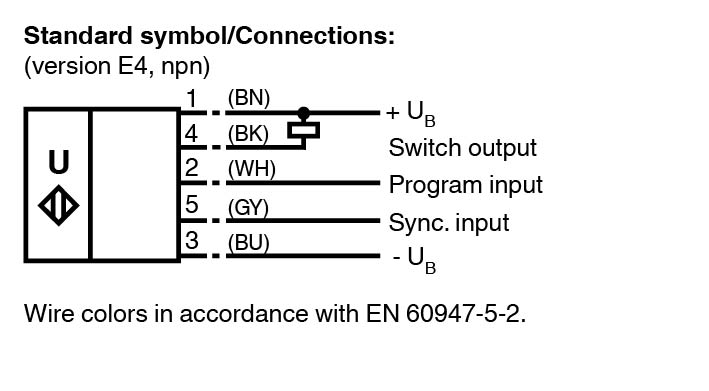

Connector pinout	Connector pinout
Pin 1L+Pin 2Program inputPin 3L-Pin 4QPin 5Sync	Pin 1L+Pin 2Program inputPin 3L-Pin 4QPin 5Sync

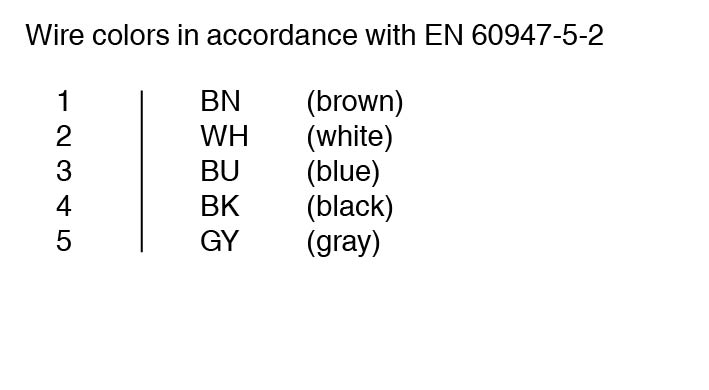

Function description	Function description
Pin 1 / brown (BN)Supply voltage L+Pin 2 / white (WH)Program inputPin 3 / blue (BU)Supply voltage L-Pin 4 / black (BK)Output, object present -> Output Q to L+Pin 5 / gray (GY)Synchronization input	Pin 1 / brown (BN)Supply voltage L+Pin 2 / white (WH)Program inputPin 3 / blue (BU)Supply voltage L-Pin 4 / black (BK)Output, object present -> Output Q to L+Pin 5 / gray (GY)Synchronization input
Pin 1	L+
Pin 2	Program input
Pin 3	L-
Pin 4	Q
Pin 5	Sync
Pin 1 / brown (BN)	Supply voltage L+
Pin 2 / white (WH)	Program input
Pin 3 / blue (BU)	Supply voltage L-
Pin 4 / black (BK)	Output, object present -> Output Q to L+
Pin 5 / gray (GY)	Synchronization input
