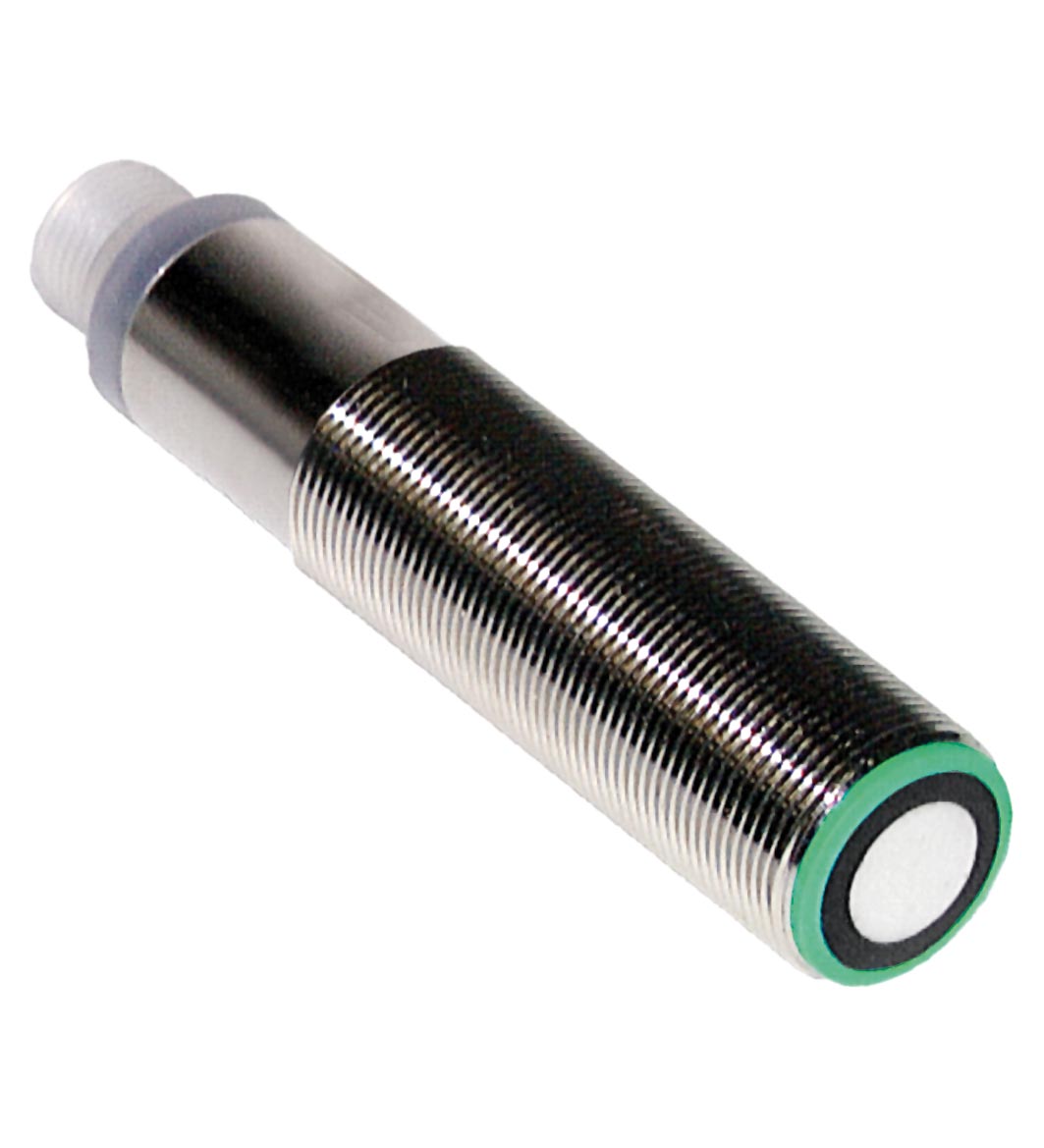

TECHNICAL DATA
规格参数
General specifications
| Sensing range | 70 ... 1000 mm |
|---|---|
| Adjustment range | 90 ... 1000 mm |
| Dead band | 0 ... 70 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | approx. 255 kHz |
| Response delay | approx. 125 ms |
| LED yellow | indication of the switching stateflashing: program function object detected |
| LED red | "Error", object uncertainin program function: No object detected |
| Operating voltage | 10 ... 30 V DC , ripple 10 %SS |
| No-load supply current | ≤ 50 mA |
| Input type | 1 program input,operating range 1: -UB ... +1 V, operating range 2: +4 V ... +UB input impedance: > 4.7 kΩ; program pulse: ≥ 1 s |
| Output type | 2 switch outputs NPN, normally open/closed , programmable |
| Rated operating current | 2 x 100 mA , short-circuit/overload protected |
| Voltage drop | ≤ 3 V |
| Repeat accuracy | ≤ 1 % |
| Switching frequency | max. 3 Hz |
| Range hysteresis | 1 % of the set operating distance |
| Temperature influence | ± 1.5 % of full-scale value |
| Standard conformity | Standard conformity |
| StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019 | StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019 |
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 |
| UL approval | cULus Listed, Class 2 Power Source |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Connection type | Connector plug M12 x 1 , 5-pin |
| Degree of protection | IP67 |
| Material | Material |
| Housingbrass, nickel-platedTransducerepoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT | Housingbrass, nickel-platedTransducerepoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT |
| Mass | 60 g |

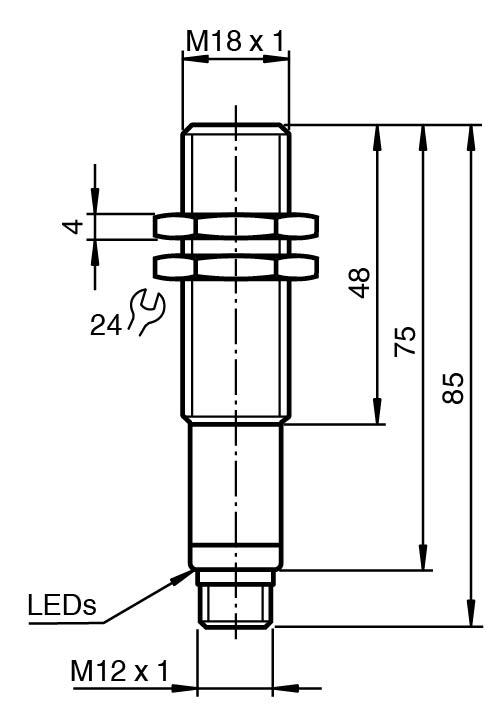

| Dimensions | Dimensions |
| Length75 mmDiameter18 mm | Length75 mmDiameter18 mm |
| Housing | brass, nickel-plated |
| Transducer | epoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT |
| Length | 75 mm |
| Diameter | 18 mm |
| Output 1 | Switching point: 90 mm output function: Switch point operation mode output behavior: NO contact |
| Output 2 | Switching point: 1000 mm output function: Switch point operation mode output behavior: NO contact |
| Beam width | wide |

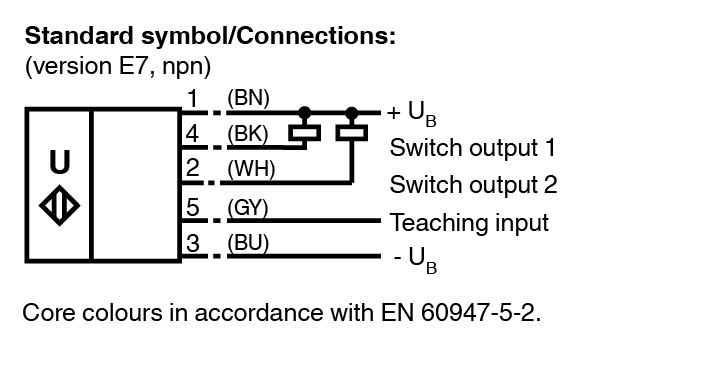

| Connector pinout | Connector pinout |
| Pin 1L+Pin 2Q2Pin 3L-Pin 4Q1Pin 5Program input | Pin 1L+Pin 2Q2Pin 3L-Pin 4Q1Pin 5Program input |
| Function description | Function description |
| Pin 1 / brown (BN)Supply voltage L+Pin 2 / white (WH)Output, object present -> Output Q2 to L+Pin 3 / blue (BU)Supply voltage L-Pin 4 / black (BK)Output, object present -> Output Q1 to L+Pin 5 / gray (GY)Program input | Pin 1 / brown (BN)Supply voltage L+Pin 2 / white (WH)Output, object present -> Output Q2 to L+Pin 3 / blue (BU)Supply voltage L-Pin 4 / black (BK)Output, object present -> Output Q1 to L+Pin 5 / gray (GY)Program input |
| Pin 1 | L+ |
| Pin 2 | Q2 |
| Pin 3 | L- |
| Pin 4 | Q1 |
| Pin 5 | Program input |

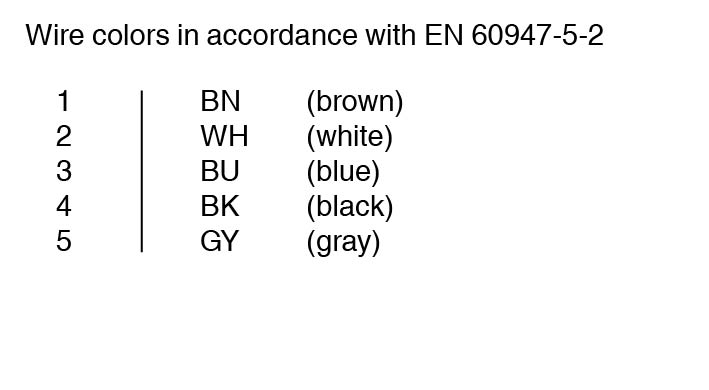

| Pin 1 / brown (BN) | Supply voltage L+ |
| Pin 2 / white (WH) | Output, object present -> Output Q2 to L+ |
| Pin 3 / blue (BU) | Supply voltage L- |
| Pin 4 / black (BK) | Output, object present -> Output Q1 to L+ |
| Pin 5 / gray (GY) | Program input |
