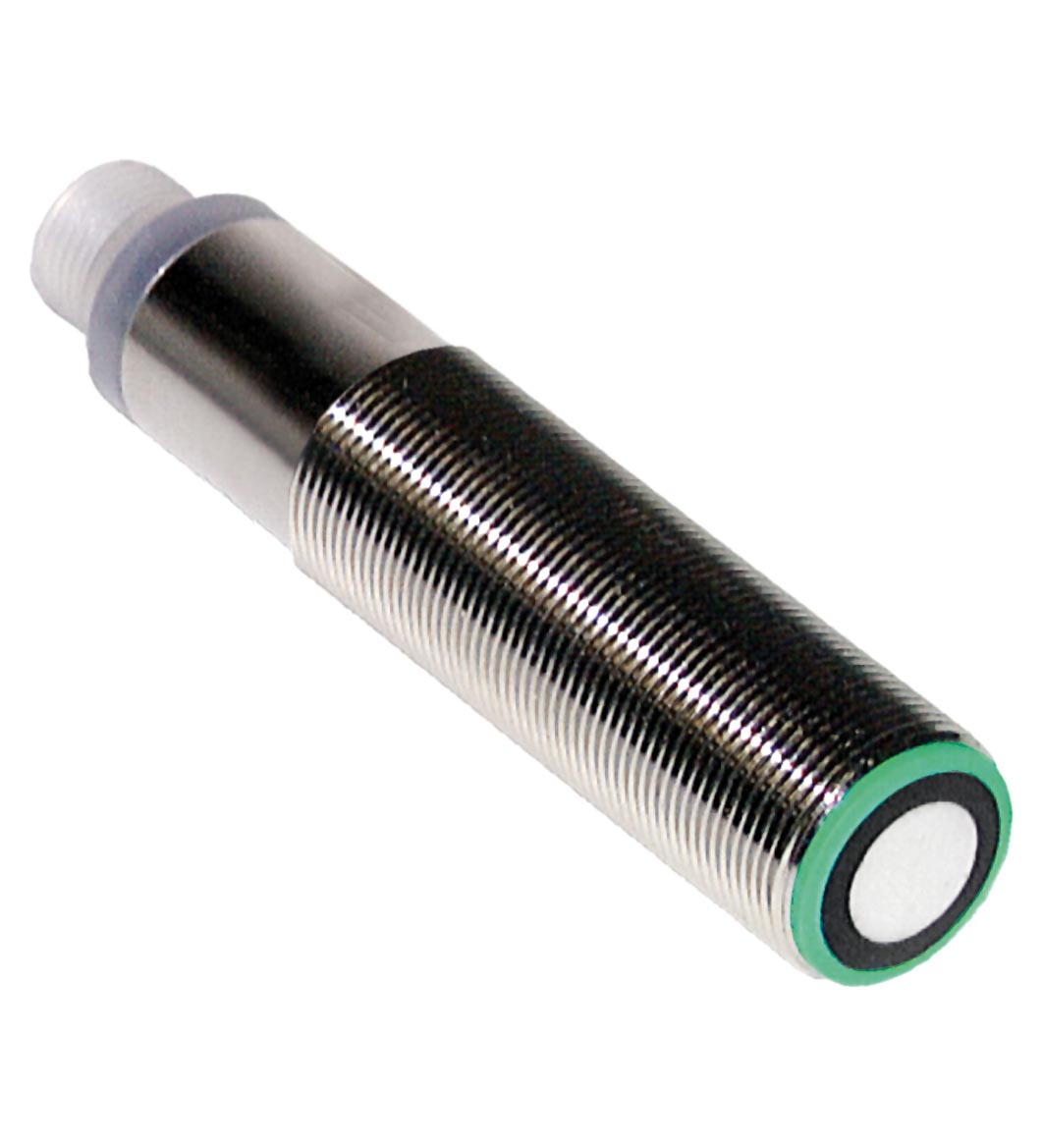

TECHNICAL DATA
规格参数
General specifications
| Sensing range | 70 ... 1000 mm |
|---|---|
| Adjustment range | 90 ... 1000 mm |
| Dead band | 0 ... 70 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | approx. 255 kHz |
| Response delay | approx. 125 ms |
| LED yellow | solid yellow: object in the evaluation rangeyellow, flashing: program function, object detected |
| LED red | solid red: Errorred, flashing: program function, object not detected |
| Operating voltage | 10 ... 30 V DC , ripple 10 %SS |
| No-load supply current | ≤ 45 mA |
| Synchronization | 1 synchronous connection, bi-directional0-level: -UB...+1 V1-level: +4 V...+UB input impedance: > 12 kΩsynchronization pulse: ≥ 100 µs, synchronization interpulse period: ≥ 2 ms |
| Synchronization frequency | Synchronization frequency |
| Common mode operationmax. 40 HzMultiplex operation≤ 40 Hz / n, n = number of sensors, n ≤ 5 | Common mode operationmax. 40 HzMultiplex operation≤ 40 Hz / n, n = number of sensors, n ≤ 5 |
| Common mode operation | max. 40 Hz |
| Multiplex operation | ≤ 40 Hz / n, n = number of sensors, n ≤ 5 |
| Input type | 1 program inputlower evaluation limit A1: -UB ... +1 V, upper evaluation limit A2: +4 V ... +UB input impedance: > 4.7 kΩ, pulse duration: ≥ 1 s |
| Output type | 1 analog output 4 ... 20 mA |
| Resolution | 0.35 mm |
| Deviation of the characteristic curve | ± 1 % of full-scale value |
| Repeat accuracy | ± 0.1 % of full-scale value |
| Load impedance | 0 ... 300 Ohm |
| Temperature influence | ± 1.5 % of full-scale value |
| Standard conformity | Standard conformity |
| StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003 | StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003 |
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003 |
| UL approval | cULus Listed, Class 2 Power Source |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Connection type | Connector plug M12 x 1 , 5-pin |
| Degree of protection | IP67 |
| Material | Material |
| Housingbrass, nickel-platedTransducerepoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT | Housingbrass, nickel-platedTransducerepoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT |
| Mass | 60 g |

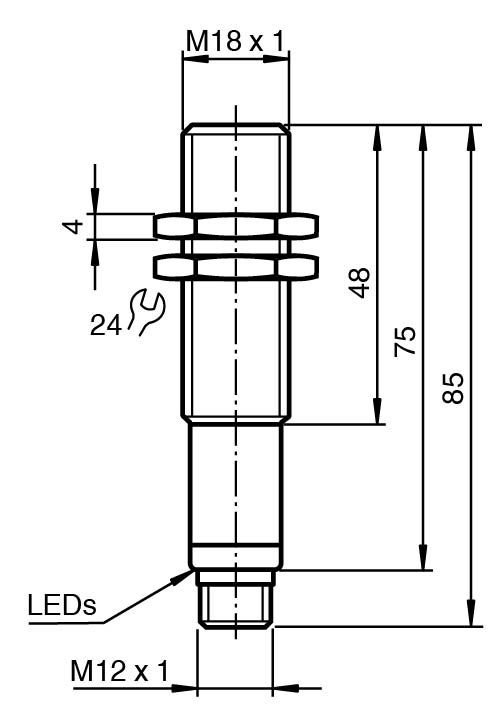

| Dimensions | Dimensions |
| Length75 mmDiameter18 mm | Length75 mmDiameter18 mm |
| Housing | brass, nickel-plated |
| Transducer | epoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT |
| Length | 75 mm |
| Diameter | 18 mm |
| Output | evaluation limit A1: 90 mm evaluation limit A2: 1000 mm output function: rising ramp |
| Beam width | wide |

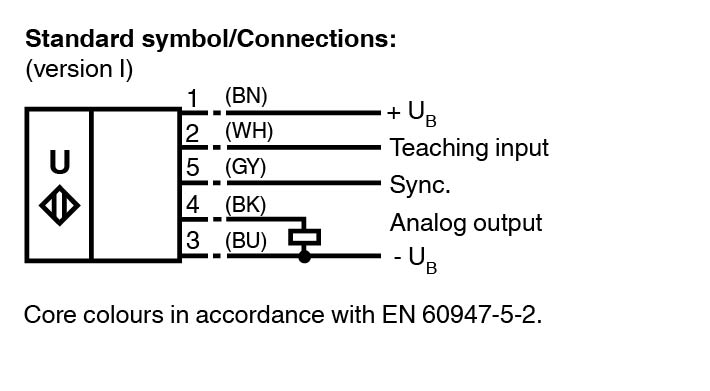

| Connector pinout | Connector pinout |
| Pin 1L+Pin 2Program inputPin 3L-Pin 4IPin 5Sync | Pin 1L+Pin 2Program inputPin 3L-Pin 4IPin 5Sync |

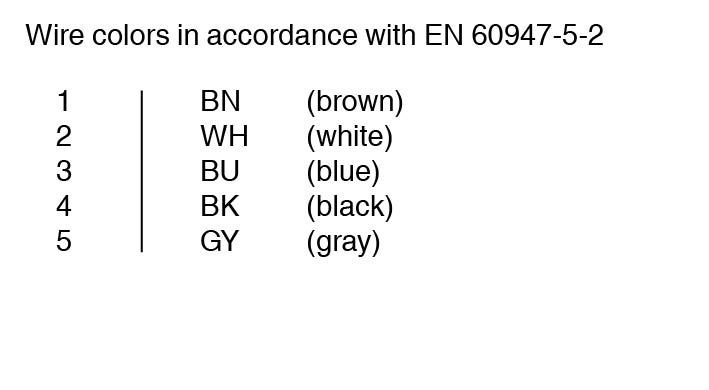

| Function description | Function description |
| Pin 1 / brown (BN)Supply voltage L+Pin 2 / white (WH)Program inputPin 3 / blue (BU)Supply voltage L-Pin 4 / black (BK)analog current outputPin 5 / gray (GY)Synchronization input | Pin 1 / brown (BN)Supply voltage L+Pin 2 / white (WH)Program inputPin 3 / blue (BU)Supply voltage L-Pin 4 / black (BK)analog current outputPin 5 / gray (GY)Synchronization input |
| Pin 1 | L+ |
| Pin 2 | Program input |
| Pin 3 | L- |
| Pin 4 | I |
| Pin 5 | Sync |
| Pin 1 / brown (BN) | Supply voltage L+ |
| Pin 2 / white (WH) | Program input |
| Pin 3 / blue (BU) | Supply voltage L- |
| Pin 4 / black (BK) | analog current output |
| Pin 5 / gray (GY) | Synchronization input |
