TECHNICAL DATA
规格参数
Electrical specifications
| Rated voltage | 24 V DC |
|---|---|
| Rated current | 4 A |
| Ambient temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Connection | 3 conductors |
| Supply2 ConductorsFault output1 Conductors | Supply2 ConductorsFault output1 Conductors |
| Dimensions | 35 x 15 x 1600 mm (1.4 x 0.6 x 63 inch) (W x H x L) |
| Height15 mmWidth35 mmLength1600 mm | Height15 mmWidth35 mmLength1600 mm |
| Supply | 2 Conductors |
| Fault output | 1 Conductors |
| Height | 15 mm |
| Width | 35 mm |
| Length | 1600 mm |

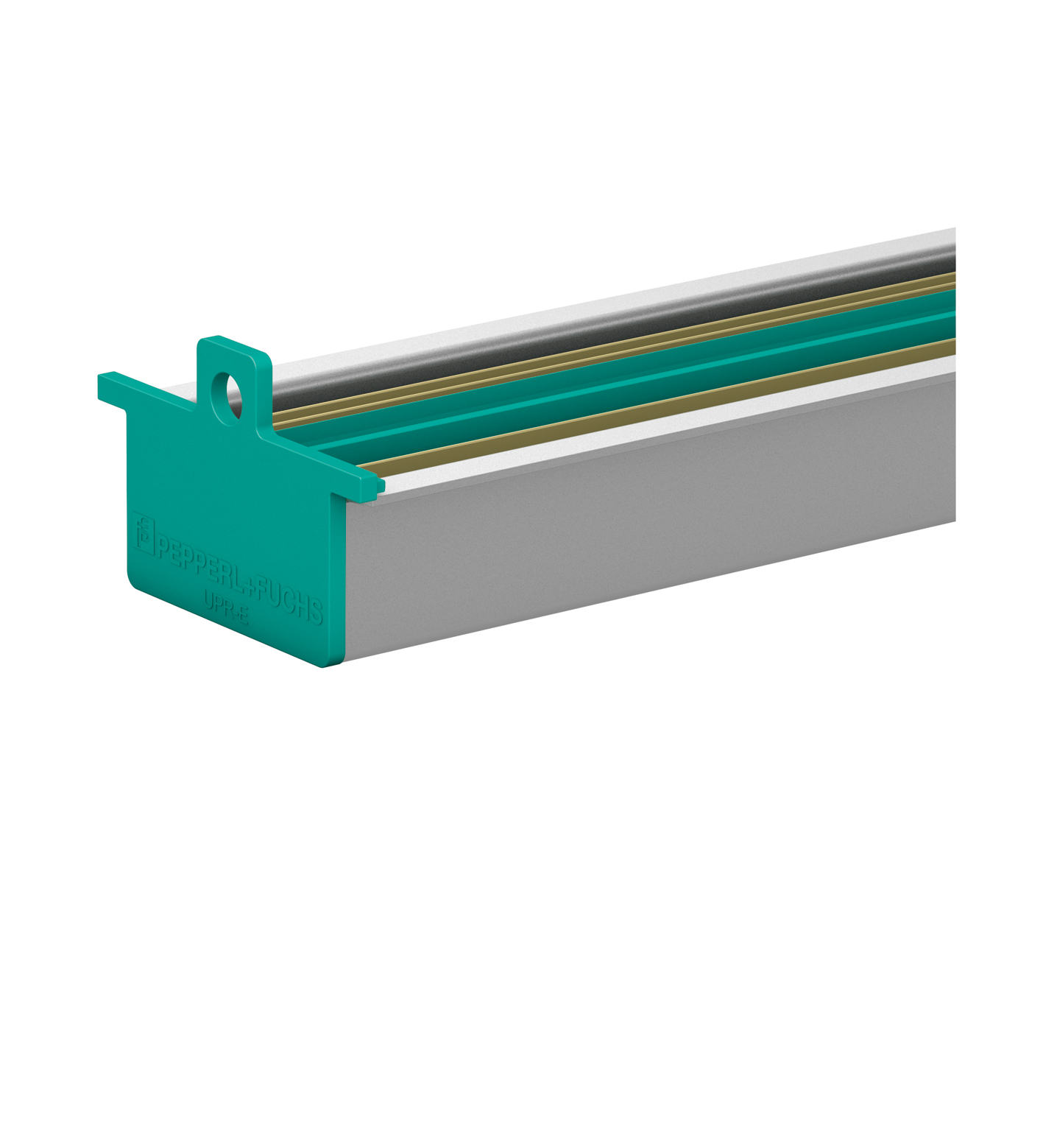

| Scope of delivery | - DIN mounting rail UPR-MR- insert UPR-INS-03- cover UPR-COVER - end cap UPR-E |
