TECHNICAL DATA
规格参数
Ambient conditions
| Ambient temperature | -40 ... 70 °C (-40 ... 158 °F) |
|---|---|
| Material | Polycarbonate |
| Mass | approx. 100 g |

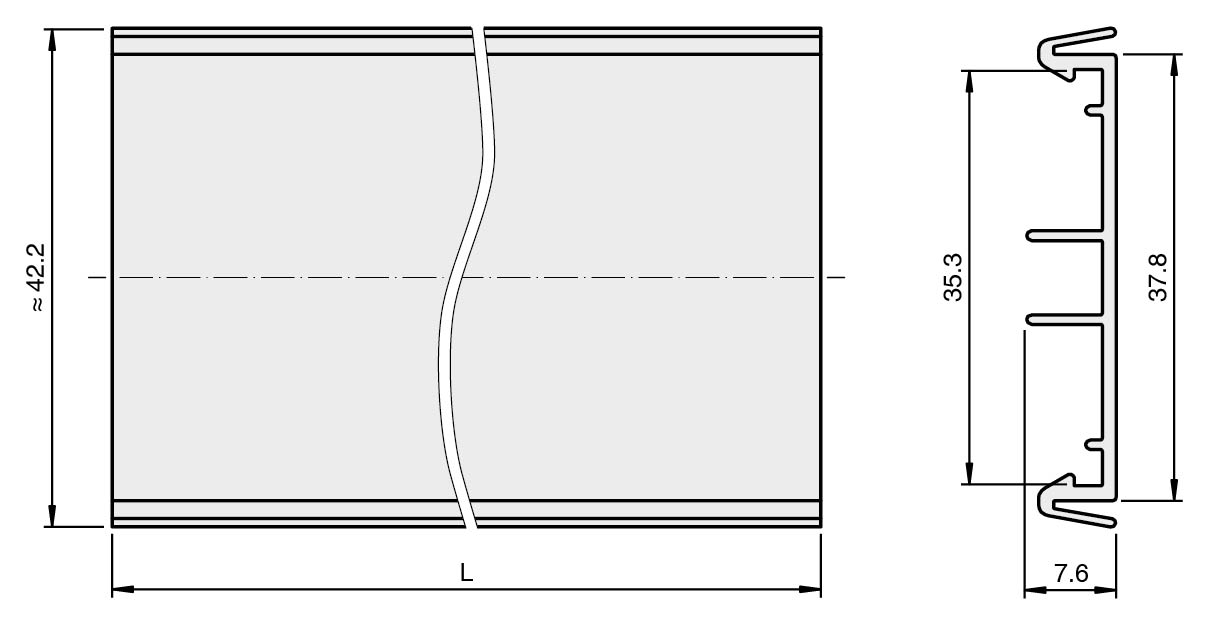

| Dimensions | 7.6 x 42.2 x 800 mm (0.3 x 1.66 x 31.5 inch) |
| Height7.6 mmWidth42.2 mmLength800 mm | Height7.6 mmWidth42.2 mmLength800 mm |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 |
| Height | 7.6 mm |
| Width | 42.2 mm |
| Length | 800 mm |
| Packing unit | 2 item(s) |
DOCUMENTS & DOWNLOADS
资料与附件
暂无 STP 图纸。
